Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 5 on 4-1/2 - Load Range D

Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 5 on 4-1/2 - Load Range D

Item # AM3H323
lowest price pledge
Our Price: $113.69
Tires and Wheels
This item qualifies for Free Shipping
Shipping Weight: 19 lbs
Quantity:
In Stock, Ships Today
AM3H323 - Load Range D Kenda Tires and Wheels
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Bias tire has a ply rating of 8 and a 1,165-lb maximum load at 70 psi. The 8" diameter x 7" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish. Lowest Prices for the best tires and wheels from Kenda. Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 5 on 4-1/2 - Load Range D part number AM3H323 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (4388)
  • Q & A (26)
  • Videos (1)
  • Photos
  • Why etrailer?

Kenda Tires and Wheels - AM3H323

  • Tire with Wheel
  • 8 Inch
  • 5 on 4-1/2 Inch
  • 215/60-8
  • Load Range D
  • Steel Wheels - Powder Coat
  • Bias Ply Tire
  • Kenda
  • Standard Rust Resistance

Bias tire has a ply rating of 8 and a 1,165-lb maximum load at 70 psi. The 8" diameter x 7" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish.


Features:

  • Kenda Loadstar trailer tire offers excellent handling
    • Bias cut provides superior stability
    • Modern tread design reduces rolling resistance for a smooth ride
  • Steel wheel resists rust and corrosion
    • White powder coat finish over e-coat primer
  • Tire-and-wheel assembly meets Department of Transportation specifications


Specs:

  • Rim dimensions: 8" diameter x 7" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel capacity: 1,040 lbs
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 2.8"
  • Tire size: 215/60-8
    • Section width: 8.9"
    • Outer diameter (when inflated): 18.1"
  • Tire capacity:
    • Load range: D
    • Ply rating: 8
    • Maximum load: 1,165 lbs at 70 psi
  • Maximum speed: 81 mph (speed rating M)
  • Limited 2-year warranty on tire
  • Limited 1-year warranty on wheel


Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




3H323 Solid 8" White Wheel and Kenda Loadstar K399 Bias Tire - LR D

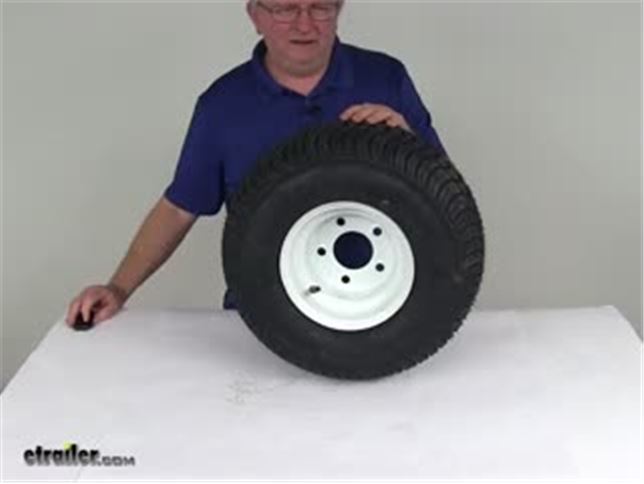

Video of Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 5 on 4-1/2 - Load Range D
