Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range C
Kenda

Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range C

Part Number: AM3H290
In Stock
$90.86
Retail:$116.33
You Save: 22%
Trailer Tires and Wheels
Kenda Trailer Tires and Wheels - AM3H290
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Need help with installation?
Locate installers near me
Bias tire has a ply rating of 6 and a 940-lb maximum load at 50 psi. The 8" diameter x 7" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish. Great Prices for the best trailer tires and wheels from Kenda. Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range C part number AM3H290 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (7182)
  • Q & A (0)
  • Photos

Kenda Trailer Tires and Wheels - AM3H290

  • 8 Inch
  • Tire with Wheel
  • 4 on 4 Inch
  • 215/60-8
  • Load Range C
  • Steel Wheels - Powder Coat
  • Bias Ply Tire
  • M - 81 mph
  • Kenda

Bias tire has a ply rating of 6 and a 940-lb maximum load at 50 psi. The 8" diameter x 7" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish.


Features:

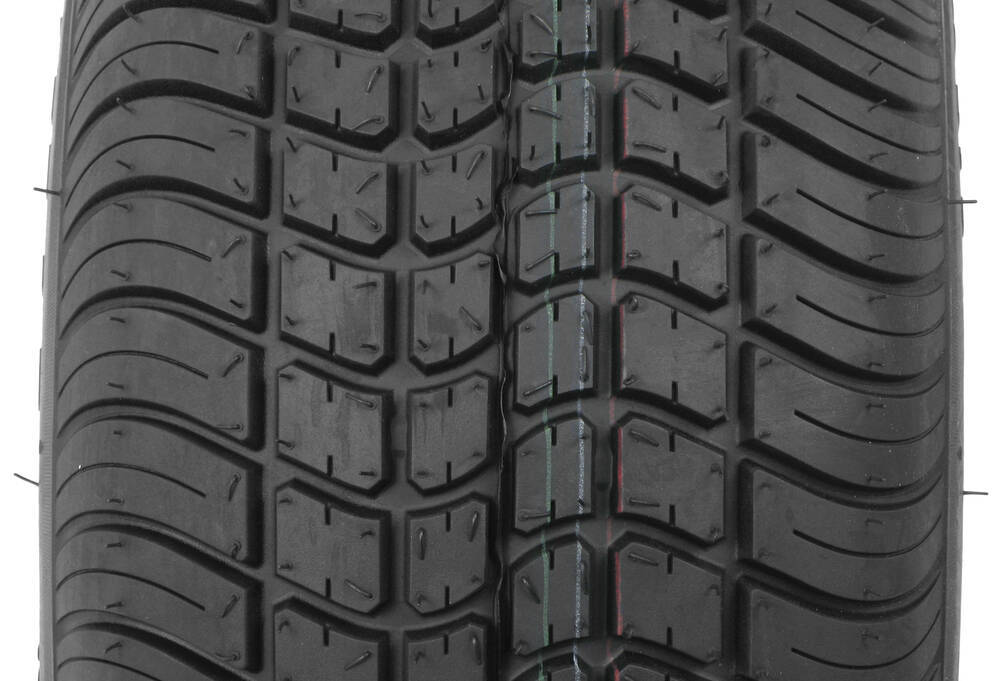

  • Kenda Loadstar trailer tire offers excellent handling
    • Bias cut provides superior stability
    • Modern tread design reduces rolling resistance for a smooth ride
  • Steel wheel resists rust and corrosion
    • White powder coat finish over e-coat primer
  • Tire-and-wheel assembly meets Department of Transportation specifications


Specs:

  • Rim dimensions: 8" diameter x 7" wide
  • Bolt pattern: 4 on 4"
  • Wheel capacity: 1165 lbs
  • Wheel bolt size: 1/2"-20
  • Offset: 0
  • Pilot diameter: 2.5"
  • Tire size: 215/60-8
    • Section width: 8.9"
    • Outer diameter (when inflated): 18.3"
  • Tire capacity:
    • Load range: C
    • Ply rating: 6
    • Maximum load: 940 lbs at 50 psi
  • Maximum speed: 81 mph (speed rating M)
  • Warranty:
    • 5-Year on tire
    • Limited 1-year on wheel


1-Year Worry-Free Guarantee

This tire has a 1-year worry-free guarantee. If within the first 12 months the tire is damaged in any way, it will be replaced at no charge.


Bias Tires vs. Radial Tires

Bias vs. radial tire graphic

Bias ply tires are designed for off-road or agricultural applications. They are built with thick, durable nylon cords that are positioned at a 30- to 45-degree angle to the direction of travel. The layers alternate in a crisscross pattern, making the sidewalls stiffer so that the entire tire is able to flex easily. As a result, the tire provides a smooth ride and improved handling when trailering on uneven surfaces.


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




3H290 Solid 8" White Wheel and Kenda Loadstar K399 Bias Tire - LR C





Customer Satisfaction Score:

Ratings & Reviews

4.9

3776 reviews
5 Stars
(3456)
4 Stars
(252)
3 Stars
(26)
2 Stars
(15)
1 Star
(27)
Bias tire has a ply rating of 6 and a 940-lb maximum load at 50 psi. The 8" diameter x 7" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish.

by:

Excellent customer service, very quick to respond to the issue I had. Had me back on the road in two days.



by:

Good quality product delivered as promised at an very good price point



by:

The product was delivered exactly as described at a good price. But what really impressed me was the constant communication/updates and the speed at which my order was filled. You exceeded my expectations; great job!



by:

Extremely fast shipping.



by:

Just what I wanted and the service and delivery more than met
My expectations
I havey not installed yet but will send a picture later.
Would recommend.
Jim G
Surprise AZ



by:

Product came as expected and on time. Was a first step at renovating an old pop-camper. Thank you...will be ordering f ore from this website.



by:

DECENT PRICE FOR A HARD TO FIND TIRE AND WHEEL. INFORMATIVE WEBSITE.



by:

Just as advertised.
Very happy with quality
and great customer service.



by:

I have had on a pontoon boat for about a year and am very happy with them.



by:

Product was ordered as spares. Are of good quality but were out of stock. Took 3 months to arrive.



by:

Great product.



by:

One year in and holding up great 300 mile trip each way multiple times.



by:

The wheel I ordered from here was the least-expensive I found, and so far it's working great! It was delivered right on time, no problems.



by:

My order arrived quickly and was exactly what it supposed to me. I would definitely give them my business again. No complaints here, and that is rare these days. Thank you for the service and fare pricing.



by:

Very pleased with the products, selections available, pricing and shipping response.



by:

Great service!



by:

Communication with etrailer was clear and concise. I priced the same tires at Tractor supply and I was able to purchase 2 through etrailer at the same price as 1 from Tractor supply, to include shipping. I was very pleased with everything and now always check etrailer first. The product arrived as scheduled.



by:

Fast shipping. Very pleased



by:

The product I wanted, great price, excellent customer service. Staff quickly resolved a problem



by:

No more tire troubles. Good folks to buy from. Help available before & after sale.



by:

Fast shipping & great communication!



by:

Tires are excellent. I haven't had a problem since I bought them.



by:

After a year, they still look new and perform great.



by:

Tire is good quality and wears like steel. Much better then the original equipment.



by:

Super quick shipping. Tires are perfect.


25
3776
Show More Reviews

See what our Experts say about this Kenda Trailer Tires and Wheels

  • Is There a Larger Tire Size Than 5.70-8 For an 8 Inch Wheel
    The 5.70-8 tire size is about the largest diameter tire available for an 8 inch rim. Your current tire is about 18 inches in diameter and has a tread width of 5.9 inches. A 215/60-8 tire is about the same diameter, but has a wider tread width at 8.9 inches. Because of the increased tire width, you wouldn't be able to reuse your existing wheels. You'd need to go with a wider wheel, or use a wheel/tire combo like part # AM3H290 for a 4 on 4 bolt pattern with a Load Range C tire or # AM3H310...
    view full answer...
  • Availability Of Wide Base Tires For A Walk Behind Tractor
    Hello Greg, I am afraid that we do not offer a tire that will fit a 4 lug wheel and is also 10" wide or more. The closest thing we offer would be a 205/65-10 tire like part # AM3H460 which is about 8.4" wide and 20.4" in diameter. Or even a 215/60-8 tire that is 8.9" wide, but only 18.3" in diameter like part # AM3H290. From there, any wider tire would need to be on a 5 lug or 6 lug wheel. These 205/65-10 tires are a wider base tire like you are looking for but they are not necessarily...
    view full answer...
  • Can 4.80/4.00-8 Tires Be Upgraded To Larger Size For Higher Speed Rating
    Hello again Mark; as long as you don't exceed the 65 mph rating you can stick with a tire like the Kenda Loadstar K371 Bias Trailer Tire # AM10002. Moving to a larger tire with a higher speed rating is going to mean a fairly large size difference. To see if you can use one of these tires you will need to measure for clearance. The closest thing that also uses an 8" wheel would be the Kenda 215/60-8 # AM3H290. This has a speed rating of M for 81 mph. However, it is significantly wider...
    view full answer...
  • Tires to Replace 18.5x8.5-8 Tires on a 1971 Apache Mesa Trailer
    The 18.5x8.5-8 is actually an old tire size that is not used much anymore. The closest metric size to your existing tire would be 215/60-8, which is what I would recommend for your vintage Apache trailer. Tire and wheel combo # AM3H290 is a great choice. It is rated for 935 pounds at 50 psi. This tire and all of the 8 inch tires that we carry are rated for 65 miles per hour. So it may or may not be considered a high-speed tire but definitely highway speed. I have linked a video review...
    view full answer...
  • Offset of 215/60-8 Tires and Wheel Combination
    Harbor Freight trailers have a bolt pattern of 4x101.6 (or 4 on 4 inch) or the 5 on 4-1/2 inch if you have 5 lugs. . The 225 x 8 isn't a size we carry, but we do have the Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range C # AM3H290 which have a zero offset. This will give you 4.45 inches of backspacing since the tires are 8.9 inches wide. The same is true of the 5 lug wheel and tire # AM3H310.
    view full answer...
    Image 1 for
  • Can a 215/60-8 Size Tire Replace a 5.70-8 Tire for a Pop Up Camper Trailer
    The main difference between a 5.70-8 trailer tire and a 215/60-8 will be the width. Your current tire is about 5.9 inches wide and the 215/60-8 is about 8.9 inches wide. They will both be about the same height. If your current wheel setup has more than 1-1/2 inches of clearance from the inner sidewall of the tire to the frame of your trailer you would have clearance for the # AM3H290 to fit.
    view full answer...
    Image 1 for
  • Availability of a 8" Diameter Trailer Wheel and Tire With Speed Rating Of 81MPH
    The Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel # AM3H290 is going to be our only 8" wheel size that will hold a tire with a speed rating of M 81mph. The narrower Kenda 5.70-8 Bias Trailer Tire with 8" White Wheel # AM30120 is only rated for 65mph.
    view full answer...
  • Highest Speed Rated 8 Inch Wheel/Tire Combo
    The highest rated 8 inch wheel/tire combo we offer would have an 'M' speed rating, which is good up to 81mph. This would be a 215/60-8 bias ply tire mounted on a 8 x 7 inch wheel with a 4 on 4 bolt pattern. The tire has a C load rating, with a weight capacity of 940 lb per tire/1880 lb per axle. The wheel/tire combo is available with a white powder coated wheel as part # AM3H290 or a galvanized wheel as part # AM3H300. This is as close to 100mph that anything we offer would get.
    view full answer...
  • Wheel Offset of 8 and 10 Inch Trailer Wheels For Correct Backspacing
    The 10 inch wheels and 8 inch wheels have a zero offset. This means the center of the wheel will be centered on the hub. The 10 inch hubs are 6 inches wide and will have a 3 inch backspace to the outside edge of the wheel rim. The 8 inch wheels have a width of either 3-3/4 inches, 5-3/8 inches, or 7 inches. This will give you a backspacing of 1-7/8 inches, 2-11/16 inches, or 3.5 inches. Remember the tire width is wider than the rim, so for your clearance you will also need to account...
    view full answer...
  • Finding a Replacement Tire and Wheel for a Golf Cart
    We have not received any feedback of customers using this wheel and tire combination on a golf cart. When choosing a replacement wheel and tire for a trailer or, in your case, a golf cart, there are a few things to consider before purchasing a wheel or tire. The wheel and tire combinations we sell are designed for use on trailers, but I will be happy to see if anything we carry will work for you. If you can find the current tire and wheel size on the golf cart, that will be a good place...
    view full answer...
  • Availability of Narrower Tires for Snowmobile Trailer for Better Handling
    I'd recommend going with a 12 inch wheel with a ST145/R12 tire on it, like the # AM35354. The ST145/R12 has a diameter only 1 inch larger than your existing tires, so it'll only raise your trailer height by 1/2 an inch. I've linked you to our selection in that tire size/wheel configuration. You'll want to choose a wheel with the desired finish with the properly rated tires. You'll want tires you choose to have a combined capacity that exceeds the weight of the trailer and its contents.
    view full answer...
    Image 1 for
  • Is Trailer Tire Size 18.5 x 8.5 x 8 the Same as Trailer Tire Size 215/60-8
    According to our resident tire expert, the 215/60-8 is the modern equivalent of the 18.5 x 8.5-8 tire. I have included a link to a tire sizing FAQ for you that compares different tire sizes. If you just need the tire, we have some options. First is # AM1HP26. This is a load range C tire rated for 935 pounds at 50 psi. Second is # AM1HP28, rated at 1,165 pounds at 70 psi. If you want a tire and wheel combo, we have two options. First, is # AM3H290, that comes with a white steel wheel....
    view full answer...
  • Spare Tire Cover for a 215/60-8 Bias Trailer Tire
    Since trailer tire # AM3H290 is about 8-1/2 inches wide and 18 inches tall I recommend a cover designed for 21 inch tall tires # CE27410. This cover was made for 21 x 6-1/2 inch tires so the extra height of the cover will compensate for the 6-1/2 inches and should be a nice fit on the tire.
    view full answer...
  • Kenda 215/60R8 Wheel And Tire Needed With A 4 On 4 Bolt Pattern
    Hey Russell, We offer a Kenda 215/60R8 wheel and tire with a 4 on 4 bolt pattern in load range C # AM3H290 and load range D # AM98NR. These both come with white powder coated steel wheels.
    view full answer...
  • Can 18.5 x 8.5 - 8 Tires be Replaced with 215/60-8 Tires
    You are correct, the older tire size of 18.5 x 8.5 - 8 now translates to the current metric tire size of 215/60-8. When it comes to 215/60-8 tire on a 4 bolt wheel, we have two options for you, the Kenda 215/60-8 Bias Trailer Tire with 8 Inch White Wheel, # AM3H290, or # AM3H300 for Galvanized Wheel. Both are Load Range C, 6-ply, and have a 940 lb capacity at 50 psi. As for a tire's ply rating, the higher the ply rating the stronger the tire but special trailer tires are all usually...
    view full answer...
  • Can a 5.70-8 Tire be Replaced with a 215/60-8 Tire on a Snowmobile Trailer
    As long as you have clearance for the additional width of the wheel and tire and for the additional height of the tire, you can use the Kenda 215/60-8 Bias Trailer Tire, item # AM3H290, which has a 7 inch wide, 8 inch diameter White Wheel, 4 on 4 inch bolt pattern, and is a Load Range C tire. The weight capacity of the 215/60-8 load range C tire is 935 lbs at 50 psi, which is slightly higher than your 5.70-8 wheel and tire combination, so weight capacity will not be an issue. The 216/60-8...
    view full answer...
  • Replacement Snowmobile Trailer Wheels/Tires with 4-on4 Bolt Pattern
    The modern metric equivalent to your 18.5-8.50-8 tire size is the 215/60-8 size of special trailer tire. Please refer to the linked article. We do offer two options in a pre-mounted tire/wheel product that you can see on the page linked for you. Both # AM3H290 and # AM3H300 are 4-on-4 wheels with a Load Range C bias ply tire rated for 940-lbs at 50-psi pressure. AM3H290 is a white powder-coated wheel and AM3H300 is a galvanized wheel.
    view full answer...
  • Replacement Tires for 1969 Apache Mesa Trailer with 18.5 x 8.5 x 8.5 N78 Carlyle Tires
    You've actually found the right part with the # AM3H290, as those will be the best replacement for your 18.5 x 8.5 x 8.5 N78 tires on 4 on 4 wheels. These have been used as replacements for a similar Apache Mesa trailer, as you've seen, and I think they're going to be the best solution. These tires have a 4 on 4 bolt pattern, are rated for up to 65mph and have a capacity of 940-lbs per tire. I've linked a review video of this combo tire/wheel for you to have a look at, as well.
    view full answer...
  • Can 20.5x8.5-10 Trailer Tires be Used in Place of 18.5x8.5-8 Tires on Snowmobile Trailer
    A 20.5x8.5-10 is going to be about 2 inches taller than the 18.5 tires you have now. If there is enough space above the existing tires to go to the taller size then you can use them. I have included some links on tires for you as well.
    view full answer...
  • What is the Next Trailer Tire Size Up from 18.5 x 8.5-8
    Technically the next size up from an 18.5 x 8.5 - 8 is a 6.90/6.00-9 but it is not common so I would not recommend going to that size. The next common size up would be a 205/65-10 such as # AM1HP52. It would be slightly more narrow but almost 2 inches taller than the 18.5 that you have now. So there would have to be enough clearance above the existing tires to use the larger size and still have room for the travel of the suspension. Going up a wheel size will require different wheels....
    view full answer...
  • What is a Pilot Hole in a Trailer Tire and Wheel Combination Like Kenda Tire and Wheel # AM3H290
    The pilot diameter refers to the center hole on a tire/wheel combo like # AM3H290. This is important if the wheel is centered on the hub as opposed to the lug nuts centering the wheel. It would also matter if the pilot hole was smaller than your existing wheels. A larger hole will be fine as long as the wheel is not hub piloted. In this case, the cart has a larger pilot hole so the smaller 2.5 inch hole may not fit. Other factors when choosing a wheel/tire combo include the bolt pattern...
    view full answer...
  • What Is the Widest Trailer Tire That Can Be Used In Place of a 4.80/4.00-8 Trailer Tire
    The widest tire you can use on an 8" diameter x 3-3/4" wide trailer wheel is a 5.70-8 part # AM10010 which is 5.8" wide and will be about 1.2" wider than the 4.80/4.00-8 tire you have now. If you replace both the wheel and tire you could go to a 215/60-8 part # AM3H310 or part # AM3H290 which is 8.9" wide and will be 4.3" wider than the 4.80/4.00-8 tire you have now.
    view full answer...
  • Recommended 5.70-8 Trailer Tire With 8" 4 on 4 Wheel Combo
    We do have a few tire and wheel assemblies that fit your needs. The Kenda 5.70-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 # AM30120 which is 4 on 4 bolt pattern and a Load Range C rating that offers a maximum weight capacity of 910lbs at 75 PSI, or the Kenda 5.70-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 # AM30153 which is the same 4 on 4 bolt pattern but a Load Range D rating which the tire will support 1070lbs at 100 PSI, but are limited to 910lbs due to the wheel's maximum...
    view full answer...
  • Should Trailer Tire Pressure Match Tire Sidewall Or Trailer Sticker?
    The max tire pressure on the tire is what you should follow. The sticker on your trailer was for the tires that came on your trailer. The replacements if inflated improperly would not operate correctly and would wear unevenly or fail if not inflated correctly. You always want to run your trailer tires with the max psi when inflated cold (before your trip begins) for proper function and load capacity.
    view full answer...
