Price: $8.82

Pollak Heavy-Duty, 7-Pole, Round Pin Trailer Wiring Socket - Vehicle End

Item # PK11720

lowest price pledge

Retail:$13.38

Our Price: $8.82

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

pollak wiring 7 round heavy-duty 7-pole pin trailer socket - vehicle end
pollak wiring trailer connectors 7 round heavy-duty 7-pole pin socket - vehicle end
pollak wiring vehicle end connector 7 round
pollak wiring trailer connectors
pollak wiring vehicle end connector 7 round pk11720

Customer Photos

pollak wiring trailer connectors 7 round pk11720

Videos


  • Trailer Connectors
  • Vehicle End Connector
  • 7 Round
  • Plug Only
  • Pollak
Establish a secure connection between your trailer and semi or other tow vehicle with this 7-pole, solid pin, wire-insertion-style socket. Zinc die-cast socket is self-grounding and includes floating pins for easy alignment and maximum pin contact. Lowest Prices for the best wiring from Pollak. Pollak Heavy-Duty, 7-Pole, Round Pin Trailer Wiring Socket - Vehicle End part number PK11720 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Pollak Wiring - PK11720

Establish a secure connection between your trailer and semi or other tow vehicle with this 7-pole, solid pin, wire-insertion-style socket. Zinc die-cast socket is self-grounding and includes floating pins for easy alignment and maximum pin contact.


Features:

  • Zinc die-cast 7-pole socket connects trailer to towing vehicle
  • Round, floating, solid brass pins
    • Easy alignment and maximum contact
    • Minimum voltage drop is ensured
    • Dielectric (non-conducting) grease coating
      • Protects against corrosion and resistance
    • Wide range of wire gauges acceptable, from #16 wire to #8 ground wire
      • Ground terminal accepts minimum #14 gauge - maximum #8 gauge
      • All other terminals accept minimum #16 gauge - maximum #10 gauge
  • Self-grounding to #1 Ground Terminal
  • Slant-mounted with built-in drain slot on cover
    • Rids housing interior of accumulated moisture
    • Opens and closes with stainless steel spring
    • Bottom lip extended for better plug support
  • 2-Hole mounting style
  • Highest quality - meets and exceeds all standards of SAE J560
  • Interchangeable with all competitive makes


Specs:

  • Mounting dimensions: 2" diameter hole
  • Volt rating: 6 volts - 28 volts
  • Current rating: 40 continuous-duty amps
  • Wiring configuration:
    • Color - circuit - recommended wire gauge:
      • White - Ground Return - 10 gauge (FMVSS-121 Anti-lock Gauge - 8)
      • Black - Clearance, Side Marker, Identification - 12 gauge
      • Yellow - Left Turn and Hazard Signal - 12 gauge
      • Red - Stop Lamps and Anti-Lock Devices - 10 gauge (FMVSS-121 Anti-lock Gauge 10)
      • Green - Right Turn and Hazard Signal - 12 gauge
      • Brown - Tail, Rear Clearance, Marker and License-Plate Lamps - 12 gauge
      • Blue - Auxiliary Circuit/ABS - 10 gauge
  • 1-Year limited warranty


11-720 Pollak Heavy-Duty, 7-Way, Round Pin Trailer Wiring Socket - Vehicle End
Replaces 52016





Economy - This item

Pollak Heavy-Duty, 7-Pole, Round Pin Trailer Wiring Socket - Vehicle End


Pollak Heavy-Duty, 7-Pole, Round Pin Trailer Wiring Socket - Vehicle End
Pollak Wiring

42 reviews

Code: PK11720


Retail:$13.38

Our Price: $8.82


  • Wiring
  • Trailer Connectors
  • Vehicle End Connector
  • 7 Round
  • Plug Only
  • Pollak


Establish a secure connection between your trailer and semi or other tow vehicle with this 7-pole, solid pin, wire-insertion-style socket. Zinc die-cast socket is self-grounding and includes floating pins for easy alignment and maximum pin contact.

more information →
Compare Similar Products
Economy
Price: $12.07
$3.25 More

Pollak 9-Pole, Round Pin Trailer Socket - Vehicle End


Pollak 9-Pole, Round Pin Trailer Socket - Vehicle End
Pollak Wiring

18 reviews

Code: PK12907


Retail:$23.71

Our Price: $12.07


  • 9 Round


Establish a secure connection between your tow vehicle and trailer with this 9-pole, RV-style socket. Socket has spring-loaded contacts and floating pins to provide easy alignment, ensure minimum voltage drop and promote the most positive contact.

more information →
Value
Price: $23.44
$14.62 More

Hopkins Endurance Multi-Tow Trailer Connector Adapter - 7-Way to 6-Way, 5-Way or 4-Way


Hopkins Endurance Multi-Tow Trailer Connector Adapter - 7-Way to 6-Way, 5-Way or 4-Way
Hopkins Wiring

104 reviews

Code: HM47570


Our Price: $23.44


  • Wiring Adapters
  • Multi-Function Adapter
  • 7 Blade
  • 6 Round
  • 5 Flat
  • 4 Flat
  • Hopkins


Heavy-duty trailer adapter features a unique Quick-Change wiring plug that lets you switch between 6-way wiring codes quickly and easily. Outlet for 4-way and 5-way plugs is also built in. Terminals are covered with easy-open, weatherproof lids.

more information →
Premium
Price: $26.54
$17.72 More

Adapter 4-Pole to 7-Pole and 4-Pole


Adapter 4-Pole to 7-Pole and 4-Pole
Hopkins Wiring

250 reviews

Code: 37185


Our Price: $26.54


  • Wiring Adapters
  • Multi-Function Adapter
  • 4 Flat
  • Plug and Lead
  • 7 Blade
  • 4 Flat
  • Hopkins


Adapter converts from 4 pole wiring on vehicle to 7-pole round plug and 4-pole flat. Additional wire leads for brake, power and accessory.

more information →

Related Products



Customers compare PK11720 to these similar products





Customers Who Purchased This Wiring Also Bought...

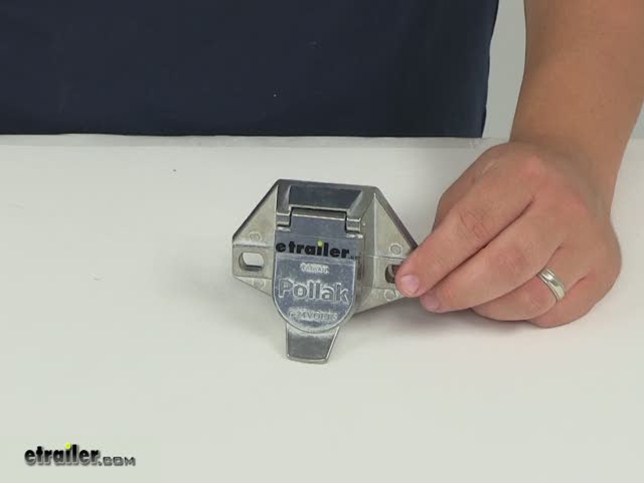

Video of Pollak Heavy-Duty, 7-Pole, Round Pin Trailer Wiring Socket - Vehicle End


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pollak Wiring PK11720 Review

Today we'll be reviewing Part # PK11720. This is the Pollak Heavy-Duty, 7 Pole, Round Pin Trailer Wiring Socket. The zinc die cast seven-pole socket connects the trailer to the towed vehicle. It's going to feature the round floating solid brass pins. They're going to provide easy alignment and maximum contact as well as minimum voltage drop.It has the dielectric nonconducting grease coating on all those pins, which is going to protect it against the corrosion, and it's also going to provide rust resistance. A wide range of wiring gauges are acceptable, from 16 gauge wire to 8 gauge ground wire. Ground terminal will accept a minimum of 14 gauge with a maximum of 8 gauge, and all other terminals accept a minimum of 16 gauge with a maximum of 10 gauge. When mounted, it's got a nice slant design, so water's going to run off.

It's going to prevent moisture from building up, especially inside the connection points. It's got the nice stainless steel spring lid that's going to open and close very easily. It's also got the bottom lip that's going to extend for better plug support. It's got the two-hole mounting design. The distance from the center of one hole to the center of the other is going to measure 3", and those holes are going to measure 1/2" by 3/8 of an inch. This plug is going to be interchangeable with all competitive makes.

It's going to require a 2" hole diameter for correct mounting. It's going to give us a volt rating of 6 to 28 volts with a current rating of 40 continuous duty amps. The wiring configuration. The white wire's going to be for a ground. We recommend 10 gauge for that. Black is going to be for clearance, side marker, and identification. Lights.

The yellow is going to be for left turn and hazard signal. We recommend 12 gauge for both. Red is going to for stop lamps and anti-lock devices. We recommend 10 gauge wiring. Green is going to be for right turn and hazard signal, and brown is going to be for your tail rear clearance marker and license plates lamps.

We recommend 12 gauge for both of those, and then blue is going to be for your auxiliary circuit, and we recommend 10 gauge wiring. That's going to do it for our review of Part # Pk11720. This is the Pollack Heavy-Duty, 7 Pole, Round Pin Trailer Wiring Socket. .
