Curt Short-Arm Weight Distribution System with Sway Control - Trunnion Bar - 15K GTW, 1.5K TW

Curt Short-Arm Weight Distribution System with Sway Control - Trunnion Bar - 15K GTW, 1.5K TW

Item # C17422

lowest price pledge

Retail:$505.08

Our Price: $376.85

You Save: $128.23
Weight Distribution

This item qualifies for Free Shipping

Shipping Weight: 109 lbs

Quantity:
In Stock, Ships Today
C17422 - Heavy Duty Curt WD With Sway Control
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • WD With Sway Control
  • 1100 lbs
  • 1200 lbs
  • 1300 lbs
  • 1400 lbs
  • Curt
  • Fits 2 Inch Hitch
  • Does Not Allow Backing Up
  • Includes Shank
  • Reduces Sway
  • Electric Brake Compatible
  • Heavy Duty
This weight-distribution system will help to evenly distribute the load over the axles of both your tow vehicle and trailer for a smooth, controlled ride. Shank and pre-attached, pre-torqued 2-5/16" ball included. Lowest Prices for the best weight distribution from Curt. Curt Short-Arm Weight Distribution System with Sway Control - Trunnion Bar - 15K GTW, 1.5K TW part number C17422 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (34)
  • Q & A (25)
  • Videos (1)
  • Photos
  • Why etrailer?

Curt Weight Distribution - C17422

This weight-distribution system will help to evenly distribute the load over the axles of both your tow vehicle and trailer for a smooth, controlled ride. Shank and pre-attached, pre-torqued 2-5/16" ball included.


Features:

  • Evenly distributes weight over axles of tow vehicle and trailer for stability and control
    • Creates a more level ride for both tow vehicle and trailer
  • Friction sway control reduces sway caused by winds, curving roads and sudden maneuvers
    • Adjustable tension lets you create the perfect degree of control and resistance
    • Integrated handle engages and disengages the system
    • Removable - just release 2 spring locking pins
  • Trunnion spring bars are constructed of solid, forged steel for strength and durability
    • Bars are shorter than those in standard systems to accommodate your short-tongue trailer
  • Adjustable spring-bar tension - just switch links in lift chains to fine-tune
  • Desired tilt is achieved with traditional washer design
    • Add or remove washers from spacer rivet to tilt head up or down
  • Powder coated steel resists corrosion
  • Snap-up lever eases installation by reducing lifting required by trailer jack

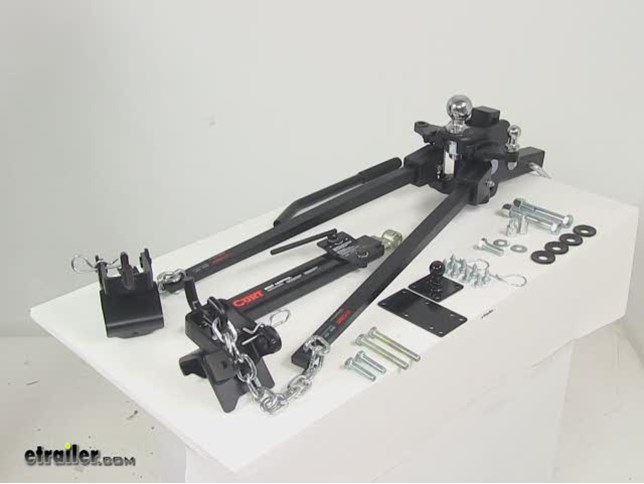

  • System includes head assembly, adjustable shank, 2-5/16" hitch ball with 1-1/4" diameter shank, sway control bar, spring bars, lift brackets and chains, snap-up handle, pin and clip, and all necessary hardware


Specs:

  • Tongue weight: 1,000 -1,500 lbs
  • Gross towing weight: 10,000 - 15,000 lbs
  • Application: 2" x 2" trailer hitch receivers rated for use with weight-distribution systems
  • Shank length: 12"
  • Maximum drop: 1/2"
  • Maximum rise: 7-1/2"
  • Spring-bar length: 28-3/8"
  • 1-Year limited warranty


Included w/ C17422Optional Add-Ons
  • Adjustable Shank
  • System Head
  • Lift Brackets
  • Spring Bars
  • Bar-Style Friction Sway Control
  • 2-5/16" Hitch Ball w/ 1-1/4" Diameter Shank
  • 2" Hitch Ball w/ 1-1/4" Diameter Shank

Weight Distributing Hitch

Create a stable ride for your tow vehicle and trailer with a weight-distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.


Selecting a Weight-Distribution System

The tongue weight rating is the most important factor in determining which size weight-distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.


To determine the proper weight rating for a weight-distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight-distribution system.



17422 Curt Weight Distribution Hitch - Trunnion



C17422 Installation InstructionsInstallation Details C17422 Installation instructions


Video of Curt Short-Arm Weight Distribution System with Sway Control - Trunnion Bar - 15K GTW, 1.5K TW


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt Weight Distribution - WD With Sway Control - C17422 Review

Today we're going to be taking a look at part number C17422. This is the Curt Weight Distribution System. It's going to come with sway control, the trunnion bar design. This unit's going to evenly distribute the weight over the axles of the tow vehicle and the trailer for stability and control. Ultimately, it's going to help create a more level ride for both the tow vehicle and the trailer. Now the first one, sway control is going to reduce sway caused by winds, curving roads, and sudden maneuvers. The sway control system is made up of this part right here; these 2 pieces which attach to the trailer frame with the hardware, and then this system is going to be held in place on the weight distribution system at that point there with a spring clip.

Then this socket is going to attach to this ball with the spring clip. It can be easily removed by releasing the 2 spring locking pins. It does have the adjustable tension that's going to let you create the perfect degree of control and resistance, and it's going to have the integrated handle that's going to engage and disengage the system. Now, sway control cannot be used on trailers with surge breaks and the sway control must be removed when towing in slippery conditions such as wet, icy, gravel or snow covered roads. The trunnion spring bars are going to be constructed of solid forged steel for strength and durability. You can adjust the spring bar tension by switching the lengths here in the left chains to fine tune the system.

The left brackets are going to come with 2 different sizes of bolts. We got a 2-inch bolt and a 2-inch long bolt, a set of each. You can use the 4-inch long bolts for your traditional A-frames. They just go here on the backside. Just thread those in, tighten them down to get it secured.

You can use the 2-inch long bolts for larger A-frames. The lift brackets are going to take up about 4 inches along the trailer frame, and they're designed to fit trailer frames no wider than 2-1/2 inches. It's going to come off up your snap-up lever. This has been an easy installation by reducing the amount of lifting that's required by the trailer jack here on the brackets to get the chains in place with the proper tension applied. Snap up lever goes there. It gives you plenty of length, that way you can gain the proper leverage that you need to get those in place. You can also use that snap-up lever to disengage the system.

The brackets are going to be held in the up position with the clips, so to loosen it up or to remove just under that clip, use the lift lever, the snap-up lever, to lower that down and then you can release the chains. This does come in handy, keeps you a little bit away from the system. It gives you that safe distance you needed for operation. Again, it's just going to help ease the installation. Here at the head assembly, we can achieve the desired tilt that we need. It's going to come with 2 adjustment rods, a short one and a long one, as well as 2 washers. By using the different combination of short and long and washer combination, you can see here that on the tilt adjustment instruction sheet, it's going to walk us through what each combination can achieve for us. If we just use the short rod, it's going to give us a drop distance of 8.8 inches. We can use the short rod with 1 washer or 2 washers. We can use the long adjustment rod by itself or with 1 or 2 washers. It shows us anywhere from 8.8 inches of drop to 15.2 inches. It's a really nice design. The rods are going to install in the hole right here on the head assembly directly under the included 2-5/16 inch ball. It's going to come with the set screw down there. Tighten that down to get it set. That's going to be in the threaded hole here at the bottom of the head assembly. You can get the tilt that you need. Everything is going to be coated in a carbide powder-coated finish, so it's got the powder-coated steel. It's coated to resist rusting and corrosion and last a long time. When it comes to the tongue weight capacity for the unit, we're looking at 1,000 pounds to 1,500 pounds. Gross towing weight is 10,000 pounds to 15,000 pounds. The unit is designed for 2-inch by 2-inch hitches that are ready for use with weight distribution systems. You can see that I got the small ball up here. Again, that's for the sway control system. That can be applied to either side of the head assembly. All the other hardware that you see right here is going to be the hardware that we use to get the head assembly mounted on to the shank right here, the adjustment shank. This is solid steel. Again, it's going to have that powder-coated finish on it. We're going to have a 6-hole adjustment design. The distance between these holes center on center is going to be 1-1/4 inch. Shank length which is the overall length from the back to the front is going to measure 12 inches. Then from the center of the hitch pin hole to the center of the adjustments holes, that's going to measure 8 inches. It does come with your standard 5/8 inch pin and clip to get that secured in your hitch. You can use the system in either the rise or drop position. Again, its got those adjustment holes, that way you can get the correct level of height that you needed to be at for your particular application. It also comes with some detailed instructions and owner responsibility tips. That way, you can maintenance as you needed and you can safely and effectively know how to install your weight distribution system and sway control system. That's going to do it for today's look at part number C17422. This is the Curt Weight Distribution System with the Sway Control.


Customer Reviews

Curt Short-Arm Weight Distribution System with Sway Control - Trunnion Bar - 15K GTW, 1.5K TW - C17422

Average Customer Rating:  4.8 out of 5 stars   (34 Customer Reviews)

This weight-distribution system will help to evenly distribute the load over the axles of both your tow vehicle and trailer for a smooth, controlled ride. Shank and pre-attached, pre-torqued 2-5/16" ball included.

- C17422
by:

I purchased this to pull a small trailer with our 2014 Ford Explorer. I cannot express what an improvement this made in the handling characteristics. I would never not use one again. 623126



- C17422
by:

I had a fastway e2 trunnion 12k pound hitch and hated it. It was great if you didnt need much pressure on the bars and always hooked up while on flat even ground. Most times I had to use a 3 foot prybar to get the weight transfer bars off the trailer and a 3 foot cheater bar to get the bars on!!! This 15k pound hitch from curt is great!!!! The welds could be better (pretty picky I'm a fabricator by trade) but nothing beats this style hitch. It may take an extra step if you want the friction brake but it is worth it. I run 2 friction brakes as I have a 38ft travel trailer and is pretty much a giant sail. The trunnion hitch couldn't handle that camper in the wind and there wasnt a way to adjust the bars for a windy day. but this hitch with 2 brakes works great. Dont always need 2 brakes but I like the option for when its windy out and we have a 2 hour drive on the expressway!!! 610729



- C17422
by:

Ordered a weight distribution hitch with sway control. Hitch arrived on time and in good condition. Installation went well, and the hitch works perfectly. Very pleased. 604101



- C17422
by:

Very satisfied with the product and the service. 492066



- C17422
by:

Received full product as described. Box arrived in rough shape but product is fine and complete. I am very happy. 479228


Comments

Great

Art T - 02/26/2019

49894

- C17422
by:

Product arrived intact with all parts. No complaints with item, though have not used yet. Excellent support through etrailer.com. 447556



- C17422
by:

Your equipment is the best easy to install and looks good. Took all the movement out of the car trailer. I haul a 18 foot car trailer loaded to the max. 387113



- C17422
by:

It works great for towing the camper 379317



- C17422
by:

I have done business with etrailer before and always have had excellent service. This particular time I had an issue with ordering and Troy was very helpful in resolving the problem and my Weight distribution hitch arrived two days later. I also had some questions which the experts at etrailer answered quickly. I have installed the hitch but have not traveled with a loaded trailer but do not expect any issues. 369956



- C17422
by:

Works better than expected 368963



- C17422
by:

Great weight distribution hitch and sway control bar. Drove from Texas to Alaska with ease and no issue. Love this hitch 355392



- C17422
by:

Got exactly what I ordered. Product is good quality and should work to satisfaction! 340402



- C17422
by:

This is an outstanding weight distribution system. I am fully pleased with it. I use it for towing my 2016 Grand Design 327RLTS. The tongue weight is rated at 1150lbs. I am certain it's closer to 1450lbs, but for this system it's no problem at all. I have no complaints and for the price it was the best buy on the web. Thanks. 333623



- C17422
by:

Shipment was faster than promised and produce was exactly as described. Perfect!! 325270



- C17422
by:

works great 271564



- C17422
by:

Gr8 work and follow through. I had to cancel a order from JC whitley after being jerked around and I cancelled with them and and called you. U guys helped me out and got it done, thanks 249218



- C17422
by:

This order was delivery today, thanks for your prompt delivery I will write back to you after we try the product so far is still in the box......as soon we work on it I would sent pictures and finish my review.....Thank you again 247287



- C17422
by:

Product arrived sooner than I expected! Appears to be a well made product. I'll be installing it soon on my 24 Ft. Boles Aero trailer and testing it out. 238833



- C17422
by:

Great product fast delivery 230930



- C17422
by:

Ridiculously fast shipping and a perfect price! Arrived in good condition. Installation instruction were simple to follow. The actual product information from CURT as to the specific dimension as an overall unit (i.e. mechanical drawing) would be helpful to determine if the product works correctly for your trailer. Enough was provided that I took a chance but we did have to raise my AC unit on the front of my trailer 2.5" and move one of it's support bars back in order to install the weight distribution system. Not at all any fault or any concern of Etrailer, but just wanted to share this note in case other have a propane rack or something else on their tongue. 230288



- C17422
by:

Product is exactly as advertised. Complete and very easy to install by following the included instructions, and of course this all backed the impeccable customer service provided by etrailer and their customer service team ! Will continue to use etrailer for any and all towing needs. 222915



- C17422
by:

So far so good.. the instructions could be a little more thorough. Etrailer.com had awesome customer service..very quick delivery! 205950



- C17422
by:

This item was easy to install took less than a hour. Made a huge difference pulling 33ft travel trailer. Leveled out truck and can pull at 70mph with little sway. 202821



- C17422
by:

I received my knew curt distribution hitch the other day. The shipping time was fast, in fact faster than expected. I put the few parts together on the truck and was pleased with the quality. I bought a new trailer and my old system was a little under rated. The curt hitch should work fine. 192117



- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


I had an L shaped weight distribution hitch before I bought this Curt model from E trailer.If you the coop ape the two the older one wS easier to operate. The Pins that lock the chain brackets in please are difficult to remove and adding wd40 does not help also this new one seems to be lower to the ground,, making me bend over and sometimes or even get to my knees to hook it up .My wife used to be able to help me with the older one the new one she is not able so I do both sides myself . Also the part that connects to the truck you need to hold it sideways then flip the the release up and maneuver it he top 2 tabs into place , lot more work than the L shaped one I had. It’s ok otherwise. 615701



- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


I’ve used this hitch as and RV Transporter for a year now and this is a great weight distribution hitch at a great price! 591852



- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


have has this hitch for over a year now and have had zero issues. It is used exclusively to pull my 28 foot travel trailer. Heavy duty and easy to use. 504477



- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


My weight distribution hitch worked perfectly. It was very easy to install and the instructions made it simple to adjust for the weight I was pulling. The sway control that I received was great as well holding me steady on the highway, even with strong cross-winds. An impressive product that I would definitely recommend. 283532



- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


Easier to use then another brand. Only problem was that somehow I bent one of torsion bar retaining clips. Was afraid I would ruin it trying to straighten it out but didn't. I use a colored zip tie to mark the proper chain link to eliminate guessing. 241555



- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


Your torsion bar hitch and service were impecable. The people at Husky Cargo trailer in Florida that built the car hauler should take lessons on how to build a trailer and treat paying customers. 241423



- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


It does a awesome job pulling are 26 ft camper behind a half ton pickup 193841



- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


Happy with the product. Had the trailer company set up the hitch on my Tundra with out a hitch!!! Ha. 158640


Comments

Still working great!!!

Silverprinc - 10/31/2015

15744

- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


Installed on 14,500 rated trailer pulled 1400 miles round trip no issues, no sway, truck and trailer leveled out for a smooth ride. 151054



- C17322
by:

Review from a similar Curt Short-Arm in Weight Distribution


Unfortunately, I have not been able to put my new towing system to use yet. However, the product was delivered very quickly, and shipping was free. Very satisfied with how easily the parts were to assemble. Great experience, so far, with etrailer.com 144731


34
34

Ask the Experts about this Curt Weight Distribution
Do you have a question about this Weight Distribution?


  • Differences Between Curt Weight Distribution C17063 and C17422
  • The biggest differences between the Curt Weight Distribution systems part # C17422 and # C17063 is the tongue weight ratings and the bar design. The # C17422 is a trunnion bar system rated for tongue weights up to 1,500 lbs and the part # C17063 is a round bar setup rated for tongue weights up to 1,400 lbs. Trunnion bars preferred typically as they usually provide better ground clearance and higher capacities. The best way to pick out a weight distribution system is to base it...
    view full answer...

  • Why Can't You Back Up with Curt Weight Distribution System Installed
  • You can back up a trailer with a weight distribution system installed on as long as you don't end up in too tight of a turn. This is especially true with the Curt Weight Distribution System part # C17422 as it has a friction sway control system as well. If you are backing up basically in a straight line you would be fine, but if you think you are going to get into a tight turn you would need to disconnect the spring bars and the friction sway control system. If you kept the unit installed...
    view full answer...

  • Tongue Weight Range of the Curt Weight Distribution System part # C17422
  • The tongue weight range of the Curt Weight Distribution system part # C17422 that you referenced is 1,000-1,500 lbs. The best way to pick out a weight distribution system is to base it off of the loaded tongue weight of the setup when it is loaded and ready to tow, this figure also includes the weight of any cargo behind the rear axle of the tow vehicle. I attached an FAQ on determining tongue weight for you to check out as well. If your loaded tongue weight falls in that range of 1k...
    view full answer...

  • Weight Distribution Recommendation for Car Trailer Towing Race Car
  • The best way to pick out a weight distribution system is to base it off of the loaded tongue weight of the setup when it is loaded and ready to tow. This figure also includes the weight of any cargo behind the rear axle of the tow vehicle. I attached a help article on determining tongue weight for you to check out as well. You will want the loaded tongue weight of your setup to fall right in the middle of the tongue weight range of the system you use. If your loaded tongue weight ends...
    view full answer...

  • Curt Short-Arm Weight Distribution System Comparison
  • The spring bars of the Curt Short-Arm Weight Distribution System with Sway Control # C17422 are 28-3/8 inches and the bars on the Curt Short-Arm Weight Distribution System with Shank # C17333 are 28-5/8 inches. So the difference between the two is only 1/4 inch. The larger difference between these two weight distribution systems is that # C17422 is equipped with sway control and also comes with a hitch ball. With the # C17333 system there is no sway control device and you will need...
    view full answer...

  • Curt Weight Distribution and Sway Control for a 1999 Dodge Ram 2500 and 4,400 Pound Trailer
  • To choose a weight distribution system you will need to go by the total tongue weight of the set up. This is calculated by taking the tongue weight of the trailer, when loaded and ready to tow, and adding to that the weight of anything loaded behind the rear axle of the tow vehicle. Trailer tongue weight is typically 10 to 15 percent of the gross trailer weight. For a trailer weighing 4,400 pounds that would be 440 to 660 pounds. Curt system # C17422 is rated too high for this tongue...
    view full answer...

  • 1,200 Pound Spring Bars for Pro Series Weight Distribution System
  • The 1,200 pound Pro Series round weight distribution spring bar is # 58338 but will not fit the head of the system you have. Since your tongue weight is greater than 1,200 pounds then going to a 1,200 pound bar would not work anyway. You would need a system rated for 800 to 1,500 pounds tongue weight, # RP66131, or one rated up to 1,500 pounds like # C17422.
    view full answer...

  • Should Weight Distribution Spring Bars be Engaged Before or After Loading the Trailer
  • On a weight distribution system you will engage the spring bars after the trailer is loaded. It is not likely that you would damage the weight distribution system as you unload the trailer. The tension on the spring bars could change though which is why it is best to disengage them prior to unloading.
    view full answer...

  • Can Weight Distribution be Used with a 2014 Ford F-150 FX2
  • Weight distribution is not vehicle specific so you can use it on your 2014 Ford F-150 FX2. The trailer hitch and the vehicle will have to be rated for weight distribution which they will be with your particular truck so no worries there. To choose a weight distribution system you will need to go by the total tongue weight of the set up. This is calculated by taking the tongue weight of the trailer, when loaded and ready to tow, and adding to that the weight of anything loaded behind...
    view full answer...

  • Can the Curt Weight Distribution System with Sway Control be Set Up to Allow Backing Up
  • To be able to backup your trailer while the Curt Weight Distribution System with Sway Control, Trunnion Bar # C17422 is installed on the Yukon XL and the trailer, you will want to disengage the friction sway control bar. The sway control bar is the aspect of the system that requires the warning to not back up while the system in installed because it could be damaged in the process of backing up if the trailer were to turn too sharply. If you will need to execute a sharp turn while backing...
    view full answer...

  • Recommended Weight Distribution System and Sway Bar for 3 Horse Trailer
  • Thanks for all the information and attempt to show me a comparable trailer. I was able to find one online to assist with the visual. For your trailer I recommend the Curt Short-Arm Weight Distribution System with Sway Control - Trunnion Bar - 15K GTW, 1.5K TW # C17422. This is based on the fact you already have the pop up brackets and the weights you mentioned for your trailer. This system already comes with the pre-torqued 2-5/16 inch hitch ball and it comes with the friction sway...
    view full answer...

  • Weight Distribution and Sway Bar for 24 Foot Enclosed Trailer with Limited Tongue Length
  • For your short tongue on your new trailer, I recommend the Curt Short-Arm Weight Distribution systems with sway Control. This will give you the friction sway bar that will help control sway, but will need to be disconnected prior to backing up. I've attached an article to assist. If the hanger locations won't allow the brackets, you can use the Chain Hangers for Curt Weight Distribution Systems - Bolt On # C17005 as the hangers. Curt Short-Arm Weight Distribution System with Sway...
    view full answer...

  • How to Use Curt Weight Distribution System on Trailer with Propane Tank Frame Interference
  • Since you have a propane tank that would interfere with where the frame brackets of the Curt Short Arm Kit part # C17422 would install on the frame I have a different solution that would work well for you, but this kit as-is would not work for you. Instead you'll want to use frame brackets like the # C17005 with the system as these bolt to the side of the trailer frame to give you a way to hang the chains and not have the propane tanks interfere.
    view full answer...

  • Where on Trailer's Frame do the Brackets of the Curt Short-Arm Weight Distribution System Install
  • The spring bars of the Curt Short Arm Weight Distribution # C17422 are 28-3/8 inches long. So the brackets will be approximately that far from the hitch ball on your trailer's frame. You also want to find the exact tongue weight of your trailer when it's loaded. Then add that to any weight you've put behind the rear axle of your 2016 Ram 2500. You want that number to fall within the range the system is rated for. The Curt system is rated between 1,000 to 1,500 pounds of tongue weight....
    view full answer...

  • Can You Back Up with a Curt Weight Distribution System Installed
  • With weight distribution systems like the Curt part # C17422 you can backup as long as you mainly are going straight back. If you find yourself in any jackknife situations you would need to disconnect the bars and the sway control unit. A good rule of thumb is that as long as you aren't ending up in a tighter turning situation that you could get yourself into going forward then you will be fine in reverse.
    view full answer...

  • How to Install Curt Weight Distribution System on Trailer with Propane Tank Interference
  • What you would need is the part # C17005 to go along with the part # C17422 which will allow you to bolt the brackets to the side of the trailer frame and would avoid the propane tank interference. The sway control won't be an issue either since it bolts to the side.
    view full answer...

  • Length of Curt Short-Arm Weight Distribution Bars Compared to Other Standard System Bar Length
  • The Curt Short-Arm Weight Distribution System with Sway Control - Trunnion Bar - 15K GTW, 1.5K TW # C17422 has bars that are 28-3/8 inches long. Other standard weight distribution systems have bars between 32-33 inches long.
    view full answer...

  • What Size Trailer Frame is Compatible with Lift Brackets in Curt Weight Distribution Systems
  • The lift brackets included with Curt weight distribution system # C17422 are designed to fit frames up to 2-3/4 inches wide. For frame wider than 2-3/4 inches you could add separately chain hangers # C17005 which bolt to the sides of the trailer frame.
    view full answer...

  • Recommended Weight Distribution Shank For Curt Short-Arm System On 2014 Lifted Silverado 1500
  • Curt Weight Distribution Shank - 13" Long - 9-1/2" or 7-1/2" Drop - 1,500 lbs TW # C17124 is what I recommend for your 2014 Chevy Silverado With 6 Inch Lift and 35 inch tires. This shank is for a 2 inch trailer hitch receiver and will work well with the Curt Short-Arm Weight Distribution System with Sway Control - Trunnion Bar - 15K GTW, 1.5K TW # C17422 you referenced. These parts work well together and are the best option for your application.
    view full answer...

  • Replacement Spring Bars for Curt Weight Distribution System C17422 Rated for More Trailer Weight
  • Yes, you can substitute different weight distribution spring bars for the times your trailer is unloaded versus loaded up with your ATVs. The Curt Short-Arm Weight Distribution System # C17422 comes with bars rated to handle from 1000-lbs up to 1500-lbs of trailer tongue weight (TW). You can substitute the 800-lb rated spring bar kit # 17305 for towing the empty trailer with 600-lb TW..
    view full answer...

  • Weight Distribution Hitch with Cargo Trailer That Weighs 10,000 lb When Fully Loaded
  • Weight distribution has to be set up for each specific tongue weight the trailer will see. Best option for you might be to go with a system ideal for your loaded trailer tongue weight and then when unloaded just disconnect the bars. Otherwise you are going to spend a lot of time setting things back up. Actually it might even be in your best interest to do air bags on your tow vehicle instead since you'll be able to vary the air pressure as needed. For a system that would work well with...
    view full answer...

  • Can Weight Distribution System # C17422 be Interchanged with 2 1/2 Shank?
  • We contacted the manufacturer to answer the question, will the Curt Short-Arm Weight Distribution System # C17422 work with a 2 1/2 inch hitch opening? We also checked to see if the shank was interchangeable. Their reply was yes, part number # C17131 is a 2 ½” shank for the weight distribution hitches and will work with the # C17422 hitch.
    view full answer...

  • Recommended Weight Distribution System for V-Nose Trailer
  • The issue with adding a weight distribution system to your trailer is that there isn't a lot of room for installation due to the V-nose. But I may have a solution for you. To choose the properly rated system you need to find your total tongue weight. That is the tongue weight of the loaded and ready to tow trailer added to the weight stored behind your van's rear axle. Once you have that figure you'll also need to measure your trailer's tongue to find out how much space you have for...
    view full answer...

  • Replacement Head and Trunnion Bar for Curt Weight Distribution System
  • For a system like the Curt # C17422 you asked the question from, the Curt Replacement Weight Distribution Head for Trunnion Style Bars # C17307 is what is needed. If you want the trunnion bar as well, then you will want # C17337 if you have a 28-3/8" short bar or # C17303 if you have a 30-5/8" long bar system.
    view full answer...

  • Recommended Weight Distribution/Sway Control System for 2005 Ford F-150 Towing 26-Foot Camper
  • Since your F-150's Class V hitch has a weight carrying capacity of 5000-lbs and a weight distributing capacity of 9900-lbs, then you do indeed need a weight distribution (WD) system to tow your trailer with a maximum gross weight of 7640-lbs. The key for selecting the right WD system is to know your trailer's actual fully-loaded tongue weight (TW), just as it will be when you head out for a trip. To this actual fully-loaded TW you need to add the weight of anything in the truck that...
    view full answer...


Do you have a question about this Weight Distribution?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality weight distribution for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate weight distribution information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael H
Expert Research:
Jameson C
Updated by:
Adele M
Expert Research:
Adam R
Written by:
Laura H
Installed by:
Cole B
Photos by:
Sam P
Updated by:
Chelsea B
Photos by:
Zach O
Updated by:
Sarah W
Updated by:
Amanda M

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!

Call 800-298-8924
