Tekonsha Primus IQ Trailer Brake Controller w/ Custom Harness - Up to 3 Axles - Proportional
Tekonsha

Tekonsha Primus IQ Trailer Brake Controller w/ Custom Harness - Up to 3 Axles - Proportional

$106.27
Trailer Brake Controller

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

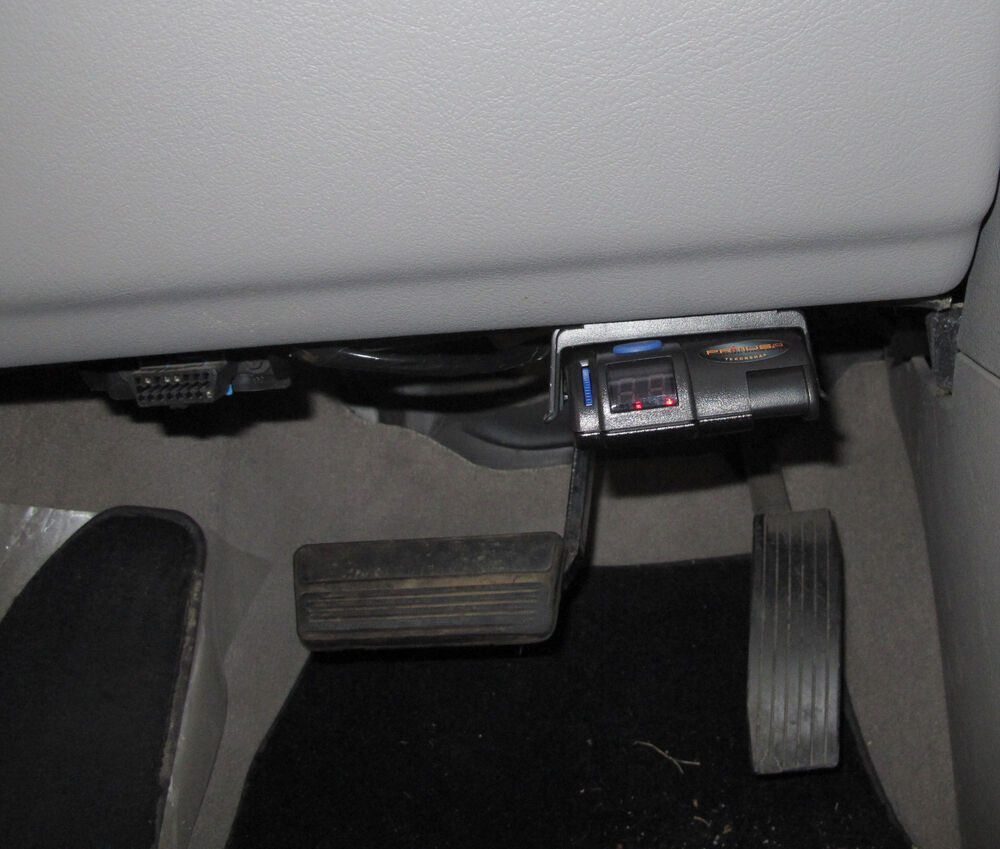

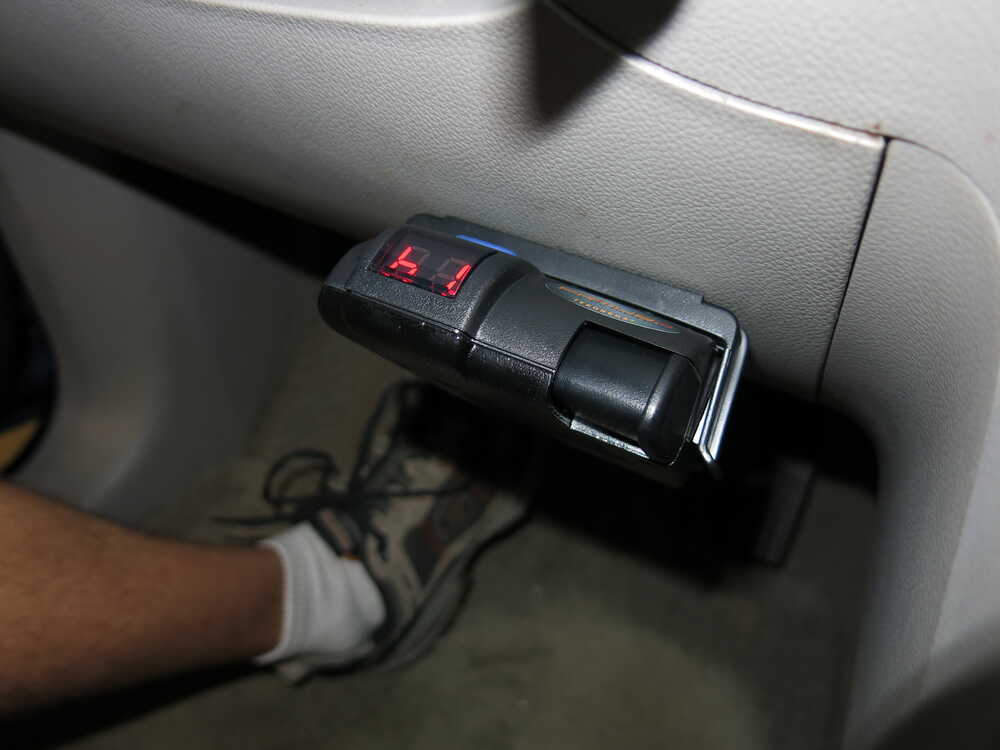

In Use/Installed

This proportional brake controller has simple controls and a digital display for diagnostic information. Includes 3 boost levels, a slide-bar manual override, built-in battery protection, automatic leveling, and continuous diagnostics. Great Prices for the best trailer brake controller from Tekonsha. Tekonsha Primus IQ Trailer Brake Controller w/ Custom Harness - Up to 3 Axles - Proportional part number TK38ER can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (2132)
  • Q & A (0)
  • Videos (97)
  • Photos

Tekonsha Trailer Brake Controller

  • Electric
  • Proportional Controller
  • Up to 3 Axles
  • Tekonsha
  • Under-Dash
  • Plug-In
  • Under-Dash Box
  • LED Display
  • Single Trailer Only

This proportional brake controller has simple controls and a digital display for diagnostic information. Includes 3 boost levels, a slide-bar manual override, built-in battery protection, automatic leveling, and continuous diagnostics.


Features:

  • Brake controller activates trailer brakes in proportion to your vehicle's braking action
    • Automatically adjusts trailer's braking based on deceleration of tow vehicle
  • Straight-forward controls keep settings within easy reach
    • Gain setting lets you adjust the amount of power sent to the trailer's brakes
    • 3 Boost levels let you adjust initial braking power and aggressiveness
    • Slide-bar manual override allows you to control trailer sway or stop in emergencies
  • LED display shows your current settings and diagnostic information
  • Built-in safeguards protect your vehicle, trailer, and the controller
    • Runs continuous diagnostic checks to alert you to any potential problems
    • Minimizes drain on car battery when not in use
    • Prevents trailer brakes from overheating by reducing power output to them during prolonged stops
  • Quick-disconnect feature lets you easily remove and store the controller when not in use
    • Replacement wiring harness (sold separately) and replacement bracket (6927 - sold separately) required to swap controller between vehicles
  • Easy installation with automatic leveling
    • Position anywhere from -90 degrees to 90 degrees up and down
    • Controller must be parallel with direction of travel and horizontally level
    • No need to wire into your vehicle - custom-fit harness lets you plug in and go
    • Mounting bracket and hardware included


Specs:

  • Application: trailers with up to 3 axles (6 brake assemblies)
    • Compatible with electric brakes only
  • Dimensions: 5" long x 4-3/8" wide x 2-1/2" tall
  • Mounting range: between -90 degrees and 90 degrees vertically
  • Warranty:
    • Limited lifetime on brake controller
    • Limited 1-year on wiring harness


Gain Power Adjustment

Tekonsha Primus IQ Gain

You can adjust the gain (also known as output) with the thumbwheel on the front of the controller. Gain lets you set the maximum amount of power that will be applied to your trailer's brakes. A heavier trailer will need more power to achieve smooth, safe braking, while a lighter trailer will need less. Typically, the gain is only readjusted when you experience changing road conditions or if the weight of your trailer changes.


Power Boost for Heavy-Duty Towing

The boost setting controls the aggressiveness of your trailer's braking, meaning how quickly the brakes reach the maximum braking level. You can adjust this when you're towing heavy loads and you need more umph to bring your trailer to a stop. Your tow vehicle doesn't need that much power to brake in time, but your heavy trailer does.


Depending on the level of boost, your trailer brakes can start at either 13 percent or 25 percent of the set gain. What this means is that, instead of starting at 0, the brakes will start at 25 percent and get to 100 percent sooner. This keeps the trailer from pushing your tow vehicle forward.


If your trailer weighs less than your tow vehicle, no boost is needed. But, if you want your trailer to lead the braking, you can select level B1.


Boost Levels:

Approximate Gross Trailer Weight Boost Level Increase in Initial Power Output
Less than tow vehicle GVW B1 13%
Equal to tow vehicle GVW B1 or B2 13% or 25%
Up to 25% more than tow vehicle GVW B2 or B3* 25%
Up to 40% more than tow vehicle GVW B3* 25%

*Both B2 and B3 offer a 25-percent boost in initial power. But the braking curve for B3 is more aggressive than that of B2. This means that, even though you will start out with the same intensity when using these boost levels, you will get an overall more aggressive braking experience with the higher level. So if you use B3, you will reach maximum braking sooner than if you use B2.


To adjust the boost, use the blue push-button on the top of the Primus IQ.


Slide-Bar Manual Override

Tekonsha Primus IQ Manual Override

The Tekonsha Primus IQ comes with an easy-to-reach, slide-bar manual override, great for stopping sway or controlling your trailer's momentum in emergencies. To engage the manual override, just push the slide-bar to the left, towards the center of the controller. This will activate the trailer's brakes and brake lights without you having to apply the brakes on your tow vehicle, perfect for limiting trailer movement while you're cruising.


Quick, Simple Installation

The Primus IQ can mount between -90 degrees and 90 degrees vertically, but the brake controller still needs to be horizontally level and parallel with the direction of travel.


After mounting the Primus IQ unit in your cab using the included bracket, simply plug the included custom harness into your vehicle. The other end of the harness plugs into the brake controller. To remove the IQ for storage when you're not using it, just unplug the unit and slide it out of the bracket. With a replacement wiring harness (sold separately) and replacement bracket (6927 - sold separately), you can even transfer the IQ to another vehicle.


Note: If you don't already have a 7-way plug at the back of your vehicle, take a look at our exclusive 7- and 4-way brake controller installation kit (ETBC7 - sold separately).


Proportional Braking

What is proportional Braking

The Tekonsha Primus IQ brake controller comes equipped with proportional braking to give you the best towing experience. Proportional braking means that your trailer brakes mimic your tow vehicle's brakes. If you slam on the brakes in your vehicle, your trailer brakes will activate with the same intensity; if you brake lightly, your trailer brakes lightly too. The trailer's braking is in proportion to your vehicle's braking. This saves wear and tear on the tires and the brakes on both your vehicle and trailer.


The Primus IQ uses an internal inertia sensor to detect how your vehicle is braking so it can send the right amount of braking power to your trailer. It measures the inertia of your tow vehicle and activates the trailer's brakes to slow at the same rate. The result is uniform braking across your towing setup. No push-pull action - just smooth, proportional braking every time.



90160 Tekonsha Primus I-Q Proportional Brake Controller - 1 to 4 Axles

Replaces 39528 Hidden Hitch and 20191 Draw-Tite I-Stop IQ Proportional Brake Control

303500 Tekonsha Brake Control Wiring Adapter with 2 Plugs

Replaces Tekonsha 3035 and Tow Ready 20260

Item # TK38ER

Installation Details TK38ER Installation instructionsAlternate Instructions TK38ER Installation instructions


California residents: click here


Video of Tekonsha Primus IQ Trailer Brake Controller w/ Custom Harness - Up to 3 Axles - Proportional

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Tekonsha Primus IQ Trailer Brake Controller Review

Hi there hollers there. Today we're going to be taking a look at Tekonsha's Primus IQ proportional trailer brake controller.This brake controller is going to be your entry level into a proportional brake controller and even though this is entry into proportional, I would recommend it over most of your time delay modules, just to how much smoother your breaking experience is going to be with a proportional controller, because proportional means that it uses an internal inertia sensor to detect the movement of the vehicle.So as we hit the brakes and go to a stop, that inertia sensor is going to detect that loss of motion and it's then going to use that information to apply a signal to the trailer brakes at the back, which will apply them. But it uses this information to help match the application of the brakes, to what you're doing here in the vehicle. So that way, when you hit the brakes, you're going to get a softer brake application at the trailer if you hit the brake softly in the vehicle. And then if you need an aggressive stop, like an emergency stop and you hit the brakes hard here in the vehicle, it's then going to detect that quick stop and it's going to put out a hard, aggressive brake to your trailer.With your time delays, you're just going to have whatever you have your setting to on your adjustment. And then a few seconds after applying the pedal, it will then apply to that exact amount that you've got it set to.

And that can be useful if you do a lot of off roading because you just want your brakes to apply. But for most people that are just going to be driving out on the roads, hauling going from campsite to campsite, proportional is going to be significantly smoother and a much more enjoyable experience.For example, when using a time delay brake controller with our boat here, if we come into an emergency situation or we're getting off the highway and we need to hit the brakes to come to a stop, with that time delay, we've got them set aggressive so that way we can get the application we need so this boat's not pushing us up that off-ramp. But when we're just breaking around town, going through stoplights and just here in the city, every time we hit the brakes, that brake controller applies with that same pressure and it's too much. We feel the trailer wanting to stop us before we get to the stop that we wanted to come to at the stoplight. So then we have to adjust our time delay brake controller down and up to meet those various situations so it feels properly when driving.

With our proportional controller in here, once we set the adjustment for the application, at that point, when we go into those different situations, the controller's going to take over and do all of those adjustments for us. So it just feels smooth the entire time.Our initial adjustment we're making is just for the particular size of the trailer that we're currently hauling. And with our boat here, we are getting pretty close to the weight of our Sorento. So we are going to be using the boost two setting with it to give us a little bit more aggressive braking to match this.Now we're just talking about the boost setting on our brake controller and it has three different boost options, as well as being able to turn the boost completely off. The boost is just going to give it a more aggressive strategy when using that inertia sensor information to be more aggressive.

And that's important when you've got extremely heavy things, you need that more aggressive braking. So when we got our John boat here hooked up, we're likely going to have it in the boost one, or maybe even the boost offsetting depending on how it feels, because this is significantly lighter than what our vehicle is.And for you people at home hauling a camper that is likely heavier than your vehicle, you'll want to use that boost three setting to get that more aggressive braking so this isn't pushing you when you're coming to a stop off the highway. Now, regardless if you're in the boost one, two, three or you have the boost turned off, your power adjustment is going to play a factor into how hard that applies. I'm going to hit the manual slider all the way over so you can see our maximum output. And as we adjust this, it does dial back what our maximum is going to be.

So if we have it on that boost three setting, it's going to apply more aggressively, but it's not going to apply harder than where we've got our power output set to here. So that way you can set that maximum and that can be really useful when you've got a medium or smaller trailer. Maybe you don't ever want this inertia sensor to put it at that maximum output. You can dial that back with the setting.Now, if you're using those boost settings, like when we we're backing our boat up here, it does make it more aggressive. And when you're backing up that inertia sensor might be applying a little bit too early, because when you're backing up, you're doing things slow and you're doing a lot of turning and a lot of tapping on the brake to get that position you need to, so you can get it into that spot. And that might be applying your brake controller's brakes here on your trailer, causing it to stop. And then all of a sudden you're backing into your trailer. Well, there's a reverse mode setting that we can temporarily apply for when backing up. So that way our boost isn't being too sensitive and applying those things.To put it into that reverse mode and temporarily cancel out the boost, you'll just want to hold onto your brake pedal. Just press down on that and then press down on the boost button and after a few seconds, you'll see, it will have a flashing R indicating that you're in the reverse mode. And now you don't have to worry about those brakes applying when you're backing up. And like most of your traditional brake controllers, there is a manual slide on it so you can manually apply the brakes on your trailer, if you need to.This can be useful for testing purposes. If you're just wanting to test the output, test the proper operation of your brakes, you can manually apply it with this. And it's also useful if your trailer starts to sway behind you, because that swaying motion when it starts going on, can potentially cause issues with stability and driving the vehicle. To straighten that out, we can hit our manual slide a little bit and that's going to apply the brakes in our trailer. So instead of being able to sway, our vehicle now wants to leave the trailer because the trailer is applying the brakes. That's going to pull them taut, and it's going to bring that trailer straight in line behind your vehicle once again.When your trailer is disconnected, you will see an NC located here on the screen. We just disconnected it right now and it does this so that, you know, hey, if you are driving, you have just been disconnected. You're no longer applying a brake signal to your trailer. It lost that input. And if you don't have anything connected, you're in your vehicle right now. You can be sure that you're not connected. You hit your slider here, it'll say NC. This can also be useful if you plug in your trailer and it doesn't seem like it's functioning, you should not see NC when your trailer's plugged up. That means that it's not currently detecting that there is a trailer plugged in and then you can correct any faults you've got with the wiring on your trailer, test it back out and ensure that you don't see the NC when you're hooked up.The two digit display will display your power output. And it also constantly monitors for any faults. And you can get fault codes on here. So you can use the troubleshooting in your instructions to help determine where the fault is and what's causing it.You'll have two different mounting options that come included with your brake controller. You've got the snap in mounting option, which is my preferred option because it's a little bit more low profile. It keeps itself closer to the dash and it only requires the two screws and you can easily click the module in and out with this bracket. It simply slides in the bottom there. And then it clicks up into place.And with our other bracket here, it does have adjustments. So if you can't achieve the appropriate angle with this bracket, you may need to use this one, but this can be mounted in a positive 90 degree to negative 90 degree orientation. So currently we're at zero that all the way straight up would be positive and all the way straight down would be negative 90 degrees. So you get a lot of options on how you're going to mount it. As long as you mount it level this direction, it can be again, tilted up or down, front to back. This other option here, you can see it has a slot on it. So you can mount it up using two screws here, wherever you want to position it. And with the slotted hole here, it will bolt to the side and then you actually get a tilt. So you can change that adjustment if you need it. In most cases, though, I feel like this is the best bracket for most vehicles.Now, when it comes to the installation of your brake controller, that's going to vary quite a bit, depending upon your vehicle. If you've got a truck, in most cases, they are already pre-wired underneath the dash and you can get a custom fit wire adapter here at etrailer.com, that will go from our Tekonsha brake controller and plug directly into the factory connector and then you're good to go. You'll want to use our fit guide to determine if there is a factory connector available for your particular vehicle.Now, something like our Kia here, your smaller SUVs or regular cars, those ones are likely not going to have a factory option. We have kits available though. Kit ETBC7 is going to provide you with your seven way connector as well as the wiring to get it hooked up for your brake controller.In addition to ETBC7, if you don't have a fully functioning four way connector, you'll need that as well because ETBC7 provides you with the wiring and seven way that you need for your brake controller, but does not provide you with the wiring for your lighting functions. But we have custom fit wiring options here at etrailer.com that have plug and play connectors for most vehicles. So you can simply just plug those in line and get a functioning four pole at the back, which provides you with all of your lighting signals. That'll just plug into ETBC7 here and then you can finish installing the rest of the kit to turn that four pole into a fully functioning seven way that can work with your brake controller.Now, if you've got multiple trailers you want to haul, then instead of going with the entry level proportional that the Primus IQ provides, I would recommend to Tekonsha's Prodigy P3. This will allow you to set trailer profiles. So if you've got a small trailer and a medium and a large sized trailer, or maybe two different large ones, maybe one's electric over hydraulic, you can make those adjustments and save those profiles. So that way you can just choose that profile when you hook up and it's already got your settings saved and you're ready to go.If you have limited space under your dash for a brake controller, there are brake controllers that can actually mount at the back and plug directly into the seven way connector like Curt's Echo. That's definitely one of the best options for that limited space there in the front. I'm a pretty tall guy and it really bothers me when I'm driving and my knee keeps hitting on my brake controller. So that's one of my favorite ones out there since I can get that out of the way and put it at the back of the vehicle.And that completes our look at Tekonsha's Primus IQ proportional brake controller.

Ratings & Reviews

4.8

2132 reviews
This proportional brake controller has simple controls and a digital display for diagnostic information. Includes 3 boost levels, a slide-bar manual override, built-in battery protection, automatic leveling, and continuous diagnostics.

by:

I went to all my local trailer places, auto parts stores and no one had a clue as to what I needed or how to install a brake controller. U-haul wanted $600 dollars to install a controller.

I visited e-trailer, bought $92, worth of parts, and watched an installation video, and a couple of hours later I was ready to tow.



by:



by:



by:



by:



by:



by:



by:



by:

Easy to install and very affordable.



by:

Quick install works Great



by:

Worked great!



by:

easy to install



by:

Just what the doctor ordered. Thanks



by:

The package arrived on time (actually a day early!). It came with the correct Harness. It was easy to install and is working properly!



by:

Ordered as replacement for one that quit after 18 years. New plugged into existing wiring and even fits in existing mounting bracket. So far so good.



by:

Simple hook-up when using the model specific harness.



by:

Haven't tried it yet but it was very easy to install plug and play if you have tow package already



by:

Such an easy install. The connector for my truck was right by the emergency brake. The custom harness worked like a charm. The length of the harness was just about perfect. I mounted mine right under my start button in a Nissan 25 Frontier. I used two-sided 3M Contruction tape to hold mount up. I used the plastic mount and I like how it snaps in place and has three positionsI used # 8 Tek screws and did not use the screws that came in the package. I think the hardest part was getting the red backing off the double-sided tape. I can see the controller from the driver's seat, and it does not interfere with my right leg and using the gas pedal. I am very happy with my install. I am very happy with the service I received from etrailer. I have had my 25 Nissan Frontier for a month and this is the second time that I ordered from etrailer. Everything was shipped fast and packed very well.



by:

Made it very easy, and fast.



by:

Worked great, super easy install...



by:

worked perfectly



by:

really easy installation



by:

Easy to install!



by:

Very simple and easy to install.



by:

Perfect! Installed easy as can be.


25
3855
Show More Reviews

See what our Experts say about this Tekonsha Trailer Brake Controller

  • Which Way Should Diode Point on Highlander for Install of Brake Controller
    Yes you need the diode arrow to point towards the brake controller. That will allow the voltage to travel into the controller but not backfeed back on to the Highlander in any way. If you need a diode we have the part # RM-690.
    view full answer...
  • Converting a 4-Way Trailer Connector to a 7-Way on a 2014 Toyota FJ Cruiser
    The # 30717 is exactly what you're looking for as long as you don't need the 7-way to supply anything other than lights on the trailer. You just plug the 4-ways together, connect the white ground wire to the vehicle's frame using the included screw, and cap off the other wires. If you need the other functions of the 7-way, such as if the trailer has electric brakes or needs a constant 12-volts for power, the instead your best option is our # ETBC7 kit. This kit includes the adapter similar...
    view full answer...
  • Brake Controller Plug Location on 2021 Jeep Grand Cherokee
    The factory brake controller connector on your 2021 Jeep Grand Cherokee is located under the dash behind the hood latch, as shown in the provided photo. Keep in mind, the connector will only be there if the vehicle has the factory tow package which includes the 7-way trailer connector at the rear bumper. If you have the tow package, to install the Tekonsha # TK90160 Primus brake controller on your 2021 Grand Cherokee you'll need the Tekonsha # TK93VR wiring harness. One end plugs into...
    view full answer...
    Image 1 for
  • Troubleshooting Primus IQ Brake Controller that Shows N.C. on Display
    There are 4 possible reasons why the Tekonsha Primus, # TK90160, is telling you N.C. 1. Trailer not connected to tow vehicle. 2. Trailer connected with open circuit on brake line. 3. Trailer connector disconnected or corroded. 4. Loss of trailer brake magnet ground. The first one is easy enough to solve so we will go on to the second possible issue. An open circuit on the brake line or a short to the brake circuit could be caused by a couple of different issues. First, it is possible...
    view full answer...
  • Pre Collision Warning Error After Brake Controller Install on a 2017 Toyota Highlander
    The Collision System Malfunction error message that you are experiencing on your 2017 Toyota Highlander after installing the Hopkins Reliance Trailer Brake Controller is a result of power backfeeding on the stop light switch wire into the collision system. In order to eliminate this you are going to need to install a 1 amp diode on the red wire between the brake controller and vehicle's wiring harness. This will then prevent power from backfeeding and allow you to use the Reliance on your...
    view full answer...
  • Does a Tekonsha Primus IQ Brake Controller Need to be Removed when Not In Use
    As long as it's not in the way for your daily vehicle use you will be just fine to leave your Primus IQ brake controller part # TK90160 installed all the time as that is what nearly everyone does with their controllers. Now if the controller is getting in the way and you are banging your leg on it or you just don't like it sitting there you could easily unplug it and store it till you need it.
    view full answer...
  • How To Tell If a Ford Transit Has the Tow Package and Parts Needed To Add It
    The Ford Transit if equipped with the factory tow package would have came with both a trailer hitch and trailer connector and they would both be located directly under the rear bumper so odds are you do not have either because they are not hard to locate. The factory tow package was also not a very common option but I can provide you with everything to add this on your own at a fraction of the price. The Draw-Tite Max-Frame Trailer Hitch Receiver part # 75912 is a confirmed fit for a 2015...
    view full answer...
    Image 1 for
  • Plug-In Brake Controller for a 2019 Subaru Ascent
    According to Tekonsha, the Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers part # 3062-P will fit your 2019 Subaru Ascent and allow you to use the Tekonsha Primus IQ Trailer Brake Controller part # TK90160. The plug is located underneath the dash and left of the steering column, taped to another harness near the emergency brake pedal which you can see in the attached photo.
    view full answer...
    Image 1 for
  • Troubleshooting Weak Trailer Brakes That Won't Lock Up with Override Lever of Controller Slid
    This could be a magnet wiring problem. It is unlikely that the magnets are bad on newer assemblies, but if the wiring is not properly connected, it could cause problems. Check to see that the magnets are properly grounded to a clean, bare metal surface free of corrosion. A bad ground would not allow the circuit to be complete and lead to the brakes not performing like they should. I also recommend checking the trailer side connector ground and the vehicle side connector ground. Another...
    view full answer...
  • Troubleshooting SH Code on a Primus IQ Brake Controller
    If you click on the link that I have provided for the installation instructions, you can see the troubleshooting chart just below the installation details. The SH code that you see on your Tekonsha PRIMUS IQ brake controller indicates there is a short somewhere on the brake output circuit when idle, or when the brake pedal is not being pressed. Tekonsha states that this issue can sometimes be caused by some test lights if you are using test lights. To troubleshoot this issue, start by...
    view full answer...
  • Troubleshooting Pre-Collision System Malfunction with Primus IQ Installed on a 2017 Highlander
    I spoke with my contact at Tekonsha who knew exactly what you were talking about. He said that the best solution for installing a brake controller like the Primus IQ # TK90160 in your 2017 Toyota Highlander is to install a diode on the red wire of the wiring harness for the Primus IQ. This is the wire that connects to the cold side of the stop light switch. To prevent the 12V from backfeeding into your Pre-Collision System he recommended using a diode rated for 1 amp. These are not very...
    view full answer...
  • Instructions Manual for Tekonsha Primus IQ Trailer Brake Controller
    I have attached the complete written manual below for the Tekonsha Primus IQ Trailer Brake Controller # TK90160 that you can use for reference. As long as everything is wired correctly the brake controller should detect your Cougar Camper as soon as you connect the 7-Way on your F-150 to the 7-Way on the trailer. Please just let me know if you have any other specific questions or issues regarding the Primus IQ and I will be happy to help!
    view full answer...
  • Primus IQ Brake Controller Wiring Functions
    The Primus IQ # TK90160 doesn't have instructions that come with a wiring diagram, but we have a picture/diagram on our site that shows which wires are connected to which functions on your vehicle. I attached the diagram for you to view, the wires will be connected as follows: White - Ground Black - 12V Power Blue - To 7-Way at rear of vehicle Red - Cold side of stop light switch If you are needing a new pigtail for your Primus IQ it is part # 7894. This same harness will work with most...
    view full answer...
    Image 1 for Image 2 for
  • Troubleshooting an SH Code on the Tekonsha PRIMUS IQ Electronic Brake Controller # TK90160
    If you click on the link that I have provided for the installation instructions, you can see the troubleshooting chart just below the installation details. The SH code that you see on your Tekonsha PRIMUS IQ brake controller indicates there is a short somewhere on the brake output circuit when idle, or when the brake pedal is not being pressed. Tekonsha states that this issue can sometimes be caused by some test lights if you are using test lights. To troubleshoot this issue, start by...
    view full answer...
  • What Do the Codes Displayed on the Primus IQ Mean
    After installing your Tekonsha Primus IQ Trailer Brake Controller # TK90160 you should see the following two-digit display: n.c. which means "power to brake controller without trailer connected." This displays for 15 seconds then changes to two dots ( . . ) With the trailer connected you will see .c displayed which means "boost feature not engaged," or .c. for "boost feature engaged." A display of b.1, b.2, or b.3 shows the boost level setting. See the chart at right of typical boost settings. A...
    view full answer...
    Image 1 for
  • Location of Tow Package Fuses on 2016 Jeep Cherokee
    If so equipped, the collective of circuits that make up the tow package is protected by 6 different fuses that protect the various circuits. The fuses are located in the power distribution center located in the engine compartment near the battery. Here is a listing of the fuses, their respective amperage and their locations. The cover of the distribution box will have a label on it showing which fuse is located where. - Trailer Running Lamps, Location F40 30A Pink - 12V Feed to Trailer...
    view full answer...
    Image 1 for
  • Recommended Plug and Play Brake Controller for a 2016 Toyota 4Runner
    Yes, it is Barbara. And if your 2016 Toyota 4Runner has the factory tow package you can use the Tekonsha Custom Wiring Adapter item # 3041-P to install the Primus IQ item # TK90160 without cutting or splicing wires. The connector you are looking for is white and located to the left of the emergency brake. I have linked an installation video below and if you skip ahead to the 7:53 mark you'll see exactly where this connector is. Please note if you do not have this connector the Primus...
    view full answer...
  • Brake Controller For A 2023 Ford Ranger With Factory 4 Flat
    Hey Bill, You can absolutely use your Primus IQ on your 2023 Ford Ranger! The installation will be a bit different, since there is not a plug and play adapter for your vehicle it will need to be spliced in. If you do not have the universal harness it came with originally we do have a replacement, # 20127. This would just plug into the back of the controller and then splice into the vehicle. For your Ford Ranger, the 4 flat plug that is on it would be considered "without a factory tow...
    view full answer...
  • Troubleshooting a Tekonsha Primus Brake Controller That Does Not Work When the Brakes are Pressed
    Hey Joseph, so it sounds like there is an issue with the brake switch circuit which is what actually tells the brakes to activate. This should be a red wire coming out of the controller, and you're going to want to make sure that it is connected to a circuit that only sees power when the brakes are activated. You might also have a blown fuse, so I'd recommend checking that as well. I have attached a FAQ tht you can check out to help you troubleshoot a bit further.
    view full answer...
  • Replacement Brake Controller for Primus IQ That Developed Internal Short
    Yes the controller does sound like it has an internal problem that is not repairable and would be time to replace the entire thing. The Brake EVN # TK63VR would be a great option to replace with as it's a proportional brake controller that's a little more advanced and is very reliable. It would plug right into the same connector as well.
    view full answer...
  • Parts Needed to Tow a Trailer with Brakes Using a 2006 Dodge Durango
    I was not able to locate an exact towing capacity for your 2006 Dodge Durango online but I do have a way for you to determine this. What you are going to want to do is open the driver door and look for a white info tag which will display both the gross vehicle weight rating (GVWR) and the gross combined weight rating (GCWR). If you take the GVWR and subtract that from the GCWR that will then give you your maximum towing capacity. Assuming the gross trailer weight (GTW) is within the maximum...
    view full answer...
  • Why Does My Tekonsha Primus Brake Controller Need Max Gain to Stop Brand New Jaco Ultralite Trailer
    As long as the Tekonsha Primus IQ Trailer Brake Controller # TK90160 that you referenced is set up correctly the braking setting will largely be based on the brakes of the trailer. When I say installed correctly I mean that you have the controller mounted within the specified range in the instructions, not turned or tilted to the side. Since the trailer is brand new the brakes on your 2013 Jaco Ultralite X17Z may not be adjusted correctly. Check out the video I attached that shows how...
    view full answer...
  • 2004 Dodge Ram Wiring Parts Needed for Fully Functioning 7-Way
    Hey James, Here are the parts you need to completely redo the wiring on your 2004 Dodge Ram: - Curt Powered Tail Light Converter w/ 4-Way Flat # C59496 - Universal Installation Kit # ETBC7 The Curt kit gives you the basic light functions while the ETBC7 kit gives you the rest of the parts and wiring needed for a full functional 7-Way, including all of the wiring needed to run to your cab for a brake controller. If you don't have a brake controller yet (or you want to replace what...
    view full answer...
  • Installing the RoadMaster Transmitter # RM-9420 for Even Brake on a 2017 Ford F-150
    If you use a circuit tester like part # PTW2993 you should be able to locate some wires behind or around your brake pedal and test them. If one gets hot only when your brake pedal is pressed, then you can connect the RoadMaster Transmitter # RM-9420 to that. Otherwise, your best bet would be to locate the trailer brake controller connector and tap into the stop light switch that way. If you check up under your dash to the right of the steering wheel (basically behind that center panel)...
    view full answer...
    Image 1 for
  • Below Bed 5th Wheel Installation Kit Needed For A 2000 Ford F-250
    Hey Judah, For below bed you would need to go with the B&W Turnoverball Underbed Gooseneck Trailer Hitch # BWGNRK1108 and then use either the fixed base Companion # BWRVK3500 or slider base Companion # BWRVK3400-5W depending on whether you have a long bed or short bed. If your bed is less than 8' then you'll want to go with the slider base to gain some additional turning clearance when making tight turns. This setup would also allow you to tow gooseneck trailers but removing the hitch...
    view full answer...
  • Recommended 7-Way Trailer Wiring On 2007 Ford E-350 Super Duty Van
    If you don't already have a 4-way wiring harness, we need to start there to get your 7-way. For a 4-way, I recommend the Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector # C56020 which plugs in behind the tail lights of your 2007 E350. You will have to remove the tail light assemblies and interior trim paneling to access the factory connections. I've attached a video to help. Then you will use the Universal Installation Kit for Trailer Brake Controller - 7-Way...
    view full answer...
  • Brake Controller Wiring for Ford E-450 Motorhome
    If your vehicle has a factory brake controller plug, you can simply use the Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers – Ford, Item # 3034-P, which will connect to the vehicle plug and the brake controller. On the new E-450 vehicles, the plug is located behind the storage compartment above the radio. Once you remove the storage compartment, you can plug in the adapter and run the cord behind your dash to the brake controller. I've attached several images showing where...
    view full answer...
    Image 1 for Image 2 for Image 3 for
  • Is Reese Voyager and Tekonsha Voyager the Same Brake Controller
    They are the same controller as Reese and Tekonsha are made by the same company. The Tekonsha part # 39510 does not come with the vehicle specific install harness part # 3035-P which is custom fit for your 2003 Ford F-250/350.
    view full answer...
  • Parts Needed To Install a 7-Way and Trailer Brake Controller On a 1996 Ford F-350 With Factory 4-Way
    Since you already have a factory 4-way flat on your 1996 Ford F-350 you will need the Adapter 4-Pole to 7-Pole # 37185. This will plug into your factory 4-way and the rest of the wiring will have to be spliced into your factory wiring as I do not see anyone makes wiring for your factory connectors. The Tekonsha Plug-In Wiring Adapter # 3035-P will allow you to plug into the 6 pin connector you found under the dash. Then you can connect the Tekonsha Prodigy P3 Trailer Brake Controller # 90195.
    view full answer...
  • Brake Controller Plug Location on a Class C Motor Home Built on a Ford E-450 Chassis
    I spoke with my contact at Tekonsha and he informed that you are looking for a brown 6 pin connector behind the hood release, up near the firewall to plug in the Tekonsha Plug-In Wiring Adapter # 3035-P. He said there is also a gray connector that is very similar to the brown connector that the # 3035-P will actually plug into but it is not the correct one to use. The Tekonsha Prodigy P2 Proportional Brake Controller # 90885 and the # 3035-P Ford Super Duty Adapter is what you need.
    view full answer...
  • Installing A Reese Brakeman Controller In A 202 Ford E250 With Factory 4-Flat
    Hey John, I can definitely help with that. The Reese brakeman controllers are compatible with the Tekonsha brand plug-and-play adapters. For your 2002 Ford E250 you can use the # 3035-P to plug directly in to the factory brake controller plug. You will also need item # 37185 to complete your wiring. The brake (blue) wire will need to be run from the brake controller back to the plug in the rear. The brake controller power and brake pedal wires are already run. A 12 volt hot lead from the...
    view full answer...
  • Brake Controller Recommendation for a 2008 Ford F-150 with Factory 4-Way
    To install a brake controller in your 2008 Ford F-150 you would be able to use the brake controller port under the dash and you will need to complete the wiring at the rear of your vehicle to the 7-way at the rear of the truck. For a brake controller I would recommend the Prodigy P2 Brake Controller part # 90885. This is our best selling brake controller because of how well it works and how easy it is to setup. This is a proportional brake controller that senses the amount of braking the...
    view full answer...
    Image 1 for
  • Recommended Wiring for 1998 Ford F-150 to Add 7-Way to Factory 4-Way Trailer Connection
    For your 1998 Ford F-150 Extended Cab with factory 4-way flat, you need the Tekonsha Ford Replacement OEM Tow Package Wiring Harness, 7-Way # 118242. This will give you the two additional relays needed as well as the wiring harness. Then you will need a brake controller. I recommend the Tekonsha Prodigy P3 # 90195 as well as the wiring adapter # 3035-P. This will give you an easy to use proportional brake controller with easy to use presets as well as a nice LCD screen for diagnostics....
    view full answer...
  • Brake Controller Wiring Harness Location on a 2013 Ford Explorer Limited
    On your 2013 Ford Explorer Limited, the factory brake control wiring harness should be located above and behind the hood release under the dash on the drivers side. To connect your P2 brake controller to the harness, you will need the Tekonsha Plug-In Wiring Adapter, # 3035-P. This adapter has one end that plugs into your P2 brake controller and a larger end that plugs into the 6 pin connector that should be located behind the glove box on the vehicles brake control harness. I have attached...
    view full answer...
  • Factory Brake Controller Harness Location on a 2013 Ford Explorer
    The harness for the 2013 Ford Explorer is located above and behind the hood release lever. There will be a 6-pin connector that mates with the one on the adapter at the end of the harness # 3035-P. For a brake controller i recommend the Tekonsha P2, # 90885, because it is one of our best selling controllers for its ease of use. I have included a link to the installation details for you to view.
    view full answer...
  • Recommended Brake Controller and Wiring Harness For 2005 Holiday Rambler Ambassador on F53 Chassis
    For your 2005 Holiday Rambler Ambassador motorhome, I recommend you use the Tekonsha Prodigy P3 Brake Controller # 90195. This controller utilizes a LCD screen that gives you easy to read and understand diagnostics and comes with simple presets to make set-up easy. It is proportional, so it will allow you to apply the trailer brakes at the same time and with the same amount of pressure so your trailer doesn't end up pushing or pulling your RV. It doesn't have the codes of most brake...
    view full answer...
  • Which Brake Controller Install Harness Fits 2022 Ford E-450 Cutaway
    For your 2022 Ford E-450 cutaway chassis the correct Tekonsha brake controller install harness is actually the part # 22292. This is why what you have doesn't look like it would work with the 3035-P.
    view full answer...
    Image 1 for
  • Recommended Plug in Brake Controller Adapter for a 2016 Range Rover TD6
    Hey Patrick! I would love to give you a quick yes but the best I can do is maybe and then show you what you need to look for. There is conflicting information on Tekonsha's website that says your 2016 Range Rover TD6 has the brake controller adapter port but I can tell you exactly where to look to find it. I linked a diagram below that shows the wiring on your Range Rover. This will be at the base of the left side a-pillar or to the left of your left foot right before your driver's side...
    view full answer...
  • Recommended Brake Controller for a 2018 Thor Ace Motorhome
    For your 2018 Thor Ace Motorhome, I recommend using the Curt Spectrum Trailer Brake Controller part # C51170. The reason for this is because this unit is composed of two main parts, the control box and the output knob. The control box gets mounted out of site and then the output knob will get installed up on your dash for easy use and a very aesthetically pleasing look. The color output of the knob also helps with ease of use. Since your motorhome is on a Ford F-53 chassis, you can use...
    view full answer...
  • Tekonsha Voyager Brake Controller Not Activating Trailer Brakes When Brake Pedal Is Pressed
    Yes, we can help you test your brake controller and determine if the controller is bad or if there is a wiring issue that is causing the problem on your 2003 Ford F-250 pickup. Lets start with the easiest things first. Be sure that when you are testing the trailer brakes with the brake pedal that the vehicle is moving. The trailer brakes will not apply with the brake pedal if the vehicle is not moving because of the proportional sensor. The first thing I would check is the red wire that...
    view full answer...
  • Brake Controller and Install for 2006 Winnebago Itaska
    The P2 brake controller part # 90885 that you referenced is a really great option for your 2006 Winnebago Itaska built on the F-53 chassis. It's the gold standard for brake controllers and has been for a very long time due to how well it works and how reliable it is. All you need to install it is the install harness part # 3035-P. If you check out the picture I attached you'll see where to find the install port.
    view full answer...
    Image 1 for
  • Where is Brake Controller Install Port for 2018 Ford Explorer
    To install your Reese Pod brake controller in your 2018 Ford Explorer will require the install harness part # 3035-P which is a confirmed fit. If you check out the 9:55 mark of the install video I attached to this page you'll see where to find the port on your vehicle to plug the controller in. It is a bit hidden under the dash underneath the panels.
    view full answer...
    Image 1 for
  • Brake Controller Connector Location on a 2020 Ford Explorer
    If your 2020 Explorer is equipped with the factory 7-way trailer connector, it will have the brake controller connector under the dash. The connector is located under the dash, above and to the right of where the driver's right knee would be. The connector will be rectangular, and will be gray in color. If you use a Tekonsha brake controller like the Tekonsha Primus, part # TK90160, the # 3035-P wiring adapter is the correct harness. If the vehicle doesn't have the factory 7-way, the connector...
    view full answer...
  • How Would EZ Connector Magnetic 7-Way Trailer Connectors with Built-in Seal # 319-R7-02 Install
    If your 1994 Ford F-150 has a 7-way installed on it already the EZ Connector Magnetic 7-Way Trailer Connectors with Built-in Seal # 319-R7-02 will easily plug in line with it once you remove the 7-way from your truck's wiring and then plug this in place. Then on the trailer side you have to remove your current 7-way and then wire the trailer side connector in it's place.
    view full answer...
    Image 1 for
  • Locating The Factory Brake Controller Wire Harness On A 2003 Ford E-450 Motorhome
    Hello Norman, Yes, I have added a photo for you showing the location of the brake controller adapter on a 2003 Ford E-450 RV so you can plug in the Tekonsha Plug-In Wiring Adapter # 3035-P. It's right below the fuse assembly, behind the parking brake.
    view full answer...
  • Parts Needed to Add 7-Way and Brake Controller to 2000 Ford F-350
    First thing your 2000 Ford F-350 needs is the correct 7-way adapter confirmed as a fit for your truck. For that you'd want the part # 118243 which plugs into the factory wiring of the truck and comes with all of the needed relays and fuses. Next you'll need the install wiring adapter as well as a brake controller. For a brake controller I would recommend the Prodigy P3 Brake Controller part # 90195. This is our best selling brake controller because of how well it works and how easy it...
    view full answer...
  • Where is Brake Controller Wiring on 2023 Ford Ranger
    Using the cut off wiring harness you have for the P3 part # 90195 you will wire it to the brake controller wiring of your 2023 Ford Ranger which is sticking out of the large wire harness that goes through the driver's side firewall, left of the brake pedal, with shrink tubing on the ends. The wiring on your truck will have it's functions labeled but for the brake controller wiring the red is for the stoplight circuit, black is for 12 volt power, white is for ground, and blue is the output...
    view full answer...
  • 2001 Ford F-150 Trailer Hitch Needed with a 700 lbs Tongue Weight and Fits with Spare Tire
    The Draw-Tite Trailer Hitch Receiver # 37130 is a Class IV trailer hitch with a 2" receiver opening that is confirmed to fit your 2001 Ford F-150 and will allow you to keep your full spare in it's current location. This has a 7,000 lbs Gross Towing Weight (GTW) rating and a 700 lbs Tongue Weight (TW) rating. When used in conjunction with a Weight Distribution (WD) system those ratings are bumped up to 12,000 lbs GTW and 1,200 lbs TW. I have attached the installation details for you to...
    view full answer...
  • Brake Controller And 7-Way For A 1999 Ford F-350 With A 4-Flat
    We can definitely help you out with that, Michael! We technically don't have a full wiring and brake controller package, but we do have the needed parts. You will want to start with the Tekonsha # 118243, which includes the 7-way harness and includes the needed fuses and relays. This is a direct fit part and will take at most 20 minutes to install. Gotta love plug and play stuff. Next will be the brake controller. We have quite a few options for these, but the Redarc Tow-Pro Liberty #...
    view full answer...
