Thule WingBar Evo Crossbars - Aluminum - Black - 53" Long - Qty 2
Thule

Thule WingBar Evo Crossbars - Aluminum - Black - 53" Long - Qty 2

In Stock
$259.95
Roof Rack

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Premium, aerodynamic crossbars attach to Thule feet to create a quiet, stylish roof rack for your vehicle. Dual rubber strips in T-slots let you easily mount accessories - no trimming required. Simple to center and install with integrated scales. Great Prices for the best roof rack from Thule. Thule WingBar Evo Crossbars - Aluminum - Black - 53" Long - Qty 2 part number TH711420 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (1262)
  • Q & A (0)
  • Photos

Thule Roof Rack

  • Aero Bars
  • 53 Inch Bar Space
  • Crossbars
  • Thule
  • 2 Bars
  • Black
  • Overhang

Premium, aerodynamic crossbars attach to Thule feet to create a quiet, stylish roof rack for your vehicle. Dual rubber strips in T-slots let you easily mount accessories - no trimming required. Simple to center and install with integrated scales.


Features:

  • Quiet, low-profile crossbars let you build an aftermarket roof rack for your vehicle
    • Pair with a Thule foot pack and a fit kit (sold separately) to create a complete roof rack
    • Works with Evo Clamp, Evo Raised Rail, Evo Flush Rail, Rapid Traverse, and Rapid Gutter foot packs
  • Tapered TrailEdge shape creates an extremely aerodynamic roof rack system
    • Dual rubber WindDiffuser strips help control air flow over bars to dramatically reduce wind noise and vibration
    • Aero-style bars reduce drag to help maintain fuel efficiency
  • Full-length crossbars maximize space for carriers and accessories
  • Bars accommodate accessories that mount in the T-tracks or clamp around the bars
    • Works with most universal-mount bike, water, snow, and cargo carriers
  • QuickAccess T-tracks let you easily install channel-mounted accessories
    • Simply pivot SwingBlade endcaps up and slide accessories into T-tracks
  • Bottom T-tracks let you easily install bar on Thule feet
    • SmartSlide slidable scale on bottoms of bars help center rack on your roof and double as under-bar aerodynamic cover
    • Included rubber strips let you fill gap between outer edge of foot and end of bar
  • Heavy-duty yet lightweight aluminum bars are durable and rustproof
  • Black powder coat finish is corrosion resistant


Specs:

  • Quantity: 2 crossbars
  • Crossbar weight capacity: 220 lbs
    • Always observe your vehicle's maximum roof load capacity
  • Dimensions: 53" long x 3-1/8" wide x 1" tall
  • T-slot dimensions: 3/4" wide x 1/8" tall
  • T-slot top opening: 3/8" (with rubber insert)
  • Underbar slot: 9-3/4"
  • Limited lifetime warranty

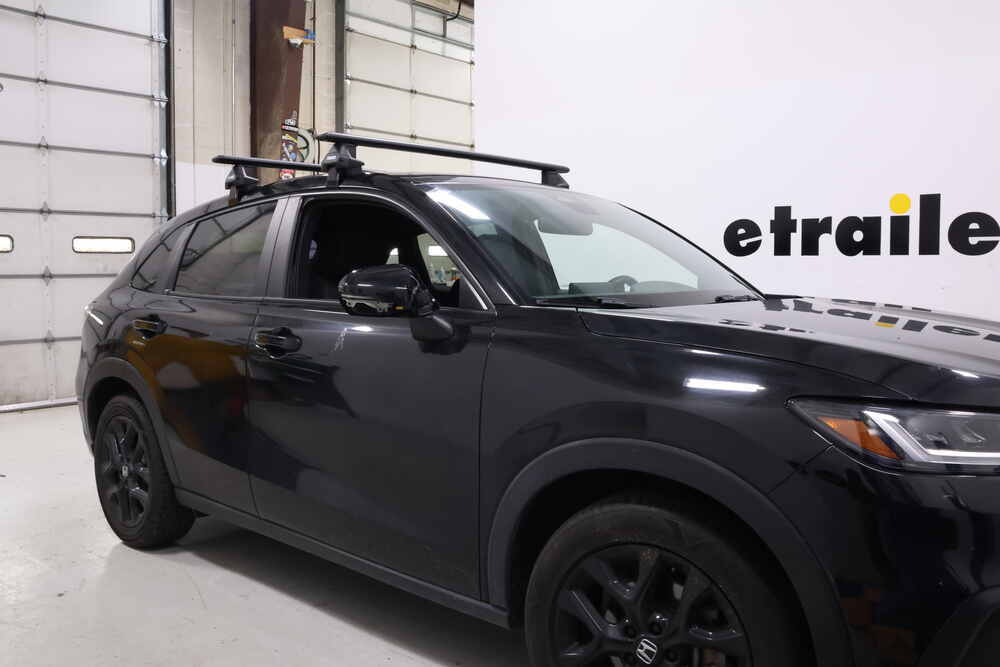

Thule WingBar Evo Crossbar on Vehicle

TheThule WingBar Evo crossbars let you quickly and easily build a quiet, aerodynamic custom roof rack for your vehicle. These high-end bars look great on any vehicle, and they are perfect for those who want a quiet roof rack that can carry plenty of gear. The bars have dual rubber strips in the T-slots and pivoting endcaps that allow you to easily mount carriers and accessories. Each bar extends past the feet to maximize carrying capacity. The bars are constructed of aluminum with internal BoxBeam structures that make them extremely durable yet lightweight. The WingBars require a Thule foot pack (sold separately) to mount the rack to your roof. Some vehicles - such as those with a naked roof - may also require a vehicle-specific fit kit (sold separately).


Aerodynamic TrailEdge Design with WindDiffuser Strips


Thule WingBar Evo WindDiffuser Design

The WingBar's tapered TrailEdge shape helps reduce wind drag by separating the airflow over and under the bars so you won't see a reduction in your vehicle's gas mileage. This also dramatically reduces wind noise and vibration - even at highway speeds - and eliminates the need to add a fairing to your roof rack.


The rubber WindDiffuser strips in the T-slots have V-shaped ridges that direct air over the tops of the bars. This reduction in wind drag also helps maintain fuel efficiency and significantly reduces wind noise.


Channel-Mounted and Clamp-On Accessories



Thule WingBar Evo SwingBlade

WingBar Evo crossbars have built-in T-slots with rubber strips that simply press into place. This makes them easier to install when compared with strips that have to be threaded into the channel from the end of the bar. The dual-strip design also makes accessories easier to install in the T-slots when compared with strips that have to be trimmed. Simply lift the SwingBlade endcaps open, slide your gear into the channel, and close the endcaps. These rubber strips also seal the gaps left by your accessories so that water and dirt don't get into the T-slots.


Thule WingBar Evo SwingBlade

You can also attach most universal, clamp-on accessories and carriers to the bars.


Strong, Durable Construction

Thule WingBar Evo Crossbar Construction

The WingBar Evo crossbars are made of anodized aluminum with internal BoxBeam structures. These structures strengthen the bars without significantly increasing their weight. Additionally, because the bars are aluminum, they won't rust or corrode so you can leave them on your roof year-round.


Hassle-Free Installation

Thule WingBar Evo Crossbar Installation

Installation of the WingBar Evo crossbars is quick and easy, and you don't have to do any drilling or vehicle modification. The bars have bottom channels that accommodate your Thule feet. SmartSlide sliding scales in the bottom channels let you place the feet in the proper location using the vehicle-specific measurements provided in your fit kit manual. Simply slide each scale to the measurement indicated in the fit kit manual, then slide the foot into the channel until it rests against the scale.


For applications that don't require specific measurements provided in a fit kit manual - such as a raised rail - you can center the rack after you place it on your vehicle using a tape measure. Then slide the scales against the feet to fill in the gaps in the channel.


Insert the included rubber filler strips into each channel between the outer edges of the feet and the ends of the bars, and trim the excess. These rubber strips, coupled with the sliding scales, help to keep dirt and water out of the bottom channels and help to reduce whistling.


Thule WingBar Evo Crossbar Torque Tool

To complete installation on your roof simply tighten a single screw inside each foot using the torque tool included with the foot pack. This single attachment point enables you to secure the crossbar to the foot and the foot to your roof simultaneously.



711420 Thule Wing Bar Evo 135 Aluminum Cross Bars - Black - 53" Long

Replaces Thule THARB53B

Item # TH711420

Installation Details TH711420 Installation instructions

This Product Fits The Following Vehicles
