Curt/
Bumper Mount Hitch/
4 x 2 Inch Bumper/
350 lbs TW/
Bolt-OnItem # C19101
Retail:$81.31
Our Price: $53.81
You Save: 34%This item qualifies for Free Shipping
Features:
Notes:
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Installation Details
Video of Curt RV Bumper Hitch - 2"
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

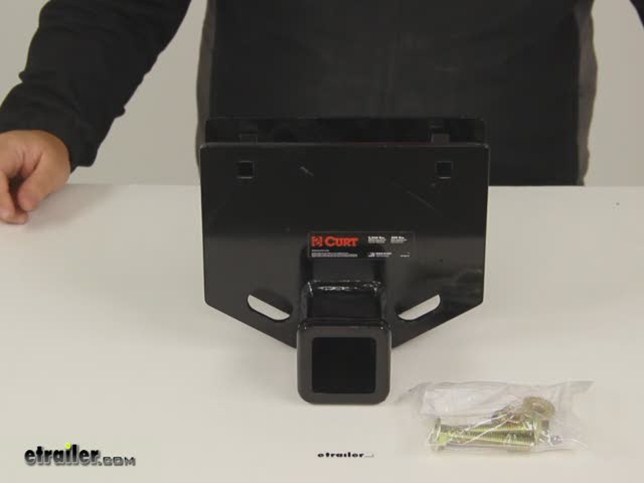

Randy: Hey guys, Randy here at etrailer.com. Today we're taking a look at the Curt 2 inch by 2 inch receiver tube opening, made to fit on the back side of your campers. Now this is going to add a lot of versatility to your camper. As you can see, we've added an RV approved bike rack, but also RV approved cargo carriers are something you can stick back there.It offers a 350 lb tongue weight rating and a 3500 lb gross trailer weight rating, so even small utility trailers, small boats, things like that, are something we can add on here to the back to get them down the road with us safely.Now these are available in two different configurations. The one we're using here is for the four inch by four inch bumper beam. But these are also available for the two inch by four inch bumper beams.
So just be sure you get the right part number.Installation's really quite simple, just slide it up around your bumper. Place in your two carriage bolts, and secure those down. Really quick and easy way to add, like we said before, a lot of utility to your trailer, and get your stuff where you need it.You can see our pin hole here, this is gonna be 5/8 of and inch in diameter, it's gonna use a standard class three pin and clip, and we can also thread in anti-rattle devices, you can see the bike rack here, anti-rattle device there. It's a little bit tight to get in there, you can see how your pin has a little bit of interference, but overall it's gonna be something that's nice and easy to use.The two inch by two inch receiver tube opening is gonna make it compatible with just about any type of class three accessory. Do keep in mind though, your cargo carriers and bike racks, you wanna be sure those are RV approved.
Which generally means they don't have a tilting or a folding function.Now these RV hitches from Curt are really some of the most popular ones that we sell. I think especially with this one, the four inch by four inch version, with that higher tongue weight and gross trailer weight capacity than what we see out of some of the other ones, this is gonna lend itself towards that trailering for sure.A lot of the other ones, or at least some of the other ones that are on offer are gonna be limited to just bike racks or just cargo carriers. Not really rated for towing. So if towing is something you're looking for, this is gonna be an excellent choice. But also to add some more storage space back here with cargo carriers or with bike racks, it's gonna come in really handy.Now a couple of measurements that'll be helpful for you, just to ensure that this is gonna work out properly for your application.From the bottom of our bumper to the bottom of our hitch, it's about 2 3/4 of an inch, so our ground clearance in the rear will be lowered by that.
Then from the hitch pin hole to the outer edge of our bumper, it's about 3/4 of and inch all the way to the end of the receiver tube, we're looking at about 2 1/4.Now this hitch does not have a weight distribution rating, so with that being said, Curt does recommend the use of a stabilization strap anytime we're using something that would be considered a non-wheeled load. Something like a bike rack, cargo carrier or something other than a trailer.To begin our installation process, we're gonna take our hitch, and we're also gonna find the center point of the rear bumper of our RV here. Or our camper trailer.Once we've found that we want to slide the Curt hitch up. It's gonna be a snug fit. So we're gonna use our dead blow to get it in place.
Once that's up in position, we just want to ensure that the center point of the hitch is lined up to the center point of our bumper. We can slide through our half inch carriage bolts, then we'll put our flange nuts on the backside.And we're gonna snug these up. Once we've got them snug, we'll torque them to the specifications listed in our instructions. We're gonna use a 3/4 inch or 19mm to get the job done.That's gonna complete our look at the Curt line of camper bumper mount hitches.
Average Customer Rating: 4.6 out of 5 stars (31 Customer Reviews)
Key note that it is solid bottom and 2 bolts pinch it closed at the top. 362773
A quality bit of kit. My only problem is the burly box steel bumper on my 1990 LJ78 Land Cruiser is 2" X 4 1/8", apparently, not 2" X 4". So the nice bolts and nuts included in the package don't quite go through the holes at the top. I had to substitute thinner eye bolts. I'm pulling a very light canoe trailer with this, so I'm not worried about the loss in strength. If you have a real cross frame member for a bumper, as I do this is an inexpensive light towing solution. I would have rated it excellent if the bolt holes were somehow adjustable up and down. 196623
Very nice specialty receiver for 2" Reese Hitch. Fits on 4" x 2" bumper stock - dimensions are spot on. Finish on surface and edges is smooth...nothing to catch or "bite" during installation! Thank you 196812
Fit great. Very solid and easy to install. Good value! 726317
Exactly what I ordered. Sturdy and strong. Will see when I use tomorrow. 700131
Easy to install and well built. Bigger than I needed to mount our current bike rack to our Camp Lite 11FK, but works great and it was simple. 671648
Very sturdy. We use it to hold a bike rack on our trailer. 628489
5 Star Service every time. I put my order in yesterday before noon and it was on my doorstep today before noon. I will recommend etrailer to everyone!!! Thanks Again!!!! 607608
My hitch arrived in a timely manner and looks great! 605371
Product shipped on time and was easy to installed on our tractor 509945
Bought it for a heavier hitch for my 2000 Polaris Ranger 6x6 and it worked excellent. Just one minor adjustment and it fit like a glove. etrailer is the way to go, will be buying more from them for my new to me 2009 Ford E350 ambulance that I will be using as a tow vehicle for my travel trailer. 483659
Great product, got it very fast! 441536
Product wa exactly what I needed. Shipped out the same day and arrived right in time! Thank you etrailer.com! 422917
Very good quality but I had to send back as I ordered the wrong bumper size. They were very helpful with making the return easy. I was sent a shipping label.by text and sent it back. Just waiting for my refund. All items I have bought have been of good quality and not high priced. Very Happy. 399013
vary good product 398766
The bumper hitch was what I was exactly looking for. Easy mount to the bumper. 388641
I have receive the right one and I'm real happy with it I will tell everybody ware I bought it I'm vary satisfied thank you 338505
I love it recommended everyone that notices it
Mike k - 02/05/2018Just received this product, so haven't really used it yet. But wow, it is really built well. I looked at numerous similar products, and am really happy with my choice. Should give us years of great service. May be overkill for a bike rack on the back of our Takena Trailer, but will most assuredly give us peace of mind on our long road trips. 317932
Fast deleivery reasonable price works f ine. 287537
as always, etrailer shipped the correct item at a great price, and I will continue to be a loyal customer.....thanks...r.t. 215610
Mounted to my trailer bumper so easily that even I couldn't mess it up. This is rare! 212890
Used for a rear hitch on my 5th wheel to tow the jet ski trailer. Very sturdy. 177079
video information was a big help, it eliminated guesswork on my application. fit & finish were excellent & my parts arrived on time. I will buy from etrailer again. 175023
Well made, easy installation, fast delivery. Simple instructions to follow no drilling required. Great folks to do business with, can not go wrong using this company. 170919
Wrong product - and no help from etrailer.com in rectifying the situation! I don't think anyone could use this product, and it's not clear enough in the information that it's for a tiny bumper - not a regular RV bumper. 133861
very good quality this will be altered to some degree for a custom project and will work nicely as always the order came quickly and met my expectations. 102467
etrailer makes ordering parts very easy - always impressed with customer service I get. The bumper hitch is sturdy, and fit my 2" x 4" trailer bumper perfectly. it is a well built product and is very stable on the bumper. 92115
Exactly as ordered and met my expectations. Good delivery time. 90162
Arrived in a timely fashion. Even sturdier than I had expected. Fits my trailer bumper well. I am very satisfied with this product. 88107
The hitch came on time. Etrailer stayed in touch with me. I am sure it will work great for pulling my flat bottom boat. Have to wait for winter to get over with. 67737
Have purchased 2 off these and the service is great, fantastic product as well. Sandy & Adrian 66093
