Tekonsha Brake Controller - 90885

Proportional brake controller automatically levels when mounted within a 360-degree vertical range. Includes digital display, 3 boost levels, battery protection and continuous diagnostics. Easily transfer between different automobiles.


Features:

  • Brake controller activates trailer brakes in proportion to your vehicle's braking action
    • Automatically adjusts trailer's braking based on deceleration of tow vehicle
    • Activates immediately - no pausing like with time-delayed brake controllers
  • Automatic-leveling ability - internal sensor detects deceleration even if controller is not mounted flat
    • Position at any angle up or down in the vertical plane
  • 3 Boost levels let you adjust initial braking power and aggressiveness
  • Continuous diagnostic check alerts you to any potential problems
  • Integrated safeguards protect your vehicle, trailer and the controller
    • Minimizes drain on car battery by drawing only 3.6 milliamps when not in use
    • Prevents trailer brakes from overheating by reducing power output to them during prolonged stops
    • Defends brake controller and trailer breakaway systems against shorts
  • Digital, blue LED display is easy to read
  • Built-in, rotary-style manual override lever
  • Quick-disconnect feature lets you easily remove and store the control when not in use
    • Replacement wiring harness (sold separately) and replacement bracket (7686 - sold separately) required to move the controller from one vehicle to another
  • Plug-in, vehicle-specific brake-control adapter (sold separately) can be used for certain applications to reduce installation time


Specs:

  • Application: trailers with up to 4 axles (8 brake assemblies)
    • Designed for use with electric or electric-over-hydraulic trailer brakes
  • Dimensions: 3-1/8" wide x 5-1/8" long x 2" tall
  • Length of hardwire pigtail: 30"
  • Mounting: 360-degree vertical plane operating range
  • Limited lifetime warranty


Proportional Braking

With a proportional brake controller, you can get heavy-duty emergency braking, general braking or slow-to-an-idle braking for your trailer automatically. The intensity with which your trailer brakes are activated and the rate at which they are applied are dependent on the deceleration of your tow vehicle. This means that, unlike time-delay controllers - which send the same amount of preset power to your trailer brakes every time - proportional controllers are able to adapt to every braking situation differently. So, if you slam on the brakes in your truck, your trailer brakes will activate with that same extreme intensity. And if you merely slow down as you approach a red light, your trailer will gradually brake in the same manner. Just set the initial power level, select a boost setting, and you're good to go.


As long as the P2 controller sits level on a horizontal plane and is pointed in the direction of travel, it will sense - via an internal inertia sensor - how your tow vehicle brakes. This inertia-based sensor responds to the deceleration of your tow vehicle as you brake by signaling the controller to send out enough power to your trailer brakes so that they are activated with an intensity that matches. The result is uniform braking across your towing setup. No push-pull action - just smooth, proportional braking every time.


Power Boost for Heavy-Duty Towing

Aside from smoother, more efficient braking, Tekonsha's P2 brake controller also offers a boost feature that gives you more initial braking power for those times when you're towing heavy loads. You can switch boost levels so that the power output to your trailer brakes automatically starts out at either 14 percent or 28 percent of the predetermined power setting.


So, if you boost the initial power so that your trailer brakes activate with 28 percent of the overall intensity at the start, the brakes will reach maximum braking faster. This is particularly beneficial if you are towing a heavy load because the intensity required to stop that load may be far greater than that needed to halt your vehicle. Therefore, sending out more initial power to the trailer brakes - and causing them to reach maximum braking faster - allows you to better control the trailer so that it doesn't push your tow vehicle before coming to a complete stop.


If your trailer weighs less than your tow vehicle, no boost is needed. But if you wish to set the boost so that your trailer leads the braking of your towing setup, you can select level B1. The following table gives an indication of when you might use the different boost levels and the power increases that they offer.


Approximate Gross Trailer WeightBoost LevelIncrease in Initial Power Output
Less than tow vehicle GVWB114%
Equal to tow vehicle GVWB1 or B214% or 28%
Up to 25% more than tow vehicle GVWB2 or B3*28%
Up to 40% more than tow vehicle GVWB3*28%

*Both B2 and B3 offer a 28-percent boost in initial power. But the braking curve for B3 is more aggressive than that of B2. This means that, even though you will start out with the same intensity when using these boost levels, you will get an overall more aggressive braking experience with the higher level. So if you use B3, you will reach maximum braking sooner than if you use B2.


Safety Features

The Prodigy P2 offers advanced safety features to prevent damage to various components of your towing setup. Integrated reverse battery protection shields the brake controller and your trailer's breakaway system from shorts. When the P2 is not in use, it will be in power-saving mode. In this setting, the power draw falls to only 3.6 milliamps, minimizing drain on your vehicle's battery.


When you stop at red lights, or any time that your truck and trailer are at a standstill with the brakes applied for more than 5 seconds, the P2's "hold" feature will activate. When this happens, the power output to your trailer's brakes will be reduced to just 25 percent of the preset power setting so that the brakes will not overheat.


If ever there is a time that you need to brake your trailer separately from your tow vehicle - when traveling down a steep incline, for example - the manual override lever is easily accessible. Pushing this lever engages the brakes on your trailer with full power. In addition, when you activate this override, the brake lights on your trailer will illuminate, properly warning those behind you of the braking action of your rig.


In addition to all of those safety features listed above, the P2 offers diagnostics such as:

  • Open ground
  • Overload
  • Output short
  • Power loss
  • No trailer connection

Automatic Leveling and Simple Installation

The self-leveling feature of the P2 ensures that the brake controller continues to function even as you drive up steep hills or through the mountains. Simply mount it in your cab at any vertical angle, and the controller will level itself automatically thanks to its 360-degree rotational range.


Correct P2 mounting360-Degree P2 mounting

Note: The P2 must be mounted on a level horizontal (side-to-side) plane and must be lined up with the direction of travel for the internal sensor to function properly.


Installation is a snap. After mounting the P2 unit in your cab using the included pocket mount, hardwire one end of the included pigtail harness directly into your vehicle. The other end plugs into the brake controller. To transfer the P2 to another vehicle or to remove it for storage, just unplug the unit and slide it out of the pocket mount.


Installation Accessories

For even easier installation, a vehicle-specific wiring adapter (sold separately) is available for most newer trucks and SUVs. One end of the custom adapter plugs into your vehicle, and the other end plugs into the controller - no hardwiring required.


Note: If a custom brake-control wiring adapter is not available for your vehicle, one of the following will be required:

20-Amp circuit breaker (9506P - sold separately) for 2- to 4-brake applications

30-Amp circuit breaker (38630 - sold separately) for 6- to 8-brake applications


See also etrailer.com's exclusive 7- and 4-way brake-control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your vehicle.



90885 Tekonsha Prodigy P-2 Proportional Trailer Brake Control

Replaces Tekonsha 90185



90885 Installation InstructionsInstallation Details 90885 Installation instructions


Video of Tekonsha Prodigy P2 Trailer Brake Controller - 1 to 4 Axles - Proportional


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Tekonsha Brake Controller 90885 Review

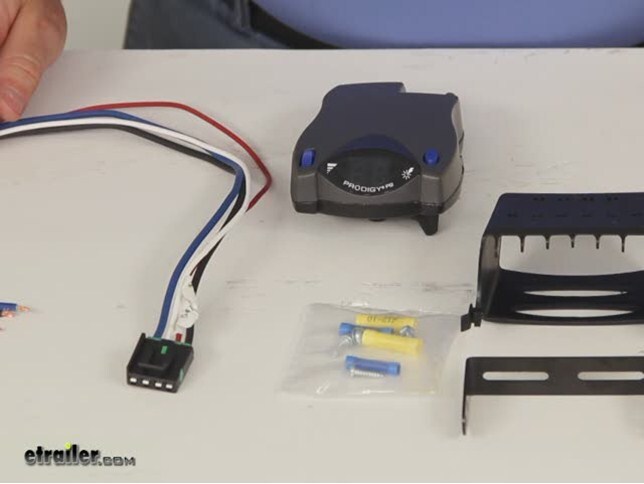

Today were going to review part #90885. This is the Tekonsha Prodigy P2 Trailer Break Controller. This is a proportional brake controller, which will activate your trailer brakes in proportion to your vehicles braking action. It will automatically adjust the trailers braking based on the deceleration of the tow vehicle, and it will activate immediately so theres no pausing like with your time-delay brake controllers. This controller does have an automatic leveling ability. Theres an internal sensor on the inside which will detect deceleration, even if the controllers not mounted flat.

You can position it at any angle, up or down in a vertical plane, 360 degrees, but you will want to be able to place it to where you can read this LED display right here. Now as far as horizontal position, you do want to stay horizontal and parallel to the direction of travel, so this way. In other words, not like this. Youll want it parallel that way. And not like that.

So as much as you can, and vertically you can go whichever way you want. Now there are three boost levels. Right here is the boost button. When you push that, it will put you into a boost 1, boost 2, or boost 3, and thatll let you adjust the initial braking power and aggressiveness, so if youre using a heavier trailer with a heavier load, youll want to increase the boost level. This controller also has a continuous diagnostic check, which will alert you to any potential problems.

It does have integrated safeguards, which will protect your vehicle, the trailer, and the brake controller. It does minimize drain on the car battery by drawing only 3.6mA when not in use. Itll prevent the trailer brakes from overheating by reducing power output to them during prolonged stops when your foots on the brake, and itll help defend the brake controller and the trailer breakaway system against any shorts. Right here will be the digital blue LED display, which is easy to read. Now in a minute here, Im going to hook the power up to it and well be able to see that.

On the very bottom here, which you can reach from the front, is a manual built-in rotary-style manual override for emergency braking purpose. Now on the very back, you can see the plug-in. It is a quick disconnect feature, which will let you easily remove and store the brake controller when not in use. It does come with this wiring harness that plugs into the brake controller and the pigtails to wire up to your vehicle. It does come with this type of mounting bracket, which will install with the mounting hardware to the side holes, or the popular pocket style, which you would mount this to your vehicle and then just slide this in, and on each side would be a pin that would slide into those mounting holes. To release it, you would just pull out those. It slides right out. There are also butt connectors to help you connect it to the wiring in your vehicle. We do also recommend that if you are going to move this from vehicle to vehicle, to buy an extra wiring harness and an extra bracket, if you dont use one of these. That way you have one in each vehicle and it makes it easier to remove the controller from one vehicle to another. We also do sell wiring harness that are vehicle-specific, meaning theyll have the plug like this n one end to plug into the brake controller. On the other end, instead of just these bare wires, theyll have a plug that will fit the factory brake controller port on your vehicle. What youll want to do is check the fit guide, if you do have the factory brake controller port, on our website and it will give you the part number of that vehicle-specific brake controller harness. This is designed for trailers with up to four axles or eight brake assemblies. It is designed for use with electric or electric-over-hydraulic trailer brakes. It does come with a limited lifetime warranty. Now what Im going to do is, Ive got a power source here Im going to connect the wires up to, so we can get an idea of that blue LED display and just some of the features. Ill show you how they operate on the controller. Ive got them all hooked up to the power source. Now Im going to snap this in. Im going to turn the power on. Now what youll see, is when the power comes on, youll see a C. Youll see a dot and a C. That means the trailer is connected. Now if the trailer wasnt connected, let me just disconnect this and Ill show you what it looks like, youll see itll flash N-C and that means not connected. Whatll happen is thatll flash for about fifteen seconds, then it will change to just the two dots, and that means you trailer is not connected. Ill show you here in a second. There you go. Now youre just seeing the one dot. Therell be two dots if the boost feature was engaged. If it isnt, theres just one dot. What were going to do is connect the trailer back up. There we go. Now youll see it is connected. Now this boost feature button right here, now youll see when I push it once, itll say b for boost. Now right now it isnt in any boost level, as youll see by just the dot and the C. Now when I hit boost and I go to boost 1, and then theres a boost 2 and a boost 3. When Im in a boost level, watch when that goes off, you should see a dot, a C, and a dot. Therell be two dots. That means the boost feature is engaged. Now to set the power, heres the power over here. If you push this manual override all the way on as far as you can go, and you turn that knob, and thatll set the boost or the power that you want. So lets say we set it at, lets say 6.3. Now I let off the manual override. So basically when you go to hit this manual override, as you push it, its going to ramp up and itll go all the way to 6.3. Thats the power you set it for. So you just set your power control, the dial there, by pushing all the way in and set the power. Theres a feature, if this is connected and its just sitting with no motion or activity for 15 minutes, it will go blank. It still has power connected, but itll go blank just to save on the power going to it. That should do it for the review on part #90885, the Tekonsha Prodigy P2 Trailer Break Controller.
