Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers

Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers

Item # 20174
Retail:$43.05
Our Price: $40.96
You Save: 5%
Accessories and Parts
Orders above $50 qualify for Free Shipping
Shipping Weight: 1.33 lbs
Quantity:
In Stock
Accessories and Parts 20174 - Flat Carrier Parts - etrailer
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Perhaps the easiest light kit to install, the sealed light units snap into the built-in mounting brackets on Draw-Tite, Rola and Tow Ready cargo carriers and then plug into the existing 4-pole trailer connector on the vehicle. 1-800-496-5010 to order etrailer accessories and parts part number 20174 or order online at etrailer.com. Free expert support on all etrailer products. Great prices and Fastest Shipping for Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers. Accessories and Parts reviews from real customers.
  • All Info
  • Reviews (220)
  • Q & A (0)
  • Photos
  • Why etrailer?

etrailer Accessories and Parts - 20174

  • Hitch Cargo Carrier
  • Flat Carrier Parts
  • Light Kit
  • etrailer

Perhaps the easiest light kit to install, the sealed light units snap into the built-in mounting brackets on Draw-Tite, Rola and Tow Ready cargo carriers and then plug into the existing 4-pole trailer connector on the vehicle.


Features:

  • Fits Draw-Tite 40101, Rola 59502 and 59507, and Pro Series 63153 and 63155 trailer hitch mounted cargo carriers
  • Off-set Y-harness - one lead measures about 3'

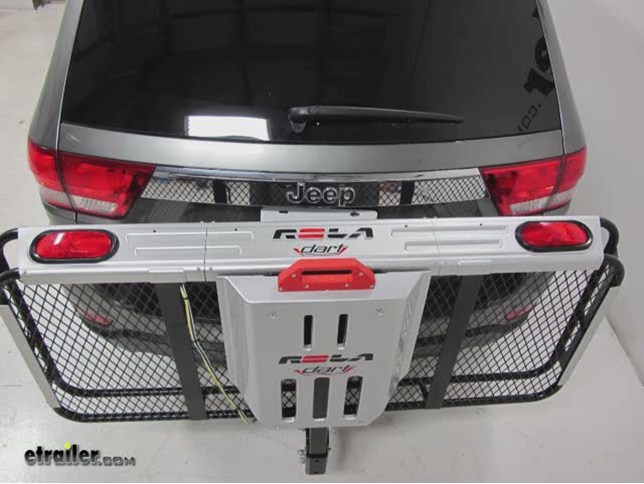

Light Kit Installation


Insert grommet

Step 1

Mount rubber grommets on both sides of cargo carrier tray making sure grommets are seated securely.



Insert light

Step 2

Press tail lamps into grommets until seated securely on both sides of carrier tray.



Route plug

Step 3

Route plug with green wire under cargo carrier to the passenger side (right) and plug into cargo carrier tail lamp.

Route plug with yellow wire under cargo carrier to the driver side (left) and plug into cargo carrier tail lamp.



Secure wiring

Step 4

With supplied cable ties, secure all wiring to the bottom of the cargo carrier.



Please note: With the off-set Y-harness, one wire lead (about 3' long) is run straight to a light, the other lead (about 6' long) is run along the back edge of the carrier before it curves up to the second light. On the 40101 and 59502 cargo carriers, the wires come up through the carriers' mesh floor to attach to the back of the lights. On the Tow Ready carriers 63153 and 63155, the tighter mesh floor is not large enough for the plug to pass through. Therefore run the wire leads under the platform to the lights, then up the front of the carrier and around to the back of the light. This also helps prevent the wires from getting pinched by the cargo. On vehicles where the 4-pole trailer connector is tucked under the vehicle, a 4-pole extension may be required to connect the two plugs. See 'related items.'



20174 Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers





Customer Satisfaction Score:


Customer Reviews

Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers - 20174

Average Customer Rating:  4.4 out of 5 stars   (220 Customer Reviews)

Perhaps the easiest light kit to install, the sealed light units snap into the built-in mounting brackets on Draw-Tite, Rola and Tow Ready cargo carriers and then plug into the existing 4-pole trailer connector on the vehicle.

by:

Works well enough, but falls out of the mount bracket constantly. I had to eventually duct tape them in place.


Comments
I have had the same issue in the past. The lamp and grommet are easiest to install into the mounting bracket if you install the lamp into the grommet first. Then install the assembly into the bracket.
-- Etrailer Expert Mike L - 10/09/2022


by:

Package was received with no issues, well packed. Assembly was easy. The light kit install instructions could use a little more detail, hard to tell what they're supposed to look like when properly seated, but not a big issue. Would like to see the wiring harness light connector removable so as to run the wires inside the support channel, but not a big deal. My harness just fit into my connector, but I would imagine others would need an extension. Overall, very happy with the product. I hauled a big gas grill an it was no issues. Plenty of tie-down options. I would recommend this product to anyone looking for a way to expand storage. I can take 7 people in my SUV and now I have a place for their stuff.


Comments
No problems. The only thing I would change is to make the wires for the lights longer so they could be attached along the perimeter of the frame instead of jutting across.
Freddie R - 07/22/2015


by:

Products shipped in record time. They are Christmas gifts for my son to take his gear to the Outer Banks. That's all he wanted for Christmas.Thanks so very much!!!




by:

We're currently on a 9000 mile road trip from California through Canada to Nova Scotia, to Maine and back... we purchased a car carrier and waterproof cover and they have performed as advertised! Lots of rain, muddy conditions here in Canada and all of our camping equipment stored in our carrier remains clean and bone dry! Great sturdy products. I purchased the light kit for the carrier and it too has performed flawlessly. The carrier is installed on my 2016 Subaru Outback. I had a 2" hitch previously installed and the carrier with all the weight looks great. I don't feel it on the road...




by:

Light kit installed easily and worked well. I had enough wire to install properly with a little left over. I would have liked to have more wire for the driver's side just so I could run it along the main support beam of the carrier for a cleaner look. Since the back of the lights are exposed, my cargo bumped one of the lights and slightly bent the connecting pins. Not sure if that is a light kit issue or the carrier design, but it'd be nice if that was protected a bit better.




by:

This is a good product, it just is odd that one side of the wiring is 3' and the other side is 6'. If they would both be just 5' long this would warrant a 5-star review.


Comments
With the off-set Y-harness, one wire lead - about 3 feet long - is run straight to a light, the other lead - about 6 feet long - is run along the back edge of the carrier before it curves up to the second light. On vehicles where the 4-pole trailer connector is tucked under the vehicle, a 4-pole extension may be required to connect the two plugs. It is part # 9653P
12" Car and Trailer End Loop
$5.18
. It adds 1 foot of wire length.
-- Etrailer Expert Jenny N - 07/12/2022


by:

The product itself appears to be pretty well made. The wired connections fit nice and snug and were sufficient length to route underneath the cargo carrier i purchased and plug into the hitch harness. I only gave it 4 stars since it didnt fit in the 24x60 Reese Cargo Carrier #63153, even though the description says it will. The rubber gasket and light are too small for the oblong openings in the carrier and I had to ziptie them in place so they dont fall out.




by:

This is a great piece! Easy to assemble and was just what I needed to haul camping gear




by:

Easy to install, no problems with the lighting. Great fit!




by:

This light kit appears to be of excellent quality. The only reason for four stars is that I have not actually installed it as yet, so have not had opportunity to test it.




by:

I ordered this light kit for my Pro Series Cargo Carrier (item 63153).

The light kit was very easy to install and took less than 20 minutes.

Make sure you watch the video for installing this light kit. Its a plug and play installation.




by:

Delivery was quick ordered Mon mornning deliverd Fri afternoon.Trailor was very easy to put together looks great and should do what I got it for.. could come with 6 larger washers fo 3 center bolts.Lights allso went on easy.i chose to run them through the smaller tubes to lessen exposure seeing that i cut them to add an extension (to short by 12 inchs) then I zip tighed tupperware over inside to protect from cargo banging into them and popping them out..in all I would recemend great for the price




by:

I used the cargo basket to transport 2 coolers and some miscellaneous camping gear. The basket was easy to assemble and the additional lighting option was easy to install also.




by:

Super easy install. Follow the instructions and you can't miss. Brake lights and turn signals work perfect.




by:

Fairest price on the net! Fast shipping




by:

After one year, the lights and wiring have held up amazingly!




by:

Plug and play




by:

Works well. Easy install. Not designed for my particular cargo carrier, but still works.




by:

Light's were on back order, etrailers representatives updated me frequently all the way up to the delivery. Easy to install, installs in minutes.


Thank you




by:

Did not work on my 2014 Mercedes ML. I am guessing because of the led lighting system. U hauls always act strange with the vehicle also.


Comments
Thank you for the review! The problem sounds like it is caused because the lights are not able to draw enough power from the LEDs in the Mercedes. If you got 2 kits, part # DI34ZR
Load Resistor Kit for LED Turn Signals - 50 Watts - 6 Ohm - Qty 2
$7.18
, 1 register for each function, you should be able to get around the problem.
-- Etrailer Expert Brooke M - 09/03/2021


by:

I and my 10 y/o son assembled the cargo carrier in about 30 minutes. The steel construction seems very stout. The light kit was simple to install, I wish more travelers utilized them.

The only complaint is, I would like the hardware to be numbered and not just in a bag.




by:

All parts were top quality, easy to install, everything you need to hook up. Directions were clear and easy to follow. But the power cords for the driver side could be a little longer, should be longer like the Passenger side lighting harness. Both wiring harnesses go from the lights then to the center of the carrier, then to the hitch area.
There was extra wiring on the passenger side; you may want to look at this.


Comments
I am very pleased with this unit and use it all summer long. Great Idea....
Robert J - 06/12/2014


by:


Very well packaged, arrived in good
shape.
Easy to put together.
Have 12.50 x 35 inch tires plenty of clearance, can not open tail gate with large tire.
Ordered light/wire kit, changed to different lights.
Will work great for what I need.




by:

Worked great! Easy hookup.




by:

Arrived in great condition Well packaged. Exactly as described and worked perfectly. Just what I needed to install on a rack to haul my Cricket Cart on the back of my fifth wheel camper. Thanks again to Dylan and etrailer for there good help and service as usual


Comments
Still working great. Great product an service from etrailer as usual
Benny - 06/03/2020

25
220
Show More Reviews

See what our Experts say about this etrailer Accessories and Parts

  • How Far to the Interior of the Cargo Carrier will Light Kit # 20174Extend
    Once installed, the plugs that install into the rear of the lights on the Tow Ready Cargo Carrier Light Kit, part # 20174 extend into the inside of the cargo carrier about 1-1/2 inches measured from the inside of the rail.
    view full answer...
  • Adding a Light Kit to the Curt Cargo Basket
    For your Curt Cargo Carrier, part # C18153, you can use the light kit for Draw-Tite, Tow Ready and Rola carriers, part # 20174. This will install using zip ties and connect to your existing 4-way connector to add a light kit to your cargo carrier. Since they are not directly designed for your basket, you'll have to invent a way to hang them from the bars.
    view full answer...
  • Troubleshooting Running Lights not Functions with a Cargo Carrier Light Kit # 20174
    The first thing I would recommend you do is test the running light circuit of your 7-way minus any of the adapters to determine if there is voltage there and then put the adapter on and test the running light circuit there also. This will tell you if the problem happens to be on the wiring or adapter. If the voltage is good then the problem lies somewhere in the # 20174 wiring. I attached an FAQ article on trailer wiring that you might find helpful also. I also attached a link to a...
    view full answer...
  • Optional Light Kit for Reese Trailer Hitch Mount Cargo Carrier # 63155
    Yes, the light kit, part # 20174, will fit the 20x47 Reese Railed Cargo Carrier # 63155. The light kit is easy to install and plugs into your existing four pole trailer connection. The description of this light kit has since been updated to include a fit for the Reese # 63155. I have included a link to a video review of the light kit.
    view full answer...
  • Weight of the Tow Ready 20x48 Cargo Carrier for 1-1/4 Inch Hitch
    I went out to the warehouse and weighed the 20x48 Cargo Carrier, part number 63155, and it weighed 45 pounds in the shipping carton. You might subtract two pounds for the box and packaging material inside. This is one of our best selling cargo carriers and is set up for easy installation of a light kit, part number 20174, (see link below) if you need to add one because the taillights on your vehicle will be covered by the items on the carrier or your state requires taillights.
    view full answer...
  • Can the 24x60 Railed Cargo Carrier be Used on a 1999 Ford Explorer With a 2 Inch Hutch
    Yes, you can use the 24x60 Railed Cargo Carrier for 2 inche Trailer Hitches, item # 63153, on your Explorer, as long as your vehicle has a 2 inch receiver hitch installed. I have not heard of any problems using a cargo carrier and rollover accidents with this or any other vehicle. You may want to get the Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers, item # 20174, along with the cargo carrier to provide tail lights in case the items on the carrier obscure the lights...
    view full answer...
  • What is the Difference Between Cargo Carrier 63154 and Cargo Carrier 63155
    The 20x48 Cargo Carrier for 1-1/4 inch (Class II Only) Trailer Hitches - One Piece Design, # 63154, comes welded together, so only the shank needs to be bolted on. Plus, the welded carrier is more sturdy than the bolted model. The 63155 is the same carrier but it requires assembly, bolting together three parts. You may also need lights for the carrier if your load blocks the vehicle lights. Use Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers, # 20174. I have included...
    view full answer...
  • Hitch Mounted Cargo Carrier Recommendation for a 2015 Lexus RX 450H
    We actually have tested several cargo carriers on a 2014 Lexus RX 350 that all worked great. Check out the link I attached to see videos all of the test fits. I am assuming the one you are referring to is the Pro Series Cargo Carrier part # 63153. To determine if this carrier would fit the hitch on your 2014 Lexus RX450H you would need to take one simple measurement. You would need to measure from the center of the hitch pin hole to the furthest point out on the rear bumper. If that measurement...
    view full answer...
  • How Tall is Pro Series Cargo Carrier 63153 From the Bottom of the Shank to Top of Rails
    From the top of the receiver opening on a trailer hitch to the top of the rails on cargo carrier # 63153 it would be approximately 8-1/4 inches. The 2-1/2 inch rise plus the 5-1/2 inch tall rails equal 8 inches but then there is the thickness of the metal on the cargo carrier shank where it fits into the the basket portion. I have included a couple of video links to this cargo carrier for you. If measuring from the bottom of the carrier shank you would add another 2 inches for the height...
    view full answer...
  • What are the Inside Measurements of Pro Series Trailer Hitch Mount Cargo Carrier 63153
    On the Pro Series cargo carrier # 63153 the measurements are as follows: Outside dimensions: 61-1/2" long x 25-1/2" wide x 5-1/2" tall Inside dimensions: 60" long x 24" wide x 5-1/2" tall Based on the measurements of your dog exercise pens it sounds like this is going to work out for you. I have linked a video review of the carrier for you. If the cargo blocks the lights of the vehicle then you can add a light kit to this carrier using # 20174. It would require that the vehicle has a...
    view full answer...
  • Do the Surco # 52018 and Pro Series # 63153 Cargo Carriers Require Assembly
    Both carriers would require assembly. The Curt Cargo Carrier, # C18150 is similar to the Pro Series # 63153 Cargo Carrier you mentioned. The #C18150 is manufactured by a different company, and although the two carriers share similar dimensions, there are a few differences. The Curt carrier is one inch less wide and has a straight shank, while the Pro Series carrier has an angled shank that raises the cargo carrier 2-1/2 inches above the receiver which allows for greater ground clearance....
    view full answer...
  • Does Replacement Bulldog Relay Switch # BDW20174 Include Up/Down Buttons
    Yes, the Replacement Relay Switch # BDW20174 includes the actual up/down buttons on the housing. I have attached an image that shows this.
    view full answer...
    Image 1 for
  • Does etrailer Light Kit Fit on 24x60 Reese Cargo Carrier
    Yes, the etrailer light kit, part # 20174, does fit onto the Reese cargo carrier # 63153 but at first it might not seem like it. The trick is you have to put the gasket of the light kit in first and make sure the inner lip is fully seated around the inside of the oval opening. Then, you push the light in and it has to get all the way into the gasket. If you do that it seats nicely. It's easy to just push it in and not get that lip fully seated which causes it to not fit and it just kinda...
    view full answer...
  • Light Kit Recommendation for a Pro Series Cargo Carrier 63153
    The Light Kit part # 20174 that you referenced has been confirmed to fit the Pro Series Cargo Carrier part # 63153 that you also referenced. I attached review videos for both products for you to check out as well.
    view full answer...
  • Tail Light Kit For 24x60 Reese Cargo Carrier 63153
    We do indeed have the exact tail light kit you need for the 24x60 Reese Cargo Carrier # 63153: - Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers # 20174 This light kit is a confirmed fit for the Reese cargo carrier so it is exactly what you need. I have added a link below to a video review for you to check out as well if you'd like to take a look.
    view full answer...
  • Light Kit For The Reese Cargo Carrier 63153
    The light kit # 20174 will work great for your 24x60 Reese Cargo Carrier for 2" Hitches # 63153.
    view full answer...
  • Best 24x60 Cargo Carrier That Will Not Obscure Taillights Or Hinder Rear Access on 2005 Durango
    The Tow Ready Carrier, part # 63153 is the carrier with the angled shank that you mentioned. The carrier is designed to be used with the shank in the upright position only. The shank raises the carrier 2-1/2 inches up above the level of the receiver. The rails on this carrier are also 5-1/2 inches, for a total of 8 inches above the top of the receiver. This model would be more likely to block the taillights of your Durango, but because of the longer 12-3/4 inch shank length, the basket...
    view full answer...
  • What Cargo Carriers Will Fit etrailer.com Cargo Bag Part # 988501
    The bag measures 59 inches long by 24 inches wide, so I would recommend a 24x60 cargo carrier. It is a soft flexible bag, and will fit most cargo carriers, but you would get the most out of a 24x60 cargo carrier. Our 24x60 cargo carriers will only fit 2 inch hitches, so if you have a 1-1/4 inch hitch, you would have to use a smaller carrier and bag or replace the hitch with a 2 inch version. I personally have Tow Ready part # 63153 with the optional tail light kit part # 20174 and it works...
    view full answer...
  • Trailer Hitch and Cargo Carrier Recommendation for 2015 Nissan Juke AWD and Cargo Carrier
    For your 2015 Nissan Juke AWD the Draw Tite hitch part # 24892 is a confirmed fit and would work well for carrying a cargo carrier. The most popular cargo carrier would then be the Reese part # 63155 and a compatible light kit # 20174 if your cargo blocks your vehicle lights. I attached a review video for both.
    view full answer...
  • Estimated Height Maximum When Adding Gear to a Pro Series Cargo Carrier on a 2012 Honda Odyssey
    The height of the contents you load onto the Pro Series cargo carrier # 63153 can be about 18-inches give or take a couple to be on the safe side. It's tough to pinpoint the exact measurement and as long as you keep your gear below the taillights, you won't need a light kit. See the video about the cargo carrier installation I included at the :42 second mark. It is important to keep in mind that the lowest-rated component in the hitch/carrier system determines the overall capacity. Check...
    view full answer...
  • 4-way Recommendation for 2012 Honda Pilot to Activate Light Kit for Pro Series Cargo Carrier
    The correct light kit for the 24x60 Pro Series Cargo Carrier # 63153 that you referenced is the Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers # 20174. To install a 4-way at the back of your 2012 Honda Pilot to activate the lights of the # 20174 you would want the Tow Ready Custom Fit Vehicle Wiring # 118558. I attached installation instructions for this wiring harness for you to check out.
    view full answer...
  • Adapter for a 7-Way Trailer Connector on an Acura MDX to a 4-Way Flat for a Light Kit
    It sounds like your Acura MDX has a blade style RV 7-Way. In order to connect the 4-Way flat from Light Kit, # 20174, to your MDX you will just need an adapter like # PK12716. One end will plug into the vehicle side. The other end has a 4-Way flat receptacle for the light kit.
    view full answer...
  • Recommended Cargo Carrier for 2011 GMC Terrain
    To determine if the Surco 20 by 48 inch Cargo Carrier, part # 52017 will work with your Terrain, you will need to determine the necessary clearance. Measure from the hitch pin hole in your receiver back to the furthest rearward point of the back bumper. This distance will represent the necessary clearance. The Surco Carrier has a shank that measures 6-1/4 inches from the hitch pin hole to the closest portion of the carrier. I like to subtract an inch for wiggle room. If the measurement...
    view full answer...
  • When Wiring Up Light Kit to etrailer Cargo Carrier Should Ground Wire Run to the Carrier Frame
    If you were using a light kit installed on the etrailer Cargo Carrier part # e98874 that you referenced like the part # 20174 you wouldn't want to ground the lights to the carrier. You'd want to ground them back to the main harness of the trailer wiring instead like what the kit is setup to do. The white wire in the harness for the # 20174 is the ground.
    view full answer...
