Redline Trailer Spindles - R20484

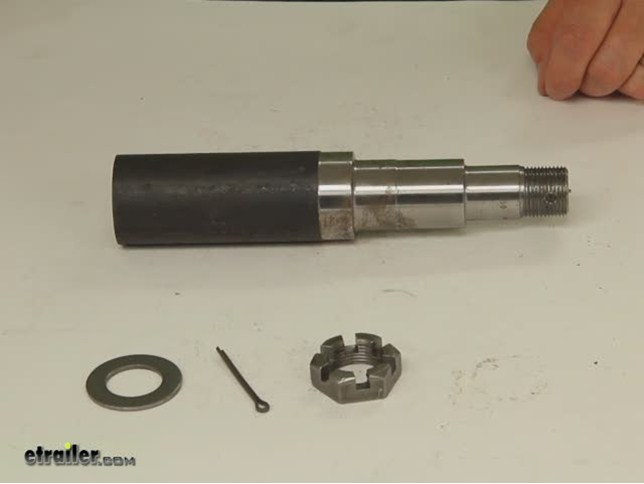

- Includes washer, castle nut and pin with the spindle
| Part No. |
Capacity |
A |
B |
C |
D |
E |
F |
Round/Square |
| R20484 |
1750 lb |
1.75 |
1.73 |
1.38 |
1.06 |
1.00 |
4.00 |
Round |
Customers Who Purchased This Trailer Spindles Also Bought...
Ask the Experts about this Redline Trailer Spindles
- What are the Length Dimensions of the Steps on Spindle Part # R20484
- I pulled one of these from the ware house and used a set of calipers to measure the portions you asked about.
The total length of the spindle, part # R20484, is 8-3/4 inches. I used the labels assigned to the steps on the spindle on the product page. Section B is .61 inches, section C is .80 inches, the section between C and D is 1.30 inches, and section D is 1.00 inch in length and the threads are .93 inches long.
Listed in the chart are the diameter sizes.
