Thule ReVert Vertical Bike Rack for 4 Bikes - 2" Hitches - Tilting
Thule

Thule ReVert Vertical Bike Rack for 4 Bikes - 2" Hitches - Tilting

Part Number: TH73VA
In Stock
$999.95
Retail:$1,055.50
You Save: $55.55
Hitch Bike Racks
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

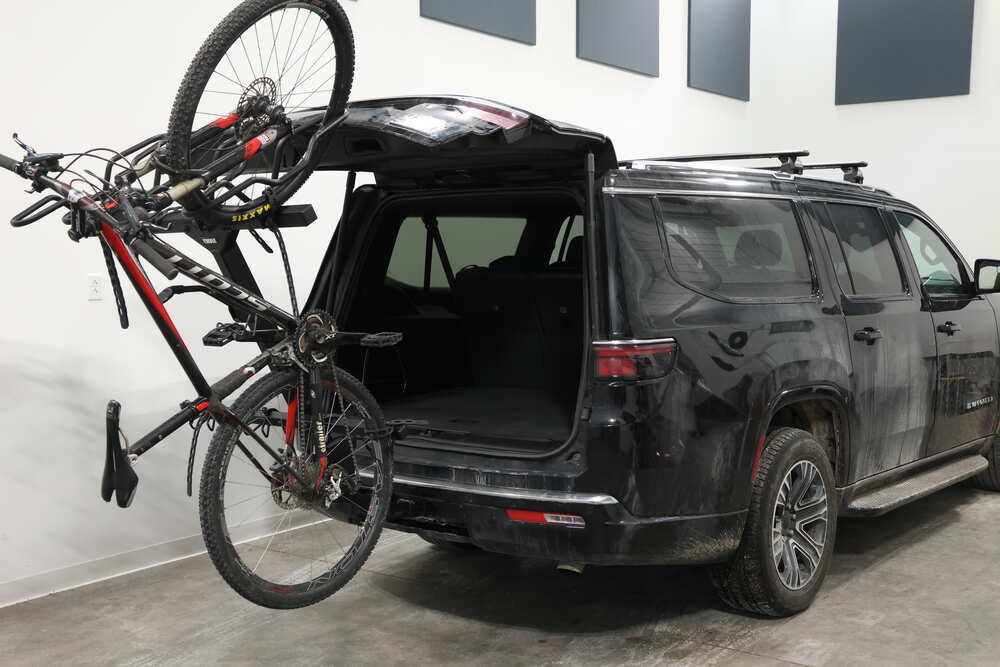

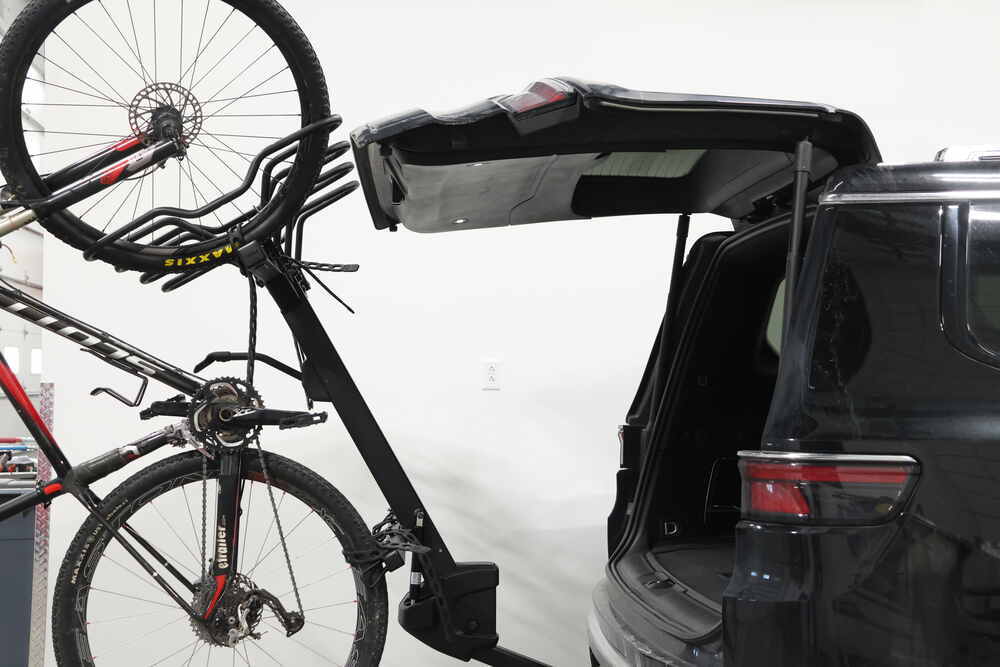

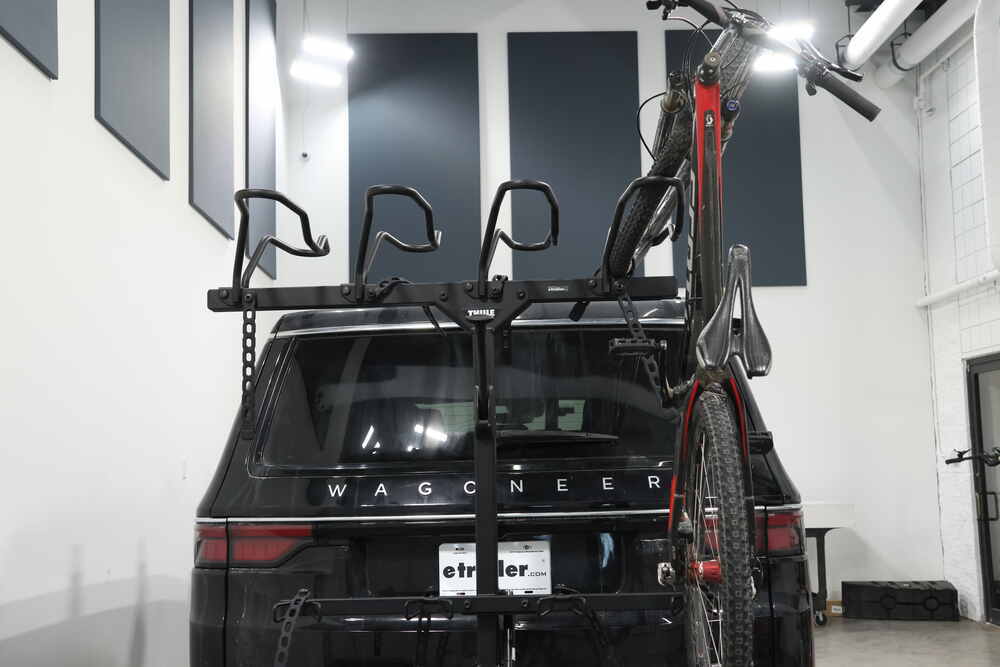

In Use/Installed

Need help with installation?
Locate installers near me

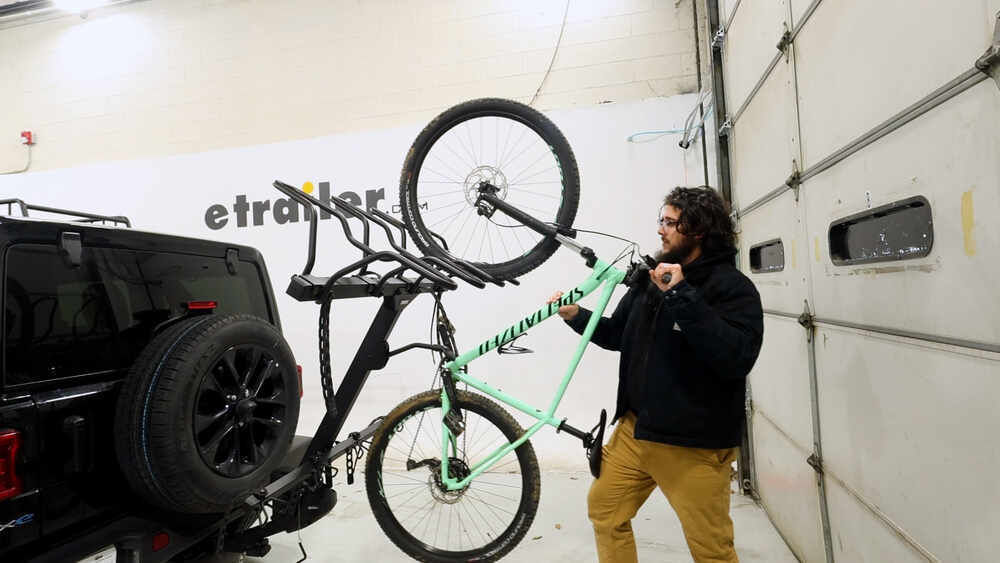

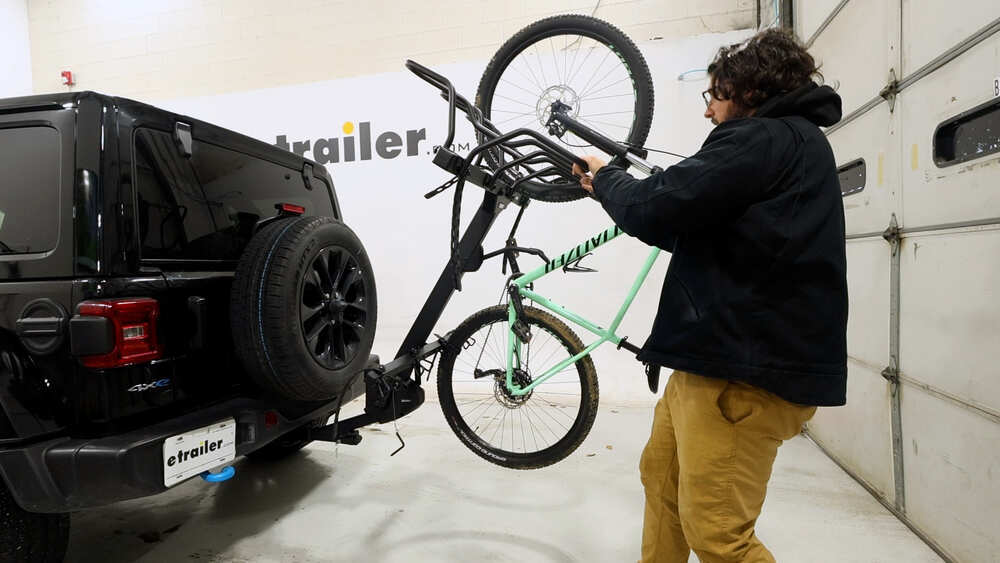

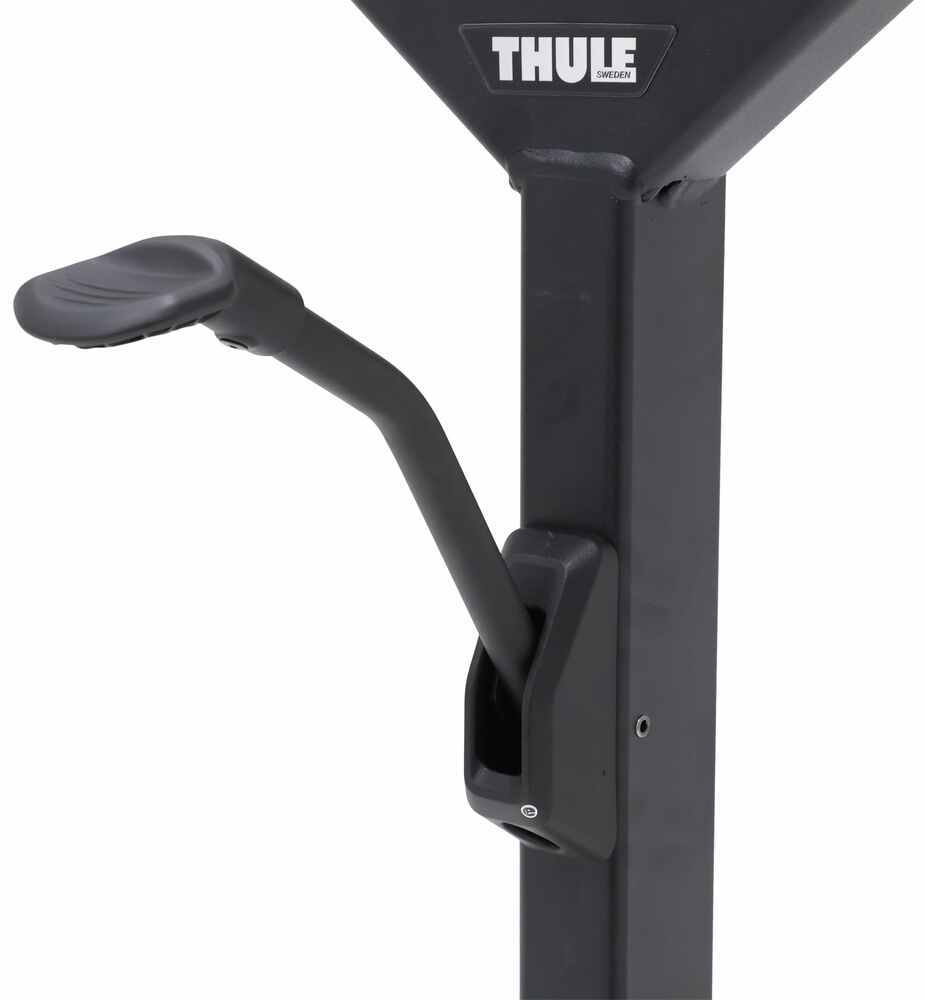

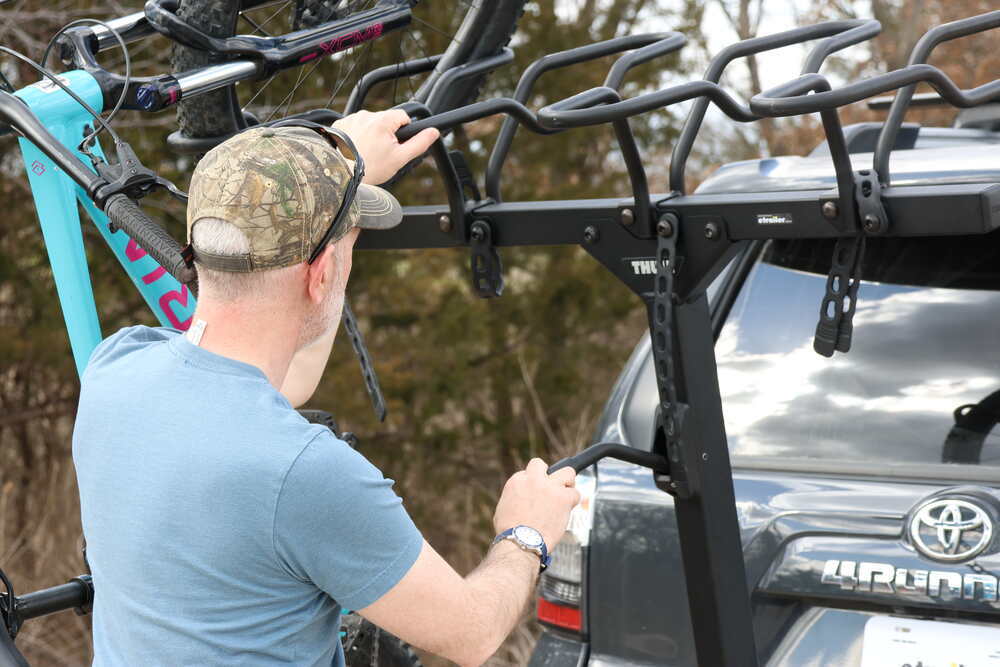

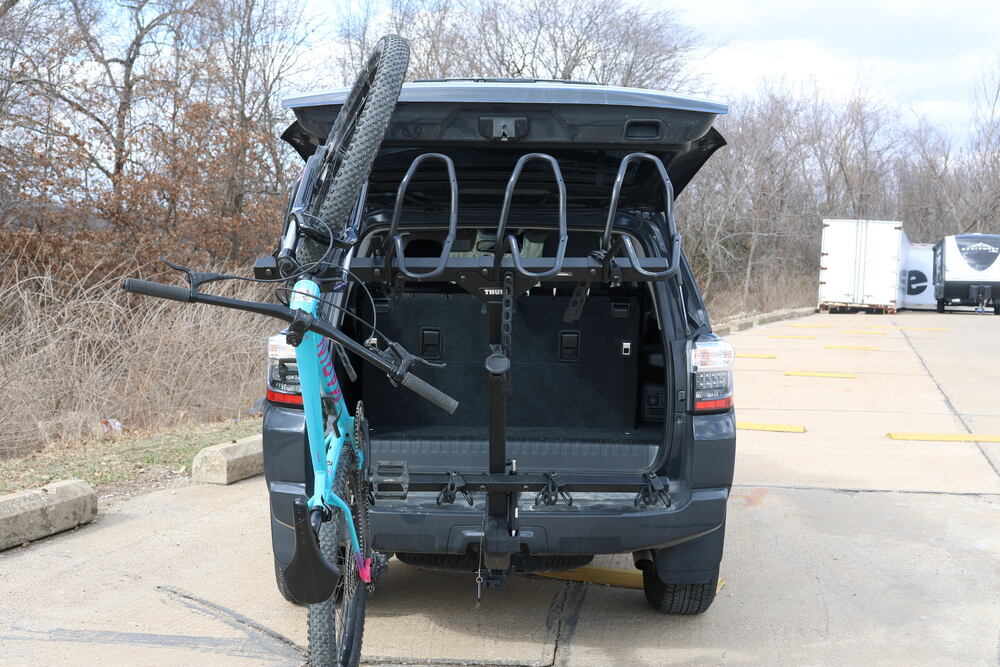

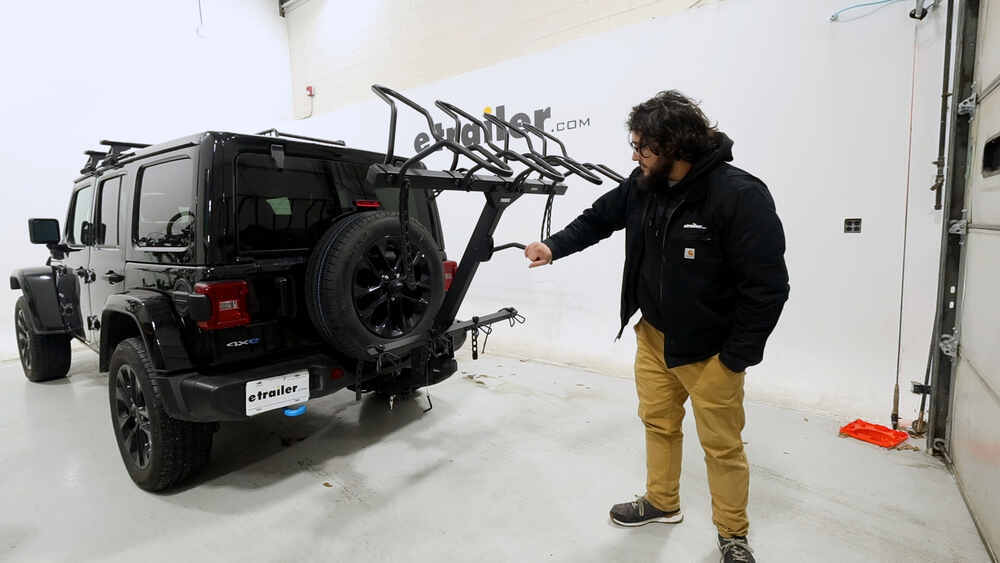

Quickly load up bikes for the whole crew with the ReVert vertical rack. Tilts with the tap of a lever so you can roll your bikes' front wheels into the cradles. No lifting required! Automatically raises back up with a simple nudge. 1-800-940-8924 to order Thule hitch bike racks part number TH73VA or order online at etrailer.com. Free expert support on all Thule products. Great prices and Fastest Shipping for Thule ReVert Vertical Bike Rack for 4 Bikes - 2" Hitches - Tilting. Hitch Bike Racks reviews from real customers.
  • All Info
  • Reviews (10)
  • Q & A (0)
  • Photos

Thule Hitch Bike Racks - TH73VA

  • 4 Bikes
  • Fits 2 Inch Hitch
  • Hanging Rack
  • Vertical Rack
  • Heavy Bikes
  • Tilt-Away Rack
  • Wheel Mount
  • Thule
  • Class 3
  • Bike Lock

Quickly load up bikes for the whole crew with the ReVert vertical rack. Tilts with the tap of a lever so you can roll your bikes' front wheels into the cradles. No lifting required! Automatically raises back up with a simple nudge.


Features:

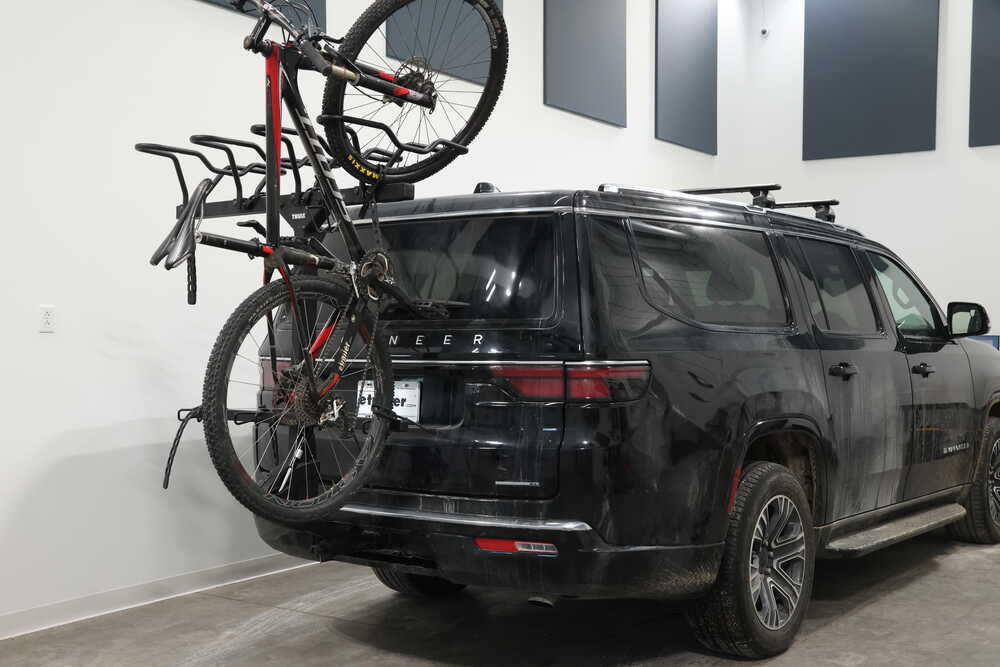

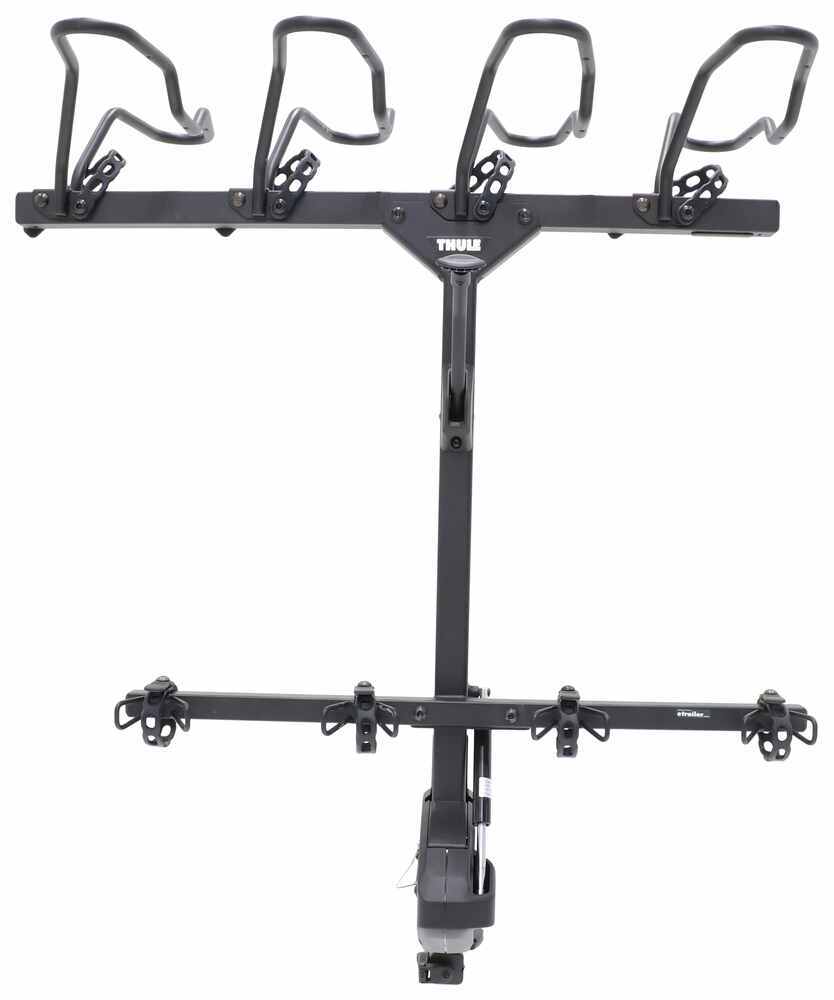

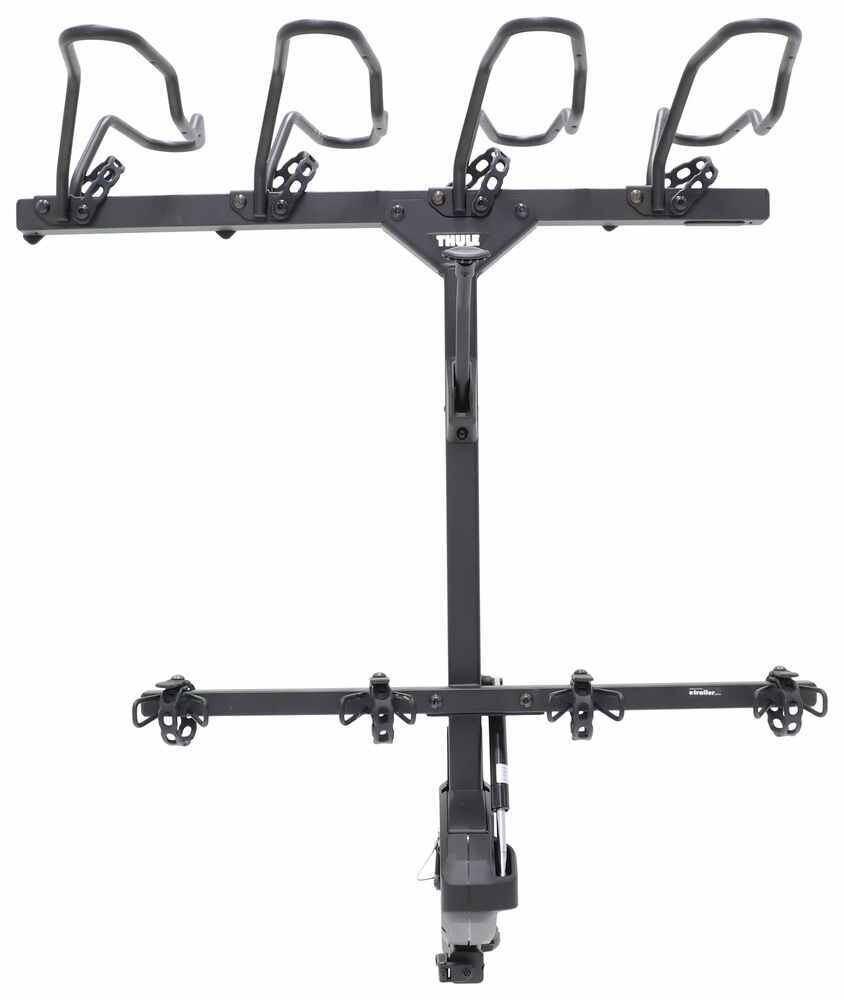

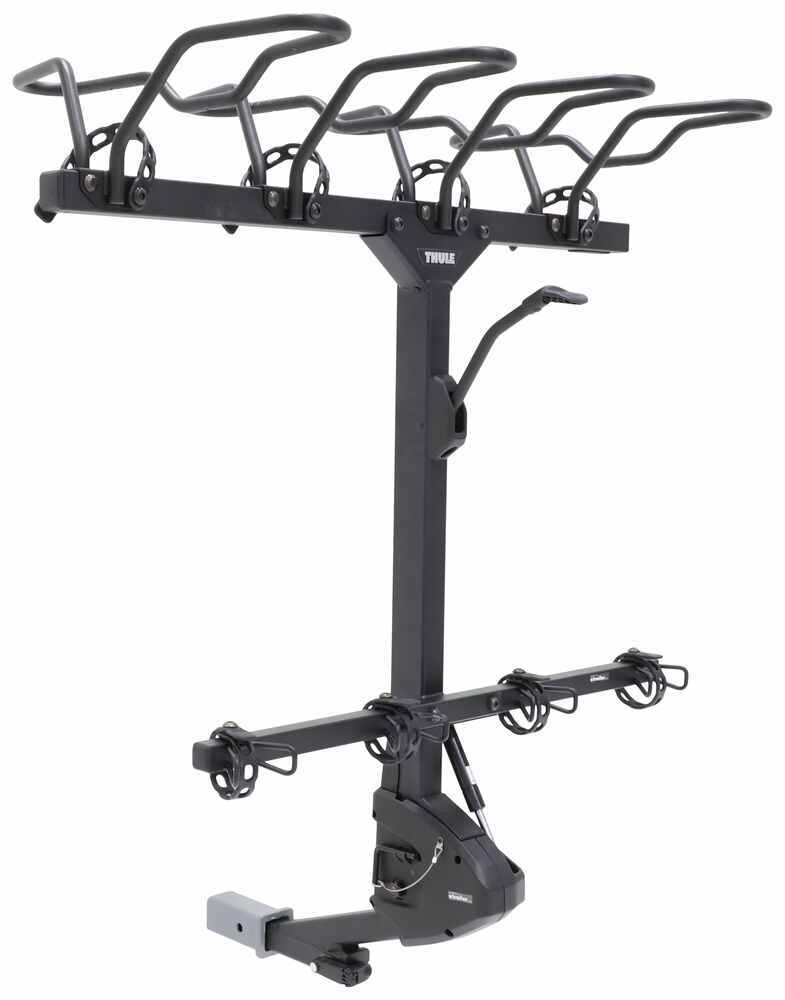

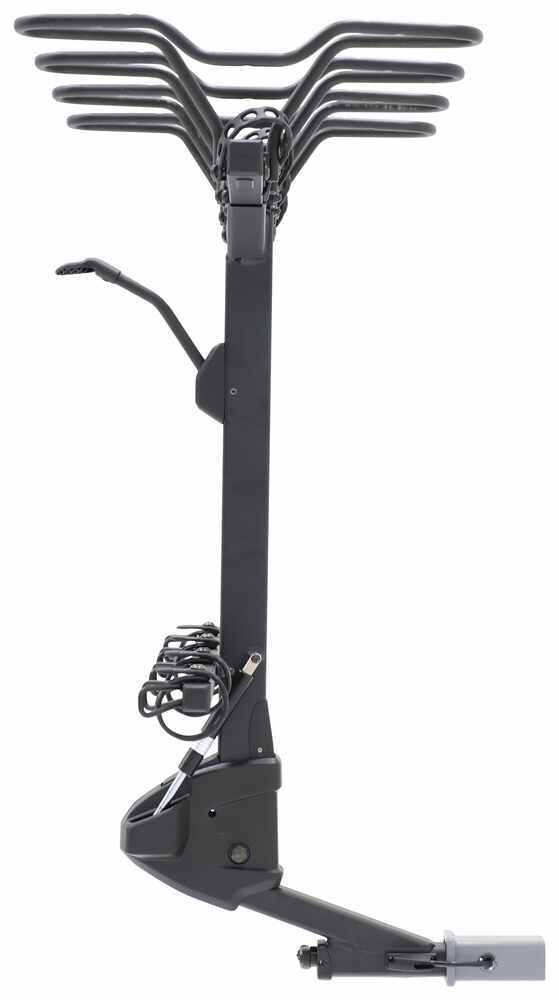

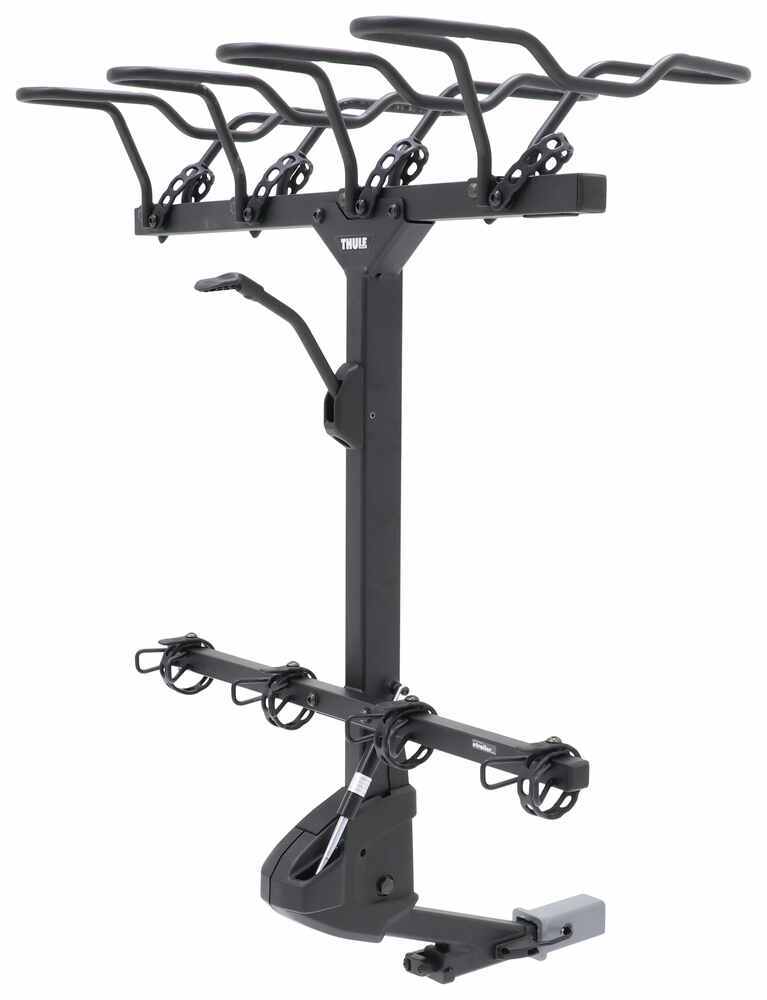

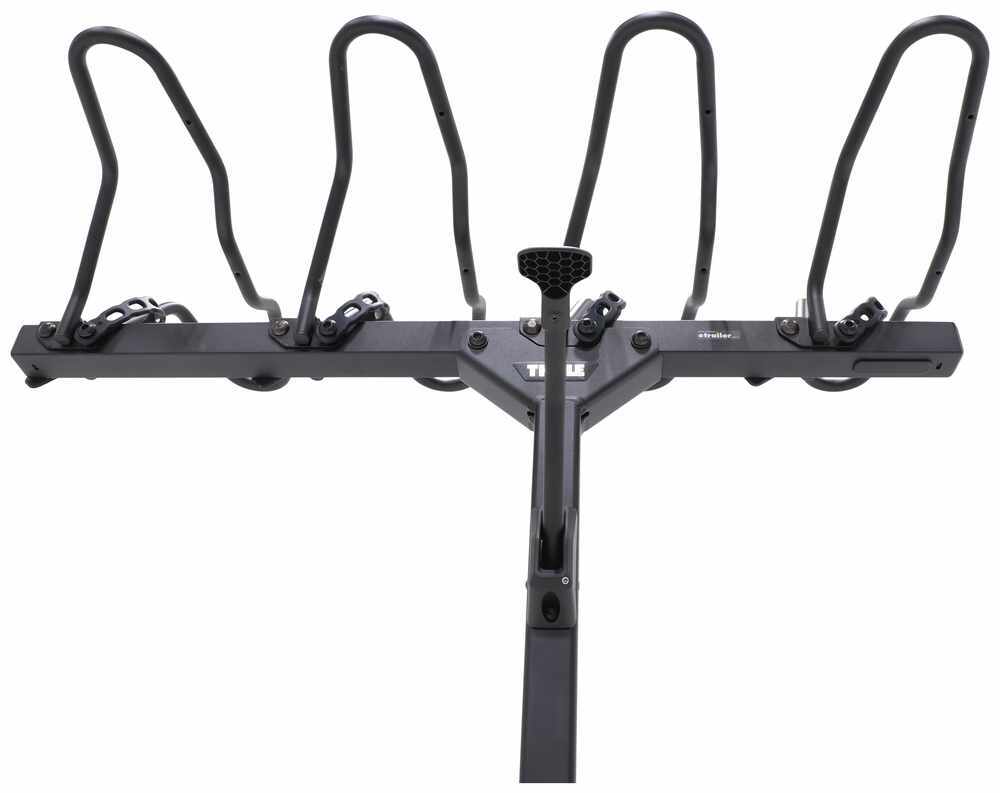

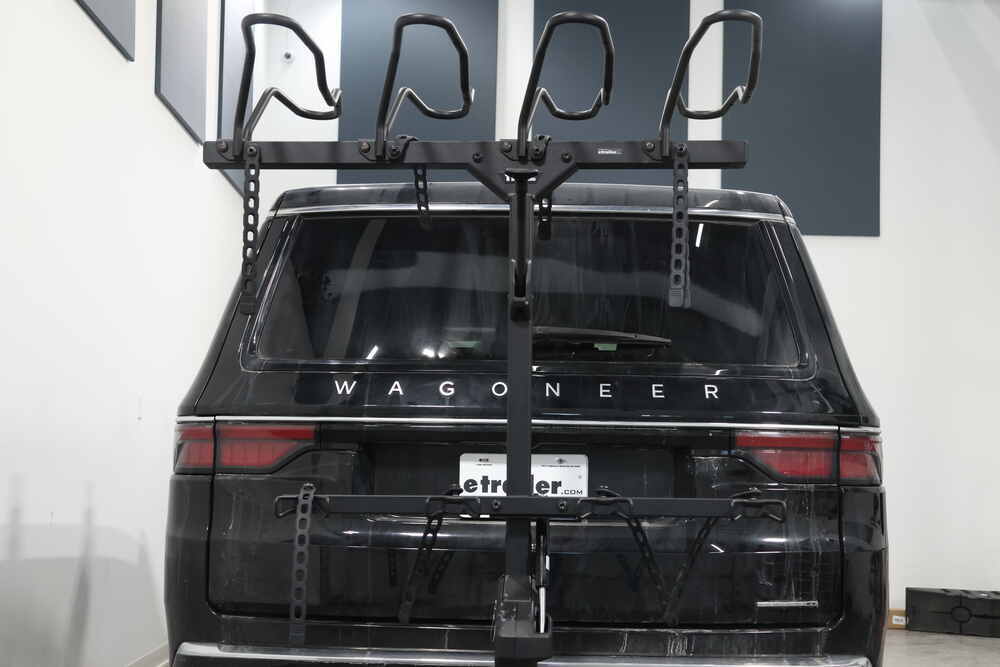

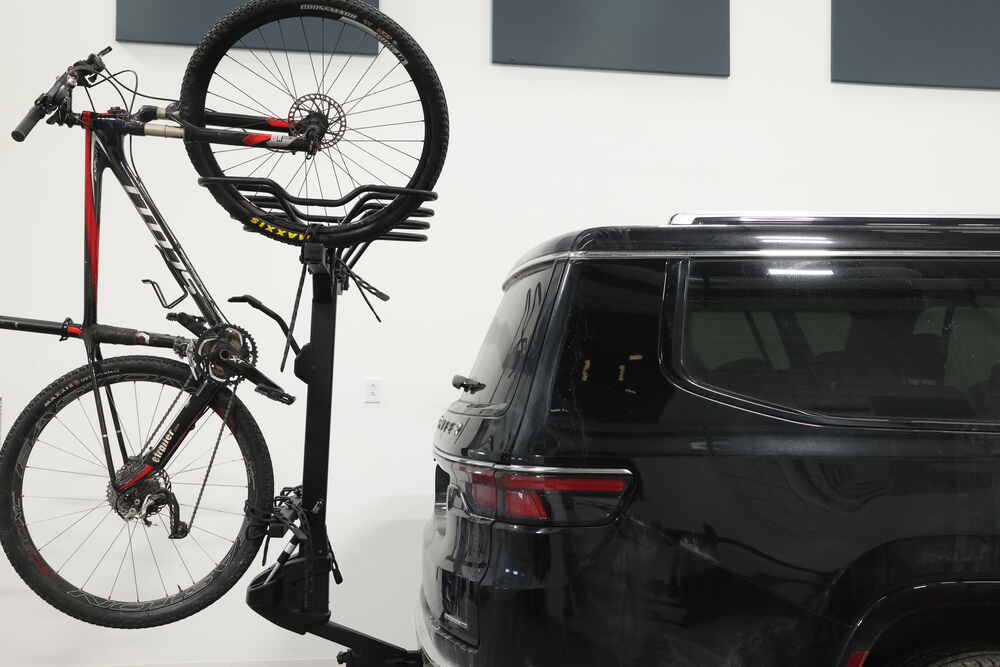

  • Vertical bike rack carries 4 bikes vertically using your vehicle's hitch receiver

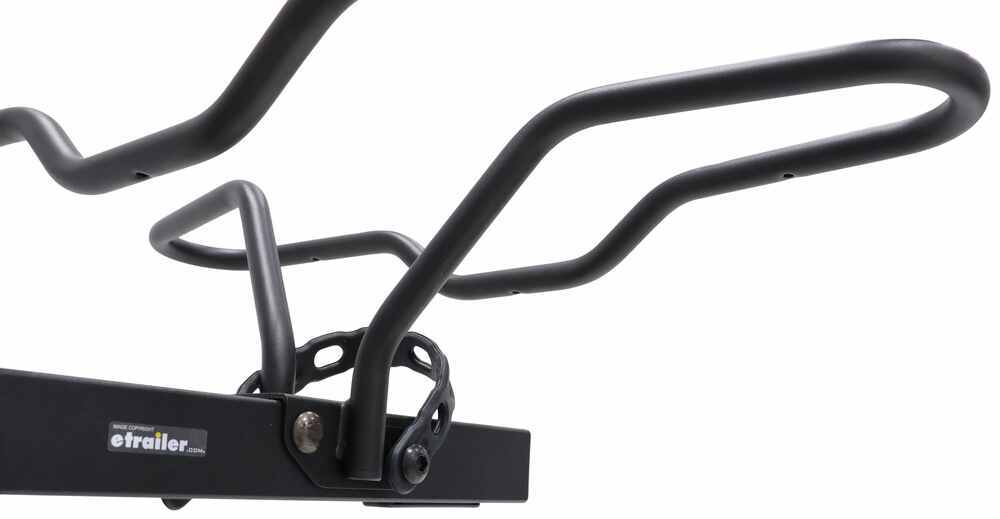

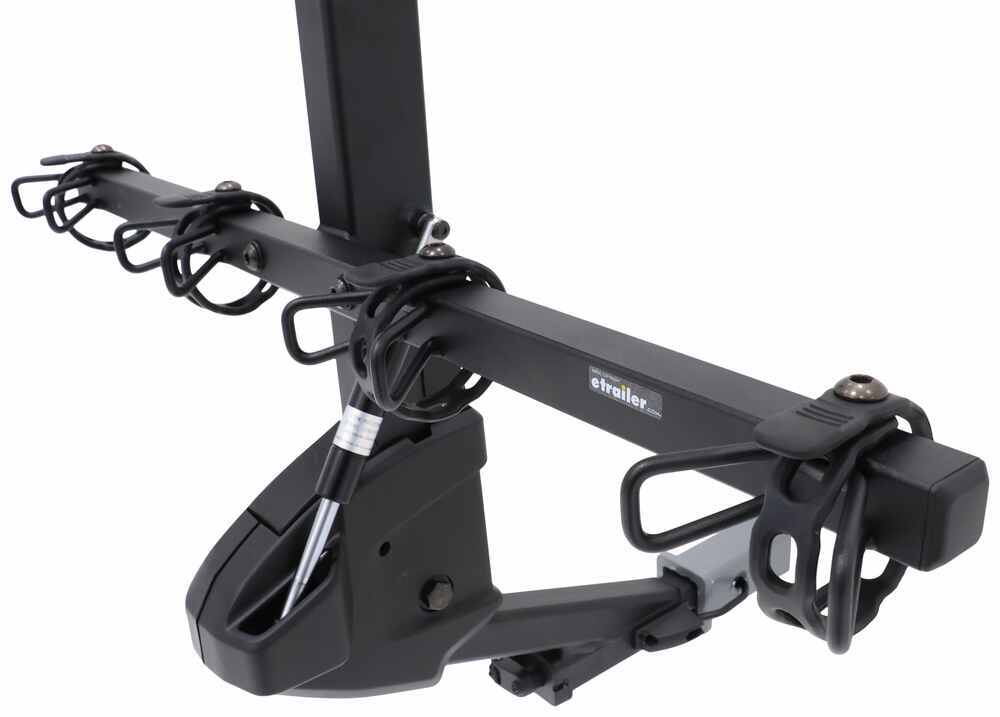

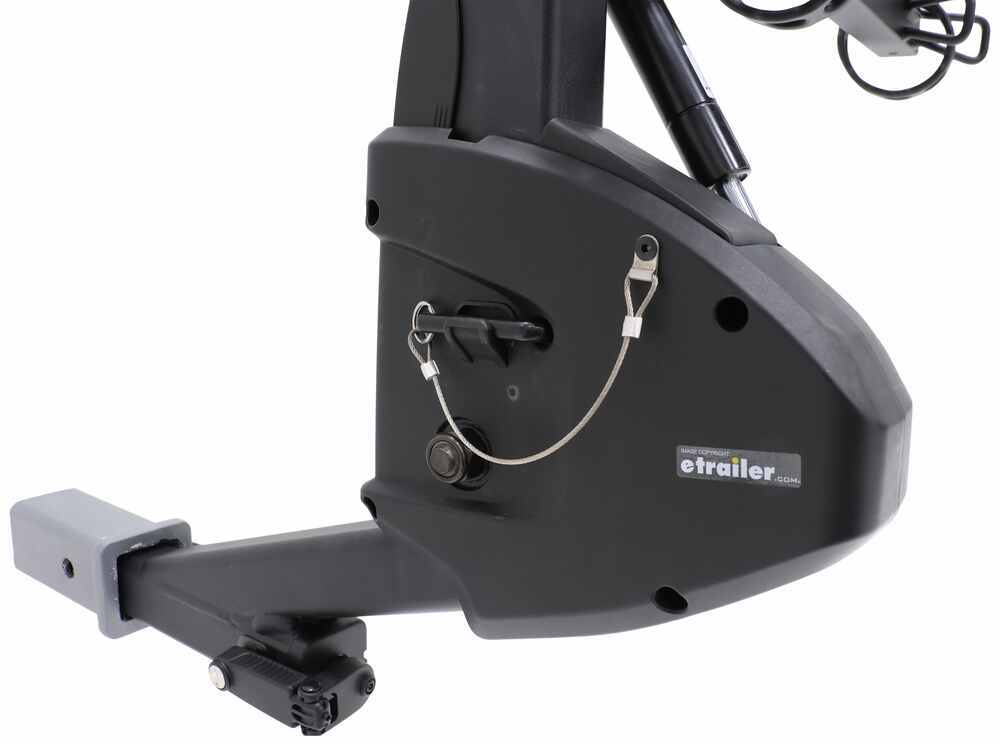

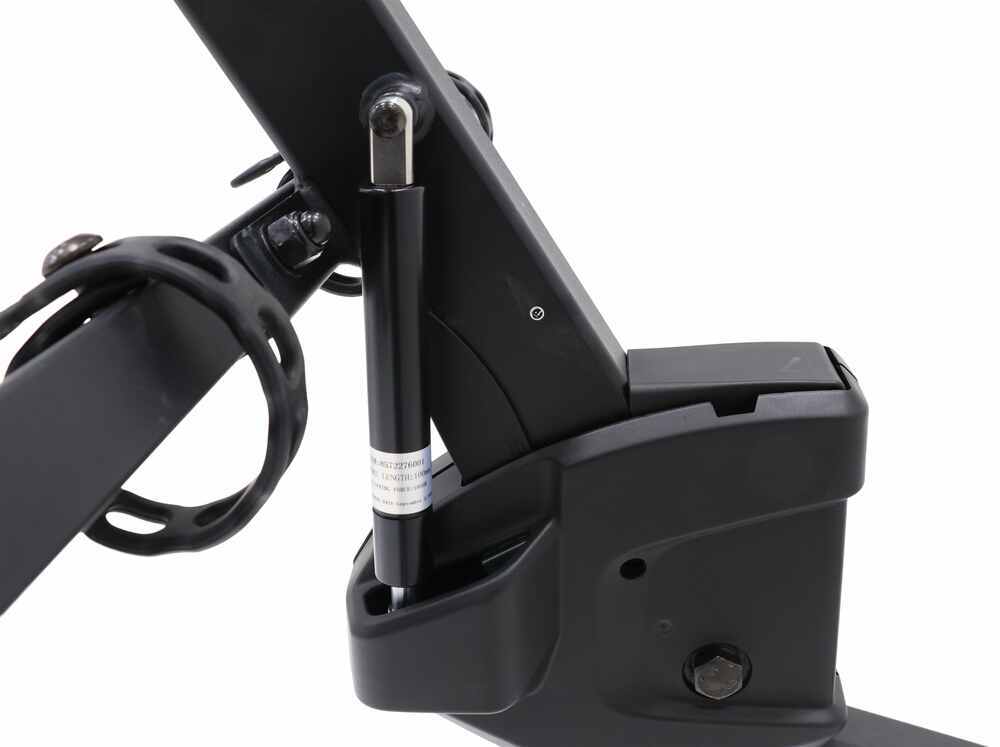

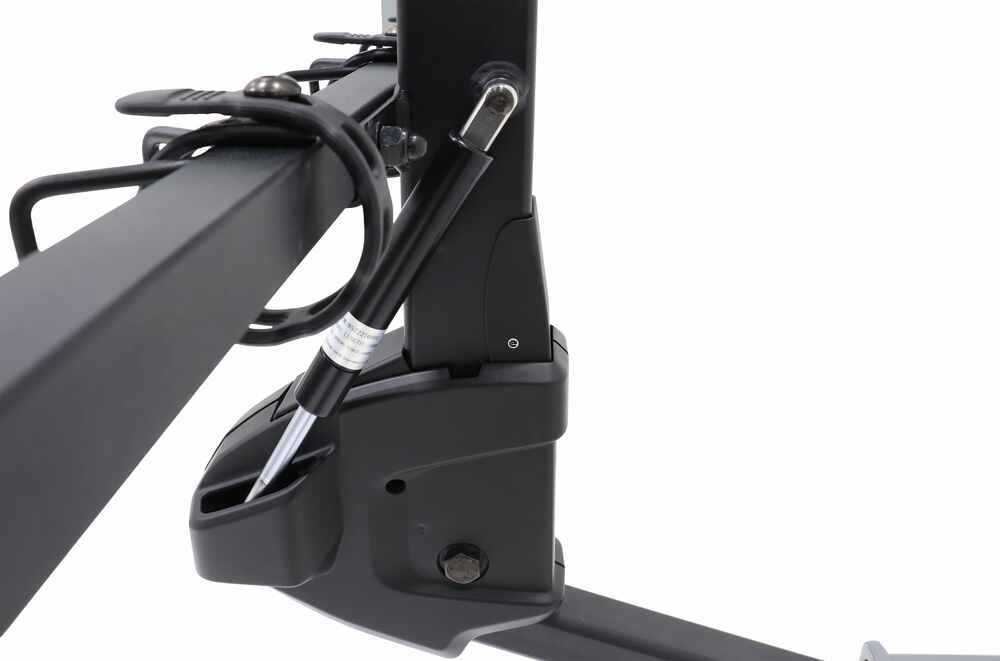

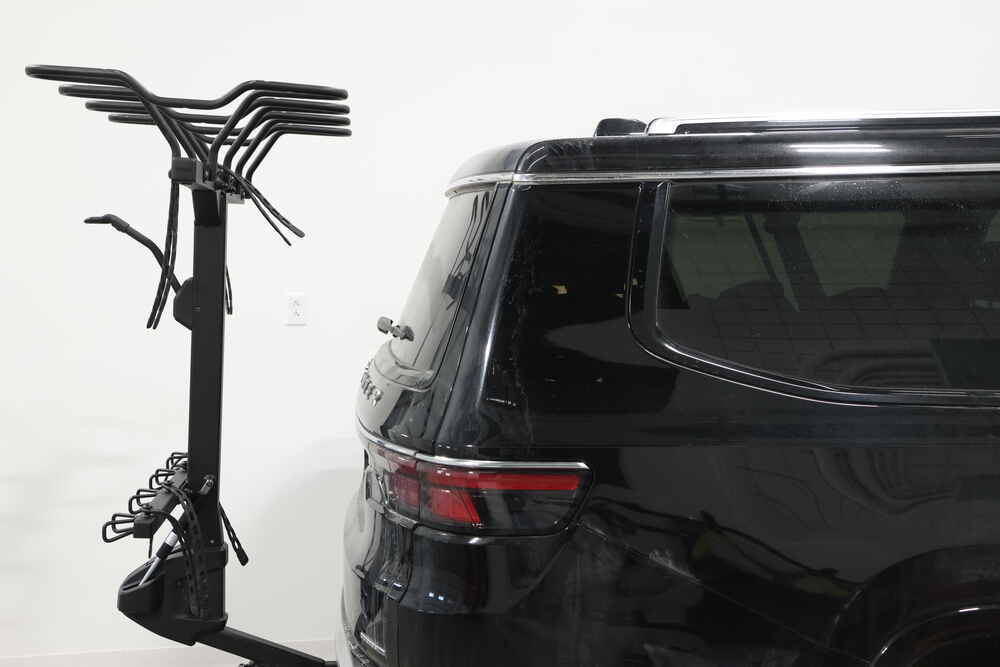

  • Mast with gas shock tilts down so you can roll your wheels into the baskets - no lifting required

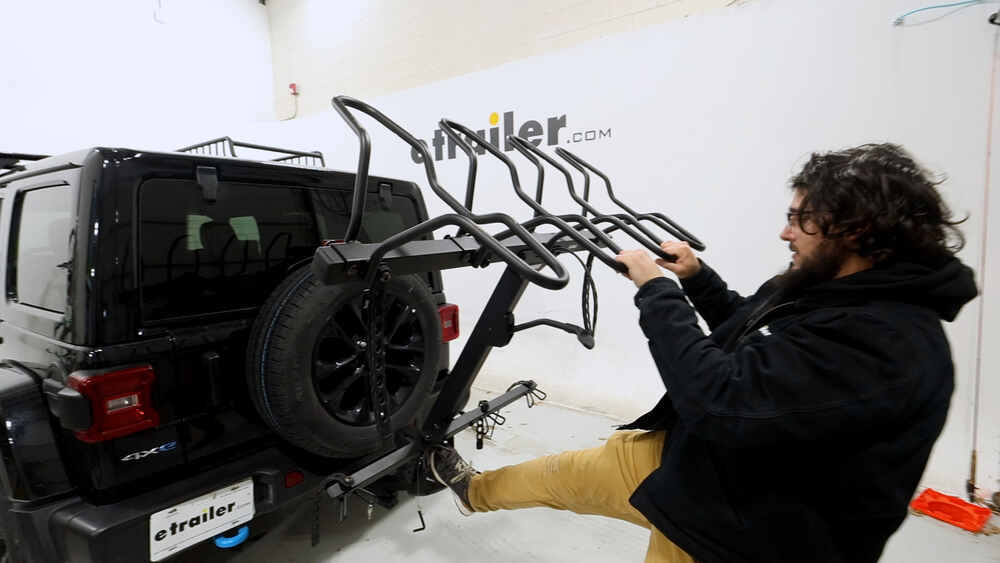

    • Raises back up with a simple nudge of the rack

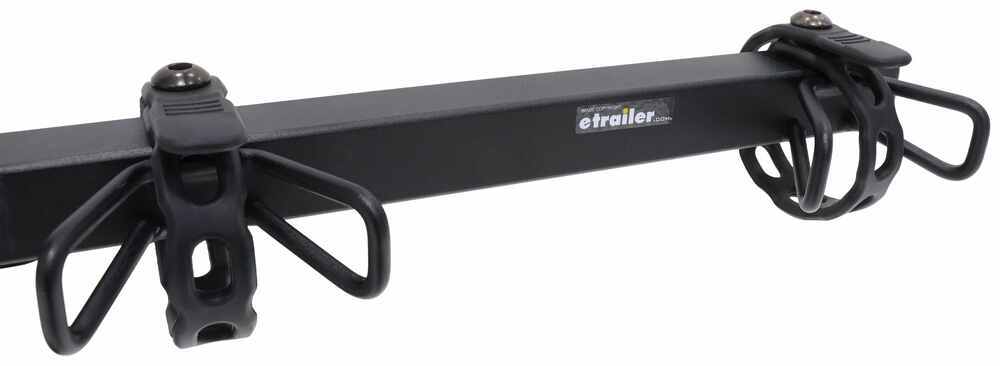

  • Lower straps secure your bikes' rear wheels
  • Adjustable height settings let you carry bikes with extra-long wheelbases

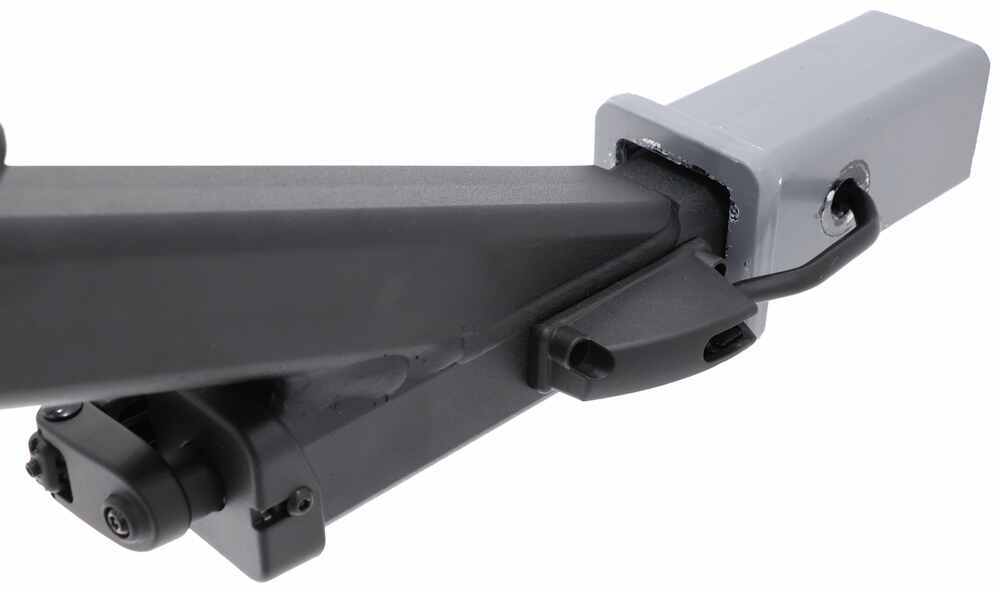

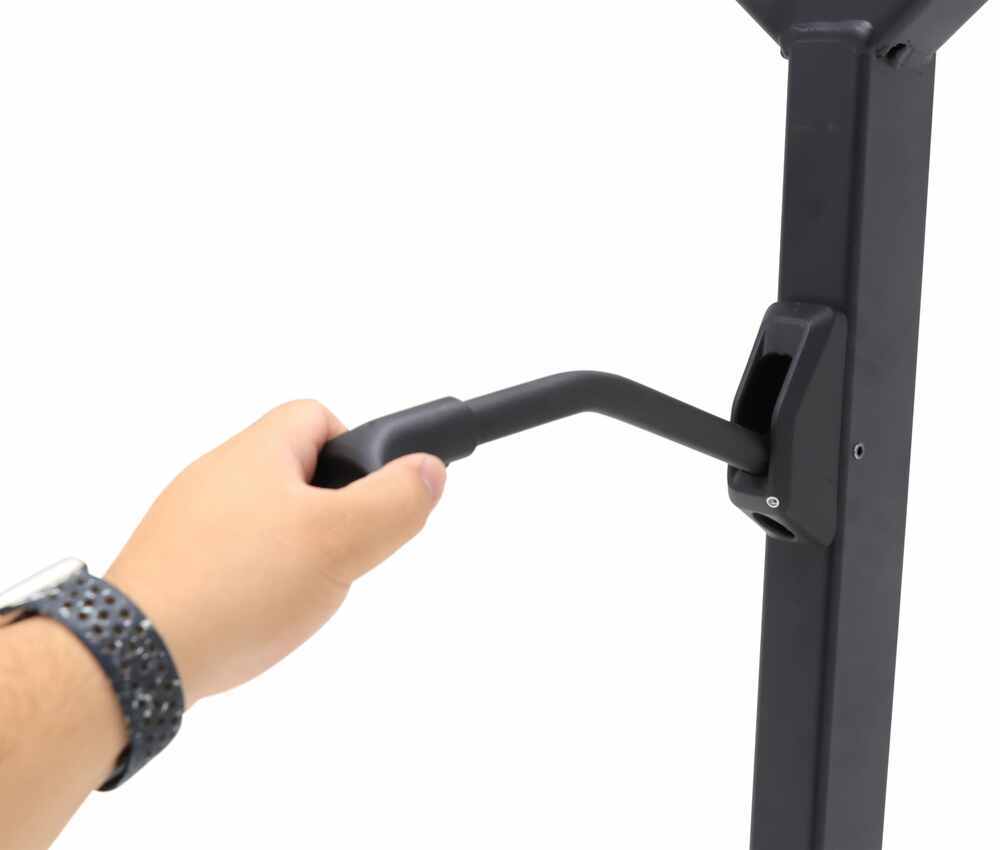

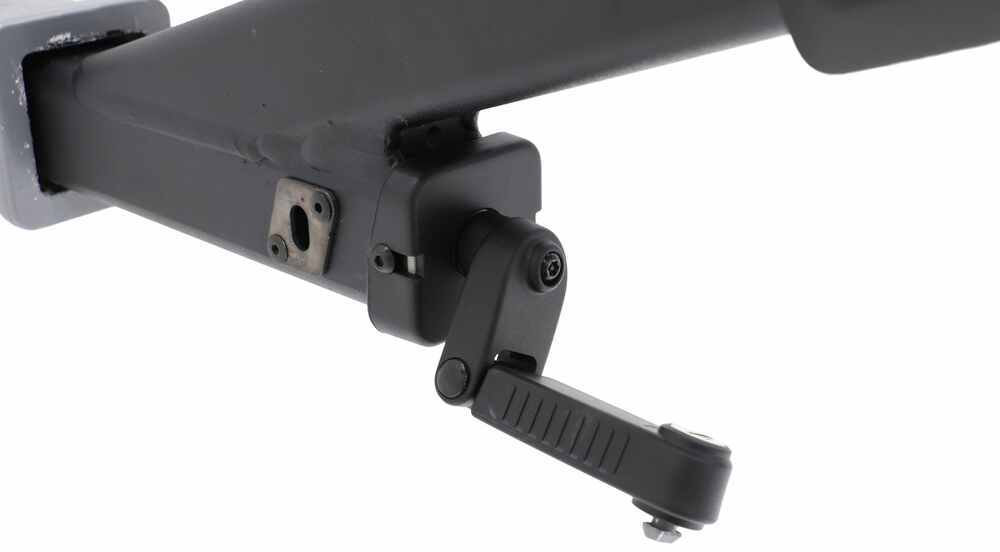

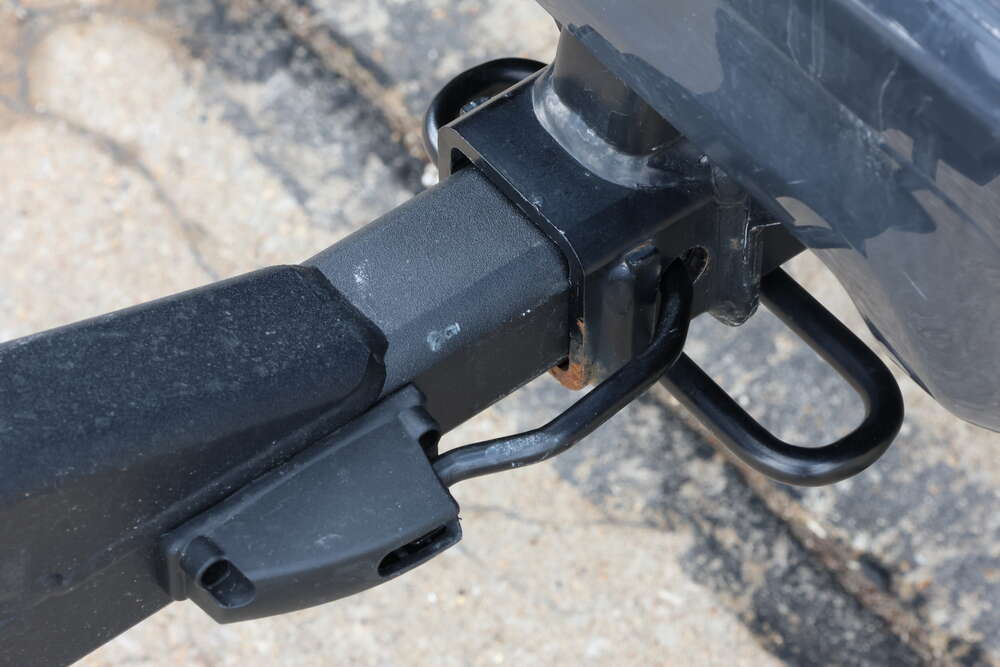

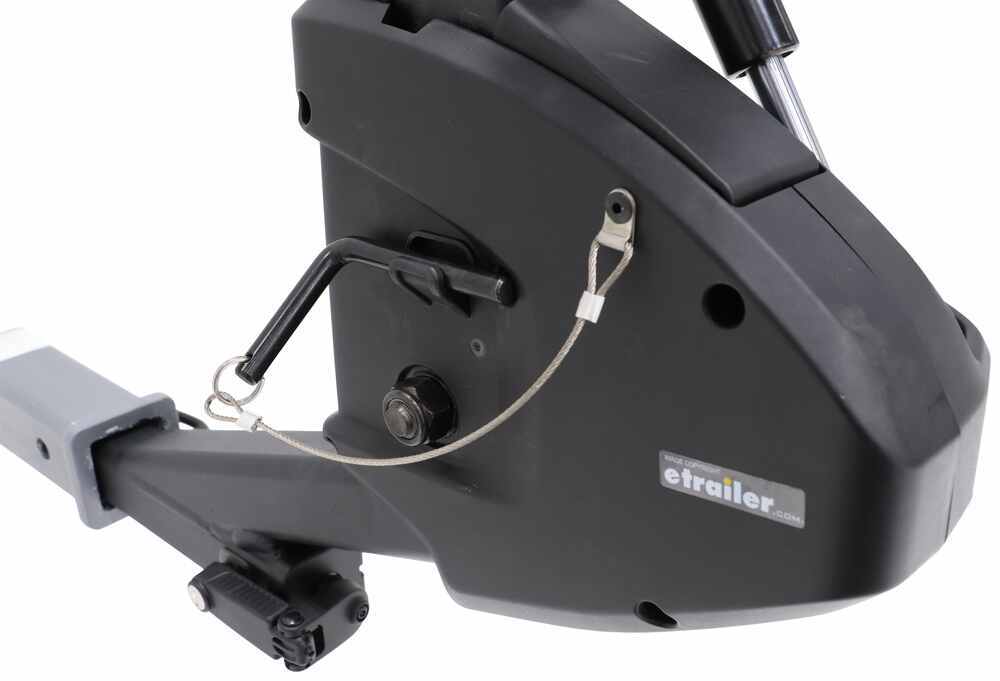

  • Tool-free installation with hand-tightening lever
    • Tightens rack inside your hitch to reduce movement and noise
  • One-Key System lock deters theft of your bikes
    • ABUS cable lock (sold separately) provides extra security for your bikes
  • Available accessories let you carry a fat bike, a kid's bike, and make emergency repairs (each sold separately)
  • Made in the USA


Specs:

  • Application: 2" x 2" trailer hitch receivers
  • Minimum tongue weight: 500 lbs
  • Carrying capacity: 4 bikes
  • Weight capacity: 55 lbs per bike
    • 33 lbs per bike when mounted on van conversions or motorized RV vehicles
  • Maximum tire width: 3.0"
  • Maximum wheelbase: 53"
  • Distance between bicycles: 12"
  • Carrier weight: 72 lbs
  • Construction: powder coated steel
  • Color: black
  • Limited lifetime warranty


Approved for use on cars, trucks, vans, SUVs, and motorhomes - not approved for fifth wheels, towable campers, or flat-towed vehicles

Note: Vertical bike racks put more strain on your hitch than platform or hanging styles. Because of this, the rack isnt compatible with Class III hitches that have a tongue weight rating under 500 lbs. Avoid using extenders or adapters, as they can further reduce your hitchs capacity.



9024500 Thule ReVert Bike Rack - 4 Bikes - 2" Hitches - Vertical Hanging Style - Tilting

Installation Details TH73VA Installation instructions


California residents: click here


Ratings & Reviews

4.6

10 reviews
Quickly load up bikes for the whole crew with the ReVert vertical rack. Tilts with the tap of a lever so you can roll your bikes' front wheels into the cradles. No lifting required! Automatically raises back up with a simple nudge.

by:



by:



by:

Ordered for a friend. So far, they love it!



by:

Useful rack, easy to tilt up and down.
I'm
using a Hollywood rack valet to hold it when off the vehicle with a motorcycle cover.



by:

We previously owned a Thule XTR 4-bike platform rack and thought it was the fastest to load and unload compared to other 4+ bike racks. This is from seeing other folks loading their bikes on trails. Not until we got Thule Revert, which is by far the easiest and fastest to load and unload. The assist is a game changer, even though it makes it hard to lower an empty rack to access the rear hatch. The angled stem helps avoid hitting rockes and clear uneven terrain on a lower clearance vehicle. The thick rubber bands are super fast to put on and off. The height is just right to simply roll bikes into baskets without lifting. Make sure to get a torque wrench and follow correct torque specifications.



by:

I watched the e trailer video on assembly which made putting it together a breeze. The rack does all the things I was hoping for. It has all the little niceties dialed so raising, lowering, loading, and unloading my heavy eMTBs is no problem. A very well built rack!



by:

This is the Rack to get if you want a verticals bike rack. There are several other racks on the market that have similar functionality. I would say what sets this apart is as follows.

1- packaging. Thule does the best Job packaging their items, I had recently purchased another vertical rack and it was slightly damaged because a large heavy metal rack can bang around if not packed correctly. This Rack had come packed very well and no damage to any items, as you would want it when purchasing a new item that is being shipped to you.

2- assist function both up and down. Other racks have assisted function down or none at all. This rack has assistance both ways and if you have 3 bikes on the rack, one pull on the lever and the rack pull it up for you.

3- ease of assembly. Assembly of this rack was probably one of the easiest things out there. Just watch the assembly video and you should be done with in an hour with absolutely no rush.

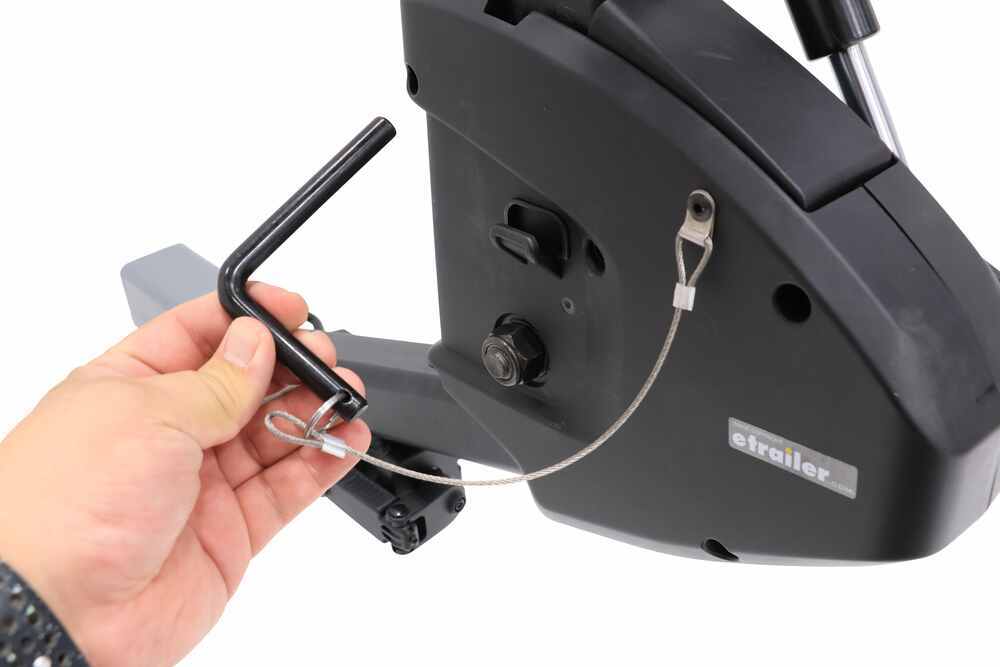

4- hitch stability. The rack comes with an adjustable hitch wedge built in and it makes a huge difference. No need for a hitch stabilizer to be bolted on. The attached hitch pin and adjustable wedge make this very solid and stable when transporting your bikes.

Lastly, honestly think about the cost in comparison to other racks. It may cost just a few hundred more, but the assurance that you have thousands of dollars of bikes on the rack that are safe is well worth it.

This is a fantastic rack. Look up on YouTube for other people comparing other racks like the Velocirack or JB Rack (I bought the JB one and it was a mistake, thin steel and not even close to as stable. Steel bent with assembly and flexed when transporting bikes). When I purchased the Thule revert the comparison to the other vertical rack was night and day. Expensive mistake but at least now you know.



by:

solid rack at a good price. I bought this instead of a 4 bike platform rack to minimize the torque on my car. E trailers shipping was fast and free.



by:



by:


10
10

See what our Experts say about this Thule Hitch Bike Racks

  • Recommended Hanging 4-Bike Rack Compatible W/ a 5th Wheel Trailer
    Hey Ryan, the reason you can't use the Thule ReVert Bike Rack for 4 Bikes # TH73VA with a 5th wheel is due to the increased movement and vibrations at the back of the trailer. Some racks that are designed to be used with 5th wheels are going to have a more reinforced frame which would compensate for all the extra stress and movement. For a similar rack that can be used with a 5th wheel I recommend checking out the Thule Range RV Bike Rack for 4 Bikes # TH9057. This bike rack can also...
    view full answer...
  • Can Thule ReVert Bike Rack be Used with Yakima BackSwing Adapter
    Hey Julian, thanks for reaching out! Yes, you'll be able to use the Yakima BackSwing # Y02483 with the Thule ReVert Vertical Bike Rack # TH73VA. Thule may not be too keen on using a different brand swing-away adapter with their bike rack, but Yakima has verified that their version, the HangOver # Y02484, will work just fine with the BackSwing so you'll be good to go! What type of biking do you normally do?
    view full answer...
  • Why Can't You Use Certain Bike Racks While Flat Towing a Vehicle?
    Hello Olga, Great question. Some Thule bike racks aren’t rated for flat towing because of the extra stress they go through when mounted on a towed vehicle. When a bike rack is on the back of a regular car or truck, it deals with normal road vibrations. But when it’s attached to a towed vehicle, the bouncing and jolting are way more intense. This happens because the tow bar creates a rigid connection between the RV and the towed vehicle, which amplifies every bump and dip in the road....
    view full answer...
  • Will the Thule ReVert Vertical Bike Rack Work w/ a Beach Cruiser Bike?
    Yes, it can Jonathan! The Thule ReVert Vertical Bike Rack for 4 Bikes item # TH73VA is going to work great with a Beach Cruiser bike. This bike rack has a 55 lbs per bike capacity except when mounted on a van conversion or motorhome. It drops to 33 lbs apiece on those setups. It fits tires up to 3.0" wide and wheelbases up to 53" long. The Thule ReVert item # TH73VA fits a 2" class III receiver hitch. It weighs 72 lbs. What kind of vehicle do you have?
    view full answer...
  • Why Does Thule ReVert Bike Rack Have Reduced Capacity at Rear of Motorhome
    Hey Susan, so the reason there's a lowered capacity for the Thule Revert bike rack part # TH73VA when used with a motorhome is because the ride quality is a lot rougher at the rear of a motorhome compared to a vehicle. This is due to the longer distance between the rear axle of the vehicle and the rear of bumper area. This bike rack has 14 inches from the center of the hitch pin hole to the backside of the upright mast of the rack so you would need to measure from the center of your hitch...
    view full answer...
  • Can Bikes with Fenders be Loaded Up on the Thule ReVert Bike Rack
    Hey Bill, thanks for reaching out! I looked at the instructions for the Thule ReVert Bike Rack # TH73VA, and it does look like they exclude bikes with fenders from their fitments, so we'll need to look at a different solution. And for that, I recommend the Hollywood Racks Sport Rider SE # HR1400Z. The Sport Rider SE is one of my favorite bike racks because it's compatible with a wide variety of bike styles. It uses frame-mount hooks so nothing is comping in contact with your fenders and...
    view full answer...
  • Is Thule ReVert Vertical Bike Rack for 4 Bikes Safe To Use on Class III Hitch
    Hey Mike! The Thule ReVert Vertical Bike Rack for 4 Bikes # TH73VA is perfectly safe to use as long as your hitch doesn't have that restriction. The bike rack is designed for Class III hitches so I would double check with Chevy to see if they allow the use of vertical bike racks with the factory hitch. Curt has this on some, but not all of their hitches depending on the rating and design. If I had guess they probably started to run into issues with some of these larger 6 and 7 bike vertical...
    view full answer...
  • Can 2022 Volvo XC90 Recharge Hatch be Opened with Thule ReVert Bike Rack Installed?
    Hey Chris, thanks for reaching out! The Thule ReVert Bike Rack for 4 Bikes # TH73VA will have no problem with hatch clearance with the Stealth Hitches Hidden Trailer Hitch Receiver w/ Towing Kit # SH27FRT installed on your 2022 Volvo XC90 Recharge. We have a video of this bike rack on a 2023 Volvo XC90 that I'm linking for you to reference. Although we don't check for rear hatch clearance in the video, we have a photo showing we were able to open up the hatch just fine when the rack is...
    view full answer...
  • Could Rear Door of Toyota Sienna Open with Thule ReVert Bike Rack Installed
    Hey Joseph, while I don't know what year Toyota Sienna you have the ones I looked up online all seem to have a pretty standard rear door like what we know the Thule ReVert part # TH73VA would work with and allow to open so I would assume it would allow the rear door to open with the rack tilted back. What year Sienna do you have?
    view full answer...
  • Can Thule Revert Bike Rack be Used with 20 inch Kids Bike Wheels
    Hey Taj, the Thule Revert bike rack part # TH73VA can be used with a 20 inch kids bike wheel if you use the adapter part # TH35VA but 20 inch is the smallest size it can work with.
    view full answer...
  • What Are the 4 Chrome Clips Used for in the Replacement Mounting Hardware for Trunx Roof Cargo Box?
    The four chrome clips that you're seeing in the Replacement Mounting Hardware for Trunx Roof Cargo Box # CTC-18PARTS are the spring safety clips used to keep your cargo box shut and secured.
    view full answer...
  • Recommended Bike Rack for a 2022 Coachman Freelander
    Hey Larry I see your confusion, but I did go ahead and double check with Swagman and it does look like the Swagman XP # S64940 has a 100 lb capacity and can handle up to a 35 lb bike, but not 4 35 lb bikes. Instead, since your bikes are around 33 lbs each I'd recommend you use the Thule Hitching Post Pro Bike Rack for 4 Bikes # TH934XTR which can handle up to 4 35 lb bikes (140 lbs total).
    view full answer...
  • Will the Curt Wall Mount for 2" Hitch Accessories Handle the Weight of a Vertical Bike Rack?
    It sure will Adam. The Curt Wall Mount for 2" Hitch Accessories item # C97DR has a 350 lbs capacity. It'll definitely be able to handle the weight of the Thule ReVert Vertical Bike Rack for 4 Bikes item # TH73VA that weighs 75 lbs or the 6 Bikes item # TH83VA that weighs 87 lbs. The Curt Wall Mount item # C97DR comes with two hefty lag bolts, as long as you land them on a stud you'll have no problem with the weight of your bike racks. There's two hitch pin hole slots as well so you've...
    view full answer...
