Curt ATV Towing Starter Kit - 2" Receiver - 6" Long Ball Mount - 1-7/8" Hitch Ball

Curt ATV Towing Starter Kit - 2" Receiver - 6" Long Ball Mount - 1-7/8" Hitch Ball

Item # C45029
lowest price pledge
Retail:$88.14
Our Price: $63.91
You Save: 27%
ATV Hitch
Orders above $99 qualify for Free Shipping
Shipping Weight: 12 lbs
Quantity:
In Stock
Curt Hitch with Ball Mount - C45029
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Easily equip your ATV for towing with this kit that includes a bolt-on 2" x 2" hitch receiver and a 6" long ball mount. The ball mount features an integrated, 1-7/8" hitch ball, a 1-tang clevis, and a tow strap attachment bar. Call 800-298-1624 to order Curt atv hitch part number C45029 or order online at etrailer.com. Free expert support on all Curt products. Guaranteed Lowest Price and Fastest Shipping for Curt ATV Towing Starter Kit - 2" Receiver - 6" Long Ball Mount - 1-7/8" Hitch Ball. ATV Hitch reviews from real customers.
  • All Info
  • Reviews (12)
  • Q & A (3)
  • Videos (2)
  • Photos
  • Why etrailer?

Curt ATV Hitch - C45029

  • Hitch with Ball Mount
  • Curt

Easily equip your ATV for towing with this kit that includes a bolt-on 2" x 2" hitch receiver and a 6" long ball mount. The ball mount features an integrated, 1-7/8" hitch ball, a 1-tang clevis, and a tow strap attachment bar.


Features:

  • Starter kit lets you equip your ATV for towing
  • Adapter provides a 2" x 2" trailer hitch receiver
    • Bolts onto any size ATV tongue with included hardware
    • Integrated D-ring provides a convenient tie-down point
    • Fixed design - no swiveling
  • Multi-attachment ball mount works for a variety of towing applications
    • Welded-on hitch ball provides attachment point for a trailer coupler
      • May be used in the rise position only
    • 1-Tang clevis can couple with a 2-tang clevis
    • Built-in bar lets you attach a tow strap
  • Corrosion-resistant, high-gloss black powder coat finish
  • Pin and clip included - hitch lock sold separately
  • Assembled in the USA


Specs:

  • Capacity: not to exceed ATV tow rating
  • Length: 6" from center of hitch pin hole to center of integrated ball
    • Approximately 7-1/2" from center of hitch in hole to center of clevis hole
    • Measurement from center of hitch pin hole to back edge of shank: 2-1/2"
  • Rise: 3/4" from top of inside of hitch opening
  • Clevis hole diameter: 5/8"
  • Limited lifetime warranty


45029 Curt ATV Towing Starter Kit with 2-Inch Receiver and Ball Mount - 1-7/8 Inch Ball

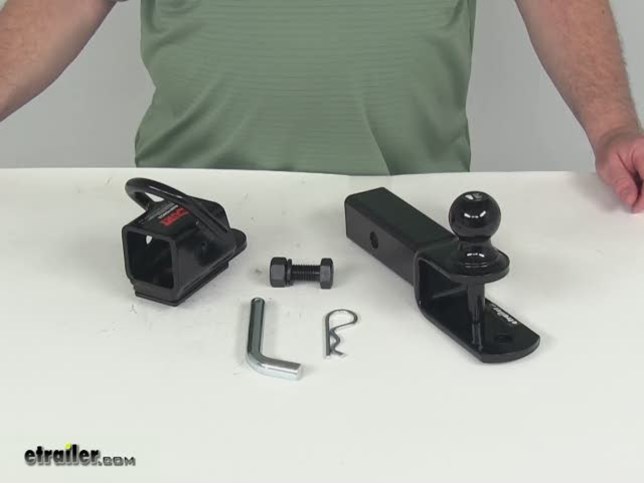

Video of Curt ATV Towing Starter Kit - 2" Receiver - 6" Long Ball Mount - 1-7/8" Hitch Ball

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt ATV Towing Starter Kit Review

Adam: Hi, everyone. Adam with etrailer.com. Today, we're going to be talking about ball mounts for your ATV. I'm here at etrailer right now, we just pulled these from our inventory and we're going to be going over some of the specs and uses of these ball mounts. These are going to be for your ATV and we're going to have two different sizes by Curt. We're going to have an inch and seven-eighths and also a two inch as well.

The difference between these is pretty much if you already have a hitch on your side by side or four-wheeler, all you need to do is grab this mount here.But if you have no hitch receiver on it, we can get this clevis sleeve here. And that's just going to bolt on with the included hardware. And that's going to act as your ball mounts as well. It has some safety chains here too. So we're going to go ahead and go out on the prop and go ahead and put it on our side by side and see how they work.All right.

So we're out on the property. We have our ranger here and since we already have a two inch hitch receiver, we don't need the clevis sleeve that comes with it. But every single kit that we're showing you today will come with the two-inch shank ball. We're going to use the two inch and of course just slide it in. And it does come with the pin and clip.So this is the two inch ball, and it's going to have a nice powder coated finish.

So it's going to resist against rust and corrosion, but it is going to give you a significant rise as well. Whether you have a trailer that you're hauling that has a coupler, you can use this, but you can also use this right here.So if you have a double clevis trailer, you slide that over there and put your pin through. So it's kind of the best of both worlds. So one thing you guys do need to know is that it does not come with a clevis pin. And so you can pick some of those up at etrailer.com.

It's basically just a pen, a little bit thicker. And some of them have more options with holes and everything. So I just grabbed one of these off of one of my other equipment here. But if you don't have one, pick one up at etrailer.com, I'm using this type of trailer. Now it's a double clevis doing a lot of work here at the property. So let's just see how it handles up.Well, one thing to note, didn't hear a whole lot of rattling back there. So the pin that they give you with the kit, it's like the perfect size. So it actually, it doesn't act as an anti-rattle device, but definitely don't hear any rattling going on back there. Something that I was definitely concerned with, but I don't have that issue here. So that's definitely a thumbs up for me. So as you can see here, we're utilizing the two inch ball mounts for the coupler on our larger trailer. I got a couple of bigger li or twigs and sticks that I need to clean up. A big wind storm, came through a lot of sticks and stuff in the yard. So this is going to be great for that. It is a pretty big trailer, but my machine can handle it. And so can the ball mount.So if you don't have a two inch hitch on your machine and you just have a clevis right here, I would suggest grabbing one of the full kits. So what we're going to get with this kit is obviously our ball mount, but we're going to get this converter. And basically that's just going to go over this hole here and we're going to thread it down with our included hardware. There is a stabilization plate. And what this is going to do is going to thread into the bottom of this. So I'll kind of show you when it's off of it. If we only have one pivot point for this ball mount, it might want to swing every once in a while. So we do have threaded holes in the bottom. We're going to put this like so and what it's going to do, it's going to butt up to this underneath our mount, and that's going to prevent it from sliding back and forth.I'm not going to use it on this application because it actually interferes with lining up the hole on the big one, but this definitely it comes with the kit. And it's also going to act as an anti-rattle device because the holes do go all the way through if you can see here. So once you start threading them in and it's actually going to push up on this ball mount here, just to take out any rattling. But for today, we're going to take our big bolt, our lock washer and our nut, and get her secured down. Pretty simple stuff. Put it down like that. Put your lock washer on and throw it on your nut. I do suggest hand tightening, everything as much as you can. And then coming back with a wrench and finishing the job. Then you can go ahead and grab our ball mount and slide this in. And we can put our pin and clip on there as well. And if you're wondering where it's at, it's actually inside here, we've got to take the sticker off and we're going to have everything we need.So now that we converted our full Wheeler to a clevis mount to our two-inch hitch, now we have the best of both worlds. We have a inch and seven-eights ball that we can use to haul around some of those trailers. And also we still don't lose our clevis attachment here. So it's going to have two. So best of both worlds, we can still do what this was able to do before, but now we've got a ball now. So the dimensions of these two, meaning the two inch and the inch and seven-eighths are almost going to be exactly identical from the center of our hitch pin hole to the center of our clevis hole is going to be about seven and a half inches. And then the center of our hitch pin hole to the center of our integrated ball on both the two and the one and seven-eighths is going to be about six inches.So from here to the start of this bar here, we are going to have a little bit less than an inch and three-quarters. And then from the end of this bar here to the center of our clevis hole, it's going to be about an inch and a half. And then from the center of our clevis hole to the very end here, we are going to have about an inch, a smidge over if any, but other than that, it is going to be universal measurements for both the seven-eighths ball and the two-inch ball.The only difference between these two measurement wise is the heights. As you can see here, it does sit a little bit taller. You're going to have a little bit more rise to it, not a whole lot, but with the bigger ball, of course, you're going to have a little bit more rise to it.So for the clevis adapter, the overall length of it is going to be about five and a half inches from the center of our hitch pin hole to the center of our clevis hole is going to be pretty much three inches on the dot. Also, if you guys are wondering when it's installed on your machine or safety cables, we'll be hooking onto this and that's going to give it an overall height of about four and three-quarter inches. So all in all, after messing with these things a couple of times, I've messed with some in the past as well, really, nothing special stood out to me on any of them. They get the job done and that's pretty much all I'm really looking for. So I would definitely recommend grabbing something like this for your side by side or ATV, just so it can do more.


Customer Reviews

Curt ATV Towing Starter Kit - 2" Receiver - 6" Long Ball Mount - 1-7/8" Hitch Ball - C45029

Average Customer Rating:  4.8 out of 5 stars   (12 Customer Reviews)

Easily equip your ATV for towing with this kit that includes a bolt-on 2" x 2" hitch receiver and a 6" long ball mount. The ball mount features an integrated, 1-7/8" hitch ball, a 1-tang clevis, and a tow strap attachment bar.

- C45029
by:

Very good product. Everything is made very well and heavy duty. Etrailer tracked my delivery, and notified me when it was delivered. They knew it was on my front porch before I knew! Now that’s great service after the sale! Thanks again for being a great internet company that Is trustworthy and follows through exactly as advertised.


Comments
Great
Kerry - 06/14/2021


- C45029
by:

Product was exactly what I wanted and was installed in less then 10 min. I enjoyed being able to track my part, and the date it would arrive. I would have given e.trailer and excellent rating if it wasn't for having to wait more then 15 min. on my internet order to know if my order was received by you.


Comments
very pleased, use it to pull my loaded utility trailer for fire wood, also works great hooking up my log splitter.
roger l - 08/26/2016



- C45029
by:

Works fine, I have no problems with it.



- C45029
by:

Great addition to my ATV. It's nice to have the towing ball and the hole at the end for towing garden implements that don't use the ball. I was able to attach to my ATV in a mater of minutes. Any time I can order from etrailer.com I do. Fast shipping and good prices. Keep up the good work.



- C45029
by:

I think this item will work very well for what I want to use it for. It us built well and has all 3 connection types. The directions are clear and I hope to have it installed this weekend



- C45029
by:

Packaged well, everything included fit well, very easy to install. Very pleased with etrailer and the packing of my other product received. 3 day shipping. This is what my quad needed to be of more use at the ranch.



- C45029
by:

Received the hitch in two days, very well built, installed it on my 2001 Honda Foreman in less than a half hour.



- C45029
by:

Real happy with the quality of the item and the ease of installing



- C45029
by:

Excellent fit on my Yamaha Grizzly. Makes hooks and moving my trailers easier on my ATV.



- C45029
by:

Great product! Great service!



- C45029
by:

Fast service pilot people just some what pricy but they have it all and sometimes you pay for convenience. But then again compared to Cabela's they are right in line



- C45029
by:


12
12

Ask the Experts about this Curt ATV Hitch

  • Hitch Receiver Needed for a 2004 Honda Rincon 650cc ATV
    To install a hitch receiver on your 2004 Honda Rincon 650cc ATV you can use the Curt ATV Ball Mount Adapter with Welded D-Ring # C45006 which installs by bolting on to the tongue of your ATV. This will give you a 2 inch receiver and a D-ring for any of your towing needs. If you need a hitch ball as well you can by the adapter with either a 1-7/8" hitch ball # C45029 or a 2" hitch ball # C45038.
    view full answer...
    Image 1 for
  • Recommended Utility Trailer Versus Cargo Carrier for Golf Cart Application
    The reason you are having trouble finding anything with those dimensions is that they don't make them that large. The largest aluminum carrier with ramp we carry is the MaxxTow 27x47 Cargo Carrier w/ Pivoting Ramp # MT70100 or the 30x50 Curt # C18112. The closest steel carrier we have is # PS10401-10402 which is 32 x 48 inches. The larger issue you will find is that there is not a golf cart that is rated to tow anything on a cargo carrier and you'll end up bottoming out. Your...
    view full answer...
  • Does Draw Tite Hitch work with ATV Curt Ball Mount for 2014 Dodge Durango
    The Draw Tite hitch part # 76196 is a confirmed fit for your 2014 Dodge Durango and would work great with just the ball mount portion of the # C45029 but since you'd already have a hitch you wouldn't need this full kit and could instead use just the part # C45005 instead.
    view full answer...
