Pollak 5-Pole, Round Pin Trailer Wiring Connector - Chrome - Trailer End

Pollak 5-Pole, Round Pin Trailer Wiring Connector - Chrome - Trailer End

Item # PK11501

lowest price pledge

Retail:$17.56

Our Price: $9.35

You Save: 47%
Wiring

Orders above $99 qualify for Free Shipping

Shipping Weight: 0.12 lbs

Quantity:
In Stock, Ships Today
PK11501 - 5 Round Pollak Wiring
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Trailer Connectors
  • Trailer End Connector
  • 5 Round
  • Plug Only
  • Pollak
Establish a secure connection between your trailer and tow vehicle with this chrome-plated, 5-pole plug. Split brass pins ensure minimum voltage drop, and pull grips enable easy insertion and removal. Lowest Prices for the best wiring from Pollak. Pollak 5-Pole, Round Pin Trailer Wiring Connector - Chrome - Trailer End part number PK11501 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (68)
  • Q & A (36)
  • Videos (1)
  • Photos
  • Why etrailer?

Pollak Wiring - PK11501

Establish a secure connection between your trailer and tow vehicle with this chrome-plated, 5-pole plug. Split brass pins ensure minimum voltage drop, and pull grips enable easy insertion and removal.


Features:

  • Standard, 5-pole plug connects trailer to socket on tow vehicle
  • Round, split brass contacts
    • Minimum voltage drop and maximum current capacity are ensured
    • Dielectric (non-conducting) grease coating
      • Prevents corrosion and resistance
    • Solid brass terminal screws
  • Chrome-plated, die-cast zinc housing for durability
    • Finger grips make insertion and removal easy
  • ABS thermoplastic interior
    • High-impact, green insulators


Specs:

  • Volt rating: 12 volts - 24 volts
  • Current rating: 15 amps
  • Wiring configuration:
    • Color - circuit:
      • White - Ground Return
      • Green - Right Turn and Brake Lights
      • Yellow - Left Turn and Brake Lights
      • Red - Auxiliary Circuit
      • Brown - Tail Lights
  • 1-Year limited warranty


11-501P Pollak 5-Way, Round Pin Trailer Wiring Connector - Chrome - Trailer End

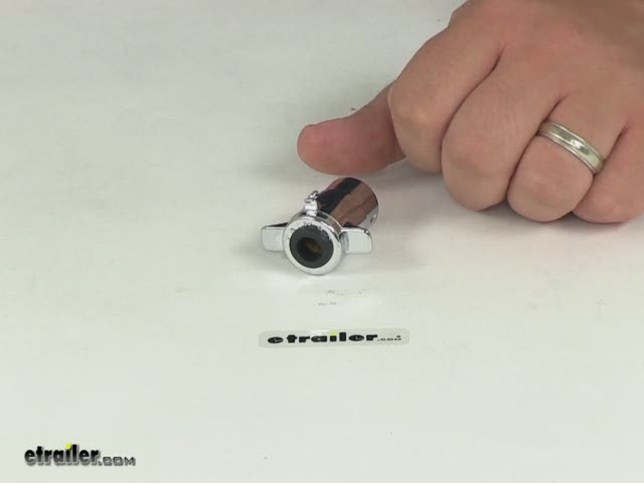

Video of Pollak 5-Pole, Round Pin Trailer Wiring Connector - Chrome - Trailer End


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pollak Wiring - Trailer Connectors - PK11501 Review

Today we're going to be reviewing part number PK11501. This is the Pollak Five-Pole Round Pin Trailer Wiring Connector. The standard five-pole plug is going to connect the trailer to the socket on the tow vehicle. It's going to feature the round split brass contacts. That's going to insure that minimum voltage drop and maximum current capacity are attained. It's going to feature dielectric non-conducting grease coating on all those.

Those are going to prevent corrosion and resistance. It's also going to feature the solid brass terminal screws. It's got a nice chrome-plated die-cast zinc housing for durability. It's also got the easy-to-use finger grips here on the sides. That's going to make insertion and removal very easy. It's going to feature the ABS thermoplastic interior and it's also got high-impact green insulators. The volt rating for this system is going to be 12 volts to 24 volts with a current rating of 15 amps.

When it comes to the wiring configuration, your white is going to be for your ground, your green is going to be for right turn and brake, your yellow is going to be for left turn and brake lights, your red is going to be your auxiliary circuit and then your brown is going to be for your tail lights. To gain access to the wiring there, all you need to do is undo the set screw. The set screw is actually going to allow this portion right here to come out of the housing. Then you'll run your wires through the grommet here on the back, connect the wires to the back of the housing and reinsert it, and then tighten back down the set screw and you'll be completely set to go. That's going to do it for our review of part number PK11501. This is the Pollak Five-Pole Round Pin Trailer Wiring Connector. .
