Optronics/
Clearance Lights/
Rectangle/
Incandescent Light/
RedItem # MC65RB
Orders above $50 qualify for Free Shipping
3-15/16" x 1-1/4" Rectangle. Waterproof, incandescent trailer light serves as a side marker or clearance light when properly mounted. Durable polycarbonate housing and lens. Surface mount to trailer with bracket. PC rated. 2 bulbs.
Features:
Specs:
Manufacturer Cross Reference
Light will work as an exact replacement for:
Uni Bond # SE1040R
Wesbar # 221902
Truck Lite # 19200R
Grote # 46742
Peterson # 154R
Bargman # 40-38-001
The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The housing and lens are sonically sealed together to create a single unit, which means that water will not get into the light and damage the diodes or circuit board.
A PC-rated light produces a 90-degree angle of light to either side of its centerline for a total of 180 degrees of coverage. This beam pattern can be clearly seen when you are standing directly in front of the light, as well as when you are standing on either side of the light. When properly installed, this type of light can function as both a front clearance light and a side marker light or as a rear clearance light and side marker light.
California residents: click here

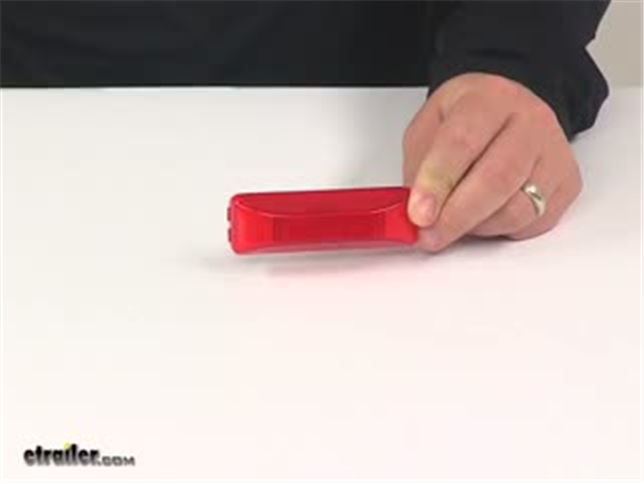

Video of Optronics Incandescent Trailer Clearance and Side Marker Light - Submersible - 2 Bulbs - Red Lens
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Today on this enclosed trailer, we're going to install part number MC65RB. This is a sealed, thin-line, 2 bulb trailer clearance light from Optronix, in red. This will also apply to part number MC65AB. This is the same sealed, thin, 2 bulb trailer clearance light, but in amber. Now, to help us with our install, we'll also be using part number A65PB: black racket and single wire plug for thin line series trailer clearance lights. First off we get rid of the remnants that are on the trailer right now. Let's go ahead and pry off the remnants.
Then, what we need to do is drill these 2 rivets. Typically, there's going to be some screws holding this in place. In this instance, we obviously got rivets. Typically, quarter inch drill bit will work. If they start spinning, need to grip the edge here to keep it from spinning around.
. There you go. Needle nose pliers, or in this case I'm using my strippers, just enough to hold it. Let's go ahead and get rid of the old base, which is actually the same part number as before. We'll pull out some excess to give us some working room. We'll cut it off down here at the base.
Now we'll go ahead and strip; we'll leave a very small butt connector. Usually 1 for 22 to 18 gauge will work just fine. Also, this would be a good candidate for solder as well. Now we'll get our new base ready, and you can see it has a type of bullet connector on there. We're just going to go ahead and basically cut that end off.
We'll also need to see how much wire we need. So we're going to do is approximately lay this in the middle. We'll put a little extra in here. It'll cut of our excess. We'll just lay it out, see what we need. Go ahead and cut and strip our wire, just like we did last time. . We'll go ahead and lay out a wire like we had. We'll go ahead and put a butt connector right there. Then we'll go ahead and line this up. We got this open area here that will line up with this hole. Let's go ahead and push our excess back in; kind of hold it in place while I push it. Line it up. Now we'll go ahead and line up our pre-existing holes. Now, we're using rivets in this case. Once again, you might have some different type of fasteners. You definitely need a rivet gun to do this. . Peel off the sticker covering the contacts. Now our base is installed. Let's go ahead and install our new in-line light. What I like to do is go ahead and line up and push it into place, but don't fully install it. That way, I can double check my wiring. Sometimes, you take these on and off, those ends get a little bit fragile. Let's go ahead and apply power. Okay, once we're satisfied everything's working, we can go ahead and push it in place for good. With that, that'll finish it for part number MC65RB; the sealed, thin line, 2 bulb trailer clearance light and our black racket for single wire plugs in the thin line series clearance lights: part number A65PB. .
