Inno Gear Case 720 Rooftop Cargo Box - 11-1/2 cu ft - Matte Black
Inno

Inno Gear Case 720 Rooftop Cargo Box - 11-1/2 cu ft - Matte Black

Part Number: IN94YV
In Stock
$809.68
Retail:$833.31
You Save: $23.63
Roof Box
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

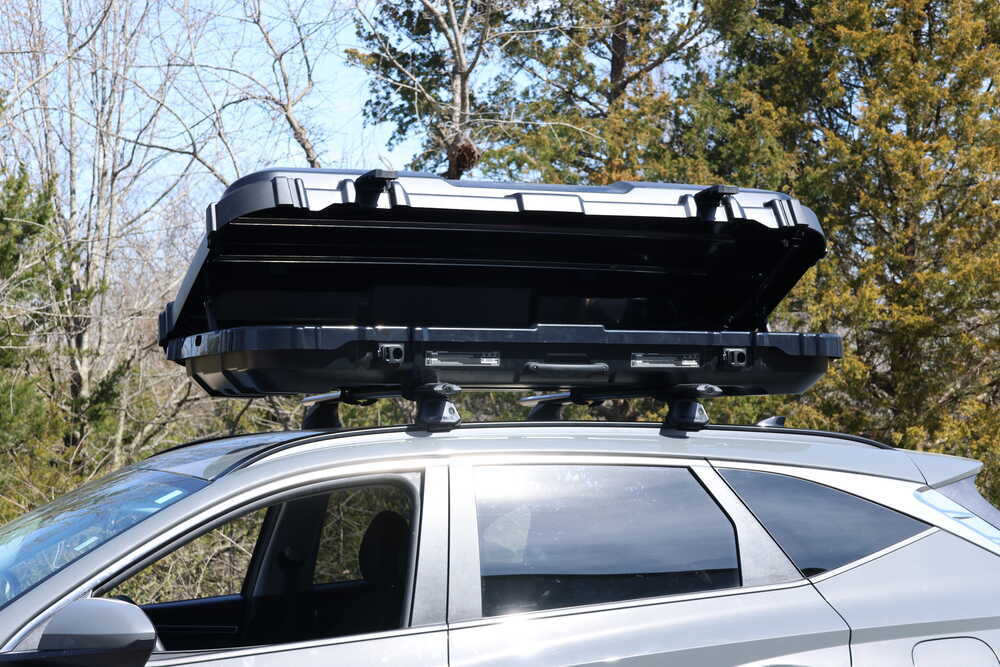

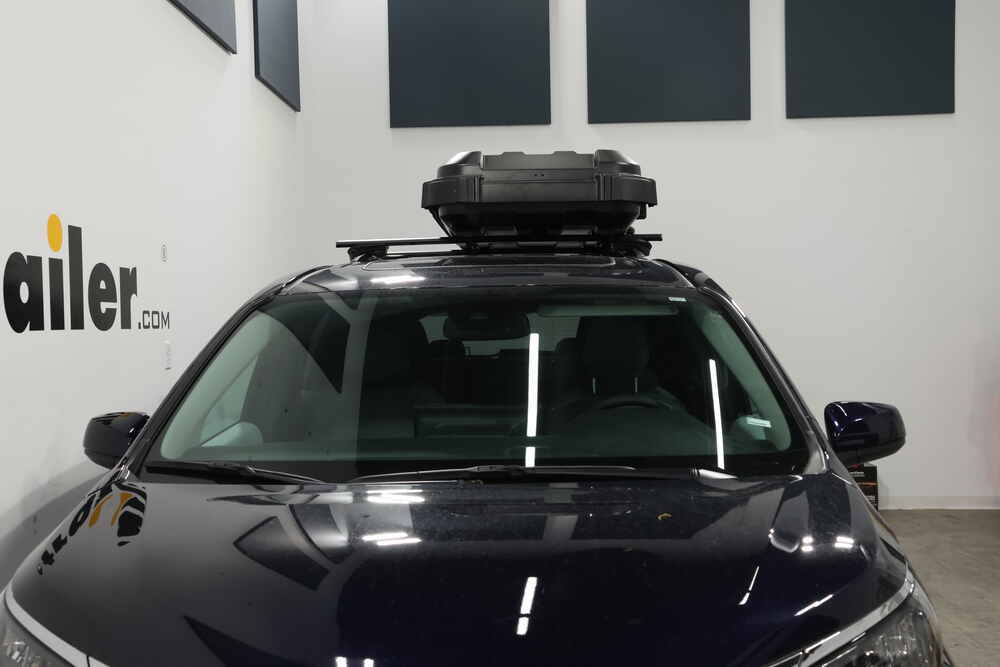

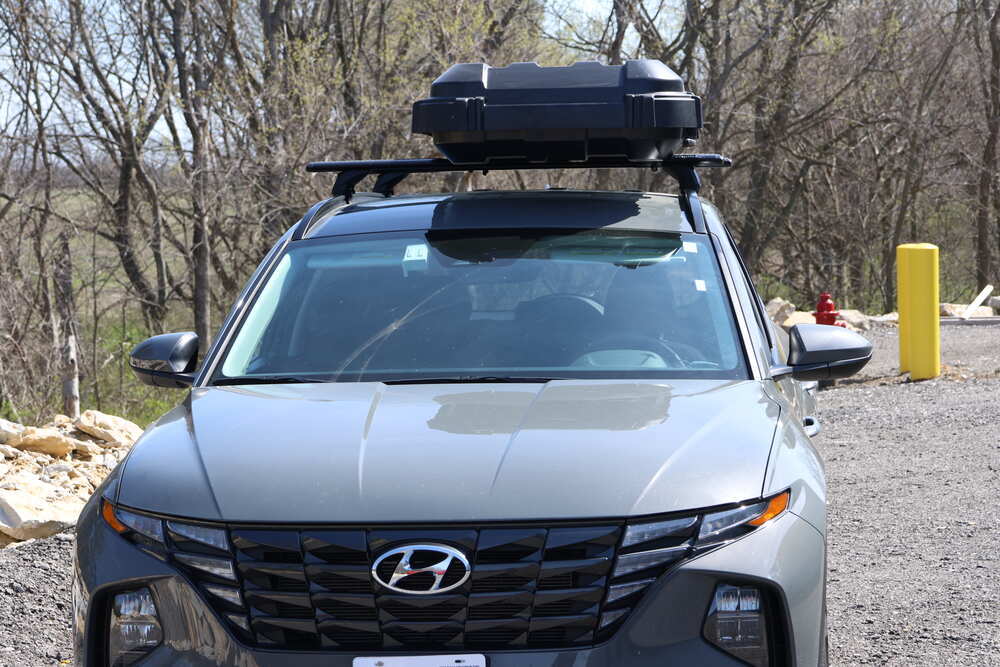

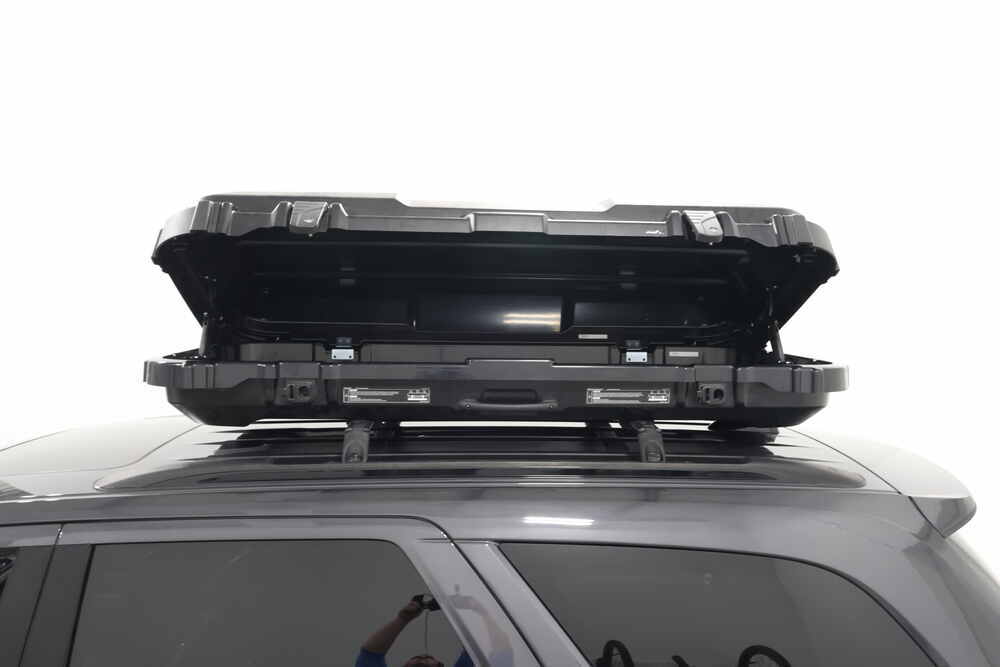

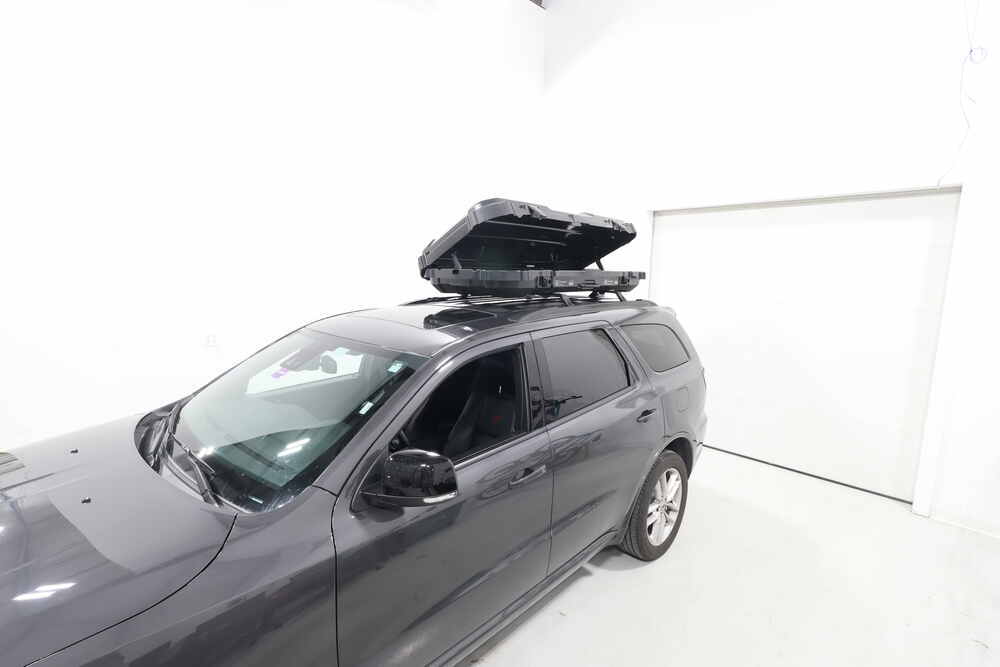

In Use/Installed

Need help with installation?
Locate installers near me
72-7/8 x 34-1/4 x 12. Save space in your trunk by hauling extra gear on your crossbars. Rugged cargo box is great for carrying camping supplies, sports equipment, and other items. Easy installation on aero, square, round, and most factory cross bars. Great Prices for the best roof box from Inno. Inno Gear Case 720 Rooftop Cargo Box - 11-1/2 cu ft - Matte Black part number IN94YV can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (1)
  • Q & A (0)
  • Videos (16)
  • Photos

Inno Roof Box - IN94YV

  • Aero Bars
  • Factory Bars
  • Round Bars
  • Square Bars
  • Medium Capacity
  • Inno
  • Long Length
  • Low Profile
  • Black
  • Passenger Side Access

72-7/8 x 34-1/4 x 12. Save space in your trunk by hauling extra gear on your crossbars. Rugged cargo box is great for carrying camping supplies, sports equipment, and other items. Easy installation on aero, square, round, and most factory cross bars.


Features:

  • Cargo box mounts on your vehicle's crossbars to provide portable, enclosed storage

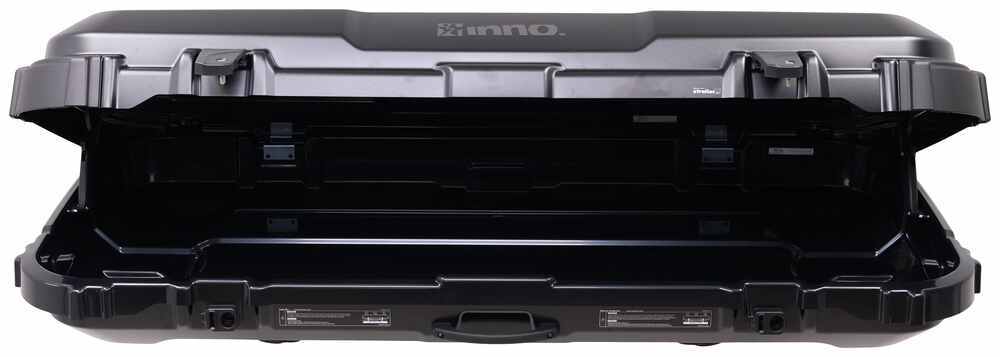

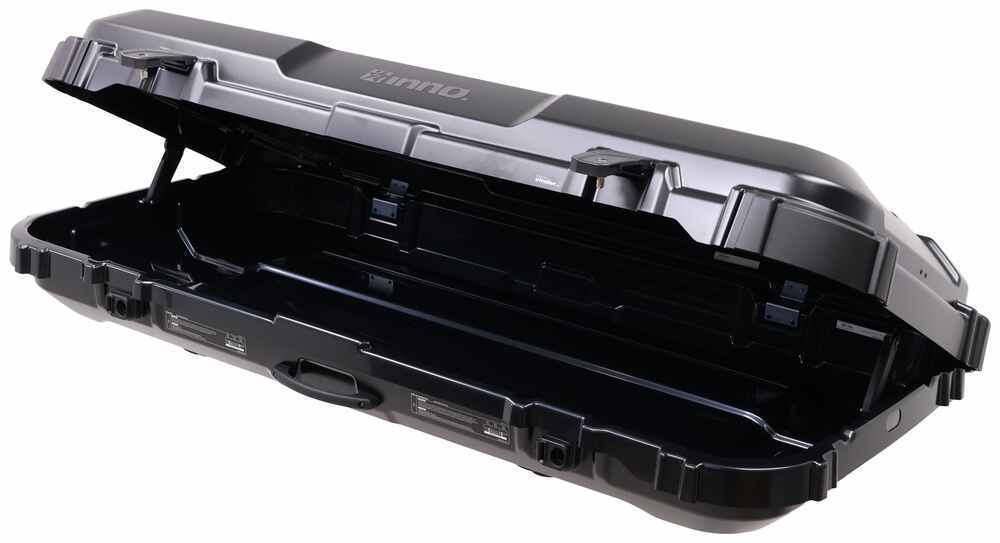

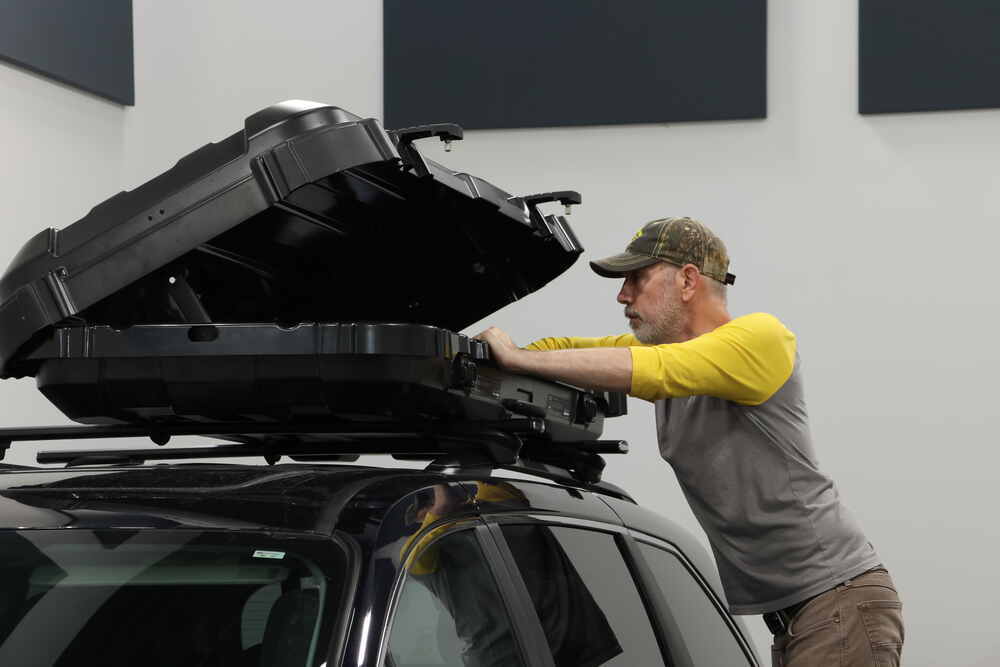

  • Single-side-opening lid offers easy access to gear
    • Box can be mounted on either the passenger or driver side
  • Carry handle on side of the box makes it easy to transport
  • Lock system secures your gear in the box, the box to the tray, and the tray to your vehicle
    • Key cannot be removed from cargo box unless lid is closed properly
  • Simple installation on square bars and crossbars with top channels
  • Anchor points and 2 included straps let you tie down gear inside the box
  • Bumpers protect the box from damage during unloading and help it stand upright during storage
  • ABS plastic cargo box is impact and UV ray resistant


Specs:

  • Application: aero, square, round, and most factory cross bars
    • Crossbar spread: 24" - 35-1/2"
    • Maximum crossbar dimensions: 3-1/2" wide x 1-3/8" tall
  • Carrying capacity: 11-1/2 cu ft
  • Weight capacity: 110 lbs
  • Dimensions: 72-7/8" long x 34-1/4" wide x 12" tall
  • Weight: 33 lbs
  • Limited lifetime warranty


BRM720MBK Inno Gear Case 720 Roof-Mounted Cargo Carrier - 11.5 cu ft - Matte Black

Installation Details IN94YV Installation instructions



Video of Inno Gear Case 720 Rooftop Cargo Box - 11-1/2 cu ft - Matte Black

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Test Fitting the Inno Gear Case Rooftop Cargo Box on a Frontrunner Slimsport Rack - 2021 Toyota RAV4

Hey, everyone, it's Evangeline right here at etrailer. Today, we are taking a look at the INNO Gear Case Cargo Box mounted to the Front Runner Slimsport Rack on our 2021 Toyota RAV4. The Front Runner rack is sold and installed separately onto this vehicle. First off, the INNO Gear Case 720 is a different type of roof-mounted box. It's more of a cargo case than anything. I personally like the design because it's more of a square, easy to carry around, very portable case, but you are gonna lose out on some features.

For example, if you have taller duffle bags or larger suitcases, the height of this case might not be enough for you. But for most of your road trip items, your smaller things that you need to pack into a case, this will provide both the space, (cargo box clicks) but also the security that will work out great for that. And you can check out my full review right here at etrailer if you want more info on just the cargo box. But a quick summary is that this box is made of ABS and AES plastic, which offers good weather ability and UV protection. This is something that you'll see on a lot of automotive parts, just like on your RAV4.

Very strong, very sturdy. Secures very well to our roof rack. So instead of having to purchase a separate, similar-looking box and drill holes, though, this is gonna add a lot more protection of your cargo from the elements. You also have two latches on this box. Both can be locked, and that way it's simply a press of a button, lift of a latch, and then you can get access into your cargo on the inside.

So everything works well to protect your cargo, (cargo box clicks) but also look really good on top of your vehicle. Now, here on our Front Runner Slimsport Rack, which is custom fit for the RAV4, it does take up a good amount of space. So the box, 34 1/4 inches wide. The remaining space on our rack is about 16 to 15 inches of clearance. That is a little different because the lid takes up more space when it's in the open position.

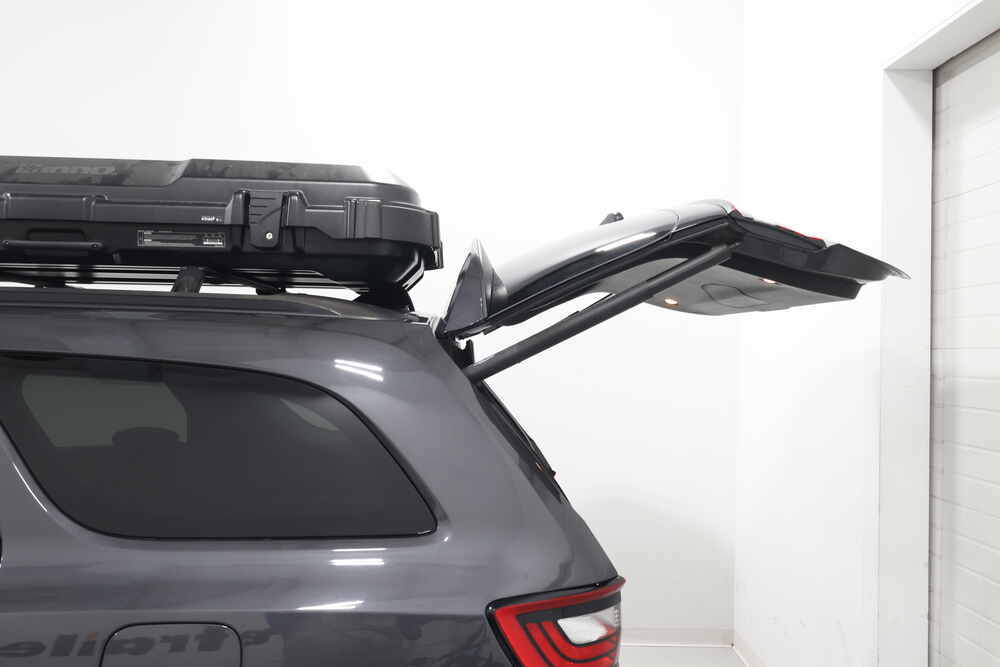

So you might be able to fit things like a fuel can carrier, a bike rack, whatever other accessory you wanna carry on the Front Runner in this remaining space. But the very first thing I noticed is how well this fits into the grooves of our rack. This sits 72 inches and 7/8 of an inch long, but it fits perfectly within the front and the back of our Slimsport Rack. Even the bottom of the box fits well within the slats, making for a very sleek look. Now, the box does sit a little bit over the rear of the rack, but the good news is we are still able to completely open up our hatch door and still have about two inches of clearance between the back of the box and the top of the hatch. So you have full access into your cargo area in the back of your vehicle while adding cargo capacity (hatch thuds) on top of the RAV4. The clamps are gonna be the INNO Memory Mount Clamps. So, this is not a new design. You see them on their other products, they work really good, which is why you don't really need to change them. And all you need to do is lift up the lever and then you're able to detach that clamp. We're gonna take this outside so you can see how it works better. The first thing I wanted to know was if the clamps would clear the roof. Now, if it was on the box, we'd still have a little bit of extra height, but even out of it, we still have clearance with the clamp. The next thing is that when you adjust a tension, make sure that it can still fit around the bar. So, with that set the first time, you can then just forget about it, and it's simply a matter of tightening down that lever or loosening the clamp, so all this works very well together. And that's gonna be the overall look of this box with this rack with this car. If you're curious about any of the features, maybe you're in research mode and you want to know more, well, we have all of those videos right here at etrailer from installing this rack to talking about this box. At this point of the video, I would usually recommend other solutions for maybe the gear case isn't big enough for you, maybe you have larger suitcases, or maybe you want something that's more portable. But in this scenario, that doesn't really make as much sense because this is a very unique interaction of multiple things. I would just say that if you're looking for a really good fit of both increased cargo capacity, but also being able to use your Front Runner roof rack or roof platform with a bunch of other accessories, this is a really good way of going about it. There's also the point here that the INNO Gear Case is very easy to take off and store inside your garage and in your shed. So if you have other Front Runner-mounted accessories, maybe you wanna carry around the kayak, you can still do that without being it such a hassle to do so. So, definitely check out all those other videos here on our website. If you're curious, all those products are available right here at etrailer. But today, this was a very special look at the INNO Gear Case Cargo Box with the Front Runner Slimsports Rack that is mounted to the 2021 Toyota RAV4. My name's Evangeline, and I hope you enjoyed this journey.

Customer Satisfaction Score:

Ratings & Reviews

5.0

1 reviews
72-7/8 x 34-1/4 x 12. Save space in your trunk by hauling extra gear on your crossbars. Rugged cargo box is great for carrying camping supplies, sports equipment, and other items. Easy installation on aero, square, round, and most factory cross bars.

by:

With etrailer I feel like I have a company who has my back and is looking out for me. Especially true if an issue develops. I like that this box has a handle. Very hard to carry a cargo box without one. I was able to carry it like a large piece of lightweight luggage. I also like how this box locks - two not one and clamp close.


1
1

See what our Experts say about this Inno Roof Box

  • Inner Dimensions of Inno Gear Case 720 Rooftop Cargo Box
    Hi Eric, The 72-7/8" long x 34-1/4" wide x 12" tall dimensions are the outside dimensions of the Inno Gear Case 720 Rooftop Cargo Box # IN94YV. The inner dimensions of the # IN94YV are 65-3/4" long x 30-1/4" wide x 11-1/2" tall.
    view full answer...
  • Will Install of Inno Gear Case 720 Rooftop Cargo Box # IN94YV Create Wind Noise
    Hey Rrr, in reality you can't really get away from wind noise with roof cargo box. If you install the Inno Gear Case 720 Rooftop Cargo Box # IN94YV it's going to create noise whether it's on a Slimline style rack or a 2 bar roof rack.
    view full answer...
  • Will the Inno Gear Case 720 Fit on the Front Runner Slimline II Cargo Rack
    Hey Lara, thanks for reaching out! The slats on the Slimline II are just over 3-1/2" wide while the Inno Gear Case 720 # IN94YV has a max crossbar compatibility width of 3-1/2" so I'm not confident the box will be able to mount directly to the Slimline II. We don't currently carry this part, but Front Runner has their Quick Release Cargo Box Bracket Kit # FR94NB that puts mounting points above your Slimline II so the Gear Case 720 has a place to install on the cargo rack.
    view full answer...
  • Will the Inno Gear Case # IN94YV Work on 2021 Honda HR-V Factory Crossbars?
    Hello Joe, Yes, I looked up the dimensions of the factory crossbars for the 2021 HR-V and the Inno Gear Case 720 Rooftop Cargo Box # IN94YV will attach nicely to them. I am always curious on what people plan on using their cargo box for: sports, family trip, hunting, fun day at the beach, etc? Once you get the cargo box set up and give it some good use, please let me know what you think of it and what you are using it for. Happy New Year! May 2025 be your best year yet! From, your new...
    view full answer...
  • How to Use Inno Gear Case Rooftop Cargo Box on 2024 Nissan Pathfinder Rock Creek
    Hi Philippe, While the Inno Gear Case 720 Rooftop Cargo Box # IN94YV won't fit on the factory rack of your 2024 Nissan Pathfinder Rock Creek, there is a way to use it. What you'd have to do is get a separate roof rack that goes on the side rails the Pathfinder's rack, the Yakima TimberLine Roof Rack for Raised Rails # Y42GD. I did verify directly with Yakima that the # Y42GD fits the factory side rails of your Pathfinder, and this will allow you to use the Gear Case 720 # IN94YV.
    view full answer...
