Price: $13.71

In Stock

Optronics LED RV Interior Light with Switch - 18 Diodes - Surface Mount - White Housing

Item # RVILL34

lowest price pledge

Our Price: $13.71

RV Lighting

Orders above $99 qualify for Free Shipping

Shipping Weight: 1.6 lbs

Quantity:

In Stock
optronics rv lighting led light 10l x 4w inch interior with switch - 18 diodes surface mount white housing
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

3d view icon
RVILL34 - Dome Light Optronics RV Lighting
Optronics Ceiling Light - RVILL34
Optronics RV Lighting - RVILL34
RVILL34 - 12V Optronics Ceiling Light
Optronics Ceiling Light - RVILL34
Optronics 12V RV Lighting - RVILL34
RV Lighting RVILL34 - Built-In Switch - Optronics
Optronics LED RV Interior Light with Switch - 18 Diodes - Surface Mount - White Housing Dome Light RVILL34
RVILL34 - 12V Optronics RV Lighting

In Use/Installed

RV Lighting RVILL34 - LED Light - Optronics
RV Lighting RVILL34 - Surface Mount - Optronics

Customer Photos


  • Ceiling Light
  • Dome Light
  • 12V
  • 10L x 4W Inch
  • LED Light
  • Surface Mount
  • Optronics
  • White
  • Built-In Switch
10-5/16" x 4-3/16" x 1-13/16". Surface-mount dome light illuminates your trailer's interior with 920 raw lumens of white light. Includes on/off switch and white, slide-on lens. 2-Wire design provides power lead and ground wire. Lowest Prices for the best rv lighting from Optronics. Optronics LED RV Interior Light with Switch - 18 Diodes - Surface Mount - White Housing part number RVILL34 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (552)
  • Q & A (53)
  • Videos (2)
  • Photos
  • Why etrailer?

Optronics RV Lighting - RVILL34

10-5/16" x 4-3/16" x 1-13/16". Surface-mount dome light illuminates your trailer's interior with 920 raw lumens of white light. Includes on/off switch and white, slide-on lens. 2-Wire design provides power lead and ground wire.


Features:

  • White, dome light provides bright light for your trailer's interior
  • Durable, surface-mount construction
    • Better withstands shock and vibration
    • Mounting hardware not included
  • Long-lasting LEDs are great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Polycarbonate lens slides on for simple installation
  • Simple operation with on/off toggle-button
  • 2-Wire design - includes lead wire for power and ground wire
  • Requires 12V DC power


Specs:

  • Dimensions: 10-5/16" long x 4-3/16" tall x 1-13/16" deep
  • Mounting holes: 3/16" diameter
  • Diodes: 18
  • Brightness:
    • Raw lumens: 920
    • Effective lumens: 815
  • Power draw at 12.8 volts: 0.6 amps
  • Color temperature: 3,150 Kelvin
  • Lifetime warranty on LEDs
  • 3-Year warranty on construction


light dimensions

Raw Lumens vs. Effective Lumens

Lumens are used to measure the amount of usable light that is put out by a light source. Raw lumens represent the number of lumens that the manufacturer claims the LEDs are capable of producing. It does not include the light's drive method or the amount of light lost from the lens or reflector. Effective lumens take these factors into account and represent the number of lumens that are actually produced by the complete light assembly, not just the amount of light that the diodes are capable of producing. This light has a 920 raw lumen capacity and produces 815 effective lumens.



RVILL34 Optronics LED RV Interior Light with Switch - 18 Diode - Surface Mount - White Housing

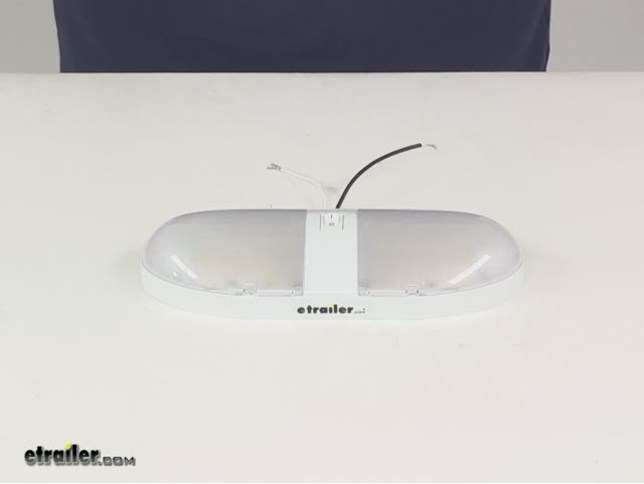

Video of Optronics LED RV Interior Light with Switch - 18 Diodes - Surface Mount - White Housing


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Optronics Trailer Lights RVILL34 Review

Today we're going to be taking a look at part number RVILL34. This is the Optronics LED RV interior light with an on and off switch. The white surface-mount light is going to function as an interior ceiling light. It's going to feature long lasting LEDs. These are going to be great replacements for incandescent lights. The LED system features multi dial design so it's going to optimize your light output.

You don't have to worry about replacing any bulbs and you don't have to worry about any brittle filaments. The LED system is a lot more efficient which is going to provide brighter light while using less power. This is a double white light so you have a set of LEDs over here and over here. Now the entire unit contains 18 diodes so you're going to have 9 LEDs on this side and 9 LEDs on this side. It's going to feature polycarbonate pop-on or snap-on lenses. These can be replaced if damaged.

Here at the center is going to be your toggle button. It's going to control the on and off function of the lights. It's got a nice white housing that goes around the perimeter and right here through the middle of the lenses and the LEDs. Here on the back it exposes the two-wire design. You're going to have your lead wire which is going to be your black wire for power and then your white wire is going to be for your ground. It's a nice oval shape.

Also here on the back you can see that it exposes the mount locations. You can gain access to those by removing the snap-on lenses and then it's going to expose those holes and then you can actually use the housing as a template to mark the mounting locations on your ceiling. That way you can get everything in the right location. To take a look at the overall dimensions real quick, we're going to measure the overall length. That's going to give us a measurement of 10-5/16 of an inch in length and then in width, that's going to measure 4-3/16 of an inch. In depth that's going to give us a measurement of ...

It looks like about 1-1/2 inches. This is a surface-mount installation. What I want to do is I want to hook it up to our external power source. That way you can see what it looks like with power running to it. We'll also be able to turn off our overhead lights. That way you can see what it looks like at a low light setting. Here you can see the LEDs send out a nice consistent strong signal. Then you've got the on and off switch right here in the middle. It offers a really quick response time with that LED system. Again it's going to have 18 diodes, 9 on each side. That's going to do it for today's review of part number RVILL34. This is the Optronics LED RV interior light. .


Customer Reviews

Optronics LED RV Interior Light with Switch - 18 Diodes - Surface Mount - White Housing - RVILL34

Average Customer Rating:  4.9 out of 5 stars   (552 Customer Reviews)

10-5/16" x 4-3/16" x 1-13/16". Surface-mount dome light illuminates your trailer's interior with 920 raw lumens of white light. Includes on/off switch and white, slide-on lens. 2-Wire design provides power lead and ground wire.

- RVILL34

by:


Very nice product for a very low price. I think these are the best buy in trailer lights. They're good enough that I cancelled my plans to install a couple of 4ft strip lights. Brightness - very good, a pair fully and easily light up the interior of my 8.5x20 enclosed trailer. It helps that I have gloss white walls and ceiling. For a trailer with a plywood interior, I would probably go with 3 of these on the ceiling. If you need detailed task lighting, you might consider using 4 of these (two at the ends of the trailer and two spaced out between front and back). That would give an enormous amount of light thruout the interior. Installation: very easy. The covers come off easily if you use a blunt tool and push on the cover "slots" to ease the lens off. I used the blunt handle of a trim removal tool, but a piece of wood dowl would work fine as well, Even a screwdriver might be fine if you were really careful with it. The lenses are on tight but apply firm pressure an the lens will slide loose. The lights have 8 mounting holes but you really only need to use 4. This makes it easy because you just pick the holes that are most convenient to use (I put a pair into the aluminum header rail in my trailer ceiling). Don't forget that white is ground and black is power. I grounded the lights by crimping a small ring terminal on the white lead and putting it over one of the mounting screws. 433962



- RVILL34

by:


The only difficult part of the installation of this product was to get the "snap-on" lenses off the product so that I could screw the light to the ceiling of the trailer. Actually each lens SLIDES OFF away from the center of the light fixture. The easiest way to do this is from the underside of the fixture. The light produced by this fixture is brighter than the standard incandescent 12 volt light that came with the trailer. Excellent product. 211632


Comments

These lights continue to perform perfectly. The color of the light produced with these LEDs are much better than the yellow incandescent color.

ucsfsmile - 07/13/2016

19365

- RVILL34

by:


The LED fixture from etrailer.com is awesome! I purchased 2 for my 5th wheel RV and am blown away. I will be replacing the rest of my fixtures with this one and the single light unit. They are bright but not blinding. I read some reviews about how the lens is difficult to open. Let me tell you it is but its not a deal breaker. They outward and my need a little help by using a flat tip screw driver to get them to "pop" over. No big deal. You will not regret buying these lights. 232403


Comments

Replaced all my Rv S interior lighting with these and am happy.

Allen W - 11/22/2016

21907

- RVILL34

by:


A great upgrade that is highly recommended. It took me about 3 hours to do all the interior lights in my 2012 Springdale tt. For me, and I suspect many other rv's, these are a direct replacement. Here's the approach I took and it worked great. When I removed the old lights, I noticed some screws were sorta loose and they were also too short. The factory screws were 3/4" #8 screws with the square head. I went to the hardware store and bought a box of #10 Phillips head screws 11/4" in length, and they worked perfectly. I clipped the wires from the old lights and connected them with the same color coding ie: white to white and black to black. I used wire nuts and them taped them with super 88 electrical tape to insure no future problems. Slightly over $100 for the total interior upgrade. If you dry camp, do this and make your batteries last longer, not to mention you'll be thrilled with the better (brighter) lighting. 256225



- RVILL34

by:


Installed two of these in the storage compartment on our fifth wheel camper and it had only one single light installed in there. These lights do a really good job and are very bright compared to the regular bulbed lights that come factory with the camper and are some much cooler to the touch. Would recommend to others and will be buying more for this price, well worth it. 203126


Comments

Well worth the price and would buy again

lance j - 06/11/2016

18516

- RVILL34

by:


I recently purchased 4 interior LED lights for my RV. I like the lights after I installed them. Much brighter. There are 2 things that I had issues with that you may need to be aware. 1. The lens on the new lights are extremely difficult to remove. I had use the nose of a pair of pliers to push the tabs from the back side. It was difficult for me. I'm a pretty strong man and mechanically inclined. I can see this being an issue with an older, weaker person. 2. The new lights are to be used as a direct replacement for stock ceiling lights. They have a smaller footprint, leaving 4 screw holes exposed. I caulked mine and the ceiling looks ok. This may be a big issue for a customer more sensitive to perfection. Just a little input. I hope it helps. I will be ordering more lights to completely change mine to LED. 413350



- RVILL34

by:


These LED lights are amazing. I replaced the regular lights in a 2012 trailer that were also Optronics lights. A substantial increase in intensity and the light is white not the yellowish of the old bulbs. A real plus was the light footprints (both single and double) matched the replaced lights exactly down to the placement of the screw holes! If you wanted even brighter lights the lenses from the old, with a slight prism effect in the plastic, could be used. The lights arrived quicker than I expected. The only slight negative is there were no screws included with the fixtures and the screws from the old lights were too short (by a quarter inch) to hold effectively. What a great way to upgrade an older trailer with efficient and never-need-to-replace bulbs. Great products, great company. Thanks etrailer! 478421



- RVILL34

by:


ABSOLUTLY THE BEST LED RV LITE OUT THERE GREAT OUTPUT LOW AMP DRAW. BOUGHT AN NEW TRAILER AND CHANGED OUT EVERY ONE OF THOSE BATTERY EATER 921 BULBS LIGHTS. SHOWED THEM TO FRIENDS AND THEY HAD ME ORDER THEM A BUNCH FOR THEM. 211494


Comments

I STILL THINK THESE ARE THE BEST RV LED LIGHTS EVER, HAVE ORDERED MANY FOR FAMILY AND FRIENDS.

MUNSTER - 07/13/2016

19389

- RVILL34

by:


The lights (2) arrived and I was able to install them the same day. I now understand what others have said about getting the lenses off... that would be a challenge as it's different than what is expected. I did have one wire fall off due to a bad solder joint but that was the only poor joint and all the other joints were of very good quality. The unit is ultra simple in design and well constructed. The color of light is warm and pleasing, not blue-white at all. The two units I purchased replaced two individual incandescent fixtures with single bulbs and didn't provide enough illumination. The Optronics fixtures eliminated that problem completely. The real test was when my wife walked into the camper... I flicked the switch on and she REALLY liked the color and the amount of light they put out. 258989



- RVILL34

by:


Great product at a great price! I bought two 9 diode and one 18 diode to use as interior lights on my boat. They produce more light than I expected. Thanks etrailer for very fast shipping. 226947


Comments

After a year of use, no problems, no complaints. Would not hesitate to buy again. Great product, great price.

Russell - 09/21/2016

21157

- RVILL34

by:


Optronics Rvill34. Light output is aprox twice of the 2 lt 921 rvill33 model. .60 amps versus 2.5 amps . Less heat. Best to use a plastic insulater under fasteners so that they don't contact printed circuit board and ground board out. 206939


Comments

terrible some leds went out switch bad. junked them.

Brian - 06/23/2016

18901

- RVILL34

by:


Got my order of Optronics RVILL34 LED light fixtures very quickly and on time. This LED light fixture was an exact size replacement for my RV's Incandescent Double Dome Lights. Mounting holes were in the same locations, making installation easy. I added a small Tie wrap around all the wires underneath to help hold them together and to provide some strain relief while installing. White wires were connected to RV white wires and black wires were connected to RV black wires, further making installation quick and easy. I used two 3M Scotcklok insulated connectors to connect the wires together. Everything was completed without problems in a short time. The installed light fixtures look great and provide plenty of light. I am very happy with this product. 279647



- RVILL34

by:


Just as bright if not more bright than the lights these replaced. The lens were a bit hard to get off in order to mount, but at least I know they won't fall off going down the road! 170744


Comments

Hi, Josh M. In regards those Optronics LED dome lights, is there any trick to getting the lenses off? My lights are in the mail. Thanks, Al.

-- comment by: Al M - 01/27/2015

9009
Comments

I let the lights warm up in the house for a while. On the lens there are small notches on each side. I put the end of a small wooden dowel in the notch and hit the other end of the dowel with my palm. Once on each side did it. Hope this helps.

-- comment by: - 01/29/2015

9080

- RVILL34

by:


Lights worked great put out a lot more light. Was smaller than old light but I made cover plate with 1/8" red oak to cover where old screw holes was. 371194



- RVILL34

by:


Replaced the single sided conventional light inside my enclosed trailer, it's now bright as daytime inside the trailer whenever I want 231209


Comments

Love the light, makes it as bright as daylight in the trailer, very good to see what youre doing at night

Stefan M - 10/30/2016

21661

- RVILL34

by:


Best investment made! Upon taking down the old incandescent lights I noticed that there were black burnt marks under the light cover from the extreme heat of the incandescent lights. This is also a indication of the heat being produced causes you AC unit working harder to keep your camper cool. After replacing them with these new LED lights not only cut down on extra heat but brightened up the camper too much. The old incandescent bulbs would barely last three months so I had to buy bulbs by the cases. Not no more. Even though these lights have a life time guarantee I'm sure they will eventually burn out but the price on these are so cheap I ordered extra. I know this sounds like an ad but these lights are truly worth it. 278380



- RVILL34

by:


I bought these lights for my ice fish house. After installing them I was amazed at how bright they are. Very satisfied with the lights. 209843


Comments

Lights are awesome. Used all winter ice fishing, hardly uses any battery power. Great product

Brad - 07/05/2016

19137

- RVILL34

by:


These lights are excellent. I replaced the incandescents in my pop-up camper with them. The are way brighter and will save power when running on battery. I also put the dual version in the center for even more light. They are a little shorter than the ones I took out, so your wiremold could be a little short. That wasn't the case with mine because of the center light. I just had to remove and cut a couple pieces to fit. I highly recommend these as an upgrade to your camper interior lights. Happy Camping! QM 281001



- RVILL34

by:


Bought two of these for my horse trailer for use in the tack area. i put the first in over the gooseneck section and it was so bright i didn't install the second. some people have trouble removing the lenses, but knowing so i looked at the back before i attempted to remove and saw how easy it was and didn't have much of a problem. used rivets for install and had to make a second trip to get longer rivets because hole depth was not stated, but otherwise pretty awesome. i have this, two singles in my horse area plus two LED utility area lights outside. all of them on for 2.5 hours during a lesson and they make no dent in my truck battery. So little i'm going to install an RV battery and never even worry about it. 453672



- RVILL34

by:


Good looking produvt, have not had the time to install yet. 236162


Comments

2 were bought and added 1 to each storage compartment. Good light, but switch is easily turned on by moving cargo, pressure switches would fix this problem.

Keith W - 01/22/2017

22278

- RVILL34

by:


This works really well in the bedroom of my trailer putting out twice the brightness as the original 12v filament bulb did. This light isn't fancy or anything and when you turn it on both sides come on but I am very happy with the illumination it gives. I have another one on the way. 328707



- RVILL34

by:


We are impressed with how bright these light fixtures are compared to the original. We live full time in our travel trailer and I installed these over our recliners where we sit to read. Excellent lighting for that! Easy to install and each fixture has 8 mounting holes for screws. The lens on each side slides toward the end - does not pry off - not obvious right away. Good price. I would buy more anyplace I needed better lighting than the stock fixtures. Nice looking light. The only suggestion I might make is that they could make the switch a dual mode so one or both sides could be lit at a time since these are very bright and less light might be wanted at times. 529144



- RVILL34

by:


Easy to install, and much, much brighter than the old incandescent bulbs. Plenty of light. Can't go wrong with these. 229614


Comments

All products are working great. No problems at all.

TJS2017 - 10/14/2016

21520

- RVILL34

by:


Switching from incondescent interior RV lighting to led lighting is brighter more even light and draws much less electricity off your house battery these LED lights are easy to install I ordered 6 doubles and 4 singles for my 1995 Ford e350 23 ft Thor four winds 23sc the double LED fixtures require 8 screws each while the single LED fixtures require 4 screws just attach the black wire on the light fixture to the black wire coming from your ceiling and attach white wire to white wire and protect both wiring connections and then screw the light fixture to the ceiling and turn it on and enjoy your new LED lighting that purchased from etrailer.com 346915



- RVILL34

by:


I bought one for over the sink in my Scotty Highlander and liked it so much I bought another one for over the dinette. Plenty of white light to read or prepare food, and quite efficient. Great price and we are pleased with our choice. 475870



- RVILL34

by:


Fantastic product. Very bright lightweight LED light for a great price when compared to similar products. Installed 3 in a 24' enclosed cargo trailer and the light output is amazing. The lights come with a built in switch, or you can run them off of a wall mounted master switch as I did. Since the amp draw is so low, I am able to run the lights off of the break away battery when the trailer is not connected to the tow vehicle. Note that this will only work depending on how your specific trailer is wired, and is not intended for long term use, but will get you by if needed. Overall great product for a good price. 415195



- RVILL34

by:


I replaced the incandescent light fixtures in my toy hauler with a combination of these 18 LED lights and their 9 LED counterparts ... seven fixtures in total. The process was quick and easy and the results are great. I get a better lighted trailer at about 10% of the 12v current draw from my battery. These fixtures were slightly smaller than the incandescent fixtures, so I used some small plastic arrow plugs to fill the exposed mounting holes. My only complaint is that the clear plastic diffusers are difficult to remove. Not a big deal, since I don't expect to need to remove them after installation. 254911



- RVILL34

by:


Did a comparison in my camper of one of these LED lights with my existing florescent lights on a recent camping trip. Dry camp for 10 days and run on batteries so voltage goes down with use and time. LED draws 0.35 A and florescent draws 1.7 A. LED is brighter at start and light goes down with battery voltage. Florescent stay about the same as start until voltage goes down and it will not light. LED still putting out light at that point. Got home and ordered ten LED to replace florescent lights. Love the lower current consumption and not worrying if will light at lower battery voltage. 528823



- RVILL34

by:


These are great lights. Good price and provides excellent bright white lighting. The only thing I can share is how to remove the light covers. If you will take a screwdriver and push on the notches on both sides of the lense they will pop off. To replace you will place the covers in place and use a screwdriver and press in on the notches again in the opposite direction. Once you do one it is a snap to get them on and off. Could not believe how much more light there was after replacing all the older bulb type lights. my wife LOVES these lights and that is great for me! Great light. 329169


Comments

The products are great especially the lights. My wife LOVES them! That means a LOT! Lights give a nice bright light.Need to order a few more before getting the RV out in the spring.Thanks for checking.

Mike W - 01/02/2018

32502

- RVILL34

by:


Great light, very bright, easy to mount, and low current draw. Used two of these in my vintage '84 little toy hauler. Thanks much for your excellent product selection and prompt service. 367229



- RVILL34

by:


i bought both the single and double dome versions of the Optronics LED lights to upgrade the lighting in an early-1960s trailer I've completely rebuilt. I found them trivial to install - four screws to mount and two wires to connect. The design is simple to work with, and the illumination quite good for such an inexpensive unit. Other than the colour coding on the wires (would much have preferred the conventional red and black of low voltage wiring) i was entirely satisfied with them as replacements for the auto-bulb units I installed years ago. Thoroughly recommended! 380617



- RVILL34

by:


I have a 2011 Cedar Creek and tried bulbs from varous sources. All that accomplished was making the light white rather than yellowish. No actual improvement in brightness. I ordered one of these lights and replaced one of original fixtures. Amazing difference on amount of light. It took about five minutes or so to change fixtures. Only issue was the lenses were difficult to remove. I'm so satisfied that I ordered 11 more to upgrade the whole 5th wheel. The price is lower than the so called super bright 921 replacements. The wife was happy so you know they are great. 500081



- RVILL34

by:


Good product, good price. 230486


Comments

All is just fine and no problems after a year.

Richard W - 11/01/2016

21695

- RVILL34

by:


Very pleased with these units. 170626


Comments

better than expected, very bright.

Rich - 01/21/2016

16515

- RVILL34

by:


Great lights! I wish I had installed these years ago. 198163


Comments

very good!

Larry - 05/26/2016

17901

- RVILL34

by:


Very good product easy to install. They are a little smaller than my older ones . . So i just used white caulk to fill in holes . Very bright . Just one flaw lens is difficult to get off but you can eventually . Also bought tge smaller version and the outdoor amber light no switch . Very bright as well. These leds are to expensive to buy at a rv dealership. 30 to 40 dollars a light. These lights have-a lifetime warrenty on leds . For the price and warrenty i changed all mine out on my 2004 jayco jayflight 27bh travel trailer. Excellent led 504932



- RVILL34

by:


These were DIRECT replacements for my travel trailer lights. the size and shape and even the mounting screws were identical. That's where the similarities end. The trailer's original lights were dim, yellowish and tough on the eyes. These have a crisper, brighter, whiter light by far. And don't get so hot to touch. I was looking to replace my original bulbs with LEDs when I found these and realized it was cheaper just to swap the entire light. probably the best bang for the buck, I've spent on my trailer. Highly recommend these! 277940



- RVILL34

by:


I ordered these lights to replace my lights in my camper. I had intended only replacing the ones in key places but It made the others so bad I ordered enough to replace all. I would give these lights a double the light of ones I replace. Some reviews stated covers are hard to get off and they are a little hard but with small screw driver and pushing back on slot it comes off alright. If you are looking to get better light for cheap price this is it. Bulbs are made on board so you can't replace bulbs so at this price it's great anyway. 525416



- RVILL34

by:


These things are awesome !!! Installed 2 of these in my 12 ft. cargo trailer. It's like daylight in there now! I liked them so much I'm ordering 7 more for my camper. If you haven't made the switch to LED lighting, it's time. They put out a lot better light, generate less heat, and use less power. I think they are well worth the money. 283260



- RVILL34

by:


The best led lights ever. Very bright, great for reading, doing puzzles, or whatever. Not the same size as your original, I bought some plastic plugs from Hobby Lobby to fill holes that exposed on my ceiling. Looks good. Easy installation snip 2 wires, scotch clip the the white @ black wires, turn on the power. Perfection 465806



- RVILL34

by:


Everything I have purchased from etrailer has been great, but what really stands out are the LED interior light replacement fixtures. Anyone who seriously camps off the grid knows that lights are the biggest draw on the batteries. These LED's are brighter than OEM and use one third the power. We replaced all the lights in our camper with these and the reduction in battery drain is substantial. It only takes about 5 minutes to replace each light. Please etrailer, make LED replacements for the outdoor lights as well. 251256



- RVILL34

by:


Wow! Should have changed out the incandescent fixtures in my RV years ago with these things. They are as bright as the incandescent and should use much less energy. The fixtures were slightly smaller than the ones replaced, but no big deal. I had to drill new holes in the ceiling to mount. The globes on these lights were very hard to remove. They slide outwards, but you really need to push on them hard to get them to move. One other reviewer suggested pushing them off using a wooden dowel. This worked for us. 183187



- RVILL34

by:


I bought two 18 led and one 9 led fixtures for my 12 enclosed trailer I use at the bike races. Power consumption is very low so I can run them off a jump starter battery pack. The two 18 diode fixtures on the ceiling completely light up the trailer with bright warm white light. The 9 led fixture will be going in a large unlit cargo hold in the RV.This diode configuration is the brightest and the best I've seen yet and I don't see these sold anywhere other than etrailer. Yes, I will be buying more. 185451



- RVILL34

by:


Wow! These lights are a 1000% improvement! My trailer had 2 old school lights that didn't produce any light at all (had to use a flashlight). These are Exactly what I was looking for. In fact I liked them so much I ordered 2 more for my oldest sons trailer too. And super fast shipping!!! 242621


Comments

Still working great!

Bobby M - 04/01/2017

23034

- RVILL34

by:


These lights are much whiter and brighter that the standard tungsten bulb. They really brighten up the RV so you can really see inside. Also they generate very little heat. These are a direct replacement for the ones in my 2013 Montana High Country. They even use the same screw holes but you will need a 1/4" longer screw. The only negative about them is that it is difficult to remove the lens. You will need a tool like a pocket knife or a scraper to pry the lens back to remove it. 385018



- RVILL34

by:


It might be possible to give 5 stars but after purchasing all the products about a year ago, my little fiberglass trailer is not even close to being ready. All the lighting is hooked up and they all seem to work, so that's a good thing. The other products that I purchased have not been installed yet. I would like to mention how pleased I am with e-trailer videos showing everyone how their products look and how they're used. Keep it up, I am a happy customer. Vic 366258



- RVILL34

by:


Love these lights, they have brightened up our RV living area tremendously, it seemed kinda dark in our trailer before we got these lights. we ordered 3 of these lights just to replace some that had broken (one was a fancy swinging light that hung down, this isn't the type for a RV) and they are wonderful cannot say enough. So we ended up ordering 3 more to replace others in our 5h wheel. the order was placed and we received them in 3 days. great service!!! 482090



- RVILL34

by:


I am very pleased with the 12 volt LED fixtures I purchased at a very good price. The freight was reasonable and I received them promptly. They seem to be of good quality and put out plenty of light. I am using them in a hunting cabin that has no electricity. We have a 12 volt battery with a solar charger and these fixtures consume a small amount of power. Now we won't have to run our generator just to have light at night or have to use our propane lanterns. 309576



- RVILL34

by:


Excellent customer service, as always. I ordered three, and installed them in my Airstream to replace the multi bulb incandescents. They are bright, but not obnoxiously bright, and cast even light where installed. As other reviewers commented, the covers slide off, opposed to popping off. I used a flat blade screwdriver between the base center and each side without issue. (You'll develop a feel for it after the first one.) For the price, I'm very pleased. 293914



- RVILL34

by:


My new 5th wheel came with Optronics incandescent lights same shape and style. I was very excited when I found these LED replacement lights on the internet for such an excellent price. Go etrailer. You are number 1!!! installation could not have been easier. Everything went right back in the same screw holes.Deborah h. Thank you very much for your help on the phone.I will definitely be purchasing from you people again! Leds Rock!Much better lighting. 172141


59
561
Show More Reviews

Ask the Experts about this Optronics RV Lighting
Do you have a question about this RV Lighting?


  • 12V LED Lights for Inside a Cargo Trailer
  • There are many 12V LED lights which are available for the inside of a cargo trailer. The thing about LED lights, however, is that you are never going to have to pull a light out of the socket and replace it with a new one. For example, the Optronics # RVILL34 is a surface-mounted LED light with 18 diodes, which is what provides the light. They last very long with just 0.6 amps of power draw and a lifetime warranty for the lights. You can see how bright the lights are by the photo I've added....
    view full answer...

  • LED Interior Trailer Light Recommendation for Enclosed Trailer
  • LED interior lights can be pretty easily installed on your trailer that will be powered by the trailer connector's 12 volt power circuit. The part # RVILL34 is a pretty common LED setup that would work well. It has a switch built in and two LED panels to produce light for the trailer. As long as your trailer is you might go with at least two depending on how bright you need it to be. The 12 volt power circuit of your 7-way is the 1:00 position of the 7-way.
    view full answer...

  • How to Wire 2-Wire LED Lights to Enclosed Trailer
  • No problem. If your existing trailer interior lights use a 1-wire hookup this means they use their mounting hardware to make the ground connection and the single lead is the +12V feed. Adding more high-efficiency LED lights with 2 wires will only require you to run that separate (white) ground wire to a suitable metal surface on the trailer (such as the surface the existing light are mounted to). The linked page will display all LED type interior white lights suitable for use in your...
    view full answer...

  • LED Light Recommendation for a Livestock Trailer
  • Good news, I can help pick out led lights for your livestock trailer. My favorite interior light that I would recommend for you is the part # ILL08COB. This light is super bright and since it uses LEDs instead of incandescent bulbs it hardly draws any amperage as well. Which means you can run it on either the auxiliary power circuit or the taillight circuit on your trailer without worrying about overloading the circuit. This style of light doesn't come with a switch on it because...
    view full answer...

  • Camper Interior Light Conversion to LED
  • LED lighting will save you both power draw and heat build-up as you mentioned. There is a conversion bulb for Bargman light units like the # 30-76-123 or the # 30-76-223, so converting will require replacing the existing bulb with Starlights LED Wedge Base Lamp, # 277-000102. Each bulb will use 0.180 amps at a voltage range of 9-16V. This is a simple bulb replacement, remember that the bulb is polarity sensitive. If bulb fails to illuminate when first installed, rotate it 180 degrees...
    view full answer...

  • Troubleshooting Dim Lit Optronics LED RV Interior Light # RVILL34
  • I attached a picture of how bright the Optronics LED RV Interior Light # RVILL34 should be. As dim as your are in the picture you submitted makes me think that you either have a bad ground on your assembly or the power source you are using isn't 12 volts. Is it possible your trailer is 6 volts? I kind of doubt it is since you said it was made in 2007. Use a volt meter # BTMT15 to test the power wire you are using to verify that you are getting full 12 volts at the lights. You could...
    view full answer...

  • Lumen Output and Wattage for Optronics LED RV Interior Light
  • As far as lumen output the Optronics LED RV Interior Light # RVILL34 has 2 ratings. The raw output, unobstructed and in testing conditions the light can produce 920 lumen. The effective lumen output in real-world scenarios is 815 lumen. But the watts are low; 1.22 at 815 lumen. The one thing that isn't tested for this light is the temperature. As an LED light though it would be less on the reddish side and more on the white/blue-ish side.
    view full answer...

  • Recommended Interior LED Lights for 24-Foot Car Hauler Trailer
  • For a 24-foot enclosed car hauler trailer I recommend at least three lights on the ceiling and possibly also one or two on the trailer's side walls to give you some illumination of the car's interior and to help when you're securing it in the trailer. Optronics part # RVILL34 is an 18-LED oval surface-mount light that includes a switch, a nice feature if you'd like to be able to control the lights individually. For a large (6-inch) round light without switching you can use domed light...
    view full answer...

  • What is Needed to Install Interior LED Lights in an Enclosed Trailer
  • Installing the Optronics LED RV Interior Light, # RVILL34, should be a fairly easy project. The two wires on the light are 12 gauge. The white wires can be grounded to the trailer body, the black wires are your power wires. Using # 12-1-1 you can connect to the black wires and run this wiring to where you are going to install your battery. Using a 12 gauge wire nut, found at any hardware store, connect all the light wires and the power wire from the battery together or you could...
    view full answer...

  • Options for RV Ceiling Lights That Provide More Yellow-Toned Light than LED Lights
  • Typically, lights that use incandescent bulbs, rather than LED bulbs, will offer the more yellow-tinged light you are describing. We offer a number of different ceiling light styles with incandescent bulbs. If you are looking for a dome light, we offer lights such as the Trailer Dome Light with Stainless Steel Base # IL91CB. This light measures 6-7/16 inches in diameter and has a 2-wire design. If you're looking for a smaller puck light, one option is the Gustafson RV Puck Light...
    view full answer...

  • Comparing Lumen Output of Two 18 Diode LED Lights
  • The Gustafson RV Pancake Light - Double Dome - Clear Optic Lens - 18 LEDs # 277-000340 has a lumen output of 225. The Optronics LED RV Interior Light with Switch - 18 Diode - Surface Mount - White Housing # RVILL34 has a lumen output of 920 raw but 815 effective. The Optronics option in this case is a much brighter light and approximately equivalent to a 60 watt incandescent bulb. Unfortunately there is not a clear lens confirmed to fit this unit.
    view full answer...

  • Do Horse Trailer Interior Lights Require a Fuse be Installed on the Circuit
  • For an interior light on a horse trailer most would not install a fuse on the trailer side. The circuits are already protected by fuses on the vehicle side so it would be a bit redundant. If you have the 12 volt power ran to the trailer and ready to be wired to a light you are on the right track and would just need to install and wire a new set of lights. The most popular option we have that would work well is the part # RVILL34. This uses LEDs for illumination so it doesn't draw hardly...
    view full answer...

  • Red Interior RV Light for Use at Night
  • The Optronics LED RV Interior Light with Switch # RVILL34 that you referenced unfortunately only comes in white. However, we do have an interior light that has both a red and white bulb. The Optronics RV Interior Dome Light # 69000300 is a red and white combination with a dual switch. I've attached a video review of the light for you to take a look at.
    view full answer...

  • Comparing Two LED RV Lights With 18 Diodes Each
  • The Optronics LED RV Interior Light with Switch - 18 Diode - Surface Mount - White Housing # RVILL34 and the Patrick Distribution 18-LED Surface Mount Dome Style Light Fixture - 12V # 277-000114. There is not a lumen rating on the slimmer light from Patrick Distribution, but both have received reviews from customers for the functionality and bright light that both put out. I believe you will be very happy with the slimmer light you prefer. I've attached videos to help.
    view full answer...

  • RV Under Counter Light with Switch Recommendation
  • The part # RVILL34 is a 12 volt light that has a switch that could be mounted under a counter/over a sink. It uses LEDs too so it doesn't draw much amperage either.
    view full answer...

  • Could the Interior Light RVILL34 Install on Trailer Ceiling that Has Lights that have One Wire
  • If your current dome lights only have one wire wired up that would indicate that it's grounding through the sheet metal roof of the trailer. All lights need a power and a ground and most likely the wire was taped to the roof (not ideal at all) or the lights were grounding through the mounting hardware and the second wires were for another function or a brighter illumination. The part # RVILL34 has a power and a ground wire. As long as you can provide both those circuit this light is...
    view full answer...

  • Replacement Optronics Interior Lights for Travel Trailer
  • Optronics Replacement Lens # AIL21B-NEW fits the # RVIL21 and # RVIL22 lights made after 2010. It will not fit a light made in 2008. We no longer have that lens. But we do still offer the complete light # RVIL22. If you wish you can convert the # RVIL22 light from standard incandescent bulb operation to high-efficiency LED operation simply by swapping the bulbs for an equivalent LED part. These will be brighter, use only 1/10th as much power and not require periodic replacement like...
    view full answer...


Do you have a question about this RV Lighting?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality rv lighting for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate rv lighting information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael H
Expert Research:
Jameson C
Expert Research:
Adam R
Written by:
Laura H
Video Edited:
Dustin K
Installed by:
Cole B
Photos by:
Amber A
Photos by:
Sam P
Installed by:
Hayden R
Updated by:
Sarah W
Expert Research:
Victoria B
Photos by:
Stacy F
Updated by:
Anna W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.



Product Experts Available Now!

Call 800-298-8924


^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
