Curt Venturer Trailer Brake Controller - 1 to 3 Axles - Time Delayed

Item # C51110

Retail:$65.11

Our Price: $26.50

Orders above $99 qualify for free shipping

Quantity:

In Stock.
zoom in icon
zoom out icon
pop out icon replay 360 icon

Product Images

spin image icon
Curt
Curt
Curt
Curt
Curt
Curt
Curt
Curt

In Use/Installed

for 2004 Ford F-250 and F-350 Super Duty 1Curt

Customer Photos

Curt
Curt
Curt
Curt
Curt
Curt
Curt
Curt
Curt
Curt
Curt
Curt
Curt

  • Time Delayed Controller
  • Curt
  • Electric
  • 2 - 6 Brakes
  • Automatic Leveling
  • Digital Display
  • Vehicle Mount
  • 360 Degrees



Curt Brake Controller - C51110

Electronic controller activates electric trailer brakes with a preset intensity when you apply the brakes in your vehicle. Power output and braking aggressiveness are easily adjustable. Includes LED display and manual override.


Features:

  • Brake controller activates trailer brakes with preset intensity
    • Signal is sent to trailer brakes when tow vehicle's brakes are activated
  • Adjustable, slide-bar power output control lets you determine the amount of braking force
    • Set to maximum when you travel through hilly terrain with a fully loaded trailer
    • Back off the power output when you tow a lightweight trailer
  • Sync setting lets you adjust the aggressiveness with which the brakes are activated
    • Get full power output faster by moving slide-bar switch forward to increase activation speed
    • Achieve smoother braking by moving switch in opposite direction to supply power gradually
  • LED display shows brake force output
  • Self-diagnostics function monitors trailer connection and checks for shorts
    • Status LED glows red if disconnect occurs
  • Built-in, slide-bar manual override
  • Quick and easy installation
    • No need to mount level like proportional brake controllers
    • Mounting bracket and hardware included
    • Plug-in, vehicle-specific brake control adapter (sold separately) can be used for certain applications to reduce installation time


Specs:

  • Application: trailers with up to 3 axles (6 brake assemblies)
    • Designed for use with electric brakes only
  • Overall dimensions: 4-1/2" long x 3-3/8" wide x 5/8" thick
  • Limited lifetime warranty


Time-Delayed Braking

The Venturer applies your trailer's brakes when the brake pedal in your tow vehicle is engaged. Every time you apply the brakes in your vehicle, a signal is sent - via the brake switch - to the Venturer. The controller then sends power out to your trailer brakes to activate them with an intensity set by you, at a rate determined by you. Both the amount of braking power (output) and rate of application (sync) can be adjusted to suit your preference, the road conditions, type of trailer, and size of the load. To determine which levels are best for your application, you must test out your towing setup and choose what feels best.


A time-delay controller is so named because there is a delay between the time that you initially apply the brakes in your tow vehicle and the time that the controller reaches maximum power output. Unlike a proportional brake controller, which activates your trailer's brakes based on the deceleration of your tow vehicle, the Venturer sends power out in the same way, with the same gradual delay, no matter the braking situation. Although this delay always exists, it can be adjusted by changing the sync setting.


Built-In Controls for Adjustable Power

Curt Venturer Controls and Components

The above diagram shows the controls and components of the Curt Venturer trailer brake controller.

  1. LED display
  2. Power output control
  3. Sync control
  4. Slide-bar manual override

Output Control

During the initial setup process, use the slide-bar control on top of the Venturer to adjust the output. The output control lets you set the maximum amount of power that will be applied to your trailer's brakes. Typically, the output is only readjusted when you experience changing road conditions or if you switch over from a heavy, loaded trailer to a much lighter, empty trailer, or vice versa. To get more power to your brakes, slide the switch to the right. To decrease the power output, slide it to the left. The bars on the LED display indicate the output setting from 1 to 8.


Sync Setting

To adjust the aggressiveness of your trailer's braking action, use the slide-bar control on the side of the Venturer to change the sync setting. If you want to reach maximum power output faster, move the switch forward. To get smoother braking action, slide the switch backward, thus supplying power to the trailer brakes more gradually. You can alter the sync setting to suit your driving preferences or to improve handling based on changing road conditions or varied trailer loads.


Quick, Simple Installation

Because inertia plays no role in the functioning of this controller, you do not have to mount the unit at any particular angle. As a result, mounting options are limitless, so long as you can still easily access the controller.


Installation of the Venturer requires that you either purchase a custom wiring adapter designed to plug into the controller or that you hardwire the controller directly into your vehicle. To hardwire the Venturer, you must remove the plug at the end of the integrated wiring harness.


Installation Accessories

For easier installation, a vehicle-specific wiring adapter (sold separately) is available for most newer trucks and SUVs. One end of the custom adapter plugs into your vehicle, and the other end plugs into the controller - no hardwiring required.


Note: If a custom brake control wiring adapter is not available for your vehicle, one of the following will be required:

20-Amp circuit breaker (9506P - sold separately) for 2- to 4-brake applications

30-Amp circuit breaker (38630 - sold separately) for 6-brake applications


See also etrailer.com's exclusive 7- and 4-way brake control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your vehicle.



51110 Curt Venturer Time Delay Trailer Brake Control



C51110 Installation InstructionsInstallation Details C51110 Installation instructions




Related Products



Customers Who Purchased This Brake Controller Also Bought...



Replacement parts available for this product







Video of Curt Venturer Trailer Brake Controller - 1 to 3 Axles - Time Delayed


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

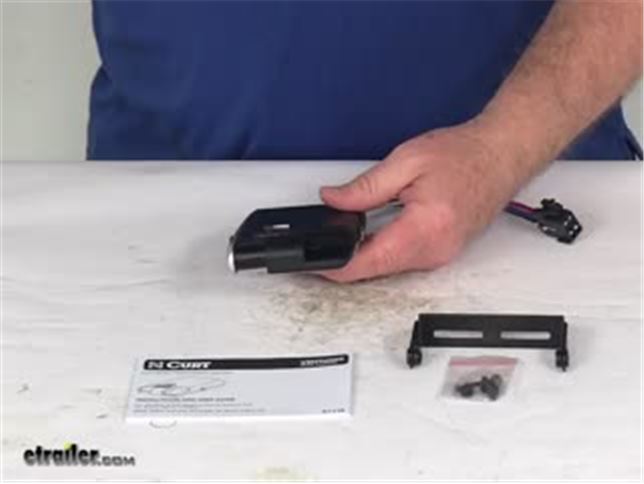

Video Transcript for Curt Brake Controller C51110 Review

Today we're going to review part number C51110. This is the Curt Venturer Trailer Brake Controller. This brake controller is designed for trailers with up to three axles or six brake assemblies. It is designed to be used only with electric trailer brakes. It will not work with electrical over hydraulic. It does have a limited lifetime warranty.

Now this brake controller will activate your trailer brakes with a preset intensity.The signal is sent to the trailer when the tow vehicle brakes are activated. Right here at the top you'll see there is an adjustable slide bar power output control-this will let you determine the amount of braking force. I do have this hooked up to some power so I'll show you when you set this. As you can see there's one bar showing right now so as you turn this and slide it you'll see that the bars increase-it does show one to eight bars; eight would be the maximum.You can set that to the maximum when you travel through a hilly terrain with a fully loaded trail or you can back off the output when you're towing a light weight trailer. On the very side here there's a sync setting which will let you adjust the aggressiveness with which the brakes are activated.

Again you'll see the bar showing and if watch that as I push this back you can see the green light will flash that shows you're setting the sync setting and the bars will increase all the way-would be the eight bars.If you pull it towards yourself it would reduce down to one. If you get full power output faster by moving it forward to increase the activation speed and if you pull it back you'll achieve smoother braking when you move it in the opposite direction; that'll supply power gradually. As you can see it does have the LED display right up here that'll show you brake force output.This controller does have a self-diagnostic function which will monitor the trailer connection and check for shorts. You'll be able to see here if I disconnect the trailer you'll see this red light come on. This LED red light it'll display that shows-it will glow red which means a disconnection of the trailer has occurred.

If you end up hooking it back up you'll see the red light will go off.Up here at the very front you'll see is a built in slide bar manual override and you'll see when you push that-that would be used in emergency braking situations-you'll want to have access to that. When you immediately push that all the way-it'll show you whatever your maximum output is set at and it will go to that maximum right away. This break control is a quick and easy installation. There's no need to mount it level like a proportional brake controller-it can be mounted any wheres 360 degrees but you do want to be able to see the LED display.The mounting bracket, the wiring harness comes with the plug and the hardware for the mounting bracket is included. There's also a nice quick reference guide which will show what the readings would mean in the LED display.

It does come with a limited lifetime warranty and again I just quickly want to show some of the when the brakes are applied-you'll see the output setting will come on and at the very top you'll see as you turn it-you'll turn it down-turn it all the way to the max.Then when the override is pushed it'll go to whatever the max you set it at. On the side here is the sync setting so as you push it towards the front of the vehicle you'll see that it will increase the sync setting and as you pull it back towards you it'll reduce the sync setting. That should do it for the review on part number C51110, the Curt Venturer Trailer Brake Controller.
