Trailer Hitch > 2012 > Toyota > Highlander

Hidden Hitch Trailer Hitch for the 2012 Highlander by Toyota

Hidden Hitch Trailer Hitch

(18 reviews)

Code:   87452



Shipping Special

Shipping Weight: 43.61 pounds


Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 2012 Highlander by Toyota

This durable, fully welded Toyota Highlander trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.


  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Toyota Highlander
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Ball mount, pin, and clip sold separately


  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 5,000 lbs
      • Maximum GTW when used with weight distribution: 5,000 lbs
    • Maximum tongue weight: 500 lbs
      • Maximum TW when used with weight distribution: 500 lbs
  • Limited lifetime warranty Technical Support

At we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.

87452 Hidden Hitch Class 3 Trailer Hitch Receiver

Video of Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2"

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Transcript for Trailer Hitch Installation - 2012 Toyota Highlander - Hidden Hitch

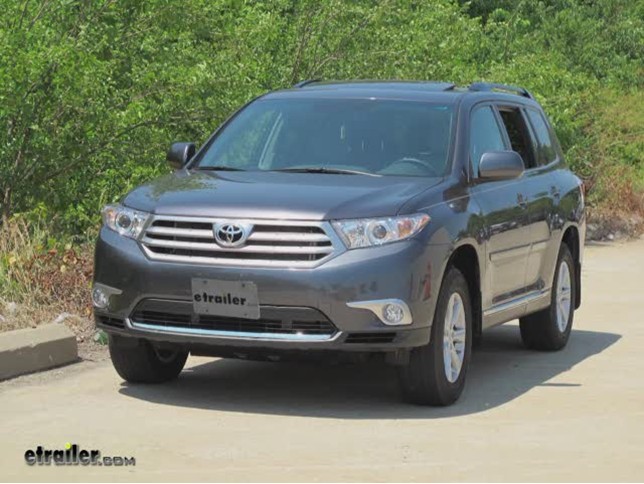

Today on our 2012 Toyota Highlander, we'll be installing Hidden Hitch, part number 87452. This is what our hitch will look like once it's installed. Next, we'll go ahead and give you a couple of measurements to assist you in selecting accessories for your new hitch. From the center of the hitch pin hole to the outermost edge of the bumper is 1-1/2 inches. From the top of the receiver tube to the ground is 14-1/4 inches. This will assist you in selecting accessories such as a drawbar, a bike rack, or a cargo carrier.

Now, let's go ahead with the installation. Before we could install the hitch, we'll need to remove both the driver and passenger's side underbody trim panels. These will get removed and will not be reinstalled. With this application, the manufacturer has suggested cutout lines if you wish to cut them out and reinstall them. However, for this application we will not.

To remove the underbody trim panels, there are multiple pushpin fasteners and bolt fasteners to remove. We'll go ahead and start on the driver's side and then remove the passenger's side. Now with both underbody trim panels removed, we'll go ahead and remove both tow hooks. There are two fasteners for each tow hook, one on each side. Once again, we'll set these aside as they will not be reinstalled.

Now, we're ready to go ahead and point out the attachment points. We'll have a total of three on each side in the bottom of the frame. We'll need to go ahead and remove the rubber plug for the forward fastener on the driver's side. Next, we'll go ahead and take our 1/2-inch nylon tube brush, part number 814092 and some spray lubricant and clean out each one of the weld nuts. We do this so that we can go ahead and take one of the new 10-mm bolts and make sure they're going to thread in nice and easily, because over time the threads can build up with rust, dust, dirt and debris, making it difficult to install the new fasteners.

Now, we're ready to go ahead and install the hitch. We'll be using the new 10-mm bolts with the conical toothed washers, the teeth of the washer facing the hitch. It's a good idea to get an extra set of hands to help you hold the hitch while you install the fasteners. Now with all six fasteners installed, we can go ahead and tighten them down. Next, we can go ahead and torque to specifications as indicated in the instructions. And that will complete our install of Hidden Hitch part number 87452 on our 2012 Toyota Highlander.

2012 Highlander by Toyota Owners Who Purchased this Trailer Hitch Also Bought...

Replacement parts available for this product

Toyota Highlander Accessories

Customer Reviews

Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 87452

Average Customer Rating:  4.8 out of 5 stars   (18 Customer Reviews)

This durable, fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.

- 87452

by: Laura P.05/17/2013

Was excited to get my hitch so quickly and I was able to install it in no time flat! Really appreciated the instructional video - it was a great help in making my decision. It was a great value for the money. I saved another $180 buy buying it from you and installing it myself. I can't wait to load up my bike and hit the trails. 80726


I get a lot of use out of the hitch. Not only do I use it for my bike rack, but I also bought a hitch basket for hauling extra stuff while on vacation. The extra space in the car that I gain alone makes the hitch a great investment!

Laura P - 05/17/2014


- 87452

by: Larry a08/02/2013

Quick shipping and outstanding information on installation. I couldn't be happier with. My purchase! 92986


Hi Patrick, love the hitch, I ordered another for my wife a few months ago as well. Love your company and youll be the first stop when I need anything.

Larry a - 02/02/2015


- 87452

by: Tom W.03/13/2012

As a first time user of, I am writing to express how pleased I was with the service, timeliness of delivery, and quality of product. I found the service representative very helpful in providing information and answering my questions; she assisted in ensuring the correct hitch for my vehicle. The product was received the next day - very fast considering I live in a different state! Installation went smoothly, exactly as shown on the video provided on the site. As indicated by the rating, I recommend as a reputable and quality provider. 33729

- 87452

by: Ray05/13/2013

Very easy to install on my 2010 Toyota Highlander. Instructions are clear and simple the video made it look easy. The Hitch took under 1 hour to install. I took a little extra time to custom fit the "Plastic appearance panels" and put them back on (a couple of cut of the plastic and they went back on). The hardest part was removing the pre-installed tow hooks the bolts were on tight. My other issue was that I did not have a torque wrench and had to borrow one from a friend. Shipping was fast!! Would buy from them again. 79964

- 87452

by: Bob Yesutis01/12/2011

WOW! this is my 4th order from etrailer. again I am impressed by the fast and courteous service and exceptional shipping and handling. If only every internet company followed the same principals. Ship it fast, ship it cheap and ship it right. I have not yet installed the trailer hitch, but I know from previous experience, that it will be easy. etrailer, keep up the good work. 5417

- 87452

by: Elwood03/18/2011

Ordered receiver Tuesday night (great price), received it Thursday evening (free shipping), installed it Friday evening (20 minutes with help). I also liked that I was able to review the install instruction for each receiver on the info page. It made it easy to find the one I needed. Staff also kept me informed of order status all the way to receiving. 9784

- 87452

by: William L.12/24/2011

Great service. Great product. Received delivery less than 48 hours after ordering. My son is visiting from PHOENIX and he installed the hidden hitch on my wife's highlander in less than one hour. It looks great, but haven't had an opportunity to use it yet. Thanks to your company for such great service. Merry Christmas to you all. 28672

- 87452

by: Dave R.08/17/2012

Fast delievery ,fit was perfect right out of the box.representitive answered all questions on the phone.I modefied the plastic panels that had to be removed for insallation so I could reinstall them. I am very happy with my purchase,price was the lowest and for a aftermarket hitch I would call etrailer agian. 52020

- 87452

by: Erik A.10/30/2010

Easy Install The install of this hitch on an 08 Highlander was very easy. Since it is fairly big you will want to get a second set of hands to make it go even quicker. I have been very impressed with the service from, their installation instructions, and the order processing. 3562

- 87452

by: Todd S.07/07/2013

The hitch fit perfectly. I am no mechanic, but installation was simple. Thank you for the video tutorials that go along with the product. It's nice to watch a video of an actual match to the vehicle you are working on. Great product and quick shipping. A+ business. 87987

- 87452

by: Will G.05/22/2014

The product is very durable and strong. Installation was a breeze. I recommend the U tube video prior to installation. It is very simple and straight forward. Once again great product. 131815

- 87452

by: Clyde Saunders12/19/2010

Trailer Hitch The trailer Hitch is exactly the same that I could have ordered from a local vendor for more money. the instulation was exactly as described on the computer 4351

- 87452

by: Jerry G01/05/2011

Highlander Hidden Hitch The hitch was delivered quickly with standard delivery terms. Installation went smoothly as everything fit extremely well. 5044

- 87452

by: j.r. g11/16/2012

product as described shipped in a box that was torn up pretty bad by ups (i guess) all the hardware made it. the fit was spot on. 59549

- 87452

by: Patricia03/26/2013

The hitch fit perfectly on my 2010 Highlander. I received the hitch very quickly too. Thanks for providing great products. 72652

- 87452

by: Byron H08/06/2013

After watching the video, it was very simple install. Witing harness was plug in play and works great. 93489

- 87452

by: Mona C07/03/2014

My mechanic recommended your website. Exceeded my expectations. 138996

- 87452

by: Bruce07/14/2013

Nice product and easy install. 89498


Ask the Experts about this Hidden Hitch Trailer Hitch
Do you have a question about this Trailer Hitch?

  • What Towing Package Is Available For 2008 Toyota Highlander
  • You will want to check your owners manual or with the Toyota dealer for the gross towing weight capacity of your 2008 Toyota Highlander to make sure the towing capacity is not exceeded. Even if the hitch will have a higher weight capacity than your vehicles gross towing weight capacity the towing capacity is determined by the lowest weight capacity in your whole towing setup. The Hidden Hitch Class III 2 Inch Hitch, # 87452, that you have referenced is a good choice for your 2008 Toyota...
    view full answer...

  • What Trailer Hitches Will Fit a 2012 Toyota Highlander
  • The CURT Trailer Hitch, # 13534, has been verified as a fit for a 2012 Toyota Highlander. and we do have a couple of other hitches that will fit. The most popular hitch for your vehicle is the Draw-Tite Trailer Hitch, # 75586. I have included a link to the installation instructions for the hitch. The other hitch is Hidden Hitch, # 87452. It is so similar to the Draw-Tite Hitch that they actually share the same set of instructions. If you plan on doing some towing, I recommend the...
    view full answer...

  • Hitch and Bike Carrier Recommendations for a 2010 Toyota Highlander
  • The hitch we recommend for you is the Hidden Hitch Trailer Hitch for the 2010 Toyota Highlander part # 87452. This hitch will work perfectly for your application and is one of our top sellers. The bike carrier we recommend for you is 4 Bike Rack for 2 inch Trailer Hitches, Wheel Mount - Swagman XTC4 part # S64665. If all you need to haul is two bikes the 2 Bike Carrier for 1-1/4 inch and 2 inch Trailer Hitches - Wheel Mount - Swagman XC part # S64650 is what we recommend. The reason...
    view full answer...

  • Will Hidden Hitch Class III Hitch # 87452 Fit 2012 Toyota Highlander With Full Size Spare Tire
  • The Hidden Hitch Class III 2 Inch Hitch, part # 87452, will fit a 2012 Toyota Highlander if the spare tire is smaller than a 19 inch full size spare tire. It will not fit your vehicle if your vehicle has a 19 inch spare tire or larger. I am including a link to the installation instructions on the Hidden Hitch. If you have a 19 inch full size spare tire I would recommend the CURT Class III 2 Inch Hitch, part # 13534. This hitch does not have any size limitations regarding the spare...
    view full answer...

  • Availability of a Trailer Hitch for a 2012 Toyota Highlander with a 17 Inch Spare Tire
  • Both the Draw-Tite, # 75586, and Hidden Hitch, # 87452, will fit with a 17 inch spare tire on your 2012 Toyota Highlander. I could not say where the Toyota factory hitch is located, but the hitches we carry have the receiver below the rear fascia as you can see in the instructions I have included. If you plan on doing some towing with the hitch, I recommend the etrailer Ball Mount Kit, # 989900. It comes with two ball mounts, two balls, a hitch pin with clip, and a carrying bag. For...
    view full answer...

  • Using Motorcycle Carrier with Class III Receiver on 2012 Toyota Highlander
  • When determining if you can carry your dirt bike on the carrier, the tongue weight capacity of the vehicle (maximum amount of downward force that can be applied) and the hitch needs to be considered. Although the hitch has a 500 lb tongue weight capacity, you will need to abide by the tongue weight capacity of the vehicle if it is less. According to my research, the 2012 Highlander has a 2000 lb towing capacity, or 3500 lbs if equipped with the tow package. Tongue weight capacity is...
    view full answer...

  • Availability of Concealed Hitch for 2008 Toyota Highlander
  • Hidden Hitch is actually a brand name, not an indication of how the hitch will look once installed on a particular vehicle. On some vehicles, a Hidden Hitch branded receiver hitch will be fully concealed behind the bumper of the vehicle except for the receiver opening, while on other vehicles the entire hitch would be visible beneath the bumper. The design of the rear frame and the bumper will dictate how the hitch sits in relation to the bumper. All of the hitches we offer for the 2008...
    view full answer...

  • Will the Thule Passage 2 Bike Rack Fit on a 2008 Toyota Highlander
  • I do have a recommendation to carry bikes on your 2008 Toyota Highlander, however, trunk mounted bike racks are not recommend for your vehicle because the rear hatch cannot support the weight of the bike rack and the bikes at the point where the carrier must be placed. Instead, I would recommend adding a trailer hitch and using a hitch mounted bike rack. For a trailer hitch, I would recommend using the Hidden Hitch Class III Trailer Hitch, # 87452. This is a Class III hitch with a 2...
    view full answer...

  • Are Appearance Panels Permanantly Removed When Installing a Hitch on a 2010 Toyota Highlander
  • The plastic appearance panels will need to be removed for installation of the Hidden Hitch Class III Trailer Hitch, item # 87452, on the 2010 Toyota Highlander. The CURT Class III Round Tube Trailer Hitch, item # 13534, will allow for the passengers side appearance panel to be reinstalled but the drivers side will need to be left off. We have installation instructions and a video (see links) for you to review that may help you make a decision for hitch selection. I have linked...
    view full answer...

  • Will this T-One Vehicle Wiring Harness, part # 118449, fit the Highlander Hybrid Limited
  • Yes, the T-One Vehicle Wiring Harness with 4 Pole Trailer Connector, part # 118449, will fit on your 2010 Toyota Highlander Hybrid Limited. I have included a link to a video of the # 118449 being installed on a 2010 Toyota Highlander as well as link to the instructions below for you to check out. You may also need the following items to complete your towing setup: Hidden Hitch Trailer Hitch for the 2010 Toyota Highlander, part # 87452 Ball Mount 3/4 inch Rise or 2 inch Drop, 6,000...
    view full answer...

  • Recommendation of Hitch for a 2012 Toyota Highlander That Allows the Removal of Under Carriage Spare
  • If your 2012 Toyota Highlanders spare tire is mounted on a wheel that is smaller than 19 inches in diameter, then you will not have any issues removing your spare tire with the Hidden Hitch # 87452 installed. I have attached an installation video of this hitch on your vehicle. If your spare tire is 19 inches or larger then I recommend the Hidden Hitch Class III 2 Inch Hitch # 87615. This hitch will work well with either the compact or full-sized spare. I have attached a video of this...
    view full answer...

  • The Best Trailer Hitch and 5-Bike Rack Recommendations for a 2013 Toyota Highlander
  • First, for a trailer hitch, if your 2013 Toyota Highlander has the full size spare tire you will want to use a hitch that allows the tire to stay in place such as # 87615. But if it has the mini spare tire you can use # 87452. These are both Class III trailer hitches with 2 inch receivers; perfect for carrying 5 bikes. We have several options for 5-bike racks, see link to the right. The most economical is the Hollywood Racks Traveler, # HR9200. Hollywood Racks makes a good sturdy bike...
    view full answer...

  • How Visible is a Trailer Hitch When Installed on a 2010 Toyota Highlander
  • The trailer hitches that are designed for the 2010 Toyota Highlander will all mount so that the receiver and most of the cross tubing is visible below the bottom most fascia piece. If you look at the pictures for Draw-Tite Hitch, # 75586, and the pictures and videos for Curt Trailer hitch, # 13534, they will show what the hitches will look like in their final positions.
    view full answer...

  • Will Stabilizing Straps Used with Curt Hitch Damage the Rear Spoiler on 2013 Toyota Highlander
  • My personal recommendation would be to use the Hidden Hitch Class III Receiver, # 87452. This hitch does not require the use of stabilizing straps, has a 500 pound tongue weight capacity, and no drilling is required for installation. I am attaching a video that demonstrates the installation of the Hidden Hitch on a 2013 Toyota Highlander. Should you choose to use the Curt Trailer Hitch Receiver, # 13534, I recommend lowering the attachment point of the Stabilizing Strap, # 18050. On...
    view full answer...

  • Hitch and Compatible Cargo Carrier for a 2008 Toyota Highlander Sport
  • Since you will need a hitch, we should look at those first. I recommend Hidden Hitch Trailer Hitch, # 87452, for your 2008 Toyota Highlander. I have included a video of this hitch being installed on a similar vehicle as well as instructions below. We have a video of the SportRack cargo carrier, # SR9851 on a 2015 Toyota Highlander, but we do not currently have specific information on carrier # SR9851 for a 2008 Toyota Highlander. The 2015 Highlander should be pretty similar to your...
    view full answer...

  • Recommended Class III Receiver Hitch for 2013 Toyota Highlander Hybrid
  • Of the hitches available for your Highlander (see link), the Curt # 13534 will accommodate a full sized spare, is compatible with the Hybrid model, and would allow for the best ground clearance. Therefore, the Curt Class III hitch is what I would recommend for you. All the available hitches would require that the tow hooks be permanently removed, and would require the removal or trimming of the underbody appearance panel. The panel being trimmed or removed will not be noticeable, as...
    view full answer...

  • Options for Transporting Bikes with a 2012 Toyota Highlander
  • I believe I have a bike rack solution that would work for you, but I checked with our trunk mounted bike rack manufacturers and none of them have fits for your 2012 Toyota Highlander. The reason they cite is that there is not a safe place to install the upper straps of a trunk mounted bike rack on your vehicle. Your best option would be to install a hitch on your vehicle if you do not have one already and then use a hitch mounted bike rack to transport your bikes. The great thing about...
    view full answer...

  • Hitch Recommendation for a 2008 Toyota Highlander
  • For your 2008 Toyota Highlander you are going to want to use a Hidden Hitch part # 87452. This hitch would not require the use of a stabilizer strap like the Curt hitch when used with a bike rack. Especially since you have a spoiler. I attached an install video for this hitch for you to check out. The most popular bike rack we offer that would work well for you would be the Swagman XTC-2 part # S64670. This is a great rack that has a ton of positive reviews that would work well for you....
    view full answer...

  • Parts Needed to Tow a Trailer and Operate Coffee Pot or Microwave with a 2011 Toyota Highlander
  • It sounds like your 2011 Toyota Highlander is not equipped with the towing package. If this is the case, in order to tow a trailer with your 2011 Toyota, you will need the five following components, recommendations are listed: 1. Trailer Hitch Receiver - The Hidden Hitch Class III Trailer Hitch Receiver, # 87452, offers a bolt-on installation with no drilling or welding required. 2. Ball Mount - Draw-Tite Ball Mount, # 2923 3. Pin and Clip - Receiver Lock, # 5201 4. Hitch Ball...
    view full answer...

  • Difference Between Over the Muffler and Under the Muffler Trailer Hitches for 2012 Toyota Highlander
  • Square tube trailer hitches will go under the muffler because the tube is wider. But no matter how a hitch is constructed, round or square, they are all built for and tested for a certain capacity based on many factors. Two different hitches, one with a round tube and one with a square tube, that have the same capacity will be equally as strong. They have to be to reach the rating they are given. The round tube hitches usually look better on a vehicle so if you like Curt hitch # 13534...
    view full answer...

  • Trailer Hitch Recommendation for a 2012 Toyota Highlander LTD
  • Yes, I have checked and the # 87452 is confirmed as a fit for your 2012 Toyota Highlander. To complete your towing set up you might also be interested in the # 118449 wiring. This will provide a 4-way flat trailer wiring connector on your Highlander. Additionally, you may want to consider the # 989900 ball mount kit. This kit contains two ball mounts, that both offer a rise and drop depending on your installation needs, a 1-7/8 inch trailer ball, a 2-inch trailer ball, a pin and clip,...
    view full answer...

  • Will the Yakima DoubleDown 4 Bike Carrier # Y02424 Fit on a 2008 Toyota Highlander
  • As long as your 2008 Toyota Highlander has a trailer hitch with a 1-1/4 inch or 2 inch receiver, then yes, you can use the Yakima DoubleDown 4 Bike Carrier # Y02424. The shank of this bike rack simply slides into the receiver of your trailer hitch and must use the included shank adapter if you have a 2 inch receiver. This bike rack also features anti-sway cradles to stabilize your bike while driving and a tilting feature to allow access to the rear of your vehicle. If you do not have...
    view full answer...

  • Clearance When Hollywood Racks Sport Rider SE 4 Bike Rack is Folded Up On 2008 Toyota Highlander
  • The clearance at the rear of your vehicle will depend on the distance needed from your trailer hitch to clear the rear bumper of your 2008 Highlander. The Curt trailer hitch # 13534 requires approximately 3 inches from the center of the hitch pin hole to clear the rear bumper. The Draw-Tite trailer hitches # 75726, # 75586 and Hidden Hitch hitches # 87615, # 87452 have their hitch pin holes approximately even with the rear bumper, and the front of the receiver sits approximately 2-1/2...
    view full answer...

  • Will The Same Trailer Hitch Fit 2013 Toyota Highlander And Hybrid Model
  • We do offer a hitch that will work for your 2013 Toyota Highlander Hybrid. I recommend the Hidden Hitch Receiver, part # 87452. This is a Class lll Hitch and has a 2 inch receiver opening. This hitch is designed to fit a standard highlander as well as the Hybrid model. I have attached an installation video for this hitch on a Highlander you can check out. If you are planning on towing with your Highlander, I recommend the etrailer Ball Mount kit, part # 989900. This comes with...
    view full answer...

Do you have a question about this Trailer Hitch?

Weight Carrying Capacity
Gross Towing Weight (GTW):
5,000 lbs.

Tongue Weight (TW):
500 lbs.

Weight Distribution Capacity
Gross Towing Weight (GTW):
5,000 lbs.

Tongue Weight (TW):
500 lbs.

Trailer Hitch Installation Instructions 87452 Installation instructions 87452 Installation Instructions
No drilling required

Tech Tip
Tow hooks will need to be removed for hitch installation. No drilling required for installation , Fits Hybrid models as well , Fits with mini spare tire stowed under vehicle, but will not fit with full size spare

Manufacturer Estimated Installation Time

Recommended Wiring:
wiring 118449

Most Popular Ball Mount:
Hidden Hitch 2923

1-7/8" hitch ball - 19260

2" hitch ball - 63845

2-5/16" hitch ball - 63847
