Inno Wedge 660 Rooftop Cargo Box - 11 cu ft - Gloss White
Inno

Inno Wedge 660 Rooftop Cargo Box - 11 cu ft - Gloss White

Part Number: INBRM660WH
In Stock
$720.96
Retail:$1,088.29
You Save: $367.33
Roof Box
Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

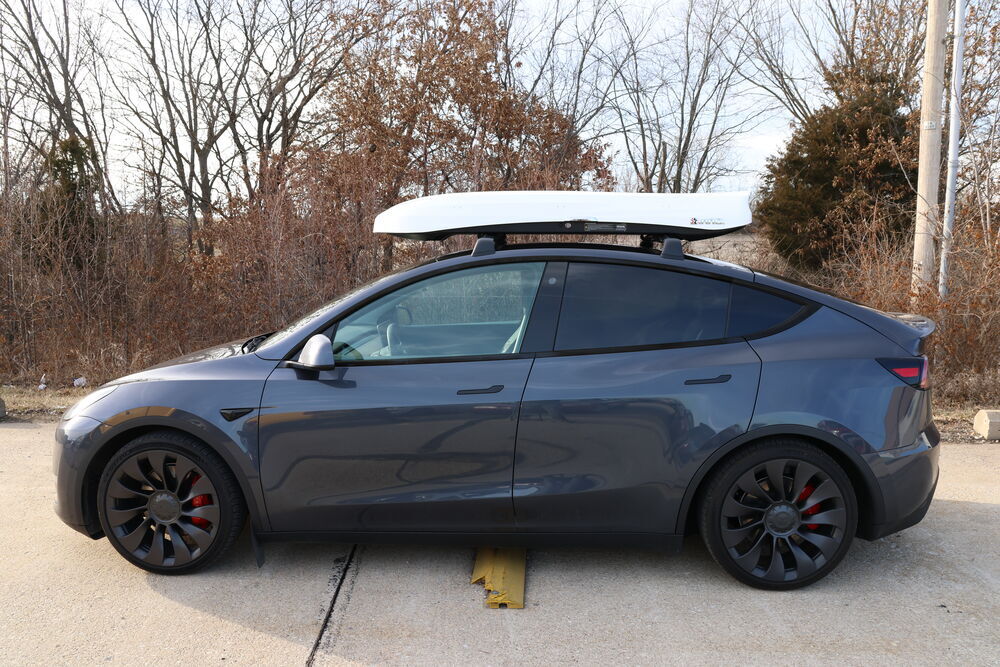

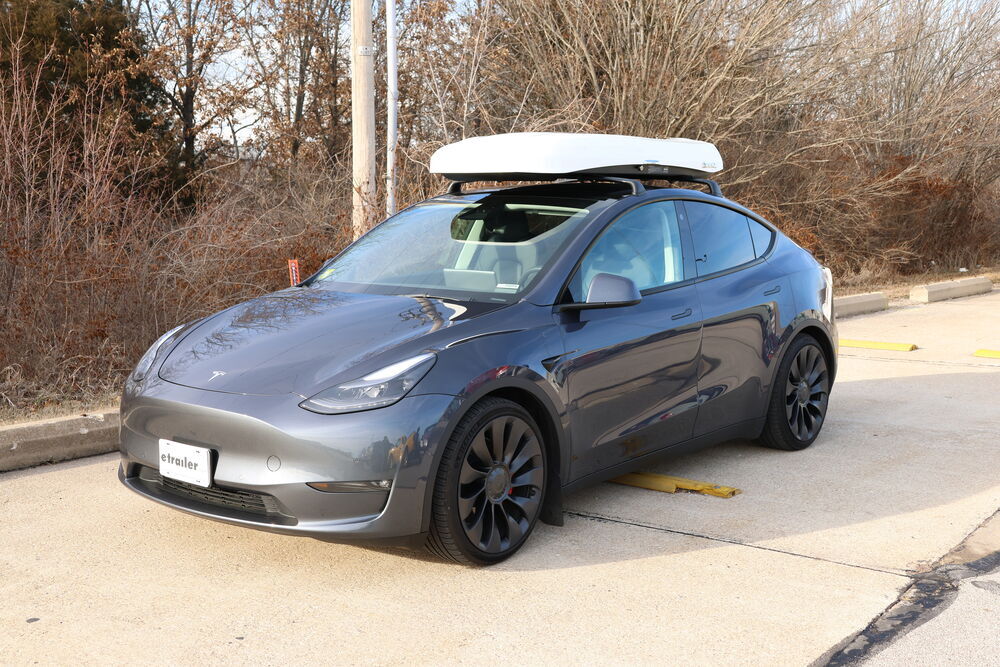

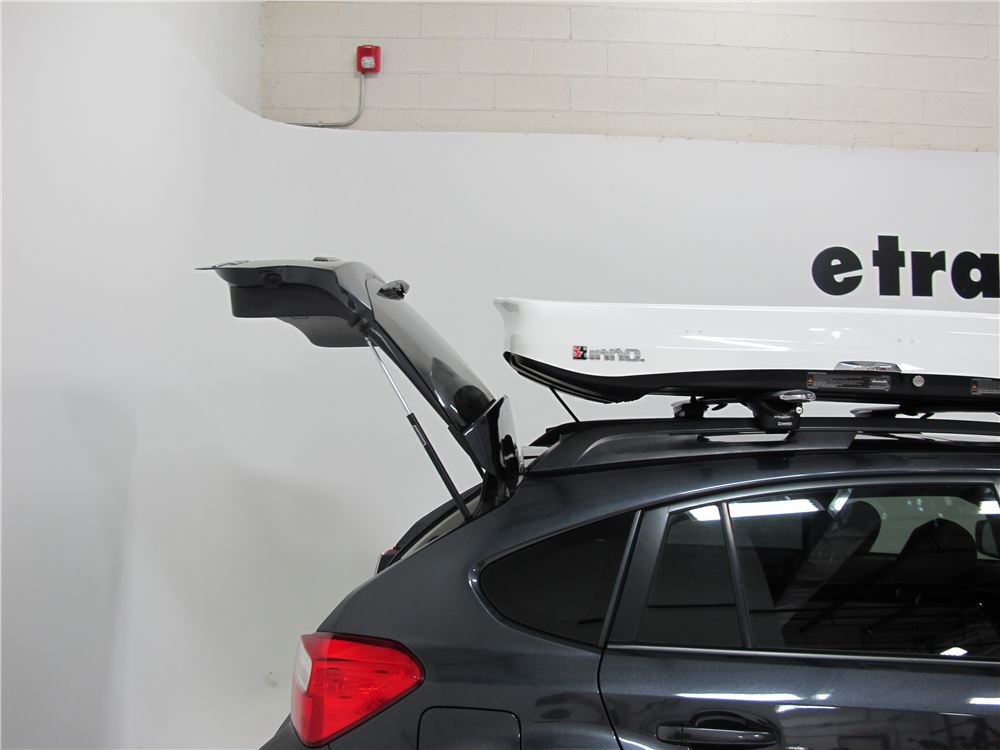

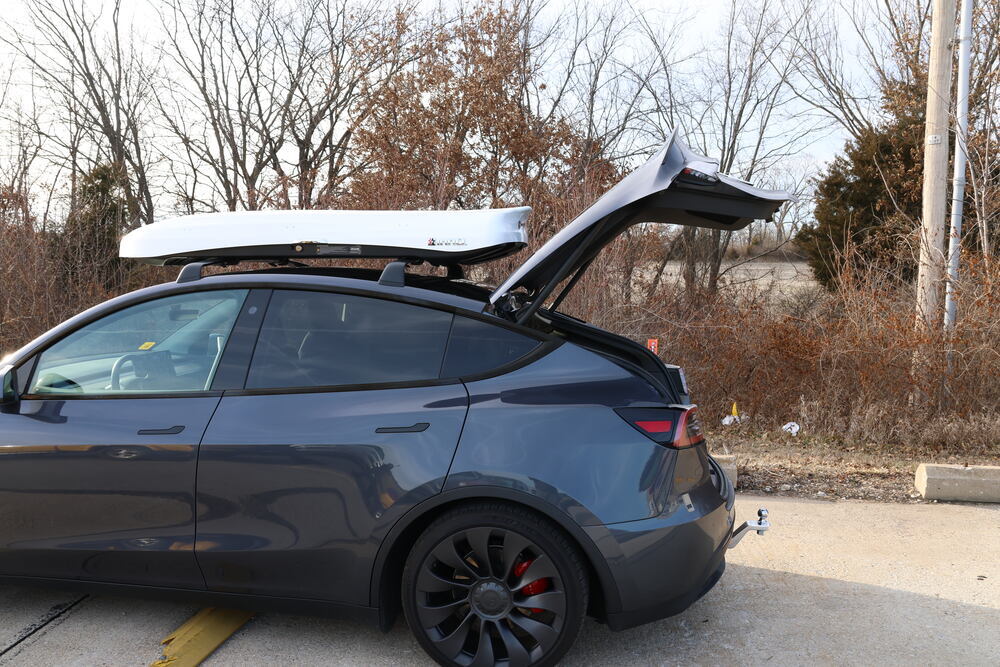

In Use/Installed

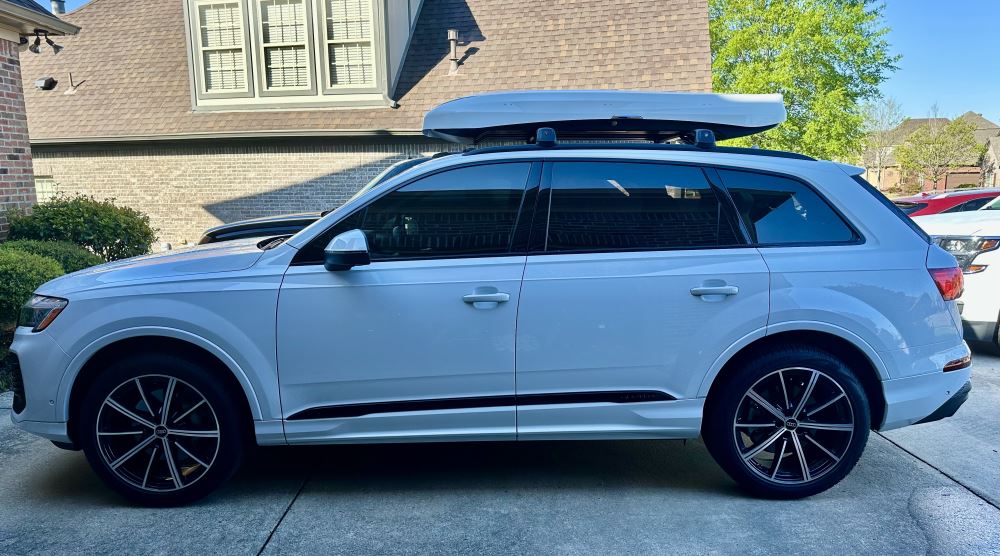

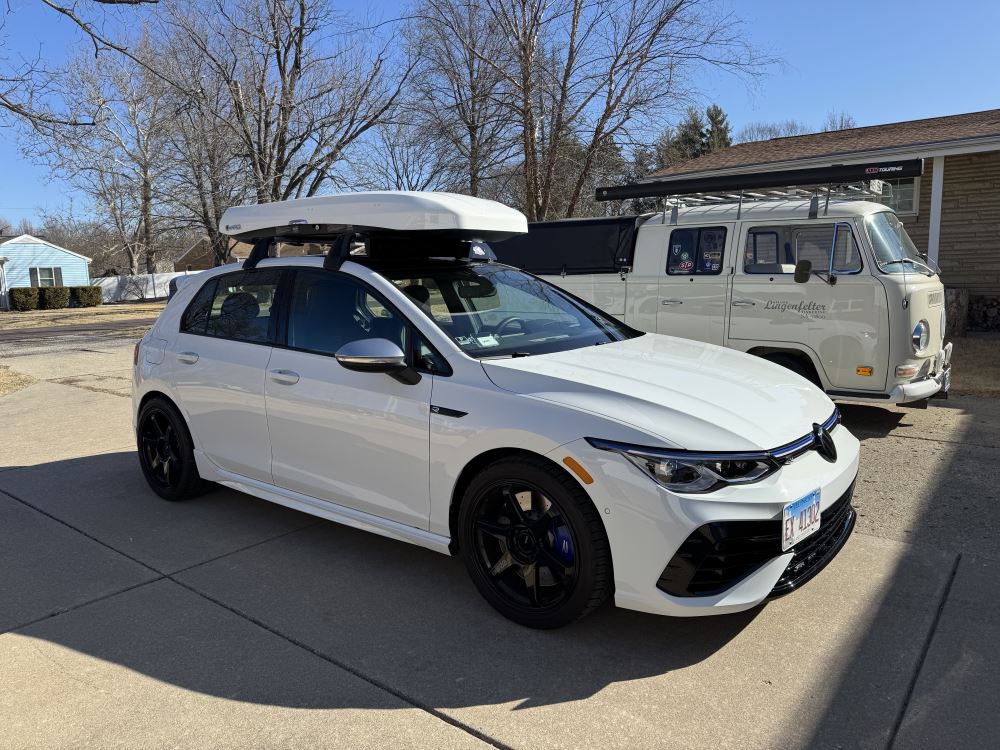

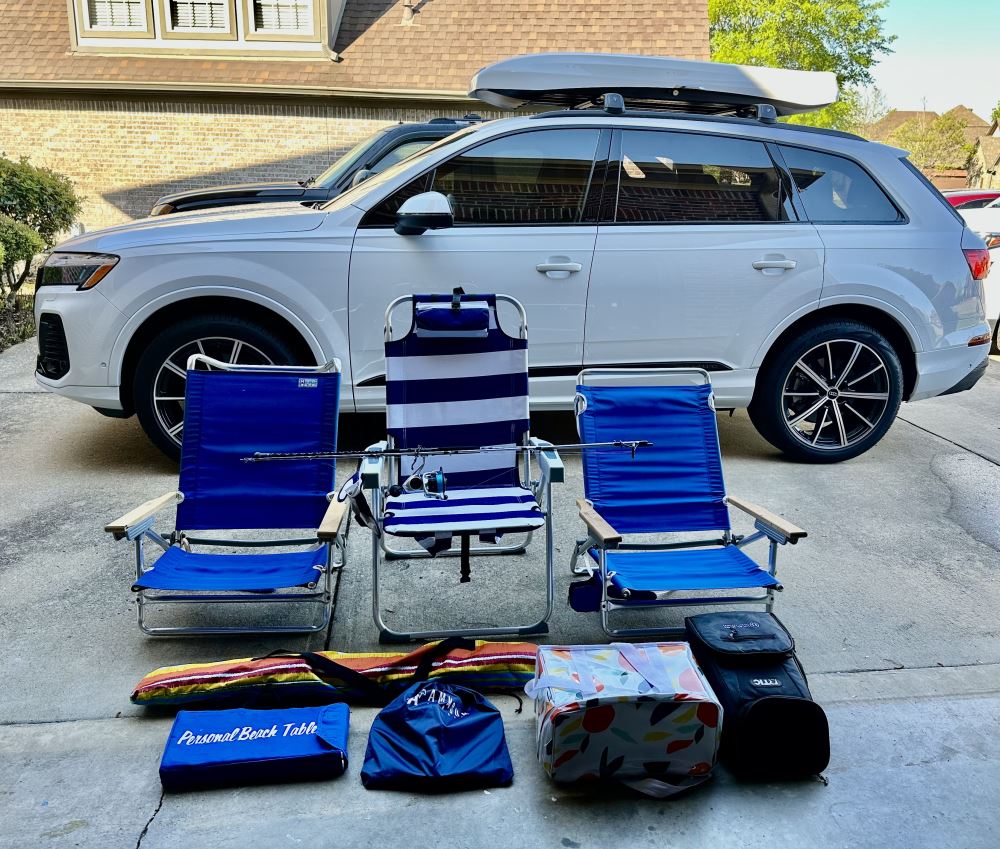

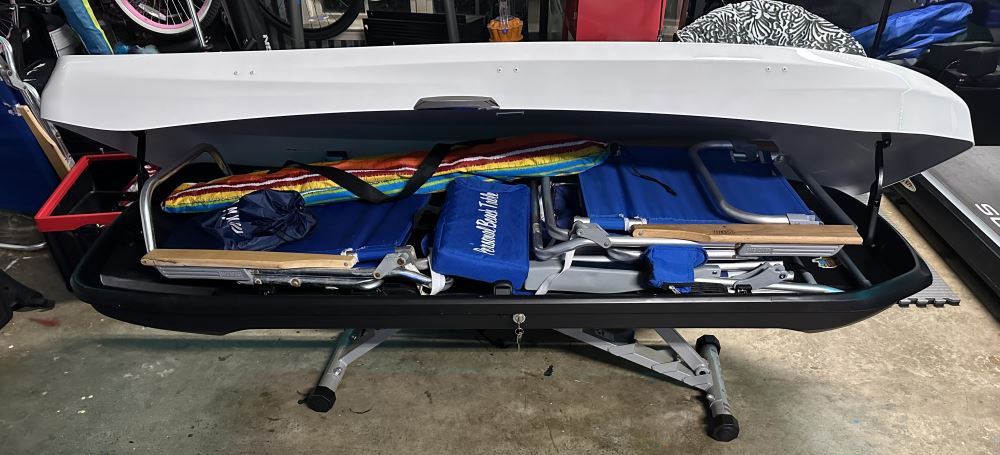

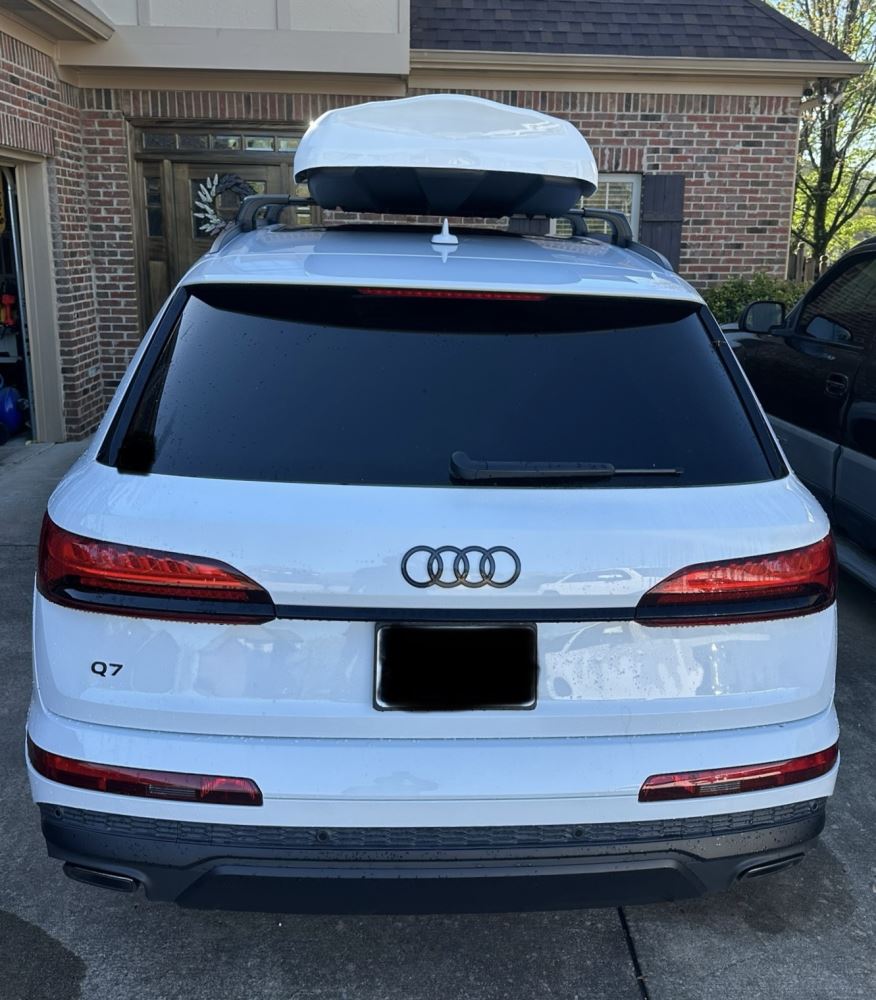

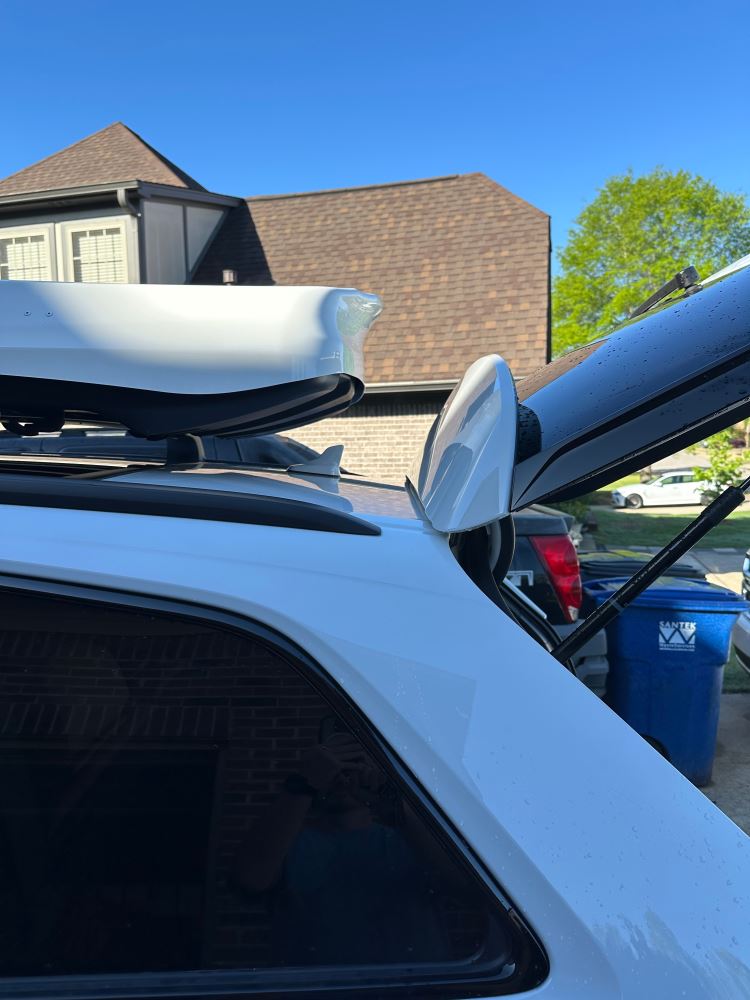

Customer Photos

Need help with installation?
Locate installers near me
80 x 33 x 11. Roof box with Memory Mount hardware requires one-time setup for easy repeat installation. Great for carrying luggage, groceries, skis, and other gear on SUVs, CUVs, and wagons. Locking, dual-side opening lid. ABS plastic construction. Great Prices for the best roof box from Inno. Inno Wedge 660 Rooftop Cargo Box - 11 cu ft - Gloss White part number INBRM660WH can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (140)
  • Q & A (0)
  • Photos

Inno Roof Box - INBRM660WH

  • Aero Bars
  • Factory Bars
  • Round Bars
  • Square Bars
  • Medium Capacity
  • Inno
  • Long Length
  • Low Profile
  • White
  • Dual Side Access

80 x 33 x 11. Roof box with Memory Mount hardware requires one-time setup for easy repeat installation. Great for carrying luggage, groceries, skis, and other gear on SUVs, CUVs, and wagons. Locking, dual-side opening lid. ABS plastic construction.


Features:

  • Cargo box mounts on your vehicle's roof rack to provide enclosed storage for your gear
    • Perfect for carrying groceries, luggage, skis, and other gear
    • Great for SUVs, CUVs, and wagons
  • Dual-side-opening lid offers access to cargo from either side of your vehicle
    • Push buttons let you easily open the box with a single hand
  • Safety lock system ensures that lid is locked and closed
    • Key cannot be removed unless lid is closed properly
  • Memory Mount hardware allows easy, tool-free installation
    • Set box on crossbars, tighten clamps, and close levers
    • Clamps "remember" your crossbars after initial setup - no further adjustment needed
    • Mounting assemblies adjust along tracks to accommodate different crossbar spreads
    • Adapter kit (INBRP12 - sold separately) lets you mount box in crossbar top channels
  • Aerodynamic shape helps minimize drag and wind noise
  • 4 Anchor points and 2 included straps let you tie down gear inside the box
  • 3-Layer ABS plastic lid with SPM injection-molded base
    • Durable top resists impacts, scratches, and UV rays
    • Transparent acrylic surface layer makes lid shine
    • Stronger and lighter than a box with a vacuum-formed base
  • Gloss white finish


Specs:

  • Application: round, square, aero, elliptical, and most factory crossbars
    • Crossbar spread: 24" - 39"
  • Carrying capacity: 11 cu ft
  • Weight capacity: 110 lbs
  • Ski capacity: 6 - 8 skis
  • Snowboard capacity: 4 - 6 snowboards (depending on size of bindings)
  • Surfboard capacity: 2 surfboards
  • Maximum ski/snowboard length (when loaded diagonally): 182 cm
  • Exterior dimensions: 80" long x 33" wide x 11" tall
  • Interior dimensions: 72" long x 25-5/8" wide x 8-1/2" tall
  • Box weight: 42 lbs
  • Limited lifetime warranty


Inno Wedge 660 dimensions

Cargo boxes, bags, and baskets are great for transporting gear on your vehicle's roof. A cargo box has the added benefits of an aerodynamic shape that reduces drag and wind noise, a hard shell to protect your gear, and a higher degree of weather resistance. And you can latch and lock a cargo box for added protection against theft.


The Wedge has 11 cu ft of storage space for groceries, luggage, skis, snowboards, and other gear. The aerodynamic, low-profile design helps to reduce drag and wind noise, and the locking lid conveniently opens from either side of your vehicle. The box has internal tie-down points for securing cargo, and the Memory Mount system offers easy, tool-free installation.


Durable Construction

The Wedge's lid is constructed of durable, 3-layer ABS plastic with a transparent acrylic outer layer. This gives it a glossy finish yet it's still resistant to impacts, scratches, warping, cracking, and UV rays. The base is formed using an SPM injection-molding process that makes the box strong, durable, and lightweight. The injection molding also ensures a uniform thickness throughout and is 50 percent stronger than vacuum-formed boxes.


Sturdy, Dual-Side-Opening Lid

Inno Wedge 660 dual open lid

The Wedge lid opens from boths sides for easy access to your cargo. This ensures your gear is always close at hand whether you mount the box in the center of your roof or closer to the driver's or passenger's side.


The lid includes push buttons that allow you to easily open it with a single hand.

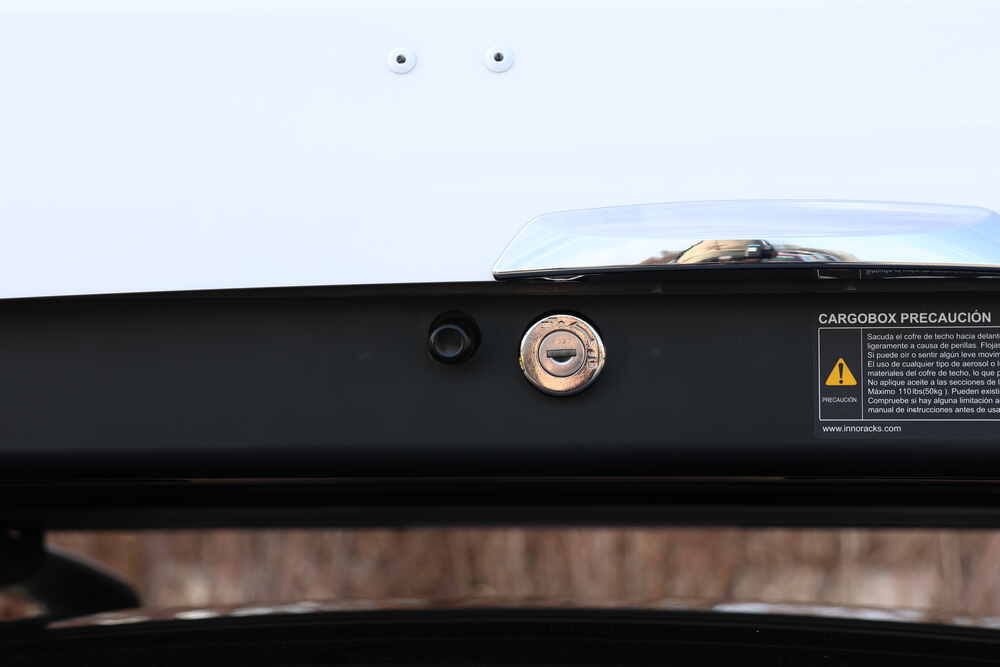

Safety Lock System

Inno Wedge 660 lock and key

The Wedge has a safety lock system with locks on each side of the lid. The keys cannot be removed unless the box is closed and locked. This prevents you from driving off with an unlocked box. The locks also deny would-be thieves access to your gear and the cargo box's mounting hardware.


Memory Mount Installation

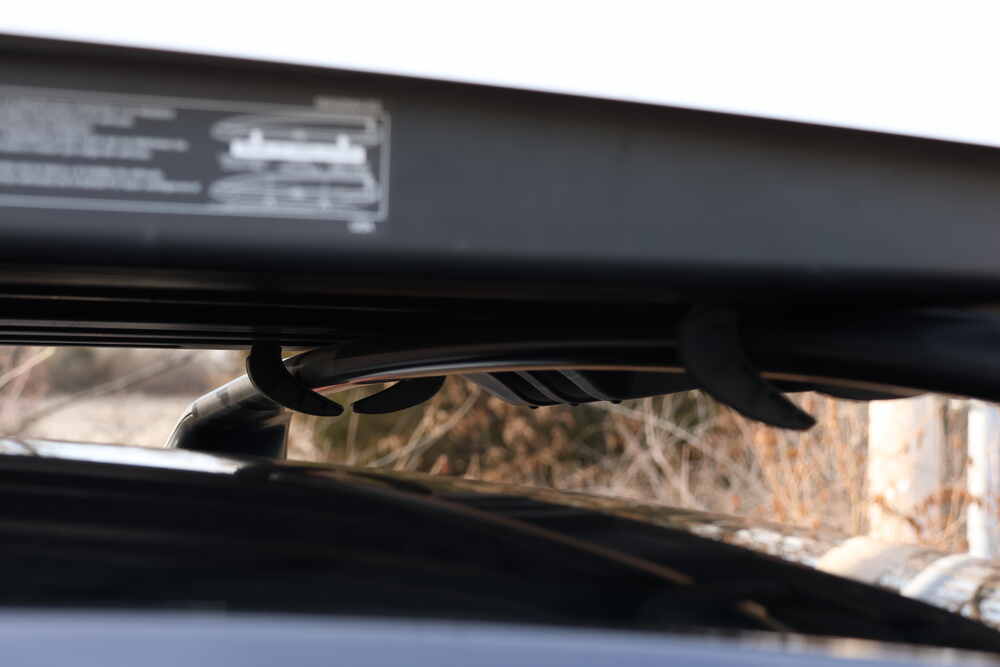

Inno Wedge 660 memory clamps

The Wedge cargo box installs with programmable Memory Mount clamps. After a one-time setup, the clamps will "remember" your vehicle's specific crossbars to make repeat installation quick and easy.


Inno Shadow 660 bottom clamp

For the initial setup just place the box on your crossbars and insert the clamps through the tracks in the bottom of the box. The clamps adjust along the tracks to accommodate different crossbar spreads. Tighten the clamps with built-in knobs and flip the cam levers closed. The next time you install the box, the clamps will return to this set position when you close the cam levers - no further adjustment needed.


Cargo Tie-Down Points

Inno Wedge 660 tie-down with clampInno Wedge 660 tie-down

Two included tie-down straps let you secure your gear to 4 internal anchor points built into the mounting clamps. Simply thread the nylon straps through anchor rings on the mounting clamps and wrap them around your gear. The straps secure with buckles that can be opened and closed with one hand.


Two strap hooks are also included. These hooks attach to the underside of the box lid and provide a place to hang the straps to keep them out of the way as you're loading cargo.



BRM660WH Inno Wedge 660 Roof-Mounted Cargo Carrier - 11 cu ft - Gloss White

Installation Details INBRM660WH Installation instructions



Customer Satisfaction Score:

Ratings & Reviews

4.8

140 reviews
80 x 33 x 11. Roof box with Memory Mount hardware requires one-time setup for easy repeat installation. Great for carrying luggage, groceries, skis, and other gear on SUVs, CUVs, and wagons. Locking, dual-side opening lid. ABS plastic construction.

by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:


25
140
Show More Reviews

See what our Experts say about this Inno Roof Box

  • Recommended Roof Rack for a 2011 Ford Flex w/ Raised Rails
    Hey John! I checked with Inno and you're going to want to go with the longer 54" crossbars item # INXB138-2. The shorter 45" Inno Crossbars item # INXB115-2 only have usable lengths of 38-7/8" in the front and 37-1/2" in the rear. You will also need the Inno Through Feet for Aero Crossbars item # INXS150 to attach the crossbars to the raised rails on your 2011 Ford Flex.
    view full answer...
  • Comparing Inno Wedge 660 and Inno Shadow 16 Cargo Boxes
    The Inno Shadow 16 # INBRA1210BK has 13 cu ft of storage while the Inno Wedge 660 comes in Gloss Black # INBRM660BK or Gloss White # INBRM660WH and has 11 cu ft of storage. It may has less storage space but the Wedge 660 is actually more of a premium option due to the sleeker design of the lid and the Memory Mount hardware which is much easier to use over the U-Bolt system that comes with the Shadow 16. If you like the design and extra space of the Shadow 16 but want the Memory Mount hardware...
    view full answer...
  • Will Inno Wedge 660 Rooftop Cargo Box Fit 2024 Subaru Outback Limited
    You will be able to use the Inno Wedge 660 Rooftop Cargo Box # INBRM660WH on your 2024 Subaru Outback Limited. It requires a crossbar spread of 23-1/2" - 39-1/2" which is the same as the Shadow.
    view full answer...
  • Inno Wedge 660 vs Inno Box 320 for 2017 Subaru Impreza Hatchback
    According to my information it looks like you have more than enough clearance for either the Inno Wedge 660, Black # INBRM660BK or White # INBRM660WH, or the Inno Box 320 # IN94FR to fit without interfering with the rear hatch on your 2017 Subaru Impreza. The Wedge 660 needs at least 48-1/2" between the front crossbar and line where the roof and rear hatch meet while the Box 320 needs at least 43-3/4" for clearance. From what I could find it looks like your clearance should be somewhere...
    view full answer...
  • Which Roof Cargo Box Can Hold A 10" Tall Box?
    I have a solution for you, but the Inno Wedge 660 Rooftop Cargo Box # INBRM660WH does indeed have an internal height of only 8-1/2", so your 10" tall box will not fit unfortunately. I recommend looking into the Inno Box 2020 Rooftop Cargo Box - 14 cu ft - Matte Black # IN86FR which has inside dimensions of 72" long, 25-5/8" wide, and 12-3/4" tall. Keep in mind this box requires a hatch clearance of at least 12" and crossbar spread of 24" - 39". The hatch clearance is the distance from...
    view full answer...
  • What is Actual Height Added to Crossbars for Inno Wedge 660 Cargo Box
    The actual height added to your roof rack with the Inno Wedge 660 # INBRM660WH is 9.6 inches. The overall height is 11 inches but the mounting hardware is slightly recessed.
    view full answer...
  • How to Fit Inno Wedge 660 on 2020 Toyota 4Runner with Factory Roof Rack
    Thanks for reaching out! While I don't have the specs of the mounting clamps for the Inno Wedge 660 Rooftop Cargo Box # INBRM660WH directly on hand, what I can say is that the clearance under the OEM crossbars for your 2020 Toyota 4Runneris too low to mount any cargo boxes because even when the clamps do fit around the bars, whenever weight is added to the boxes the clamps end up pressing down on the roof of the 4Runner and they can cause damage. Since this is the cans I recommend removing...
    view full answer...
    Image 1 for
  • What Colors Does Inno Wedge Plus Rooftop Cargo Box Come In
    I checked directly with Inno, and while they do have a rooftop cargo box in white, the Inno Wedge Plus only comes in black: - Inno Wedge Plus Rooftop Cargo Box # INBRM864MBK For a cargo box in white, what you need is the Inno Wedge 660 Rooftop Cargo Box # INBRM660WH. These are very similar with the exception that the interior of the Wedge Plus is 2-1/2 inches taller than the Wedge 660.
    view full answer...
  • Best Cargo Box for 2018 Tesla Model 3 with Least Amount of Front Overhang
    I have the perfect cargo box for your in the Inno Wedge 660 Rooftop Cargo Box part # INBRM660WH. I went out to our warehouse for you and measured from the center of the forward-most mounting clamp while slide to the front of the box to the front edge of the box and came back with only 18". Therefore, the Inno Wedge 660 will not have near as much overhang as the Yakima RocketBox Pro 11 Rooftop Cargo Box that you have now. The Inno Wedge 660 also has a much more aerodynamic design as you...
    view full answer...
    Image 1 for Image 2 for
  • What Are the Claws Made of on the Inno Wedge 660 Rooftop Cargo Box
    I spoke with Inno Racks about the Inno Wedge 660 Rooftop Cargo Box part # INBRM660WH and they informed me that the claws which secure the box to the crossbar are made of metal with a rubber coated sleeve. I have attached a photo below to help clarify.
    view full answer...
    Image 1 for
  • Recommended Rooftop Cargo Box For 2015 Toyota Prius
    Not really; the Wedge is...fine...but I don't think it's a particularly good value. It only gives you 11 cubic feet of cargo space, has a mediocre 110 lb weight capacity, and weighs a hefty (for its size) 42 lbs. The only thing the Wedge offers is it isn't very tall. For something in the same price range that offers a much better value I highly recommend going with one from Thule, either a full-sized box with 16 cubic feet of cargo space or a slimmer option like the Wedge, with 11 cubic...
    view full answer...
  • Low-Profile Rooftop Cargo Box Dimensions
    Your specific dimension needs do present a challenge to using a rooftop cargo box on your Yakima roof rack. The specialized low-profile cargo boxes we offer appear on the linked page, and while these do get close to your low height requirement, the Inno Wedge 660 # INBRM660BK (black) and # INBRM660WH (white) are still 11-inches tall. Even if they were low enough to clear your garage door, they are too short for your skis; their internal length is 183cm. We do have ski carriers that will...
    view full answer...
  • Will Inno Wedge 660 Roof Box Fit Thule AeroBlade Crossbars
    The older Thule AeroBlade crossbars measure 3-1/8" wide x 1-1/8" tall and the Inno Wedge 660 # INBRM660WH is compatible with crossbars that are up to 3-1/2" wide x 1-3/8" tall so you'll have no issues fitting the Wedge to the AeroBlade crossbars. The only other thing that you'll want to check is the crossbar spread. The Wedge 660 is compatible with crossbar spreads from 24" - 39" so as long as your spread (center of bar to center of bar) is within that range you're good to go!
    view full answer...
  • Will Inno Wedge 660 Roof Box Fit A 2023 Toyota RAV4 XLE Hybrid?
    Everything I can find on the factory crossbar system of your 2023 Toyota RAV4 XLE Hybrid tells me that the Inno Wedge 660 # INBRM660WH will attach to your crossbars just fine, as Toyota used standard shaped aero bars with a crossbar spread well within the range of this box. However one thing I can't find is the measurement from the center of the front crossbar to the seam where the hatch meets the roof so you'll need to take this measurement yourself. As long as you get a measurement of...
    view full answer...
  • Fit of an Inno 660 Wedge Cargo Box to a 2015 Mazda 3 Hatchback
    One of the best features of Inno's 660 Wedge, part # INBRM660WH, is their rear tapered shape and incredibly adjustable clamping systems, making a fit highly likely. I can't confirm this directly because the crossbar positions and specific fitting locations are unique to each vehicle. For the Inno Boxes, you need at least 12 inches from the center of your rear crossbar to the line where your hatch meets your roof. You can measure this yourself and if the distance is greater than 12 inches,...
    view full answer...
  • Does Inno Wedge 660 Rooftop Cargo Box Fit Factory Crossbars of 2020 Toyota Sienna
    Yes, the Inno Wedge 660 Rooftop Cargo Box # INBRM660WH does fit the factory crossbars of your 2020 Toyota Sienna. On a white car I think this would look REALLY good. The black base of the box would provide enough contrast if there was any slightly difference in shade. I looked up pictures of your Sienna in super white though and it looks like a very close match if not a total match. Since your Sienna has some black trim it will match well to this box since it's also mostly white with some...
    view full answer...
  • Longest Possible Roof Box for a 2018 Audi Q5
    I recommend looking at the Inno Wedge 660, part # INBRM660WH for the white variant, and part # INBRM660BK for the black version. This cargo box is unique in that the back tail of the box is in a sharp "Wedge" shape, giving it slightly better than average compatibility with rear hatches, as it clears out of the way for the hatch to operate. Rather than using front clearance, this box uses rear clearance, which is the distance from the rear bar to the line where your hatch meets the roof....
    view full answer...
  • Lo Profile Cargo Box Options for a 2006 Toyota Highlander with Factory Roof Rack
    So basically you want to keep the overall height of the 2006 Highlander including the cargo box under 7 feet tall. If the height of the vehicle itself is 5 feet 9 inches tall then that leaves 15 inches to work with. You could use: Thule Pulse Alpine, # TH613, at 12-1/2 inches tall Inno Wedge, # INBRM660BK or # INBRM660WH, at 11 inches tall Inno Shadow, # INBRA1210BK, at 13-3/8 inches tall Thule Motion XT Alpine, # TH629506 at 13-1/4 inches tall Inno Ridge, # INBRA220R-BK, at 13-3/8 inches...
    view full answer...
  • Can Inno Roof Cargo Boxes Carry Surf Boards
    Inno states that the Inno Wedge 660 Rooftop Cargo Box # INBRM660WH that you referenced can carry up to two surf boards and the 665 # INBRM665BK can carry up to three. The interior dimensions of the 660 are 72" long x 25-5/8" wide x 8-1/2" tall and the 665 has dimensions of 72" long x 25-5/8" wide x 13-3/8" tall. While we don't have experience specifically with your surf boards these should work really well for you and give you the more aerodynamic shape you want too.
    view full answer...
  • Does Inno Wedge 660 Cargo Box Have Speed Limit
    I checked with Inno, and there is not a set speed limit for the Inno Wedge 660 Rooftop Cargo Box # INBRM660WH. That's not unusual though, as cargo box manufacturers each say to just drive the speed limit; they likely don't want to encourage high speeds. The Wedge 660 # INBRM660WH will easily stay attached to your crossbars at highway speeds with its clamping system, or if you install it in your crossbars' channels with the Aero Crossbar T-Slot Mounting Hardware # INBRP12.
    view full answer...
  • How Much Height Does Inno Aero Roof Rack Add to 2022 Lexus RX 450h with Flush Bars
    The Inno Aero Bar Roof rack part numbers # INXB123-130, # INXS450, and # INTR163 would add about 3-1/8 inches to the top of the flush bars of your 2022 Lexus RX 450h. The Inno Wedge 660 Rooftop Cargo Box # INBRM660WH would add an additional 11 inches and the Thule Motion XT Alpine part # TH629506 would instead add an additional 13-1/4 inches.
    view full answer...
  • Will Inno Wedge 660 Rooftop Cargo Box Work with Yakima Round Crossbars
    I checked with Inno Racks and the Inno Wedge 660 Rooftop Cargo Box part # INBRM660WH is only listed as being compatible with aero or square shaped crossbars. It's not listed as being compatible with round crossbars and there are no adapters for this. Therefore, in order to be able to use these crossbars you'd need a new cargo box for which I recommend the Yakima SkyBox 12 Rooftop Cargo Box part # Y07334 which is compatible with round crossbars. In order to be able to use this cargo box...
    view full answer...
    Image 1 for
  • Will Inno Wedge 660 Cargo Box Fit 2021 Honda CR-V Crossbars
    Yes, the Inno Wedge 660 Rooftop Cargo Box # INBRM660WH that you referenced does fit the aftermarket crossbars of your 2021 Honda CR-V. This box fits crossbars spreads of 24" - 39".
    view full answer...
  • Does Inno Roof Cargo Box Fit 2017 Subaru Forester
    The Inno Wedge part # INBRM660WH will fit the factory crossbars of your 2017 Subaru Forester. It will add 11 inches to the top of your vehicle so you would need to measure the available distance you have from your crossbars to the top of your garage door opening. To determine if the box will allow your to open the hatch without interference you would need to measure from the center of the rear crossbar back to the rear hatch seam on the roof of the car. If that distance is more than 12...
    view full answer...
