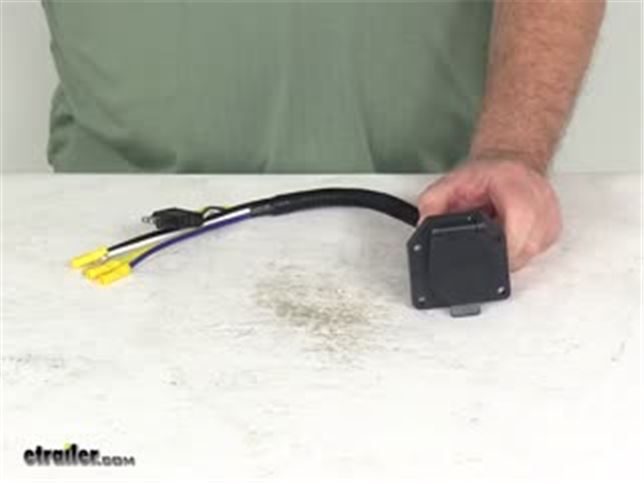

Adapter 4 Pole to 7 Pole Vehicle End Trailer Connector

Ask the Experts about this Tow Ready Wiring

• Plug and Play 7-Way Trailer Connector for 2018 Ford F-150
  To install a 7-way on a 2018 Ford F-150, you'd use the Curt # C56413 which installs as shown in the linked video.
  view full answer...
• Easy to Install Brake Controller Recommendation for 2017 Toyota Highlander with 4-Way
  I have a perfect brake controller solution for what you are wanting that is super easy to install and also performs really well. For that I highly recommend the Curt Echo Mobile part # C51180 as this basically just plugs into an active 7-way which I have an easy solution for your 2017 Toyota Highlander and once synced to your smart phone is ready to be used. It offers proportional braking which means it senses how hard you are applying the brakes of your Highlander and applies the trailer...
  view full answer...
• Recommended 6-Way Wiring Harness for 2013 Chevrolet Impala
  I would be happy to help you. The connector on your 2018 Aspen camper is a 6-way connector. In order to get a 6-way connection on your 2013 Chevrolet Impala you will need to start with a 4-way. For a 4-way, I recommend the # 118417 T-One Vehicle Wiring Harness from Tekonsha. This is a custom fit wiring harness and plugs directly into connection points behind the passenger's-side tail light. For the 6-way connection, you want the # ETBC6 Universal Installation Kit. This includes all...
  view full answer...
• Can Redarc BCDC Charger Be Used with 7-Way Connector to Charge Trailer Battery
  The Redarc In-Vehicle BCDC Battery Charger # 331-BCDC1225D that you referenced could physically be installed so that it uses 12V power from the 7-Way connector on your truck, but it's not going to allow for ideal operation. The problem is that typical trailer connectors use smaller 10 gauge wiring that just isn't capable of allowing enough power to pass through to really charge a battery up. Since this is exactly what you would want to use the BCDC charger for, using it with the 7-Way...
  view full answer...
• Where to Find Brake Output Circuit of 2006 Ford F-150 with 4-Way
  You have to look at the driver side frame rail for the wiring needed to connect to the blue wire of the # 30717 that you have. I attached a couple pictures that show what you are looking for.
  view full answer...
• What to do With the Extra Wires on 4 to 7 Pole Adapter for a Camper Trailer
  On the Adapter 4 Pole to 7 Pole Vehicle End Trailer Connector, # 30717, the extra wires can be taped off, tied up with a cable tie, and tucked out of the way if not in use. I would attach the white ground wire to an existing grounding point or the vehicle frame even if you do not intend on adding a brake controller (which is what the other wires are for). You would then attach the vehicles 4-Way into the 4-Way end of the adapter and plug your trailer connector into the 7-Way for lights...
  view full answer...
• Recommended Wiring Connection Adapter for Jeep 4-Pin to Trailer 7-Pin
  If all you want to do is go from the 4-way trailer connector to the 7-way without adding functions, all you need to do is use an adapter like # 30717. You will simply plug in the 4-way and then connect the white ground wire with ring terminal to your vehicle frame. The ground needs a bare metal to metal connection free of debris and corrosion. The other three wires on the adapter can be left disconnected. The only thing to double check since you have a boat trailer is that you don't...
  view full answer...
• Adding a 7-Way Trailer Connector and Brake Controller to a 2003 Toyota Tacoma with 4-Way Connector
  It does sound like a 4-Way flat was added to your 2003 Toyota Tacoma. But that is a good thing because it will be needed to install the 7-Way. To add the 7-Way (if using an in-cab brake controller) you will need installation kit # ETBC7. This provides the 7-Way, still retains the 4-Way as well, and has the wiring and accessories needed to install the brake controller. I have included some links to the right that show and explain this installation for you. For a brake controller I recommend...
  view full answer...
• Replacement OEM 7-Way Trailer Connector for 2008 Honda Ridgeline
  I believe the 7-way on your Ridgeline plugs into a US car connector. You can check this by unplugging the damaged 7-way connector from the wiring harness that plugs into the back of it, and comparing what the connector looks like, compared to the left-hand panel in the photo I've provided for you. If they match, you can use the # HM40975 as a replacement for your 7-way. We don't have the OEM Honda part, but this connector will provide you with a functional 4-pole, as well as the 7-way....
  view full answer...
• Recommended Trailer Wiring and Brake Controller for 2010 Toyota Sienna
  A 4-Way to 7-Way adapter like the Tow Ready # 30717 is perfect for plugging right into an existing 4-Way like you have on your Sienna and providing a 7-Way on the other end to match up with the 7-Way on a trailer. After this simple connection, this adapter will be able to power the trailer's basic signal lights. In order to activate the 12V pin on the connector and power the trailer's electric brakes, the additional wires coming out from the adapter will need to be connected. If you...
  view full answer...
• Installing a 7-Way Trailer Connector on a 2010 Subaru Outback Wagon
  You are correct, the 2010 Subaru Outback Wagon current has a T-One trailer wiring harness, # 118467, available. In order to use the 7-Way on your pop-up camper, you will first need to install this 4-Way. I have included a link to the installation details and a video installation below. At this point, you have 2 options. You can install a 4-Way to 7-Way adapter like # 30717 that you have referenced, plug in the 4-Way installed previously to the back and only use it for trailer light functions,...
  view full answer...
• Brake Controller and 7-Way Installation in 1994 Ford F-150
  To install a trailer brake controller like the Prodigy P2 # 90885 or P3 # 90195 along with a 7-way socket in your 1994 Ford F-150 the parts you'll need depend on how the truck was equipped from the factory. If it did not come with a factory 7-way then you will need our install kit # ETBC7 as well as a 4-pole wiring harness like # 118316. If you already have a 4-pole and 4-to-7 adapter part # 30717 then all you need is the controller and a wiring kit to connect everything, part # 5506....
  view full answer...
• What Type of Trailer Wiring Would 2017 Jayco Sport 10SD Have On it
  It was somewhat hard to see in the pictures I found of the camper online but I was able to see a 4-way so you should be good since your Highlander has one. You might contact the dealer and verify before you drive as the owner could have installed a 7-way in place of that. In that case a simple 4-way to 7-way adapter part # 30717 would be an easy adapter to bring with you just in case.
  view full answer...
• Where Do the Extra Wires of the 4-Way to 7-Way Adapter 30717 Run To
  The additional wires of the 4-way to 7-way adapter # 30717 are white for ground, yellow for reverse light or auxiliary, blue for brake output, and black for 12 volt accessory. To activate each of these circuits only requires you to run the wire to the proper location. The blue wire runs to the blue wire of your brake controller. The black wire runs to the positive post through a circuit breaker like part # 9510. The yellow wire would need to tap into the power wire for the reverse lights,...
  view full answer...
• Installing a 7-Way Connector in a 2000 Chevy Express Van
  To hard wire your 2000 Chevy Express Van with a 7-Pole connection, first, you will need Tow Ready Custom Fit Vehicle Wiring, # 118377. I have included a link to the instructions below. Basically, you plug in this wiring harness into a taillight connection and run the wires where needed (to the other taillight and then to the rear of the vehicle). With that installed, you will then add Brake Controller 7 and 4 Way Installation Kit, # ETBC7, which will provide you with the 7 pole connection...
  view full answer...
• 4-Way To 7-Way Trailer Connection For Use Without Trailer Brakes
  For your specific application, you can simply connect the Adapter 4 Pole to 7 Pole Vehicle End Trailer Connector, # 30717, and mount it with # 18138. Since you don't need brakes, 12 V charging power, or reverse lights on the trailer the other wires can just remain unconnected. You can transport the trailer from point A to point B without those other wires connected. Without connecting the additional wires on the # 30717, you will still have turn, stop, and taillight functions on the...
  view full answer...
• How To Install a 7-Way Trailer Connector On a 2016 Honda Odyssey
  I have exactly what you need to add a 7-way trailer connector to a 2016 Honda Odyssey. For this, you'll need to start with a 4-way trailer connector and I recommend the T-One Vehicle Wiring Harness part # 118521 which is plug-n-play. Then you can convert this to a 7-way using the 7-Way RV Upgrade Kit for Trailer Brake Controller Installation part # ETBC7L. The 7-way is easy to install; just plug the two 4-ways in, ground the white wire, then run the black wire up to the battery but that's...
  view full answer...
• How to Connect Trailer 7-Way to 2017 Toyota Highlander with Factory 4-Way
  We have just what you need to tow your camper with your new 2017 Toyota Highlander. First, if your Coleman Popup Camper does not have electric brakes and you are only needing to power its rear signal lights, I recommend installing the Tow Ready Adapter Vehicle End # 30717. This will plug right into the 4-Way connector on your Highlander to provide a 7 pole round plug to hook up with your trailer. You will simply tie off the remaining wires from the adapter as they will not be needed...
  view full answer...
• Installing a Trailer Battery Charge Line from Vehicle Trailer Connector
  To charge your trailer battery when you look at the 7-way trailer-side connector the 11 o'clock pin will mate up to your 12V signal from your vehicle. With most trailer connectors like # H20043 this will be the black wire. That black wire simply connects using 10 gauge butt connector like # DW05745-5 to 10 gauge wire sold by the foot # 10-1-1 which will connect to your trailer battery positive terminal. As you stated the negative terminal of the trailer battery will be connected to the...
  view full answer...
• How To Get Camper Lights Working Using Tow Ready Adapter # 30717 on 2005 Volvo XC90 With 4-Way
  First, on the # 118411 wiring harness you installed on your 2005 Volvo XC90 check the 4-Way connector with a circuit tester like, like part # 40376, to make sure the 4-Way is working correctly. If it is not, check to make sure you have the white wire from the wiring harness attached to a good ground and the yellow power wire from the converter box installed to the fuse box on your vehicle correctly with a good fuse installed in the fuse holder. I am including a link to a video that will...
  view full answer...
• 4-Way to 7-Way Adapter Recommendation for Towing Pop Up Camper
  Most likely what you would need is the part # 30717. This has a 4-way on one side of the connector that would get plugged into your Explorer and 7-way connector on the other side for connecting to your trailer. This 7-way is a 7-way blade style connector which is different from a 7-way round, but since the overall shape of the connector is round the terms get confused frequently. Since a 7-way round is typically found on heavy duty trailers, and RV style trailer almost always have a...
  view full answer...
• 4-Way to 7-Way Adapter Recommendation for Jeep Wrangler for Charging Trailer Battery
  The part # 30717 would be exactly what you would need to start with to install a 7-way on your Jeep Wrangler that has a 4-way. You would need to ground the white wire and then run the black wire up to the positive post of the battery using 10 gauge wire like part # 10-1-1 (sold by the foot) through a breaker like part # 9510. If parked for a short period of time your vehicle battery would not get drained but if you planned to park it over night and your trailer battery was pretty weak...
  view full answer...
• What is Needed to Install Tekonsha Primus IQ Brake Controller on 2010 Jeep Wrangler Unlimited
  To install the Tekonsha Primus IQ Brake Controller, # TK90160 on your 2010 Jeep Wrangler Unlimited with factory 4 way tow package, you will need the wiring installation kit # ETBC7. This will include everything you need to install both the brake controller and a fully functional 7-way connector to hookup to your trailer. The 7-way connector will provide a wire for your camper's battery as well. The 4 Pole Adapter # 30717 that you referenced in your question will work for simply converting...
  view full answer...
• Options for Installing 7-Way Trailer Connector on 2004 Ford F150 Equipped with 4-Pole
  Although the # 30717 will work, I have a better suggestion for you. If your F150 is the New Body style, use part # 118247. If you have the Old Body style, use # 118242. Either connector will plug inline with your existing trailer connector, allowing you to retain the function of your existing 4-pole. Either kit includes the necessary fuses and relays to activate the remainder of the tow package circuits. Granted, this is a more expensive option, but it will be a very quick and easy plug-and-play...
  view full answer...
• How To Add Tekonsha Brake Controller To 1999 Lexus LX470 With Factory Tow Package 4-Way Connector
  My research shows that the tow package for the 1999 Lexus LX470 includes the receiver hitch with the wiring harness for a trailer hook-up which is the 4 pin connector that you see. Since your LX470 did not come with a factory installed 7-way trailer connector, neither the wiring harness nor the plug will be there so there is nothing to find. You will be installing all the wires needed for a brake controller and power yourself. Because your LX470 already has the 4 pin connector all...
  view full answer...
• Can I Use 7-Way Female Plug On My Trailer With 7-Way To 7-Way Male Adapter
  It is possible to use a a female 7-way plug on the trailer if you wanted to using part # 30717 and then using an adapter Bargman 7-Way Molded Trailer Wire Connector - Double-Ended part # 50-67-210 to connect the two plugs. As long as you wire the female plug to match the wiring functions of your vehicle side you won't have any issues. However the adapter would need to stay with the trailer if you ever wanted to tow it with another vehicle because most trailers have a male end connector...
  view full answer...
• All Trailer Lights Blink with Turn Signals Engaged
  The issue you described sounds like a ground problem as is the case for most sporadic lighting functions. In order to fix this you will first want to start with the lighting assemblies. They will either ground through a single wire or the mounting hardware. Regardless, you will want to remove either and sand down the surface before attaching. Once this is done you will then need to do the same with the trailer connectors for both the vehicle side and trailer side. Repeat the above process...
  view full answer...
• How to Wire a 7-Way Trailer Connector on a Toyota Highlander Hybrid
  In order to provide a maintenance charge through the 4 Pole to 7 Pole Adapter, # 30717, you will need to connect the black wire on the adapter to the vehicle positive battery terminal via a 40 amp circuit breaker, # PK54540. You will also need to make sure the white ground wire on the adapter is connected to the vehicle frame. The wiring from a 7-Way will provide a maintenance charge to a trailer battery but will not fully charge it. You will also need about 20 feet of wire # 10-1-1....
  view full answer...
• Trailer Lights are Not Working with 4-Way to 7-Way Adapter Plugged Into 2011 Ford Escape
  For the adapter # 30717 to function, the white wire has to be grounded to the vehicle frame. Without that ground it will not function. If it is properly grounded and you still do not have lights on the trailer, make sure that the adapter 7-Way and the trailer 7-Way pin configurations match up. I have included a link to our wiring FAQ article that shows diagrams of how various connectors should be pinned. If you are still not getting lights test the 4-Way on the vehicle with a circuit...
  view full answer...
