3-15/16" x 1-1/4" Rectangle. Waterproof light functions as a clearance light or side marker light when properly mounted. Durable polycarbonate housing and lens. Surface mount - hardware not included. Accepts 1- or 2-wire plugs. P2 rated.
Features:
Specs:
The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The housing and lens are sonically sealed together to create a single unit, which means that water will not get into the light and damage the diodes or circuit board.
A P2-rated light produces a 45-degree angle of light to either side of its centerline for a total of 90 degrees of coverage. This beam pattern can be seen straight on, but it cannot be seen clearly from the side. So this type of light can be used as either a side marker light or a clearance light, but it cannot function as both. If you need both functions, then you must install 2 separate lights on your trailer - one as a front or rear clearance light and one as a side marker light.
Surface-mount trailer lights install using a flange or bracket with mounting holes. These lights lay flat against the trailer surface and only require a small, often pre-existing hole, for wiring. Mounting hardware is used to secure the light to the trailer.
California residents: click here
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Speaker 1: Today we're taking a look at Optronics Thinline Sealed LED Marker and Clearance Light. This light is designed for 24-volt systems. The small, rectangular trailer light functions as both a clearance light and a side-marker light when properly mounted.It features a sonically-sealed, waterproof design when it comes to the housing and lens unit. It is submersible.LEDs make great replacements for incandescent lights. They last longer, they burn brighter, and they're much more efficient. You don't have to worry about changing bulbs, and you don't have to worry about burnt out filaments with LED systems.This unit features a polycarbonate lens and housing that's very strong and durable.

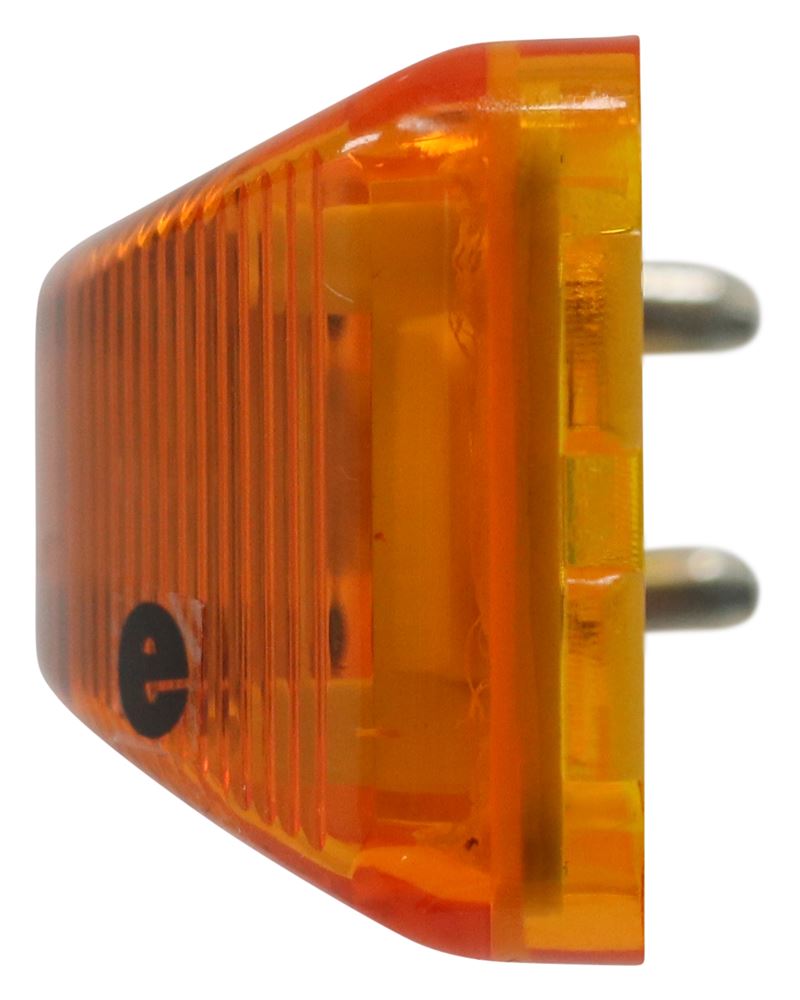

It has a nice yellow lens on it.This light mounts using a mounting bracket. The mounting brackets are sold separately and available at etrailer.com. This would be an example of a mounting bracket here.On the back of the light, we have two prongs. The prongs would line up right there in the bracket. Then the bracket would grab through the mounting hardware.
Then it provides a single wire for a power wire.Now each bracket might be a little differently on how it grounds and how it wires. Basically, all you got to do is plug this into the bracket, and then the bracket will provide the wiring that you need for your application.That's really all there is to it. The brackets are available at etrailer.com. They are sold separately.This is a P2-rated light. It's SAE and Department of Transportation compliant.When it comes to the overall dimensions, starting with the overall length measuring edge-to-edge, it gives us a measurement of 3-15/16" long.
The overall width is 1-1/4". The overall depth from front to back is about 7/8" deep.This unit contains a total of three diodes or three LEDs. We're going to go ahead and hook it up to power. Then you'll be able to see what it looks like. I'll also turn the overhead lights off.What I'm going to do is just plug this into the bracket.
Again, brackets are sold separately, available at etrailer.com, and then I'll go ahead and hook this up to power.So you can see here the light sends out a nice, consistent signal. Again, it contains three LEDs or three diodes. The multi-diode design really helps optimize the overall light output. Optronics puts a lifetime warranty on their LEDs.That's going to do it for today's look at the Optronics Thinline Sealed LED Amber Marker and Clearance Light.
fit as described could not ask for more
Bright LED!
Bright LED!
