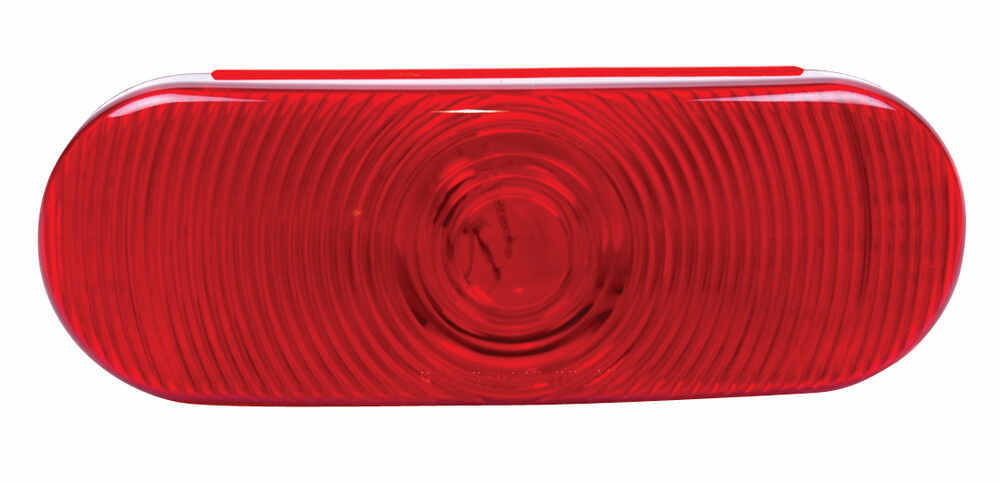

Custer Trailer Tail Light - Submersible - Stop, Turn, Tail - Incandescent - Oval - Red Lens

Custer Trailer Tail Light - Submersible - Stop, Turn, Tail - Incandescent - Oval - Red Lens

Item # G65R
Retail:$11.67
Our Price: $9.36
You Save: 20%
Trailer Lights
Orders above $99 qualify for Free Shipping
Shipping Weight: 0.28 lbs
Quantity:
In Stock
Custer Trailer Lights - G65R
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

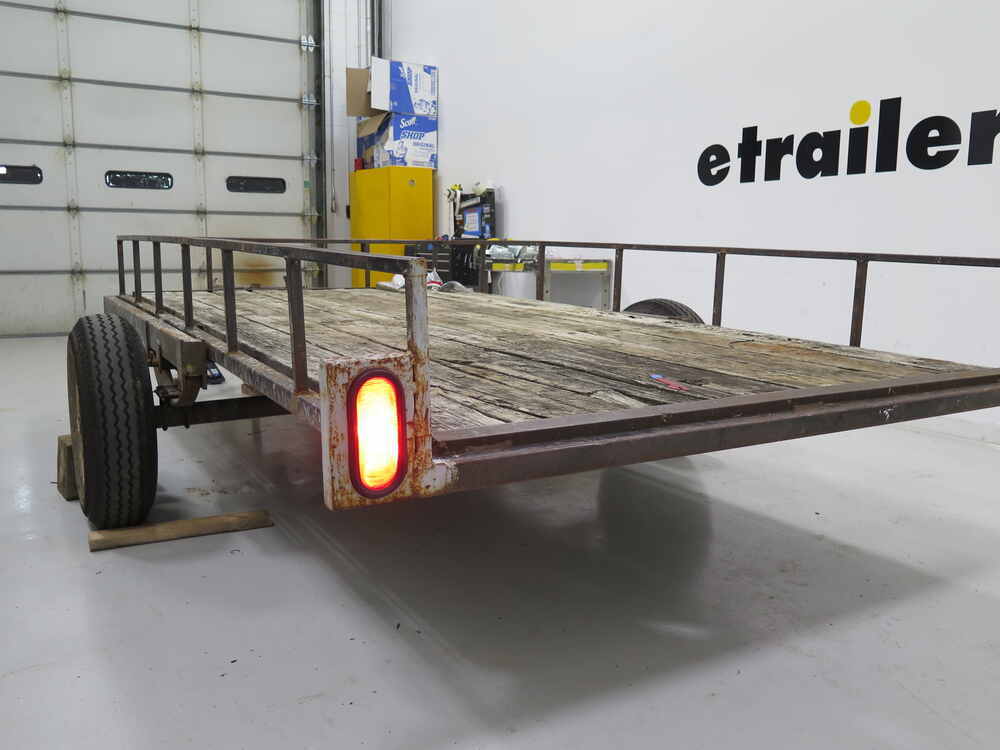

In Use/Installed

Videos

Need help with installation?
Locate installers near me
6-1/2" x 2-5/16" Oval. Incandescent trailer light provides stop, turn, and tail light functions. Recessed mount with grommet (sold separately). Accepts standard 3-prong plug. Great Prices for the best trailer lights from Custer. Custer Trailer Tail Light - Submersible - Stop, Turn, Tail - Incandescent - Oval - Red Lens part number G65R can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (9)
  • Q & A (0)
  • Videos (1)
  • Photos
  • Why etrailer?

Custer Trailer Lights - G65R

  • Tail Lights
  • Oval
  • Red
  • 6-1/2L x 2-1/2W Inch
  • Recessed Mount
  • Stop/Turn/Tail
  • Custer

6-1/2" x 2-5/16" Oval. Incandescent trailer light provides stop, turn, and tail light functions. Recessed mount with grommet (sold separately). Accepts standard 3-prong plug.


Features:

  • Oval trailer light provides stop, turn, and tail light functions
  • Sealed, waterproof housing and lens unit
  • Red lens over incandescent bulb
  • Compatible with 12V DC systems
  • Recessed mount with grommet (sold separately)
  • Accepts industry standard 3-prong plug
  • DOT compliant
  • Dimensions: 6-1/2" long x 2-5/16" tall x 2-1/2" thick

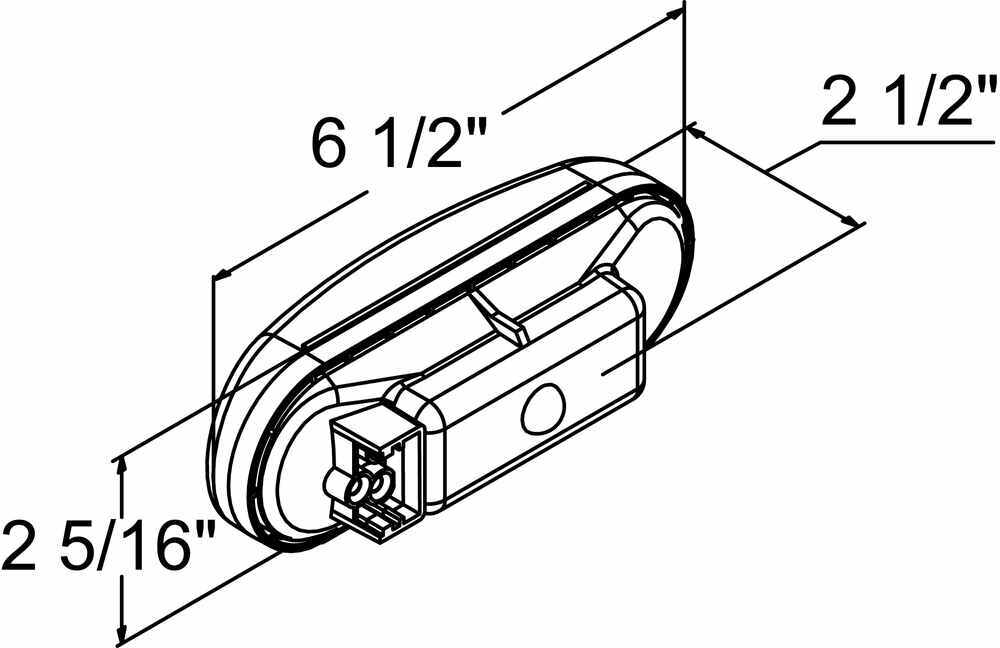

Custer G65R Incandescent Oval Red Tail Light Dimensions

Sealed, Waterproof Trailer Light

The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The circuit board is sealed, which means that water will not damage the diodes or circuit board.



G65R Custer Trailer Tail Light - Waterproof - Stop, Turn, Tail - Incandescent - Oval - Red Lens





Video of Custer Trailer Tail Light - Submersible - Stop, Turn, Tail - Incandescent - Oval - Red Lens

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Custer Oval Trailer Tail Light Installation

Hi, everyone. Aiden here at etrailer.com. Today, we're gonna be taking a look at and showing you how to install this Custer Trailer TailLight. Now this is gonna be an incandescent taillight. So there are plenty of LED options that I would maybe personally recommend on our site to check out. But, this is gonna give you all your standard functions.

We've got our running light on right now. We're also gonna get our turn signal and our brake lights here. It is pretty bright. So I think visibility isn't going to be an issue at all with this. I just prefer the LED for the efficiency.

And just the overall, long lasting nature of them. The outer length is going to be a nice durable impact resistant material. It's good to know. It'll at least last a long time on the road, being out in the elements. It does actually feel a bit warm to the touch right now.

Again, another drawback of incandescent is just it gets heated up a lot quicker. LEDs will run significantly cooler. But that is just something to keep in mind. Everything on here is sealed and waterproof though. So, this is completely submersible.

If you do have plans to put this on a boat trailer, you won't have to worry about any sort of water intrusion, with it being in and around water. And the install for this is going to be pretty straightforward and simple. Check out how we did it. We'll start our installation off by removing our old light. The one we have here is just attached with this grommet piece here. So I'll get a plastic trim panel tool, and use that to pry up around the edges, until we can get that out of the housing here on the trailer. Kind of working our way around, like this. Once we have it removed, we can come around back to our PL3 plug and unplug it. And then go and grab our new light. So this is how we're gonna get your light. Doesn't have any method for mounting it right out of the box. So you will need to pick up something, like this rubber grommet. We can just slide the housing of the light into the grommet. Kind of push it into place. You can see on the back here, that this is actually what's holding it in place. It's kind of overlapping a bit. And we've got our PL3 plug. You just plug that into the male end on our trailer here. If you don't have this already on your trailer, you can pick up that plug on our site as well. Hard line it into the trailer. And then you've got it for the plug and play light here. So, we'll insert that into place. And once you've got it plugged in like that, we can just tuck all the wiring back in here. And we can pop the light and grommet into place. I usually like to start at the top or bottom and kind of feel that seep in there. And you can just work your way around the whole thing. With everything plugged in and attached to the trailer, we can test our functions. Starting with our running lights. Our turn signal. And our brake lights. Once we verify that all of those are working as intended, we can go ahead and hit the road. And that'll do it for our look at and installation of this Custer Trailer TailLight. Thanks for watching..


Customer Reviews

Custer Trailer Tail Light - Submersible - Stop, Turn, Tail - Incandescent - Oval - Red Lens - G65R

Average Customer Rating:  4.7 out of 5 stars   (9 Customer Reviews)

6-1/2" x 2-5/16" Oval. Incandescent trailer light provides stop, turn, and tail light functions. Recessed mount with grommet (sold separately). Accepts standard 3-prong plug.

by:

Excellent. Fast shipping and everything installed and works like they should.




by:


Comments
It seems that you are not happy with the light. We are happy to assist you.
-- Etrailer Expert Jenny N - 11/02/2022


by:




by:




by:




by:




by:




by:



8
8

See what our Experts say about this Custer Trailer Lights

  • Replacement Tail Lights for a Kaper 1T-L6R Taillight
    To replace your Kaper 1T-L6R taillights you are going to want to use the Custer Trailer Tail Light - Submersible - Stop, Turn, Tail - Incandescent - Oval - Red Lens item # G65R. These lights are 6-1/2" long x 2-5/16" tall x 2-1/2" thick.
    view full answer...
  • Recommended Trailer Tail Lights To Replace Older Glo-Brite 9553
    The Glo-Brite 9553 you have currently measures 6-1/2" x 2-1/4" x 2-1/4" so for an incandescent replacement option I recommend the Custer Trailer Tail Light - Submersible - Stop, Turn, Tail - Incandescent - Oval - Red Lens # G65R which will fit your existing grommet and uses the exact same 3 prong harness making it an exact replacement. If you wanted to go with LED lights instead then Optronics Fleet LED Trailer Tail Lights w/ Grommets - Stop,Turn,Tail - Submersible - Oval - Qty 2 # TLL12RK...
    view full answer...
