2-3/4" L x 2-1/8" W x 1" D; Reflectorized lens; corrosion resistant; replaceable lens and bulb; mount on stud; 1-wire; 1-bulb incandescent
This square light can be used as a clearance or side marker light. The red lens is reflectorized, meaning that a separate reflector is not needed for DOT compliance. The light measures 2-3/4" long x 2-1/8" wide x 1" deep. The molded plastic housing and durable lens provide all-weather protection against corrosion. The light features a replaceable, screw-down lens and easy-to-replace bulb. The light contains a single lead wire for power and is grounded through the mounting stud.
Manufacturer Cross Reference
Light will work as an exact replacement for:
Uni Bond # MR2020R
Wesbar # 3103
Peterson # 114R
Square clearance or side marker light with a reflectorized lens, eliminating the need for a separate reflector to meet DOT requirements. Single-wire design grounds through mounting stud. Features replaceable lens and easy to change replaceable bulb. All-weather, molded plastic housing and durable lens to protect against corrosion.
California residents: click here
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

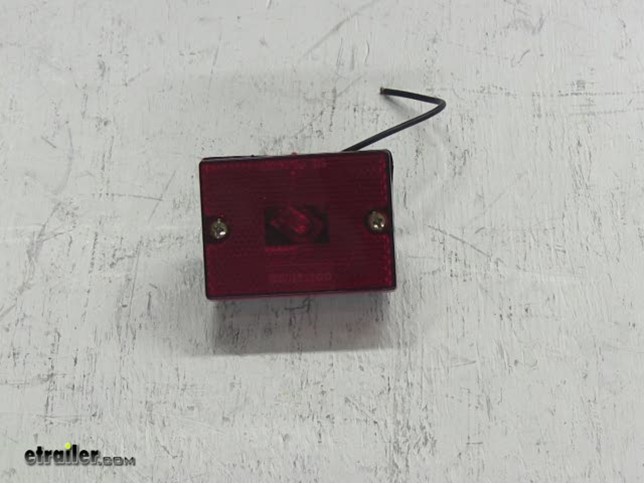

Hello everybody, this is Jeff at etrailer.com. Today, we're gonna take a look at this Optronics Red Square Trailer and Clearance Side Marker Light with the Reflector. Now, this red square light can be used as a clearance or a side marker light, and also the red lens used on this as reflectorized, meaning that our separate reflector is not needed for DOT compliance. The measurements on this light, just to give you an idea of the length, two and three quarter inches long, the width two and one eighth inches wide, and the depth of it is only one inch deep. Now, this light does feature replaceable screw down lens and an easy to replace incandescent bulb. If you notice in the back, it has a single lead wire for power, and it grounds through the mounting stud.
Now, I do wanna hook this up to some 12-volt power, just to show you how bright the light is. So we're gonna go ahead and take our power wire, and we'll go ahead and hook that up to the single wire lead. And as we mentioned, we're gonna ground it through the stud back here. So with it all hooked up, we'll go ahead and turn our power on, and you'll be able to see the light come on. And then I'm gonna go ahead and turn off the overhead light, and you can see the incandescent bulb lit up, shows you how bright the light is.
Go ahead and turn back on our overhead lights. Go ahead and turn off our power. Now, there's a molded plastic housing and a nice durable lens, which provides all-weather protection against corrosion. Now, on the manufacturer's cross reference, this slide will work as an exact replacement for the Uni Bond, part number MR2020R, the Wesbar, part number 3103, and the Peterson, part number 114R. But that should do it for the review on this Optronics Red Square Trailer and Clearance Side Marker Light with the Reflector.
.
