Water Dragon Underwater LED Light - 12V/24V - 1,500 Lumens - Blue

Water Dragon Underwater LED Light - 12V/24V - 1,500 Lumens - Blue

Item # TN22ZR
lowest price pledge
Retail:$184.60
Our Price: $110.48
You Save: $74.12
Boat Lights
This item qualifies for Free Shipping
Shipping Weight: 1 lbs
Quantity:
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Need help with installation?
Locate installers near me
4-1/8" Long, 3-diode, underwater light bolsters the aesthetic of your boat by emitting bright blue light underneath your boat. Works great for attracting fish to your boat. Stainless steel cover. 1-800-940-8924 to order TecNiq boat lights part number TN22ZR or order online at etrailer.com. Free expert support on all TecNiq products. Guaranteed Lowest Price and Fastest Shipping for Water Dragon Underwater LED Light - 12V/24V - 1,500 Lumens - Blue. Boat Lights reviews from real customers.
  • All Info
  • Q & A (0)
  • Videos (1)
  • Photos
  • Why etrailer?

TecNiq Boat Lights - TN22ZR

  • Underwater Lights
  • Underwater
  • Blue
  • Surface Mount
  • TecNiq
  • 1001 or More Lumens
  • LED Light
  • Stainless Steel Housing

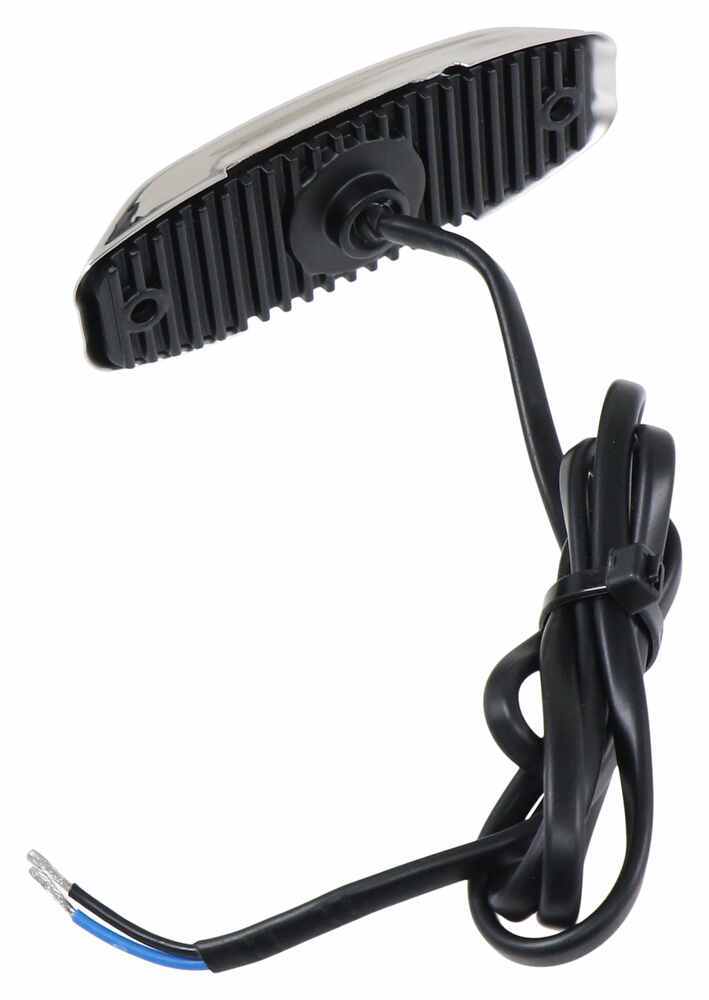

4-1/8" Long, 3-diode, underwater light bolsters the aesthetic of your boat by emitting bright blue light underneath your boat. Works great for attracting fish to your boat. Stainless steel cover.


Features:

  • Stylish, submersible LED light attracts the attention of marine life and other boaters alike
    • Adds a fun and unique look to your boat
    • Increases safety by making your boat more visible to other vessels
    • Entices fish for nighttime fishing
  • Thermal protection safeguards against overheating
  • Sealed, waterproof unit includes durable, die-cast aluminum housing and UV-resistant lens
    • Military-grade construction of circuit board
    • Urethane potting offers better protection than common epoxy potting
  • 316 Stainless steel cover is impact and corrosion resistant
  • Premium LEDs are energy efficient, long-lasting, and vibration resistant
    • Rated for up to 100,000 hours of operation
  • Clear lens over blue LEDs
  • 12V DC compatible
  • Easy, surface-mount installation
    • Hardwires to your application


Specs:

  • Dimensions: 4-1/8" long x 1-7/16" wide x 5/8" thick
  • Distance between mounting holes: 3-1/4"
  • Light output: 1,500 lumens
  • Diodes: 3
  • Input voltage: 9V - 30V
  • Power draw: 0.6 - 0.73 amps
  • Wire length: 36"
  • Limited lifetime warranty


TecNiq M50 Water Dragon Underwater Lighting Dimensions



M50-BS03-1 TecNiq Water Dragon Underwater LED Light - Blue - Submersible - Surface Mount - 3 LED - 12V/24V - Stainless Steel Cover





Video of Water Dragon Underwater LED Light - 12V/24V - 1,500 Lumens - Blue

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Review of TecNiq Boat Lights - Blue 3 Diode 1500 Lumen LED Underwater Light - TN22ZR

Hi everybody. My name is Andy with etrailer.com and today we're taking a look at the Water Dragon Underwater Blue LED Light. If you're looking to replace underwater light to your boat or maybe add an underwater light to your boat, this might be a good option for you to consider. Let's take a closer look at this light. Now this LED underwater light has as you can see, three diodes and those diodes are going to be blue, and it's going to give you a nice blue light for your boat. It's gonna be nice and bright.

Let me give you a brief demonstration of what you can expect when you use this light. I've just went ahead and turned the power on and as you can see those three diodes give you a nice bright blue light, and I'm gonna turn my studio lights off here to kind of give you an idea of what kind of a light it gives. And this is over my hand and again, it's nice and bright and I'm gonna go for a wide view here and it really gives my studio a nice blue light. I like blue. That's my favorite color so this really provides a nice blue light, that's gonna look great on your boat.

It's gonna look great under water. While I'm at a wide view here, let me check my lights back on here in the studio and again, really gives you an idea of how those three diodes really light things up. Now, these LEDs obviously are going to be power efficient, energy efficient especially over incandescent bulbs are gonna be long lasting. They're gonna be vibration resistant and what we see here is these LEDs are sealed in a waterproof housing. So let me kind of give you a close up of that.

I'm gonna take this off here real quick just to give you a overview of that. So we see that these diodes are, you know, nice sealed waterproof housing. This clear lens is gonna be impact resistant and the circuit board inside is of a military grade construction. So this is gonna be rugged and it's gonna really take a lot of punishment. If I haven't mentioned it already, the light output is 1500 lumens and the urethane potting inside is gonna offer better protection than common epoxy potting in controlling the heat transfer inside of the light itself.

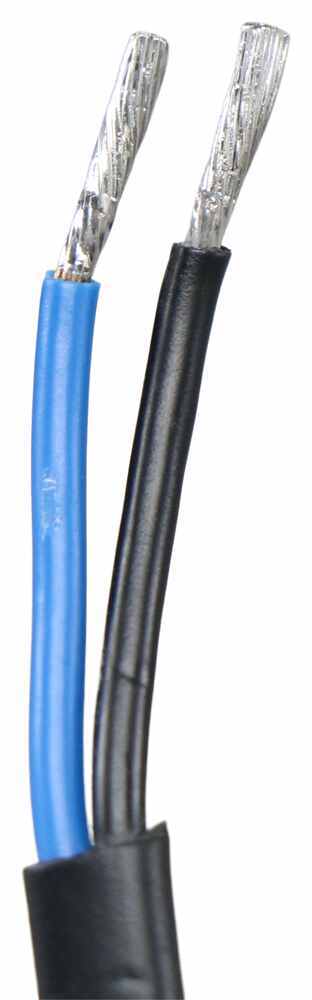

And it does have thermal protection safeguards against overheating. Now the housing here is gonna be a diecast aluminum and then it does have this stainless steel cover. It's a 316 stainless steel so what that means, it's going to be more resistant to pitting and corrosion. Now this light is going to be compatible with 12 volt and 24 volt DC subsystems. And this is , as you can see, a surface mount installation and the hardware is not included so you would have to source your installation hardware locally, and this will hardwire to your application and the blue wire, it's a two wire installation. The blue wire would be for power and the black wire would be your ground. Give you some idea of measurements here. I'm gonna pull out my ruler. Now the overall length of this light, I'm gonna try to keep this gasket together with it as well. We are sitting right at about well over 4 inches, about 4 1/8 inches long. And then in regards to the width, we are sitting right at the inner player's out just a little bit. So we're sitting right at about an inch and a half wide. In regards to the thickness, without that rubber gasket, you're gonna be sitting right at about 0.5, 0.8, 0.7 inch. And then we take this off and show you the distance between the mounting holes. We're gonna be sitting right at about 3 1/4 inches between those mounting holes. Now the input voltage of this light is gonna be 9 volts to 30 volts and the power draw is going to be 0.6 to 0.73 amps and then the wire length here is going to be 36 inches long. And this does have a limited lifetime warranty. Now, again, this is a blue, three diode, LED light. We do have the white option available. You can find that on our website. Item number TN82ZR and if you're looking for a green option, I'm happy to say we have that available at etrailer.com as well. You can find the green one item number TN54RR. Well, that's gonna conclude our look today at the Water Dragon Underwater Blue LED light. Again, my name is Andy. Thank you for joining me..
