Optronics Thinline LED Utility Light Bar - Submersible - 11 Diodes - Clear Lens - 15" Long

Optronics Thinline LED Utility Light Bar - Submersible - 11 Diodes - Clear Lens - 15" Long

Item # BUL69CB

lowest price pledge

Retail:$28.33

Our Price: $22.87

You Save: 19%
Trailer Lights

Orders above $99 qualify for Free Shipping

Shipping Weight: 0.4 lbs

Quantity:
In Stock, Ships Today
Optronics Utility Lights - BUL69CB
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Utility Lights
  • Strip Light
  • LED Light
  • White
  • Surface Mount
  • 15L x 1-1/2W Inch
  • Optronics
15" x 1-3/8". Waterproof, LED utility light bar provides bright white light for your application. Ultra-thin design fits in tight spaces. Durable polycarbonate lens and housing. Surface mount - hardware not included. 2-Wire design. Lowest Prices for the best trailer lights from Optronics. Optronics Thinline LED Utility Light Bar - Submersible - 11 Diodes - Clear Lens - 15" Long part number BUL69CB can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (23)
  • Q & A (17)
  • Videos (1)
  • Photos
  • Why etrailer?

Optronics Trailer Lights - BUL69CB

15" x 1-3/8". Waterproof, LED utility light bar provides bright white light for your application. Ultra-thin design fits in tight spaces. Durable polycarbonate lens and housing. Surface mount - hardware not included. 2-Wire design.


Features:

  • LED utility light bar provides bright white light for your application
    • Not certified for backup light function
  • Thinline Series has a low-profile design to fit into tight spaces
  • Sonically sealed, waterproof housing and lens unit is submersible
  • LEDs make great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Durable polycarbonate housing and lens
  • Clear lens over white LEDs
  • Surface mount - hardware not included
  • 2-Wire design - includes lead wire for power and ground wire


Specs:

  • Dimensions: 15" long x 1-3/8" wide x 5/8" deep
  • Distance between mounting holes (center on center): 14-1/8"
  • Diodes: 11
  • Power draw at 12.8V: 0.29 amps
  • Lifetime warranty on LEDs


Optronics BUL69 Series LED Thinline Utility Light Dimensions

Sonically Sealed, Waterproof Trailer Light

The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The housing and lens are sonically sealed together to create a single unit, which means that water will not get into the light and damage the diodes or circuit board.



BUL69CB Optronics Thinline LED Utility Light Bar - Submersible - 11 Diodes - Clear Lens - 15" Long

Alternate part number: BUL-69CB






California residents: click here

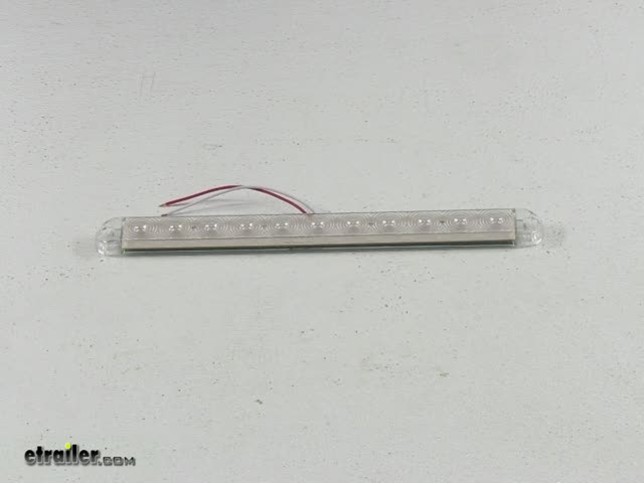

Video of Optronics Thinline LED Utility Light Bar - Submersible - 11 Diodes - Clear Lens - 15" Long


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Optronics Trailer Lights - Utility Lights - BUL69CB Review

Today we are looking at the Optronics Thin Line LED Utility Light Bar. This light comes with a sealed, one piece, molded, plastic housing and durable lens. It is a two wire design that includes both leads for power and ground. The light comes with 11 diodes, and the power draw is .100 amps at 12.8 volts. The installation is a surface mount on 14-1/8 inch centers. There is a lifetime warranty on the LEDs.

Lets go ahead and connect the power supply so we can see what it looks like when it is lit up. Now we'll turn off the overhead light so we can see what it looks like in the dark. And there you have it for Optronics Thin Line LED Utility Light Bar, part number BUL69CB. .


Customer Reviews

Optronics Thinline LED Utility Light Bar - Submersible - 11 Diodes - Clear Lens - 15" Long - BUL69CB

Average Customer Rating:  4.9 out of 5 stars   (23 Customer Reviews)

15" x 1-3/8". Waterproof, LED utility light bar provides bright white light for your application. Ultra-thin design fits in tight spaces. Durable polycarbonate lens and housing. Surface mount - hardware not included. 2-Wire design.

- BUL69CB
by:

I purchased a 12volt LED docking light bar from etrailer.com and am very pleased. The light they offered exceeded the quality provided on my 5th wheel from the original installation at the factory. This unit was fully sealed in a waterproof housing, with the back protected completely. I could not find this light on the "A" site many people try first. Customer service and shipping was exceptionally competitive with any 5 star rated company. etrailer has a fantastic selection of quality products you would expect from someone who knows their business. Have saved them as a favorite, and will not hesitate to check their site for any of my trailoring needs. Prices are right. Thanks! 392547



- BUL69CB
by:

Product were just as listed and were easy to install 108804



- BUL69CB
by:

fast shipping nice light bright going on my toy hauler for a load light the more light the better and very helpful staff from e trailer 464711



- BUL69CB
by:

I purchased two of these LED Utility Light Bars and installed under the bed rail in my pickup bed in order to light up the bed area at night. The lights were easy to install along with the chrome base mounting bracket. Looks great and supplies ample lighting in the bed area. I liked the overall length which spread the light over a large area. 122206


Comments

Both lights are working great and I like showing my friends how well the bed lighting makes it easy to find things in the dark. Even better is the fact I can turn them on with my key fob.

Jerry - 03/30/2015

10465

- BUL69CB
by:

These lights are awesome! They were super easy to install and very bright! I will definitely buy these again 367806



- BUL69CB
by:

Love the amount of light this product produces. I bought them with the hope to better see when backing up my snowmobile trailer. They work well and match the design of the other trailer lights. 315974


Comments

They are great..They continue to impress me. I recommend them Thank you!

Bob I - 11/11/2017

30757

- BUL69CB
by:

Used as under step light on RV- works g reat. 639653



- BUL69CB
by:

E-Trailer, I have 4 trailers and I have ordered parts for all of them over some years and you do me a very good job of getting me the correct parts and getting them to me fast. At a very reasonable price. Web site is awesome ! You are a very good company to purchase off of . Thanks 610656



- BUL69CB
by:

I put this over the bed of my Ranger for night time. Works perfect. Bright enough, but not obnoxiously bright. Perfect for a bed light. 600518



- BUL69CB
by:

This is the second mobile locksmith van I am putting these lights in. I can't imagine a better product. They are low profile, draw almost nothing from the battery, and provide plenty of light to perform my work. 581110



- BUL69CB
by:

Great light, just what I expected. Lights up the back of camper as needed, great service from e-trailer as always. 496004


Comments

Works great, installed this light a year ago it’s still always dependable for bright light. Highly recommend this light.

David - 04/13/2019

52882

- BUL69CB
by:

Perfect light for cargo area 465349



- BUL69CB
by:

I'm using this 15" LED bar for a license plate light for my custom flatbed truck. After hearing my friends were getting pulled over for dim license plate lights, I thought I would light mine up so there is no question of visibility. The tail lights are from etrailer as well!!! Awesome products. 356435



- BUL69CB
by:

The lights work as well as I hoped they would. I would recommend them to anyone looking for lights like these. 333669



- BUL69CB
by:

I installed a pair of these lights on underside of the overhang on my 5th wheel camper. They make hooking up easier as well as provide a lot of light for parking bicycles or motorcycles under the camper. Easy electrical hook up. I applied a bead of silicone RTV around the lights to prevent rain or wash water from getting inside the camper skin. 327291


Comments

Update, the lights are still wonderful.

David D - 12/27/2017

32292

- BUL69CB
by:

Bought all these lights for the flatbed I'm building, when I'm finished I am going to send pictures because all the stuff I bought from you is to dress it up thanks 224399



- BUL69CB
by:

this light bar is factory replacement for fuzion rv docking light,top of front cap.etrailer is the only place on net i found this light bar.The factory no longer carrries or use it.Water proof better than factory light bar. 200372



- BUL69CB
by:

Ordered a couple of utility LED white light bars to use as back-up lights on my trailer. The purchase process was easy and the shipment was fast, despite being near Black Friday and Christmas. Can't give a "user report" on the lights yet, as haven't used them for night time launch/recovery yet, but they are well made and appear to be 100% waterproof. 166050



- BUL69CB
by:

Everything I have purchased from you work great. Thank you. 128377



- BUL69CB
by:

Puts out lots of light. Used as an interior light of a car. Well built but pricey. 126574



- BUL69CB
by:

Just what I wanted they will work great 110561



- BUL69CB
by:

Very bright white light for such a low profile. Easy to install. Cool to the touch. Using in the back of my box truck. Sorry I did not buy 3. Makes the other incandescents look dim and yellowish (is that a word?) 67782



- BUL69CB
by:

nice light, very compact 41478


24
24

Ask the Experts about this Optronics Trailer Lights
Do you have a question about this Trailer Light?


  • Recommended LED Strip Light for Exterior of Camper
  • The Opti-Brite LED Interior Strip Light w/ Awning - Sealed - 11-5/16" L x 1-5/8" W - White # ILL70CBAWN is not recommended to be used in fully exposed outdoor locations like the exterior of your camper. Instead I recommend using the Ultra-Thin-Line LED Utility Light Bar - 11 Diode - Sealed - Rectangular - White w/ Clear Lens # BUL69CB or the Optronics Opti-Brite LED Interior Strip Light w/ Switch - Submersible - 171 Lumens - 9" Long # ILL70CSB for outdoor/exterior use.
    view full answer...

  • Compatibility of High-Efficiency LED-Type Exterior Trailer Lighting
  • An individual LED type light may not put out as much light as certain individual halogen lights do, but because, as you noted, LEDs use so little power you can use more of them. You could potentially BOTH increase your overall light output and still save power, leaving more of the generator's capacity to operate other devices. Another advantage of LED lighting is reduced waste heat (a result of the LEDs' efficiency). The linked page displays all LED type trailer utility lights. These...
    view full answer...

  • Output of the Ultra-Thin-Line LED Utility Light Bar part # BUL69CB
  • I spoke to my contact at Optronics and he said that while they don't have a lumens output figure for the Ultra-Thin-Line LED Utility Light Bar part # BUL69CB they do have the Candela. The output for this light is 157 Candela.
    view full answer...

  • Recommended Interior and Exterior LED Lighting for Enclosed Box Trailer
  • We've got the lighting items you need for your high school band's instrument trailer. I strongly recommend you opt for LED-type lights, rather than standard incandescent bulb lights. There are several advantages to using LED lights. LEDs use only about 1/10th the power required by incandescent lights. Their efficiency also means less waste heat, which can matter a lot in warm weather when the sun has already heated up the trailer interior. They also do not change color with age the...
    view full answer...

  • Is Optronics Ultra-Thin 11 Diode LED Utility Light, Part # BUL69CB, Bright Enough for Utility Use?
  • The Optronics Ultra-Thin 11 Diode LED Utility Light, Part # BUL69CB, is intended for use as a general purpose trailer utility light. Typically most clearance/marker light assemblies are amber in color and only use between 2 and 6 diodes; this utility light uses 11 diodes. Its sealed and waterproof 1-piece compact housing makes it ideal for use on the exterior of your horse trailer. LED-type lights use only a small fraction of the power required by incandescent bulbs, and this unit...
    view full answer...

  • Recommended Best Light for Bright Utility Reverse Light for Utility Trailer
  • For the best and brightest utility light, I would recommend the Vision X # XIL-ST12. It's 12" long x 1" wide x 1/2" deep and by far the brightest strip light with an effective lumen output of 300. When you go to wire up the utility lights on your trailer the best way is to run the power wire to each light and then run the ground to both as well. You'd simply run some # DW02359-1 16 gauge wire (sold by the foot) up to the front of the trailer, and tie into a switch. It's important...
    view full answer...

  • Can I Use # BUL69CB As Both Backup and Area Lighting
  • That will work. you will just want to make sure you splice your backup wire into the power wire between the power switch and the lights and not before the power switch.
    view full answer...

  • Thin 15 inch White LED Utility Light to Use as Reverse Light Recommendation
  • For a very similar version of the # STL179RB available in white you would want the Ultra-Thin-Line LED Utility Light Bar # BUL69CB. Check out review video I attached for more info.
    view full answer...

  • Replacement Options for Miro-Flex LED Trailer Tail Light Kit # TLL28RK
  • I was able to look back at your order and find that you purchased the tail light kit # TLL28RK. You will need to replace one of the lights because the manufacture does not offer just the lens. The good news is you will not need to replace the entire kit though. For the left hand side you will need # STL29RB and for the right hand side # STL28RB. I have linked the above mentioned products to this page for your convenience.
    view full answer...

  • Separating Brake and Turn Signals, Adding a Reverse Light, and Ramp Door Support for a Trailer
  • First, trailers in the US use what is called a combined 2-wire system. The brake lights and turn signals are on the same circuit on each side. The turn signal overrides the brake light on the side blinking. In order to have separate turn signals you would need additional amber turn signals and you would need to do some rewiring. On the trailer side you would need to install a special converter, # 118158. The combined left turn/brake wire connects to the yellow input wire, right turn...
    view full answer...

  • LED Identification Light Bar with Clear Lens and Red Lights 15 Inches Long
  • The light strips like # BUL69CB are not available with red lights but we do have # MCL70RCB. It is clear lens with red diodes and is 15 inches long. I think that just might be perfect!
    view full answer...

  • Recommended Exterior Trailer Lighting for Food Trailer
  • There are certain requirements for lighting when towing, so you will have to run your lights in a way that doesn't interfere with the state laws. I'd recommend running your lights off a separate plug or battery to make that easy. To add to the functionality and/or look of your food trailer, any exterior light for RV or Trailers will work. I can give you a couple of options/styles to consider. I like LED lights because they are bright, require no maintenance, and draw less power....
    view full answer...

  • Is Optronics LED Utility Light Bar # BUL69CB DOT Approved
  • The # BUL69CB LED Utility Light Bar you mentioned can be used for utility use or general illumination, but is not certified by the DOT for use as a back-up lamp as it would be too bright.
    view full answer...

  • Availability of Waterproof LED Light Strip for Use in Boat
  • Although it is a little larger than the ILL70CB you were looking at, the Optronics Ultra-Thin-Line LED Utility Light Bar, part # BUL69CB sounds exactly like what you are looking for. The lamp measures 15 inches long by 1-3/8 inches wide and uses 11 diodes. The lamp is completely sealed to be waterproof. The lamp features 2 mounting holes that are 14-1/8 inches apart on center, and a chrome base, part # A69CB is also available. This lamp would work perfectly in your boat. I have linked you...
    view full answer...

  • Chrome Base for Interior Light BUL69CB
  • The correct chrome base to use with the # BUL69CB that you mentioned is the part # A69CB that you mentioned.
    view full answer...

  • Recommended LED Strip Lighting for Trailer Sides
  • The best option we have for what you are looking to do is the Thinline Opti-Brite LED Interior Strip Light - 21-7/8" Long x 1" Wide x 5/8" Thick # ILL72CB if you are looking to light the inside of the trailer. If you are wanting to light the outside, then I recommend the Ultra-Thin-Line LED Utility Light Bar - 11 Diode - Sealed - Rectangular - White w/ Clear Lens # BUL69CB. If you want the chrome base, you can use # A69CB with these lights.
    view full answer...

  • Recommended LED Replacement Options for Pop-Up Trailer To Conserve Battery Life
  • For your interior overhead lights, I recommend the Optronics LED RV Interior Double Dome Light with Switch - 815 Lumens # RVILL34. Then for your outdoor lights on side the Optronics Armored LED Clearance and Side Marker Light - 6 Diodes - Steel Housing - Amber Lens # MCL86AB. Then for your CO tester you can simply use a switch like the Buyers Mini Round On/Off Rocker Switch w/ Bezel - Backlit # 3376391100 to wire the 12V CO tester. For under the step I recommend the Optronics Thinline...
    view full answer...
