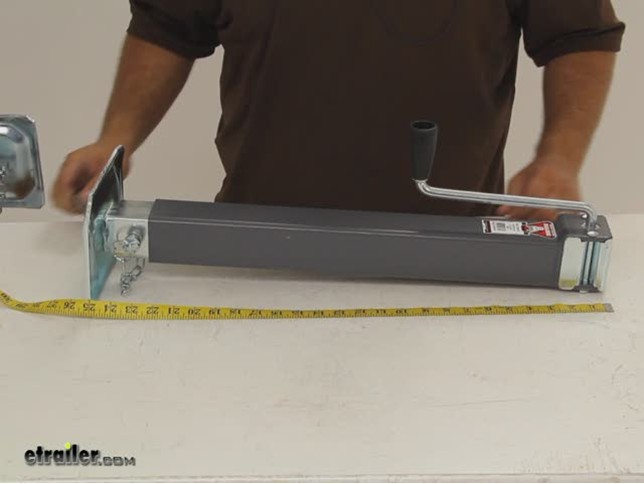

Bulldog Square Jack w/ Footplate - Drop Leg - Sidewind - 28-1/2" Lift - 5,000 lbs

Bulldog Square Jack w/ Footplate - Drop Leg - Sidewind - 28-1/2" Lift - 5,000 lbs

Item # BD190754
lowest price pledge
Retail:$156.29
Our Price: $112.99
You Save: $43.30
Trailer Jack
This item qualifies for Free Shipping
Shipping Weight: 25 lbs
Quantity:
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Videos

Need help with installation?
Locate installers near me
Drop leg, compact jack with heavy-duty footplate base welds directly onto your application and offers superior side-load strength in a tight-fitting package. Includes sidewind crank and has 25-1/16" retracted height. Lowest Prices for the best trailer jack from Bulldog. Bulldog Square Jack w/ Footplate - Drop Leg - Sidewind - 28-1/2" Lift - 5,000 lbs part number BD190754 can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (76)
  • Q & A (16)
  • Photos
  • Why etrailer?

Bulldog Trailer Jack - BD190754

  • Side Frame Mount Jack
  • 4001 - 5000 lbs
  • Sidewind Jack
  • Drop Leg
  • Weld-On
  • Fixed Mount Jack
  • 29 Inch Lift
  • With Foot
  • Bulldog

Drop leg, compact jack with heavy-duty footplate base welds directly onto your application and offers superior side-load strength in a tight-fitting package. Includes sidewind crank and has 25-1/16" retracted height.


Features:

  • Superior side-load capacity compared with round jacks
    • Outer and inner tubes overlap for additional strength when jack is fully extended
    • Square design provides additional support for side loading
  • Compact design is perfect for tight applications
  • Durable, long-lasting construction
  • Weather-resistant coating on outer tube and zinc inner tube
  • Screw-nut stop prevents damage to screw and/or nut when jack is fully extended
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Drop leg increases overall extension for maximum adjustability
  • Direct-weld design
  • Heavy-duty footplate included
  • ASABE compliant


Specs:

  • Bracket height:
    • 25-1/16" Retracted
    • 53-9/16" Extended
  • Total lift: 28-1/2"
    • Travel: 15"
    • Drop leg: 13-1/2"
  • Tubing width: 2-1/2"
  • Handle radius: 8-1/2"
  • Lift capacity: 5,000 lbs
  • Static capacity: 8,000 lbs
  • Limited 5-year warranty


190754 Bulldog Square Direct Weld Jack with Drop Leg, Sidewind, 15" Travel, 5,000 lbs - SWL 190 DL-BQ




California residents: click here



Customer Reviews

Bulldog Square Jack w/ Footplate - Drop Leg - Sidewind - 28-1/2" Lift - 5,000 lbs - BD190754

Average Customer Rating:  4.9 out of 5 stars   (76 Customer Reviews)

Drop leg, compact jack with heavy-duty footplate base welds directly onto your application and offers superior side-load strength in a tight-fitting package. Includes sidewind crank and has 25-1/16" retracted height.

- BD190754
by:

Needed to replace a jack that have been ruined by someone who didn't understand the concept of a drop foot. After a couple local stops looking for a replacement at Farm Stores I decided to go to etrailer again. I've used them many times in the past and I don't know what I was thinking by driving around. I needed a very exact application tongue jack. Etrailer had all of the Bulldog line and I easily found what I needed. Shipping was fast. I'm a big fan of etrailer



- BD190754
by:

Fast delivery and the jack is just what I needed.



- BD190754
by:

Heavy duty weld on jack! Bulldog is boss



- BD190754
by:

I called in for support regarding this product, replacing a bulldog 2,000lb sidewinder jack originally supplied on my trailer. I wanted to upsize to this larger unit as the previous one was barely adequate. I discussed the dimensions and availability in stock. etrailer support was very helpful with the specs and ordering process. I received the item quickly and was exactly as presented at a great price. I cut the bracket from my old unit, mig welded it onto this new unit and it works like a charm. Definitely a positive experience. Highly recommended to buy from etrailer!



- BD190754
by:

Order was on time and in good condition.



- BD190754
by:

Works great.



- BD190754
by:

All the products I have purchased from Etrailer have been good. Quailty, durable products, fast shipping and easy transactions. Etrailer.com has pretty much any product you need for your trailers. Thank you Etrailer!



- BD190754
by:

This is the second one of these that I have purchased. They are great. Heavy duty. Etrailer has FAST SHIPPING and GREAT PRICES!



- BD190754
by:

The Bulldog jacks we are great. Easy to assemble and use. They are also very durable.



- BD190754
by:

As described and arrived quickly.



- BD190754
by:

Every time I call with an order Karen is amazing! She is the friendliest and most helpful associate I've dealt with.



- BD190754
by:

Product is great


Comments
great
Chris g - 05/18/2015



- BD190754
by:

Great company to do business with. No has the and a fast ship. I look forward to more items from this great company.



- BD190754
by:



- BD190754
by:

Good price, item was a described and was received quickly. Thank you



- BD190754
by:

Worked as promised.



- BD190754
by:



- BD190754
by:

Excellent



- BD190754
by:



- BD190754
by:

Absolutely perfect transaction, incredibly fast shipping. I would recommend highly



- BD190754
by:



- BD190754
by:

Just what I needed



- BD190754
by:



- BD190754
by:



- BD190754
by:

great


25
76
Show More Reviews

Ask the Experts about this Bulldog Trailer Jack

  • How Does the Bulldog Square Jack w/ Footplate Install
    The Bulldog Jack part # BD190754 that you referenced would get welded on for installation. It can be welded on in various positions and setup, but I attached a picture of what a similar jack would look like welded on.
    view full answer...
    Image 1 for Image 2 for
  • Recommended Square Bulldog Jack with 5,000 lb Capacity
    The part number you gave is no longer a valid number for Bulldog jacks. It sounds like you are looking for the Bulldog Square Jack w/ Footplate - Drop Leg - Sidewind - 15" Lift - 5,000 lbs # BD190754. This has a 5,000 lb lift capacity and an 8,000 lb static capacity.
    view full answer...
  • Replacement Jack for Circle J 2-Horse Trailer
    We offer all types of trailer jacks that are shown on the linked page. These include a-frame tongue jacks like those supplied on many Circle J trailers I checked. These jacks are available in weight capacities from 750- to 5000-lbs. Just click on your preferred type using the filters on the page - sidewind or topwind - and whether or not you need a drop leg, and foot or wheel. You can also choose a jack based on how much lift it provides. For example, for a 3K-lift-rated sidewind jack...
    view full answer...
  • Pipe Mounts for 5K Bulldog Square Trailer Jack
    What you are describing is called a pipe mount for a swivel jack. We have some such as # BD500339. The inner tube diameter is 2 inches and it uses a 5/8 inch pin, # BD500231. If you need the other end that mounts to the trailer it is # BD015279.
    view full answer...
  • What is the Difference Between Lift and Support Capacity on a Trailer Jack
    The support capacity is how much a jack can hold whereas the lift capacity is how much a jack can lift. The Bulldog Square Jack w/ Footplate part # BD190754 has a 8,000 lb support and 5,000 lb lift capacity. If you will be using the jacks to lift and lower a trailer onto a hitch ball or kingpin then they will need to be chosen according to their lift capacity but if you are just using them to stabilizer or support a trailer then they can be chosen according to their support capacity. Generally...
    view full answer...
  • Electric Side Frame Mount Jack for Boat Trailer
    Congrats on your new boat and trailer and while there is an electric side frame mount jack, there is not a conversion kit that will allow you to turn the Bulldog Square Jack # BD190754 into a 12 volt jack. The best (and only) option to use an electric side frame mount jack is the Fulton XLT Powered Drive Trailer Jack - Drop Leg - Side Mount - 22" Lift - 2,500 lbs # F141401. This jack will simply bolt onto 3" to 5" trailer frames and wires to a 12 volt source like you were wanting. It...
    view full answer...
    Image 1 for
  • Difference Between Pro Series Trailer Jack # PS1400800383 and Bulldog Trailer Jacks
    I have not heard of any complaints from customers about the Pro Series Trailer Jacks. The # PS1400800383 jack features a zinc plated inner tube and the jack is constructed of steel. The Pro Series # PS1400800383 is comparable to the Bulldog Square Jack # BD190754. Both of these jacks have similar construction and have the same weight capacity of 8,000 lbs. The main reason for difference in price points for each jack is the warranty on the jacks. The Pro Series Jack has a 3 year warranty,...
    view full answer...
  • Can a Drill Adapter be Used on a Standard Type Trailer Jack Like the Bulldog BD190754
    The Bulldog Square Jack w/ Footplate part # BD190754 is a nice jack that lifts and lowers the trailer with out the need for a ton on force. This is caused by the nice gear set and the screw they use. With that said I can't recommend that you use a socket adapter like the Ultra-Fab Speed Socket Power Drill Adapter for Scissor Jacks part # UF48-979005 because it is outside of the typical use of the jack defined by the manufacturer. If you were to cut the handle of the jack, thread it,...
    view full answer...
  • Is There a Replacement Handle for the HD50000101 Fulton Square Jack
    I checked and unfortunately there is no replacement handle for the square tube Fulton Marine Jack # HD50000101. I realize this is not the news you are looking for, but the only option if your handle is broken is to replace the jack with a new one. This is the only available 5,000 lb, bolt-on side-frame jack so you can replace it with the same model or you can choose a new, weld-on model, the Bulldog Square Jack # BD190754. I have added links for video reviews for you to check out as well.
    view full answer...
  • Bulldog Jack # BD190754 Handle Replacement Recommendation
    Yes, the Replacement Sidewind Handle # BD500171 that you referenced is designed to fit the 190 series Bulldog jacks like the part # BD190754 that you have so it would work well for you.
    view full answer...
  • Replacement Gear Set for Pro Series 1400850383 and Bulldog BD190754 5K Capacity Trailer Jack
    The Pro Series # PS1400850383 uses the same replacement gear set as the Bulldog # BD190754. The replacement gear set you need is part # BD500106. I've linked to a video showing the typical rebuild procedure. The video shows a different jack, but the procedure for your Pro Series jack would be similar. Simply use the provided link to purchase the replacement gear set.
    view full answer...
  • Comparing Bulldog and Pro Series 8K Trailer Jacks
    The Bulldog jack # BD190754 is comparable to the Pro Series jack, # PS1400850383, that you have referenced. They have the same specs, lift height, and capacity. Both are sidewind jacks and are designed to be welded on. The Pro Series jack has a high customer rating. I think you will be happy with its performance.
    view full answer...
  • Replacement Drop Leg Pull Pin for Bulldog Square Sidewind Jack
    It sounds like you've probably got the Bulldog Square Jack w/ Footplate - Drop Leg - Sidewind - 28-1/2" Lift - 5,000 lbs # BD190754, so the Replacement Drop Leg Pull Pin Assembly - 9/16 x 2.75" # BD500338 is the correct replacement pin for you.
    view full answer...
  • Replacement Cap Recommendation for Bulldog Square Jack # BD500205
    You are looking for the Bulldog replacement cap part # BD500205 for your Bulldog Jack part # BD190754.
    view full answer...
  • Is the Bulldog BD178203 Compatible with the Fastway Flip Foot
    I have a solution for you, but the Bulldog Round, Pipe-Mount Swivel Jack - Sidewind - 15" Lift - 5,000 lbs # BD178203 is not compatible with the Fastway Flip Foot # FA88-00-4500 since the leg and inner tube are a single piece. Instead, you'd need to use a jack that had a removable foot on the drop leg like the Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-5/8" Lift - 5,000 lbs # PS1401600383 or the Bulldog Square Jack w/ Footplate - Drop Leg - Sidewind - 28-1/2" Lift...
    view full answer...
  • Is Pro Series PS1401600383 5000 lb Weld on Drop Leg Jack Still Available
    We do indeed offer the Pro Series # PS1401600383 square jack. We also offer a nearly identical jack from Bulldog as part # BD190754, which features a more corrosion resistant coating versus the powder coat on the Pro Series model, as well as a zinc plated foot plate versus the powder coated foot on the Pro Series. I've linked to product videos for both jacks.
    view full answer...
