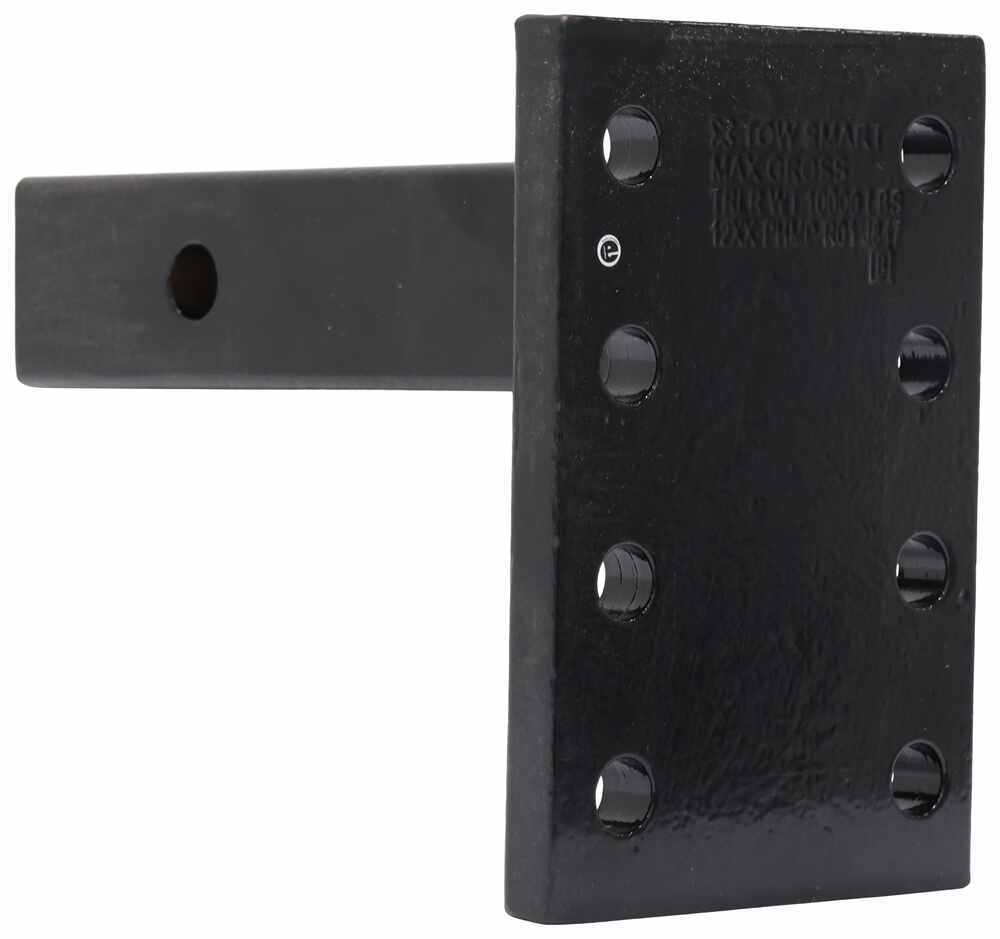

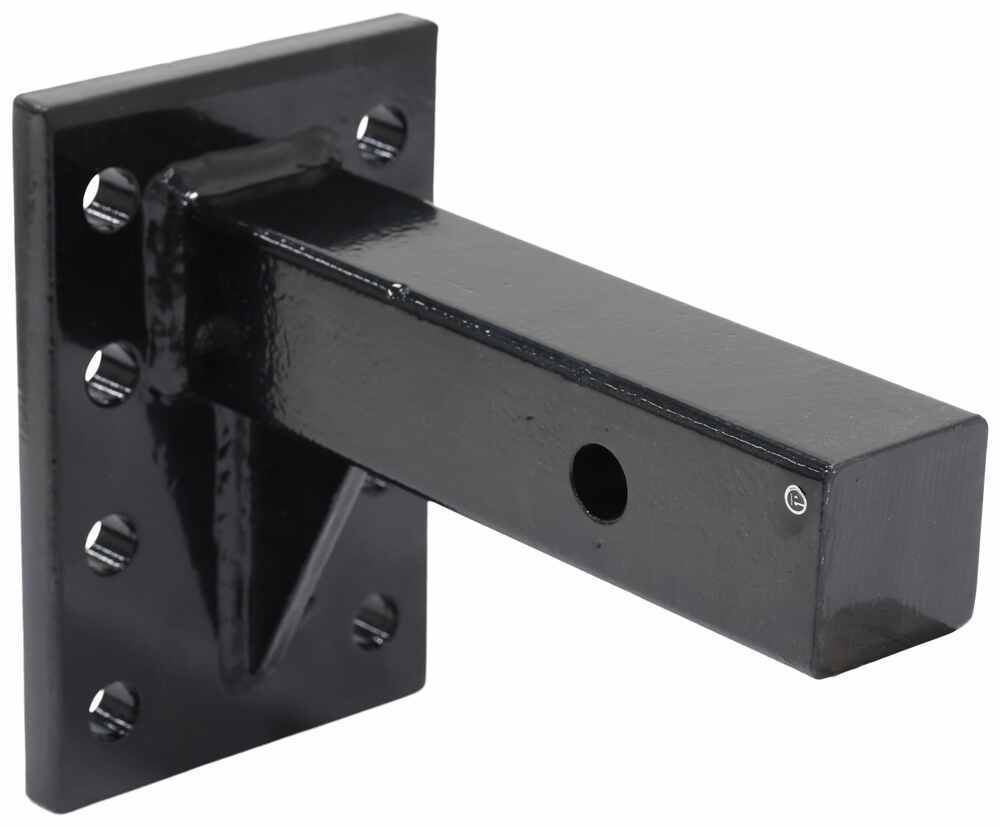

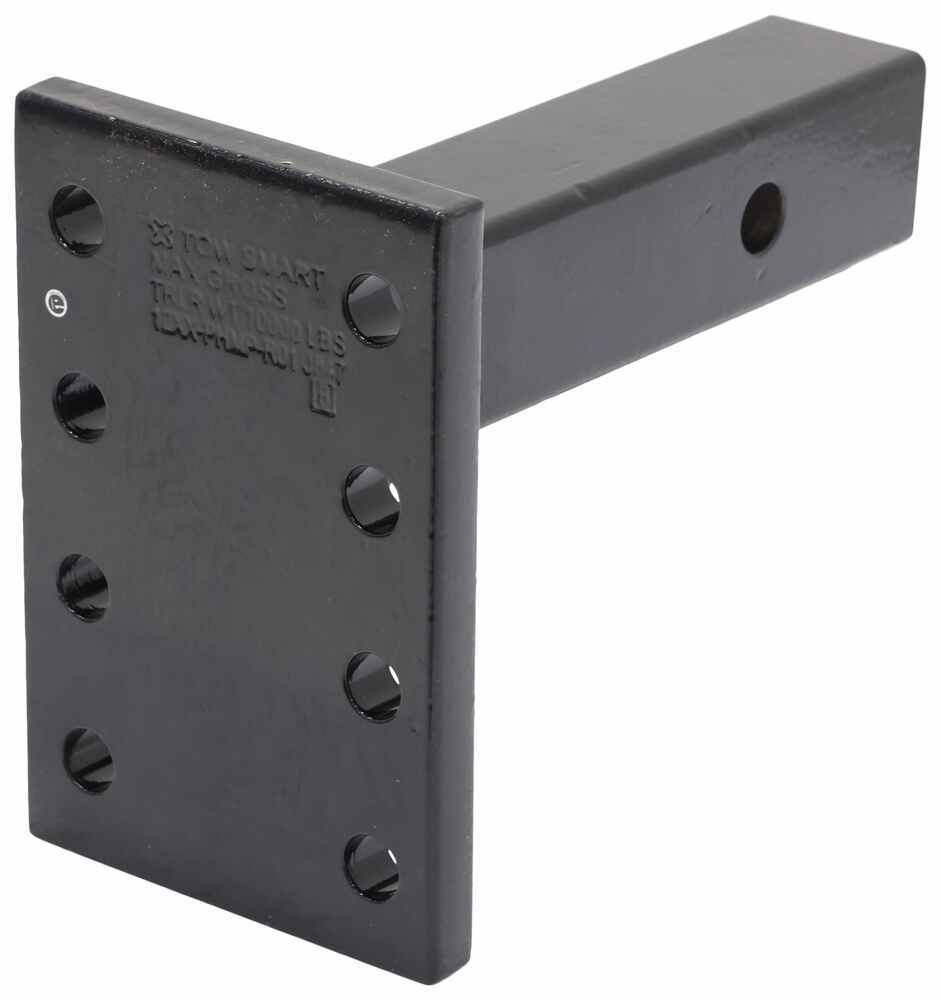

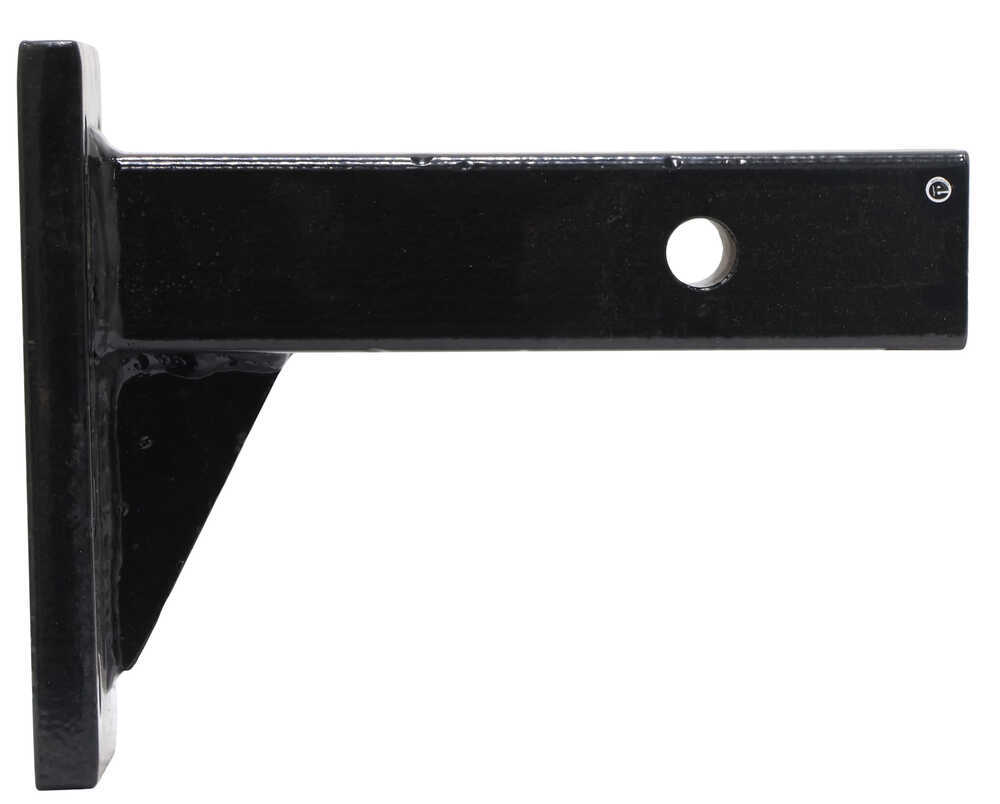

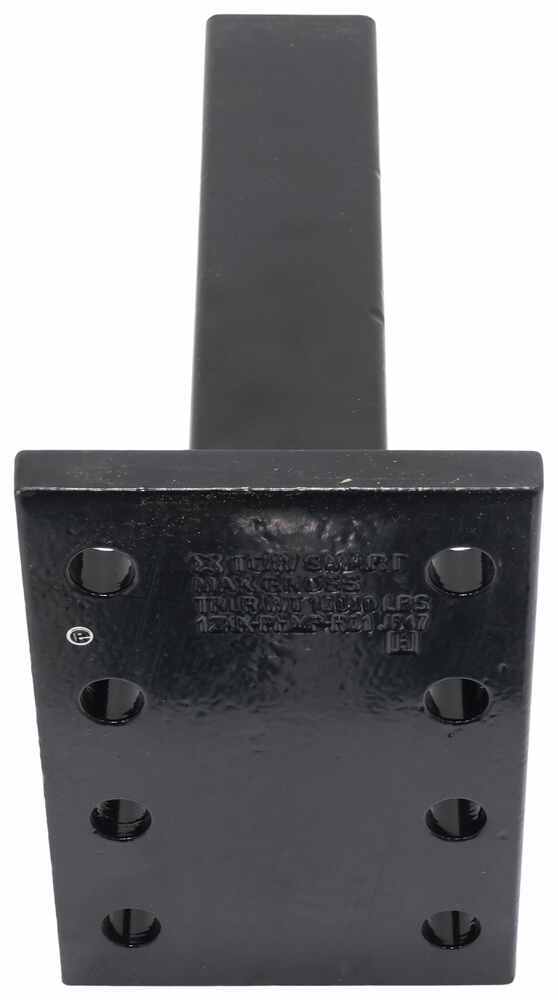

TowSmart Pintle Hook Mounting Plate for 2" Hitches - 6" Shank - 8 Hole - 10,000 lbs
TowSmart

TowSmart Pintle Hook Mounting Plate for 2" Hitches - 6" Shank - 8 Hole - 10,000 lbs

Part Number: TS53FR
In Stock
$51.35
Pintle Hitch
Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Videos

Need help with installation?
Locate installers near me
The 8 holes in this pintle plate provide 3 different mounting positions for your pintle hitch so that you can match your trailer height. The shank slides inside your 2" x 2" hitch receiver. Black powder coat finish is corrosion resistant. Great Prices for the best pintle hitch from TowSmart. TowSmart Pintle Hook Mounting Plate for 2" Hitches - 6" Shank - 8 Hole - 10,000 lbs part number TS53FR can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (1)
  • Q & A (0)
  • Videos (1)
  • Photos

TowSmart Pintle Hitch - TS53FR

  • Pintle Mounting Plate
  • 2 Inch Hitch Mount
  • 10000 lbs GTW
  • TowSmart
  • 8 Holes
  • Standard Shank

The 8 holes in this pintle plate provide 3 different mounting positions for your pintle hitch so that you can match your trailer height. The shank slides inside your 2" x 2" hitch receiver. Black powder coat finish is corrosion resistant.


Features:

  • Hitch-mounted adapter plate provides a mounting point for a pintle hook (sold separately)
  • 3 Positions let you customize the height of the pintle
    • Plate can be used in the drop or the rise position
  • Sturdy steel construction
  • Durable, black powder coat finish
  • Hitch pin and clip or hitch lock sold separately


Specs:

  • Application: 2" x 2" trailer hitch receivers
  • Weight capacity: 10,000 lbs
  • Mounting plate dimensions: 7" tall x 5" wide
  • Shank length: 6-1/2" from center of hitch pin hole to mounting plate
  • Pin hole diameter: 5/8"
  • Mounting holes on center: 3-1/2" x 1-3/4"
  • 1-Year limited warranty


1201 Tow Smart Adjustable Pintle Mount for 2 Inch Hitch Receivers - 3 Position - 10K




California residents: click here


Video of TowSmart Pintle Hook Mounting Plate for 2" Hitches - 6" Shank - 8 Hole - 10,000 lbs

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Review of TowSmart Pintle Hitch - Pintle Mounting Plate - TS53FR

Hello neighbors, Steven here with etrailer.com. Let's take a look at our TowSmart pintle hook mounting plate for your two inch hitches. It's got a six inch long shank and it's eight holes on the mounting plate, rated at 10,000 pounds. So folks, this hitch mounted adapter plate is gonna provide a nice mounting point for a pintle hook, which will be sold separately. Now that pintle hook's gonna come with bolts needed to bolt it onto this front plate. The plate is heavy duty steel is durable black powder coat on the finish and it's gonna give you three positions because two holes is gonna be one position.

Now you will need a hitch pin and clip that's sold separately. That's gonna be a five eighth inch pin hole. The mounting holes here are your standard three and a half, center to center, one and three quarter inches center to center on the height, the mounting plate is five by seven, and I was getting about six and a half inches when I measured from the center of the pinhole to the front face of the plate. So it's six inches from the center to the back of the plate, so six and a half inches overall to that nine hole. Once again, it's rated at 10,000 pounds, and it works with a two inch by two inch trailer hitch receiver.

Folks, I'm Steven, that's gonna wrap it up. Just a quick look today, thanks for joining me.
