Proportional brake controller automatically levels when mounted within a 70-degree vertical range. Includes digital display, 3 boost levels, battery protection and continuous diagnostics. Easily transfer between different automobiles. and using this brake controller simple and easy. You get high performance for a low price!
With a proportional brake controller, you can get heavy-duty emergency braking, general braking or slow-to-an-idle braking for your trailer automatically. The intensity with which your trailer brakes are activated and the rate at which they are applied are dependent on the deceleration of your tow vehicle. This means that, unlike time-delay controllers - which send the same amount of preset power to your trailer brakes every time - proportional controllers are able to adapt to every braking situation differently. So, if you slam on the brakes in your truck, your trailer brakes will activate with that same extreme intensity. And if you merely slow down as you approach a red light, your trailer will gradually brake in the same manner. Just set the initial power level, select a boost setting, and you're good to go.
As long as the Prodigy controller is mounted properly and is pointed in the direction of travel, it will sense - via an internal inertia sensor - how your tow vehicle brakes. This inertia-based sensor responds to the deceleration of your tow vehicle as you brake by signaling the controller to send out enough power to your trailer brakes so that they are activated with an intensity that matches. The result is uniform braking across your towing setup. No push-pull action - just smooth, proportional braking every time.
Aside from smoother, more efficient braking, Tekonsha's Prodigy brake controller also offers a boost feature that gives you more initial braking power for those times when you're towing heavy loads. You can switch boost levels so that the power output to your trailer brakes automatically starts out at either 13 percent or 25 percent of the predetermined power setting.
So, if you boost the initial power so that your trailer brakes activate with 25 percent of the overall intensity at the start, the brakes will reach maximum braking faster. This is particularly beneficial if you are towing a heavy load because the intensity required to stop that load may be far greater than that needed to halt your vehicle. Therefore, sending out more initial power to the trailer brakes - and causing them to reach maximum braking faster - allows you to better control the trailer so that it doesn't push your tow vehicle before coming to a complete stop.
If your trailer weighs less than your tow vehicle, no boost is needed. But if you wish to set the boost so that your trailer leads the braking of your towing setup, you can select level B1. The following table gives an indication of when you might use the different boost levels and the power increases that they offer.
|Approximate Gross Trailer Weight||Boost Level||Increase in Initial Power Output|
|Less than tow vehicle GVW||B1||13%|
|Equal to tow vehicle GVW||B1 or B2||13% or 25%|
|Up to 25% more than tow vehicle GVW||B2 or B3*||25%|
|Up to 40% more than tow vehicle GVW||B3*||25%|
*Both B2 and B3 offer a 25-percent boost in initial power. But the braking curve for B3 is more aggressive than that of B2. This means that, even though you will start out with the same intensity when using these boost levels, you will get an overall more aggressive braking experience with the higher level. So if you use B3, you will reach maximum braking sooner than if you use B2.
The Prodigy offers advanced safety features to prevent damage to various components of your towing setup. When the controller is not in use, it will be in power-saving mode. In this setting, the power draw falls to only 3.6 milliamps, minimizing drain on your vehicle's battery.
When you stop at red lights, or any time that your truck and trailer are at a standstill with the brakes applied for more than 5 seconds, the Prodigy's "hold" feature will activate. When this happens, the power output to your trailer's brakes will be reduced to just 25 percent of the preset power setting so that the brakes will not overheat.
If ever there is a time that you need to brake your trailer separately from your tow vehicle - when traveling down a steep incline, for example - the manual override lever is easily accessible. Pushing this lever engages the brakes on your trailer with full power. In addition, when you activate this override, the brake lights on your trailer will illuminate, properly warning those behind you of the braking action of your rig.
In addition to all of those safety features listed above, the Prodigy offers diagnostics such as:
The self-leveling feature of the Prodigy ensures that the brake controller continues to function even as you drive up steep hills or through the mountains. Simply mount it in your cab at a vertical angle that is between 0 degrees (level) and 70 degrees, and the controller will level itself automatically.
Note: The Prodigy must be mounted on a level horizontal (side-to-side) plane and must be lined up with the direction of travel for the internal sensor to function properly.
Installation is a snap. After mounting the Prodigy unit in your cab using the included pocket mount, hardwire one end of the included pigtail harness directly into your vehicle. The other end plugs into the brake controller. To transfer the Prodigy to another vehicle or to remove it for storage, just unplug the unit and slide it out of the pocket mount.
For even easier installation, a vehicle-specific wiring adapter (sold separately) is available for most newer trucks and SUVs. One end of the custom adapter plugs into your vehicle, and the other end plugs into the controller - no hardwiring required.
Note: If a custom brake-control wiring adapter is not available for your vehicle, one of the following will be required:
20-Amp circuit breaker (9506P - sold separately) for 2- to 4-brake applications
30-Amp circuit breaker (38630 - sold separately) for 6- to 8-brake applications
See also etrailer.com's exclusive 7- and 4-way brake-control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your vehicle.
Video of Tekonsha Prodigy Trailer Brake Controller - 1 to 4 Axles - Proportional
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

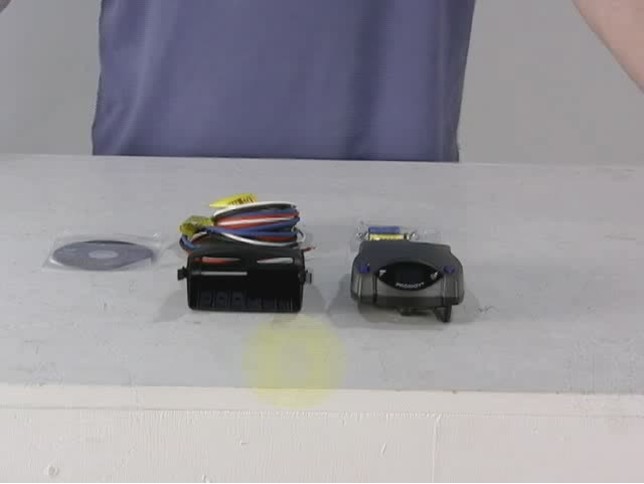

Today we are going to show you part number 90185 from Tekonsha. This is their Prodigy controller right here. This is actually Tekonshas most popular brake controller, the Prodigy. And this is what you get in the box. Obviously you get the brake controller itself. Then you get the pocket that holds the brake controller especially if you have to transport it between 2 different vehicles. You also get the permanent mounting bracket which is actually nice and takes up less room. You also get the hardware to install the brake controller to the dash and to the bracket. A few butt connectors are in there to use for any wire connections. Speaking of wiring, it comes with a universal wiring harness that will plug into the back of the brake controller then you run your lines to the various circuits in the vehicle. Also to help you out it comes with a little informational DVD.
What we will show you next is the actual pocket that you can install on the vehicle, it actually mounts up like this. The brake control simply just slides inside. Spread the little clips out a little bit and it goes into the screw holes and that pretty much holds everything in place. On the backside here is where the harness plugs into. It is pretty simple. Slip it underneath the holder and you just push it together and it snaps in place. So in other words, if your are going to go ahead and share this brake controller between two different vehicles, you just simply take it our of the pocket, pull it out of the pocket, and take the harness back off of this little clip that is kind of hard to see. Pull that clip back and it pops off. And then this stays in your truck and the brake controller stays out of the way when you are not using it. Next we will show you the unit in operation.
That means, obviously, it is not hooked up to a trailer. And what this does is actually send out a trace current all the time looking for a connection. It does not take much current, it is real slight and it will never drain down the battery. Once you do have a trailer hooked up, it will show a C for connection. That tells you you have a solid connection between your trailer brakes and everything should be working fine. And with talking about the power settings and the gain, that is controlled by this knob right here. And what you can do is put it over to the middle here and you can spool it towards the front of the vehicle, that will be basically full on, and then rotate it back towards the rear of your vehicle, towards the driver seat. And then, you can spool it down all the way to basically nothing. Basically, you want to set to probably somewhere in the middle, like around six. And then you take your trailer, hook it up, go on a back road somewhere or a big packing lot and take a few test runs. If you need more power you can spin the wheel up. Basically you want to spin it up before a brake or right before the wheels actually lock up. And then, if it locks up at the original setting, then you just spool it back down just a little bit. And then again you want to get it right before lock up. And then you leave your setting alone and basically the brake controller takes care of the rest.
And when installing the brake controller, you have about 70 degrees of movement. So it can be from about roughly about here to about here of angle you have to install on the brake controller. And if you do go past these angles you will see two bars flashing at the bottom there, that tells you that it is pointing down too far. The same thing will apply if you put it up too far, we will say about 90 degrees. It will take a few seconds to show the bars on top too. And then to show you how this works, basically the brake controller works by inertia. There is a little pendulum of movement inside here that actually, when you hit your brakes, it actually slides to the front of the vehicle. The more that pendulum moves towards the front, the more power this brake controller puts out. And then, say you hit your brakes pretty hard it is going to apply the brakes pretty hard.
If you let off the brakes gradually, this will follow in turn. When you hit your brakes, if you have one of the boost settings set on it, it will come on. Again it will say like B2, it will come on 25 percent, almost instantly. And then, it will hold that power for a second and then it will revert back to inertia so you have smooth braking until you come to a complete stop. The boost setting is really nice if you want the brake controller to activate the brake, or the truck actually does a lot of its own braking power. It is kind of hard to show the inertia activated on this brake controller but we will try. Basically, we will just move it a little bit, make the pendulum work and you can see how it puts out numbers and goes back to zero once it is stopped. So you are connected and then you hit your brakes and it is saying zero right now because it does not sense anything. And then, when you back up, it will fill up a little bit with numbers and then go back to zero. And there you have it for part number 90185, the Tekonsha Prodigy brake controller.
