Install your electric brake controller quickly and easily with this custom wiring adapter. Simply plug one end of the adapter into your brake controller and then plug the other end into the built-in harness beneath your vehicle's dash. Call 800-298-8924 to order Tekonsha Accessories and Parts part number 3020-P or order online at etrailer.com. Free expert support on all Tekonsha products. Guaranteed Lowest Price and Fastest Shipping for Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers - Dodge. Accessories and Parts reviews from real customers.
$14.99

Shop by Vehicle



Accessories and Parts > Brake Controller > Accessories > Brake Controller Wiring > Plugs into Brake Controller > Wiring > Tekonsha


Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers - Dodge

Tekonsha Accessories and Parts

(224 reviews)


Code:   3020-P

Price:$14.99


Shipping Special

Shipping Weight: 0.22 pounds

Quantity:






Tekonsha Accessories and Parts - 3020-P

Install your electric brake controller quickly and easily with this custom wiring adapter. Simply plug one end of the adapter into your brake controller and then plug the other end into the built-in harness beneath your vehicle's dash.

Features:

  • Adapter is wired for:
    • 1995-2009 Dodge Ram 1500/2500/3500, Full Size, all models
    • 1997-2011 Dodge Dakota Pickup w/Factory Tow Package
    • 1998-2009 Dodge Durango w/Factory Tow Package
    • 2007-2009 Chrysler Aspen w/Factory Tow Package
  • Wiring adapter eases installation of your electric brake controller
  • Custom connector end plugs into the built-in port beneath the dash of your vehicle
  • Other end plugs into the back of your electric brake controller
    • Compatible time-delayed brake controllers: Draw-Tite Activator I (5100), Draw-Tite Activator II (5500), Draw-Tite Activator III (5520) and Tekonsha PowerTrac (39523)
    • Compatible proportional brake controllers: Tekonsha Prodigy (90185), Tekonsha P2 (90885), Tekonsha P3 (90195), Tekonsha Primus IQ (TK90160) and Tekonsha Voyager (39510)
  • Limited 1-year warranty


Installation of Tekonsha Brake Controller Adapter

This adapter plugs into the 4-pin connector on your vehicle's built-in brake control wiring harness. The harness is located underneath the dash, to the left of the steering column, taped to another harness near the emergency brake pedal.


To install your electric brake controller you need to connect the wiring of the controller to your vehicle. Certain manufacturers offer pre-wired options, typically known as tow packages, wherein these wires are run for you from the dash to the trailer connector on the back of your vehicle. Often, a brake controller wiring harness is included with your tow package. This harness plugs into a port beneath your dash and connects to the four wires of the brake controller. If, however, you have a brake controller with a plug in place of the four loose wires, you can use the Tekonsha adapter.


This adapter requires no hardwiring. It is designed to plug directly into your electric brake controller for the simplest installation possible. Because there are no wires to connect, installation is not permanent. You can unplug and remove your brake controller at any time and securely stow it away.



3020-P Tekonsha Brake Control Wiring Adapter with 2 Plugs





Video of Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers - Dodge


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

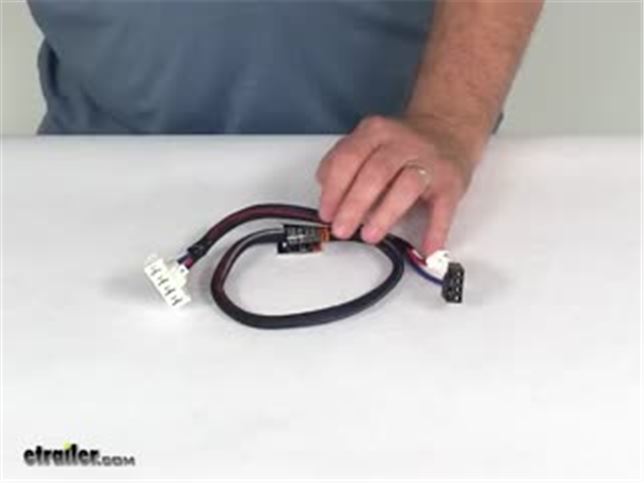

Video Demo Tekonsha Accessories and Parts 3020 P
Tekonsha Accessories and Parts 3020-P Review
Video review tekonsha plug in wiring adapter 3020 p
Tekonsha Plug-In Wiring Adapter Review
Video Brake controller Install 2003 Dodge Dakota
Trailer Brake Controller Installation - 2003 Dodge Dakota
Video Brake controller install 2009 Dodge ram 3500
Trailer Brake Controller Installation - 2009 Dodge Ram Pickup
Video install brake controller 2009 dodge ram 1500
Trailer Brake Controller Installation - 2009 Dodge Ram 1500
Video install tekonsha prodigy p2 trailer brake controller 2008 dodge ram pickup 90885
Trailer Brake Controller Installation - 2008 Dodge Ram Pickup
Video install brake controller 2006 dodge ram 90195 3020 p
Trailer Brake Controller Installation - 2006 Dodge Ram
Video install brake controller 2005 dodge ram 3500 90885
Brake Controller Installation - 2005 Dodge Ram 3500
Video brake controller install 1999 Dodge Pickup
Trailer Brake Controller Installation - 1999 Dodge Pickup

Video Transcript for Tekonsha Accessories and Parts 3020-P Review

Today we're looking at part number 3020-P. This is the Tekonsha plug-in wiring adapter for electric brake controllers. It fits Dodge trucks, 1995-2009 Ram full size, all models; the 1997-2011 Dodge Dakota pickup with factory tow package; the 1998-2009 Dodge Durango with factory tow package; and the 2007-2009 Chrysler Aspen with factory tow package. This is a fast and easy way to provide power to your brake controller. It could not be easier. You simply plug the black plug into the back of your brake controller, and the white one goes into the brake controller port that's under your dashboard.

The cord itself is about 30" long. This product is compatible with both time-delay and proportional brake controllers, and it fits most Draw-Tite and Tekonsha products. It comes with a limited 1-year warranty. And there you have it for part number 3020-P, the Tekonsha plug-in wiring adapter for electric brake controllers.
