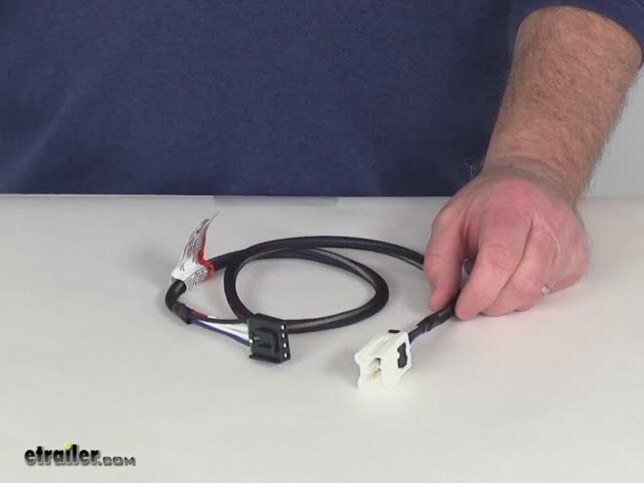

Install your electric brake controller quickly and easily with this custom wiring adapter. Simply plug one end of the adapter into your brake controller and then plug the other end into the junction box beneath your vehicle's dashboard.
Features:
This adapter plugs into the 6-pin connector on your vehicle's built-in brake control wiring harness. The harness is located underneath the dash, to the left of the steering column, taped to another harness near the emergency brake pedal.
To install your electric brake controller you need to connect the wiring of the controller to your vehicle. Certain manufacturers offer pre-wired options, typically known as tow packages, wherein these wires are run for you from the dash to the trailer connector on the back of your vehicle. Often, a brake controller wiring harness is included with your tow package. This harness plugs into a port beneath your dash and connects to the four wires of the brake controller. If, however, you have a brake controller with a plug in place of the four loose wires, you can use the Tekonsha adapter.
This adapter requires no hardwiring. It is designed to plug directly into your electric brake controller for the simplest installation possible. Because there are no wires to connect, installation is not permanent. You can unplug and remove your brake controller at any time and securely stow it away.
Video of Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers - Nissan and Infiniti
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Today in this 2011 Nissan Pathfinder we're going to install part number 39510 from Tekonsha. This isthe Voyager trailer brake controller.This vehicles already been equipped with a 4-pole wiring packaging from the factory. To add ourbrake controller and connector, we're basically going to just fill in the blanks. We're going to start offunderneath the dash. We're going to locate the tow package port underneath the dashboard whichis going to be just right of the steering wheel, behind the dash, and also a little bit above thediagnostic port.We'll go ahead and take the adapter cord and plug it into the brake controller, and then we'll goahead and plug it into the port underneath the dash. The part number for our adapter cord will be3050-P.
With all the brake controller wires plugged together, we'll go ahead and add the bracket tothe dashboard underneath. We're going to locate it next to the diagnostic port, just a little bit to theleft of it. We'll use two screws to attach the bracket to the dashboard.Next we'll pre-drill the holes in our brake controller to accept the hardware; we'll install the brakecontroller to your bracket using four more screws; and then we'll go ahead and take a moment to ziptie our wires and make sure they're safe and out of the way. Then we can go to the back of thevehicle. Thats where we're going to go ahead and add our 7-pole connector to the back of thevehicle.
Thats going to be part number 37185. We're going to take the bracket and hold it to thebottom of the hitch. Theres an existing weld nut we're going to use to fasten it to the hitch. We'llhold it up there, make a mark on the bracket, and then we'll go ahead and drill it out to a 3/8 hole.We'll take our bracket back to the vehicle and attach it to the hitch, using an 8 mm bolt, the 1.25thread hitch; then we'll go and add our 7-pole connector. On the 4-pole end of it we're going toapply some dielectric grease and then attach it to the factory 4-pole.
We're going to run a zip tiethrough the wires to make it a semi-permanent connection. We'll take a moment to tape up ourwires and also add our loom material to help protect some of the wires and make it look nice.At this point we'll go ahead and connect the 7-pole to the bracket, and then we're going to add alength of wire to it about 3 or 4, part number 10-2-1. We'll cut the sheath back and we'll have ablack and a white wire. We'll run our black wire to the black wire on the 7-pole connector and ourwhite wire to the blue wire on 7-pole connector. We'll crimp those down and then use some tape tohelp protect them.There are two remaining wires left.
Therell be a white wire for the ring terminal and a purple wirefor the buck connector. We're going to tape those two wires to our grey cable, and we'll run thosewires along with the grey cable. Now we're going to route our cables over to the end of the towpackage which is located next to the spare tire. We'll measure a length of a grey duplex cable weneed and cut the excess off; then we'll strip back to the sheath of the grey cable, exposing the wireswe'll need later. Then we can take the white wire with your ring terminal and ground it to the frame.The self-tapping screw we'll be using will be part number SA1131822.We're going to look for a connector thats at the end of our tow package. We've got a smallconnector with two wires going to it. There will be a brown wire and a purple wire going to it. Now,we dont have a connector to match that, so well rotate the connector and remove it from thewires; then we'll go ahead and crimp our wires from our grey cable to those two wires. We'll use abuck connector to make those connections. Our part number for our buck connectors we'll be usingwill be part number 05732-2.We're going to connect this as follows. Our white wire which will be our brake controller output isgoing to connect up to the brown wire; and then our other wire, a black wire, will connect up to thepurple wire. Thatll be our 12 volt power supply. We'll go ahead and tape up our connections and ziptie our wires safe and out of the way.All our connections are done at the back of the vehicle; now we'll go underneath the hood and wehave to add one relay to power our 12 volt power supply. Theres a relay box closest to the battery.We'll remove the lid and you'll see that theres two relays already installed, and therell be an opensocket for an additional relay. We'll install the relay for our 12 volt power supply, and thats going tobe part number V38937-1.With all of our connections made, we'll go ahead and test out the brake controller. We'll plug atrailer into it and you'll see that the LED on top will turn from off to a green color; and then we'll usethe manual override. You'll see that goes from a green, to a yellow, to a red that shows the manualoutput works. Now we'll go ahead and try the foot brake. We have to make the level in the brakecontroller a little bit more aggressive, so we can see it work. Push down the brake pedal and you cansee that turns from a green to an orange.And with that, thatll finish it for our install of our Voyager brake controller on our 2011 NissanPathfinder.
Customers compare 3050-P to these similar products
Customers who look at this part also view
Customers Who Purchased This Accessories and Parts Also Bought...
Average Customer Rating:
5.0 out of 5 stars (49 Customer Reviews)
by: Brian07/25/2012
Is this review helpful?
I have a 2005 Nissan Titan with factory tow package. The connector was a perfect fit and long enough to mount underneath the dashboard to my right. The factory installed pigtail is located under the dash above the emergency brake pedal. It's actually marked with a tag that says "brake controller". 49268
by: Al R.07/20/2012
Is this review helpful?
Excellent harness! Just like the factory if not exceeds the OEM. I got the P3 brake controller with the Nissan Harness and it just pluged right in and done. Took me 15 minutes just to mount the controller where I wanted it. Otherwise it is a breeze. No need to have it sent to the dealer or garage to have this installed. Do it yourself!!!! The controller comes with everything you need to install it. I highly recomment getting the wire harness. well worth the money and no aggravation in splicing and running wires. 48618
by: Scott02/11/2012
Is this review helpful?
Plug and play! Easy as it gets. 31436
by: Ed S.07/18/2011
Is this review helpful?
Plugs right in to stock plug under dash of Titan. Then just plug into Prodigy Tekonsha controler and your done.19649
by: Phil02/16/2011
Is this review helpful?
simple plug and play install on my qx56. good quality connectors with wire wrapped up nice and neat.7242
by: Dave R05/14/2013
Is this review helpful?
Installed in 2013 Frontier Kingcab with 7-wire Nissan factory harness. With the Tekonsha wiring adapter it simply plugged-in, cable-tied to the under-dash wiring and was done. Rather than drill the dash for the mount, the mounting bracket was velcro'ed (adhesive backed) to the flat area between the seats (slightly under the dash). See attached picture. Appears to be functioning well with no issues.80178
by: Slade Foster05/09/2013
Is this review helpful?
Plugged right in - easy as pie. 79686
by: Omar05/04/2013
Is this review helpful?
Great product. Works well on my QX 56. Plug and play with the P3 that I also got from you. Excellent service! Will buy more stuff from this company...78946
by: Susanne04/19/2013
Is this review helpful?
Great item!! 76970
by: Michael02/27/2013
Is this review helpful?
The 2013 Nissan Pathfinder is redesigned. The SL is tow ready. Paige at etrailer did some research and suggested a connecter for the brake controller. I followed her advice and got the right one. Thanks Paige, Mike67908
by: Mark02/26/2013
Is this review helpful?
I'm very happy with the service I recieved for the break control and wire harness. Here's a picture of it installed in a 2012 Nissian Fronteir. Thank you. Mark R.67856
by: PATRICK01/29/2013
Is this review helpful?
The trailer dealership wanted $350 bucks to install a lesser brake controller in my wifes armada. This was sooo easy to install with the harness ( vehicle harness needs to be bought separately from etrailer for cheap). What an easy install for leas than half the price of having the dealer install. Thanks guys. Patrick64536
by: Edwin01/28/2013
Is this review helpful?
Perfect fit and easy to install! 64288
by: Jerry D01/13/2013
Is this review helpful?
it's great to have a adapter that I can just plug into my wiring harness. The one that the auto company sells has to be spliced into the controller and cost twice as much. I love my adapter harness I got from etrailer62846
by: Jonathan t01/01/2013
Is this review helpful?
Made it a breezy to use, no connectors to splice into my harness from the factory, just plugged into the truck and I'm ready To tow. Also a piece of mind know there are no splices to fail between the harness and break controller. Dont skip out, it's a couple bucks more, but wroth it 62324
by: John G12/04/2012
Is this review helpful?
Just as described. Works great. Fast sh ipping.60620
by: Paul10/15/2012
Is this review helpful?
The product arrived in a timely manner. The item was as described. It fit my 06 Nissan Titan like original equipment.57285
by: Jeff D10/08/2012
Is this review helpful?
Took about 15 minutes to install on my Nissan Armada. Highly recommended as it will make your life easier!56704
by: Aaron A.10/03/2012
Is this review helpful?
Delivered right on time and installed with the brake controller in about 40 minutes. Thank you, etrailer!56263
by: Mike C.09/29/2012
Is this review helpful?
What a fantastic product! I ordered the Tekonsha P3 and the plug-in wiring adaptor for my 2009 Nisan Titan w/ tow package. With factory plugs at both ends, the wiring adaptor made the most difficult part of the project finding the right place to mount my new brake controller. The P3's adjustability allowed me to set the display color to one similar to my truck's instrument lighting creating a "factory" appearance to the installation. I haven't used this product for it's intended purpose yet (towing my to-be-delivered toy hauler), but I have used it to tow my parent's new travel trailer. A wide range of adjustability at a fantastic price make this a product I would recommend. Additionally, I was so impressed with ETrailer that I immediately ordered the Teconsha P3 and a complete wiring harness for my parent's 1999 Toyota Tacoma from them as well.56132
by: Nick09/19/2012
Is this review helpful?
Made installation a breeze--just plug one end in vehicle and the other in the brake controller, mount the controller, and you're done!55151
by: Al K.09/12/2012
Is this review helpful?
Makes for a very easy install. 54478
by: John W.09/01/2012
Is this review helpful?
I bought this as a package with my brake module. Didn't even remove the tywrap. plugged everything in and it works!53747
by: Brad M08/17/2012
Is this review helpful?
Product is basic... Service from eTrailer is EXCELLENT! Gold medal service from everyone. 52007
by: Sam M.08/08/2012
Is this review helpful?
worked great! 51054
by: Wendell C.07/26/2012
Is this review helpful?
The harness was shipped quickly, and was a snap to install. 15 minutes including time to mount the controller on the dash! Saved the hassle of having to connect 2 separate "harness halves" from Nissan and Tekonsha! Thanks for the excellent FAST service!!49431
by: George07/06/2012
Is this review helpful?
Much, much simpler to have a "plug & Play" than to do the wiring yourself. Excellent product and above excellent staff.46919
by: Jerry R.06/11/2012
Is this review helpful?
Shopping at etrailer couldn't have been easier or any better. The website was easy to navigate (found my part easily). The part must have shipped that same afternoon as quickly as I got it. I'll certainly be back for any and all my trailer/towing needs.43729
by: Tim Davis05/10/2012
Is this review helpful?
Special Nissan electric pig tail plug right in.40014
by: Tim Davis05/10/2012
Is this review helpful?
Just what the electric brake control said it was and the special Nissan electric pig tail plug right in.40013
by: Russ Z05/01/2012
Is this review helpful?
Great Product- simple installation- everything as promised!38934
by: Ron W04/12/2012
Is this review helpful?
Works great and easy install. 37000
by: Hector D04/10/2012
Is this review helpful?
Excellent I can do this my self and save 150 the some one want it to charge me to hot wire my hold sistem 36770
by: Brian K.04/03/2012
Is this review helpful?
Snapped right into my wire in 1 minute. 36029
by: steve r.02/21/2012
Is this review helpful?
lightning fast shipping and perfect parts. i will use this website for all my future trailer parts needs32132
by: Alexisa02/01/2012
Is this review helpful?
The right tool for the job 30781
by: Dave S.01/22/2012
Is this review helpful?
A must have when installing trailer brake controller. 30132
by: James Kasicky10/13/2011
Is this review helpful?
Offers great products and fast shipping service! 25540
by: Pat C.09/13/2011
Is this review helpful?
Perfect. Fast delivery. Harness fit perfectly with plug under dash. Installed brake controller, brakes work great! Thanks!23855
by: Ben N09/12/2011
Is this review helpful?
Wow. The only way the installation would have been simpler is if someone would have done it for me. With this wiring harness, my brake controller installation literally took less than 5 minutes (including zip tying the wire under the dash, out of the way, and mounting the controller itself to my console).23770
by: Jon C09/08/2011
Is this review helpful?
Plugged right in and away I went. 23696
by: Sonny J.09/01/2011
Is this review helpful?
Very easy to install. 23359
by: Ray06/21/2011
Is this review helpful?
Great Product...Fits Perfectly and allowed quick install of brake controller in center console.....Awesome look now!!17591
by: Lance D06/20/2011
Is this review helpful?
This item was very easy to install and even more important than that was how quick etrailer was in shipping my order. I have a trip planned at the end of this week and was very happy when my part came just a few short days after I ordered. I will definitely use etrailer again!!!!17485
by: Jim H06/12/2011
Is this review helpful?
Shipping was on time. Installation on my Nissan Frontier was very easy. Road test next day... all went well. Very satisfied with both the wiring kit (3050-P) and the P3 Brake controller (90195).16802
by: Jerry H06/07/2011
Is this review helpful?
After asking my Nissan dealer how much they would charge to hook up my trailer brake module, I decided to reseach the net and found than etrailer.com had exactly what I needed to "plug and play" my brake control to my truck. The order was easy, delivery was quick. Product arrived well packaged and in perfect condition. I had the control mounted and plugged in in a matter of 30 minutes. Thanks for the good service.16313
by: Kevin - Atlanta05/25/2011
Is this review helpful?
ETrailer always has just what I need and great follow up service for any questions I have had. Thanks to your whole team!15331
by: Ben M.05/24/2011
Is this review helpful?
Really good experience with E trailer, have ordered 2 products and the first they upgraded the shipping which was a pleasant surprise. Very prompt service with excellent follow up...will definitely recommend their services. Nice to finally see a company actually care about their products and customers!!!15286
by: Eric R.05/16/2011
Is this review helpful?
The product functioned exactly as listed in the product description. I only found one thing frustrating, and that was how Nissan buried the plug under the dashboard. Regardless, after popping out two screws, I was in business. The whole procedure took about 15 minutes, and that included searching for the pigtail. As always, etrailers directions were very easy to follow.14298
