Ribbed U-Bolt Plate - 3" Diameter, Round Trailer Axle - 2" Wide Spring - 9/16" Bolts
TruRyde

Ribbed U-Bolt Plate - 3" Diameter, Round Trailer Axle - 2" Wide Spring - 9/16" Bolts

Part Number: TRU69FR
In Stock
$9.89
Trailer Suspension Parts
Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Need help with installation?
Locate installers near me
Ribbed plate uses 9/16" diameter U-bolts (sold separately) to attach your 3" diameter trailer axle to your 2" wide leaf springs. Great Prices for the best trailer suspension parts from TruRyde. Ribbed U-Bolt Plate - 3" Diameter, Round Trailer Axle - 2" Wide Spring - 9/16" Bolts part number TRU69FR can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (8)
  • Q & A (0)
  • Videos (1)
  • Photos

TruRyde Trailer Suspension Parts - TRU69FR

  • U-Bolt Plates
  • Boat Trailer
  • Snowmobile Trailer
  • Round Axle - 3 Inch
  • 9/16 Inch Diameter
  • TruRyde

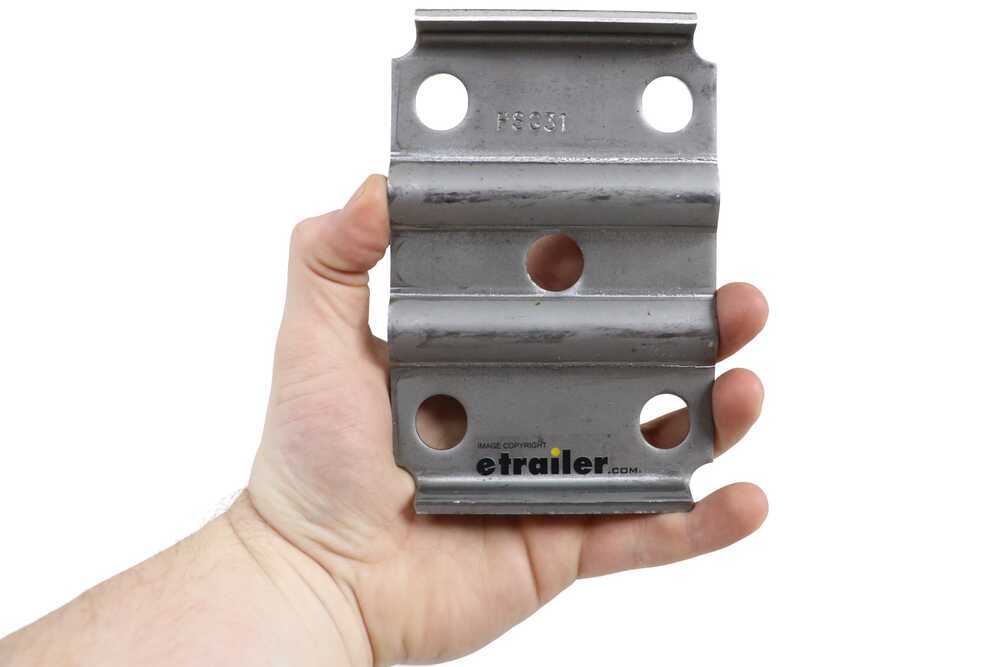

Ribbed plate uses 9/16" diameter U-bolts (sold separately) to attach your 3" diameter trailer axle to your 2" wide leaf springs.


Features:

  • Used with U-bolts to secure axle to leaf springs, which are mounted to the trailer frame
  • Constructed of zinc-plated steel per ASTM specifications
  • Attaches with (2) 9/16" diameter U-bolts (sold separately)
  • Fits trailer axles with 3" diameter
  • Works with 2" wide leaf springs


TP-300209R TruRyde U-Bolt Axle Plate with Ribs - 2" Springs - 3" Diameter Axle

Replaces TruRyde TP-300209





Video of Ribbed U-Bolt Plate - 3" Diameter, Round Trailer Axle - 2" Wide Spring - 9/16" Bolts

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Review of TruRyde Trailer Leaf Spring Suspension - Ribbed U-Bolt Plate - TRU69FR

Hi, everybody. Andy here with etrailer.com, and today we're gonna take a quick look at this ribbed U-bolt plate. Now, this ribbed plate uses two 9/16 of an inch diameter U-bolts to attach your three-inch diameter round trailer axle to your two-inch wide leaf springs, which are mounted to the trailer frame. And you can tell that this is designed for a two-inch wide leaf spring by measuring the distance between these two holes. And as you can see, when we line that up with the ruler we are sitting right at two inches. And of course that's gonna be the same on these holes as well.

So that's where we get that measurement for the leaf springs. Now, the two 9/16 of an inch diameter U-bolt are sold separately. But if you we're in need of those, you can find them here, our website at www.etrailer.com This is constructed of zinc-plated steel per ASTM specifications. And the overall length, let me line this up here for ya, we're gonna be sitting right at five and 5/8 inches long. And then the distance between the, the length between these two mounting holes, I'm gonna be measuring center to center.

We're gonna be sitting right at about three and three quarters inches center to center. And then the overall width, we're gonna be sitting right at three and three quarters inches wide. And then the distance between the, these holes, center to center this time. We're gonna be measuring right at about two and 5/8 inches. So that's gonna conclude our look today.

I do hope that it was helpful for you. Again, my name is Andy. Thank you for joining me..

Customer Satisfaction Score:


Customer Reviews

Ribbed U-Bolt Plate - 3" Diameter, Round Trailer Axle - 2" Wide Spring - 9/16" Bolts - TRU69FR

Average Customer Rating:  5.0 out of 5 stars   (8 Customer Reviews)

Ribbed plate uses 9/16" diameter U-bolts (sold separately) to attach your 3" diameter trailer axle to your 2" wide leaf springs.

by:

Great product, saved me fab time on my Obs Chevy flip.
