Price: $835.38

Reese Elite Series Pre-Assembled 5th Wheel Trailer Hitch w/ Wiring Harness - Single Jaw - 18,000 lbs

Item # RP30142

lowest price pledge

Retail:$1,514.74

Our Price: $835.38

This item qualifies for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

reese fifth wheel double pivot 14 - 18 inch tall elite series pre-assembled 5th trailer hitch w/ wiring harness single jaw 000 lbs
reese fifth wheel hitch only double pivot rp30142
reese fifth wheel fixed 14 - 18 inch tall
reese fifth wheel hitch only double pivot rp30142
reese fifth wheel fixed double pivot elite series pre-assembled 5th trailer hitch w/ wiring harness - single jaw 18 000 lbs
reese fifth wheel hitch only double pivot
reese fifth wheel fixed 14 - 18 inch tall elite series pre-assembled 5th trailer hitch w/ wiring harness single jaw 000 lbs
reese fifth wheel fixed double pivot rp30142
reese fifth wheel hitch only double pivot rp30142

In Use/Installed

fifth wheel reese fixed double pivot elite series pre-assembled 5th trailer hitch w/ wiring harness - single jaw 18 000 lbs

Customer Photos

reese fifth wheel fixed double pivot rp30142
reese fifth wheel fixed double pivot elite series pre-assembled 5th trailer hitch w/ wiring harness - single jaw 18 000 lbs
reese fifth wheel hitch only double pivot rp30142
reese fifth wheel hitch only double pivot
reese fifth wheel fixed double pivot rp30142
reese fifth wheel fixed double pivot elite series pre-assembled 5th trailer hitch w/ wiring harness - single jaw 18 000 lbs
reese fifth wheel fixed double pivot rp30142

  • Reese
  • 18000 lbs GTW
  • Fixed Fifth Wheel
  • Premium - Single-Hook Jaw
  • Double Pivot
  • Hitch Only
  • 4500 lbs TW
  • 14 - 18 Inch Tall
The Elite Series fifth-wheel trailer hitch offers the best in quick, easy hookup with a wide funnel area, 4-way pivoting head and a self-latching jaw that wraps around the king pin for maximum security. Custom, under-bed rail system sold separately. Call 800-298-8924 to order Reese fifth wheel part number RP30142 or order online at etrailer.com. Free expert support on all Reese products. Guaranteed Lowest Price and Fastest Shipping for Reese Elite Series Pre-Assembled 5th Wheel Trailer Hitch w/ Wiring Harness - Single Jaw - 18,000 lbs. Fifth Wheel reviews from real customers.



Reese Fifth Wheel - RP30142

The Elite Series fifth-wheel trailer hitch offers the best in quick, easy hookup with a wide funnel area, 4-way pivoting head and a self-latching jaw that wraps around the king pin for maximum security. Custom, under-bed rail system sold separately.


Features:

  • Forged, single-piece, self-latching jaw wraps around king pin to ensure proper connection
    • Design offers superior jaw-to-king-pin contact for maximum security and minimum rattle
  • 9" Wide funnel (rather than traditional, 6" wide funnel) provides larger area for guiding king pin into hitch
  • Extended-length, lockable handle lets you easily secure trailer to hitch with padlock (sold separately)
    • King pin indicator keeps hitch from locking until connection is secure
  • Elite Series custom, under-bed rail kit (sold separately) allows uninhibited use of truck bed when hitch is removed
    • 1/4-Turn, quick-lock puck system allows easy mounting and removal of hitch
  • Wide footprint offers increased stability
  • 4-Way head pivot improves efficiency - faster, easier hookup, even on unlevel ground
    • 4-Degree side-to-side pivot
  • 4" Height adjustment
  • Fully assembled unit saves 1 hour of assembly time
  • Sturdy, black powder coated steel is corrosion resistant
  • Wiring harness with 7-way trailer connector has 9' lead for maximum reach


Specs:

  • Gross towing weight: 18,000 lbs
    • Capacity is limited to that of your rail kit
  • Vertical load limit: 4,500 lbs
  • Hitch height: 14" - 18"
  • Limited lifetime warranty


Notes:

  • This fifth-wheel trailer hitch will not fit pickups with beds shorter than 6' unless used with a Sidewinder. It also will not fit trucks with flareside/stepside bed.
  • Will not work for trucks with Dodge factory prep packages.

Elite Series Jaw

Forged, Self-Latching Jaw

The one-piece, self-latching jaw on this fifth-wheel hitch provides absolute security with its wraparound design. Increased jaw-to-king-pin contact results in not only a stronger connection, but less rattle and movement as well. And the convenient lock indicator on the hitch handle ensures that hookup is complete and secure before you can lock your trailer to your hitch.



Unrestricted Truck Bed Access

Complete Truck-Bed Access

Once your Elite Series fifth-wheel hitch is installed, you can easily remove it for complete access to your truck bed. The fifth-wheel head removes with just two pins and is easy to lift. Then you can unlock and disengage the base legs from the Power Puck rail mounting system and remove them as well. All that you will be left with is four small cavities that sit flush in your truck-bed floor - no rails, no bolts.



90 Degree Wiring Harness

Simple Wiring

The included 90-degree wiring harness makes attaching your trailer to your tow vehicle a snap. With a 9' lead that can easily reach your truck bed and a 90-degree angled head that fits into tight spaces, this uniquely designed wiring harness is perfect not only for your new fifth-wheel hitch, but for gooseneck hitches as well. Simply tee the harness into your vehicle's factory-installed 7-way trailer connector, which is mounted under the bumper of your truck. The 7-way connector on this harness then mounts in the wheel well, right next to your hitch, for quick, easy hookup.





30142 Reese Elite Series, Signature Series Preassembled Fifth Wheel Hitch - 18,000 lbs



RP30142 Installation InstructionsInstallation Details RP30142 Installation instructions



Premium - This item

Reese Elite Series Pre-Assembled 5th Wheel Trailer Hitch w/ Wiring Harness - Single Jaw - 18,000 lbs


Reese Elite Series Pre-Assembled 5th Wheel Trailer Hitch w/ Wiring Harness - Single Jaw - 18,000 lbs
Reese Fifth Wheel

194 reviews

Code: RP30142


Retail:$1,514.74

Our Price: $835.38


  • Fifth Wheel
  • Fixed Fifth Wheel
  • Hitch Only
  • 4500 lbs TW
  • 18000 lbs GTW
  • Double Pivot
  • Premium - Single-Hook Jaw
  • 14 - 18 Inch Tall
  • Reese


The Elite Series fifth-wheel trailer hitch offers the best in quick, easy hookup with a wide funnel area, 4-way pivoting head and a self-latching jaw that wraps around the king pin for maximum security. Custom, under-bed rail system sold separately.

more information →
Compare Similar Products
Economy
Price: $469.65
$365.73 Less

Reese 5th Wheel Trailer Hitch - Dual Jaw - 16,000 lbs


Reese 5th Wheel Trailer Hitch - Dual Jaw - 16,000 lbs
Reese Fifth Wheel

16 reviews

Code: RP30047


Retail:$973.40

Our Price: $469.65


  • 4000 lbs TW
  • 16000 lbs GTW
  • Standard - Double Jaw
  • 14-1/2 - 18 Inch Tall


Fifth-wheel trailer hitch provides excellent jaw-to-king-pin contact with a 2-jaw latching system. Wide-stance, 1-piece legs are stable and supremely easy to remove. Rails and installation kit sold separately.

more information →
Value
Price: $779.00
$56.38 Less

B&W Patriot 5th Wheel Trailer Hitch w/ Slider - Dual Jaw - 18,000 lbs


B&W Patriot 5th Wheel Trailer Hitch w/ Slider - Dual Jaw - 18,000 lbs
B and W Fifth Wheel

6 reviews

Code: BWRVK3270


Retail:$881.00

Our Price: $779.00


  • Sliding Fifth Wheel
  • Standard - Double Jaw
  • 17 - 19 Inch Tall
  • 12 Inch Fore/Aft Travel
  • B and W


The built-in slider on this sturdy 5th-wheel hitch helps eliminate clearance concerns during slow-speed turns. Dual jaws offer a secure connection. Durable polyurethane bushings limit rattle and vibration. Rails sold separately.

more information →
Premium
Price: $1,084.35
$248.97 More

Demco Hijacker Autoslide 5th Wheel Trailer Hitch w/ Slider - Single Jaw - Above Bed - 18,000 lbs


Demco Hijacker Autoslide 5th Wheel Trailer Hitch w/ Slider - Single Jaw - Above Bed - 18,000 lbs
Demco RV Fifth Wheel

32 reviews

Code: DM8550034


Retail:$1,346.00

Our Price: $1,084.35


  • Sliding Fifth Wheel
  • 15-1/4 Inch Tall
  • 16-1/2 Inch Tall
  • 14 Inch Fore/Aft Travel
  • Demco RV


This hitch slides automatically as you drive to give you 14" of additional clearance for tight turns. A wraparound jaw provides a smooth ride and a locking bar offers added security. Pivoting head allows easy hook up and helps to limit chucking.

more information →

Related Products



Customers compare RP30142 to these similar products





Customers Who Purchased This Fifth Wheel Also Bought...



Replacement parts available for this product







Video of Reese Elite Series Pre-Assembled 5th Wheel Trailer Hitch w/ Wiring Harness - Single Jaw - 18,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

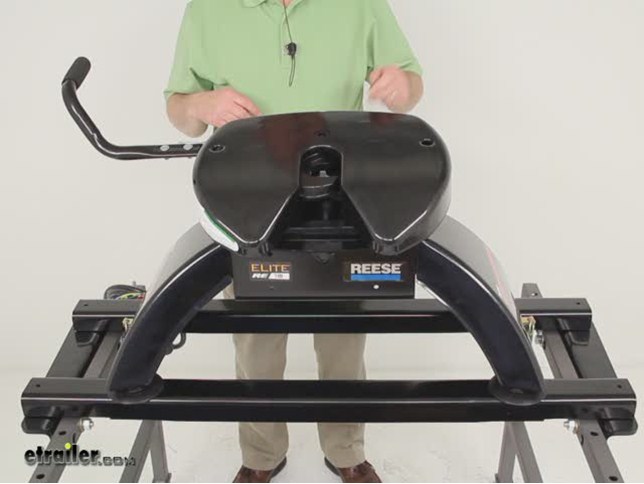

Video Transcript for Reese Fifth Wheel RP30142 Review

Today were going to review part number RP30142. This is the Reese Elite Series Preassembled Fifth Wheel Trailer Hitch and it does come with the included wiring harness to add an extra seven-way into the truck bed of your vehicle. This Elite Series style hitch uses the nice pucks system mounting system where the rails will be installed under the truck bed. What that does is it gives you complete truck bed access. Once its installed you can easily remove it for complete access to your truck bed. No rails in the truck bed or anything.

The rails would be underneath. The fifth wheel head, what makes it easy to remove is this fifth wheel head, theres a pin and clip on each side right up under here that if you remove the clip, slide the pin out, you can lift this head off of the hitch and then you would just have the legs and the cross member center, and then to remove those, all you have to do is let me show you here on the side. Youll see theres this lynch pin right here that if you just pull this out and these two tabs if you just push those through and then open these; these open up 90 degrees, right there and then one on the other side, pull the pin out and push open the tabs as you can see these would slide out or open up 90 degrees. With all four of them opened, the legs and the cross member will lift up out of your truck bed and all that would be remaining is the four holes, or the pucks theyre called, in the bed and you can actually put a cover over those to cover those up so you have complete use of your full truck bed when youre not towing your fifth wheel. And, then when you want to put it, when youre ready to go camping or tow your trailer, what you want to do is take the legs and the cross member, take the covers out of the pucks, drop it into there, and then you just push these back all the way closed and as youll see when you do that, theres holes on the ends of the tabs, they will line up and you just drop, put the lynch pin through there clip it closed and that will keep it locked in place.

Same way over here. Just slide the tabs, holes line up, drop the pin in. You have the legs and the cross member installed. Then you just take your head, drop it onto the cross member, put the pin and clips in. Youre ready to go.

Very, very simple installation; quick and easy. So, you can go from having your fifth wheel hitch in your truck bed to removing it and having complete use of your truck bed. Now, a few features on this fifth wheel which are really nice. It has the forged single piece, self-latching jaw which will wrap around the kingpin to ensure proper connection. This type of design will offer superior jaw to kingpin contact for maximum security and minimum rattle.

Now, the head on this has the nine inch wide funnel which is a nice design rather than the traditional six inch wide funnel. The wider funnel will provide a larger area for guiding the kingpin into the hitch, has this extendable length, lockable handle. Lock it right here if you want, lets you easily secure the trailer to the hitch. You can also use a padlock instead of the pinning clip for additional security. The padlock would be sold separately. There is a kingpin indicator right here. Again, if I rotate it, I will show you how that operates. Right now we have the pin and clip in so its pretty much assuming the kingpins in here and youve got the handle locked so theres no, jaw wont go anywhere. Basically, if you remove this pin and clip, you heard the indicator go back into place and thats because theres no kingpin in there. If there was a kingpin in here, it would push up against the lever and youll see this indicator pop out. When that pops out it opens this hole up between the handle and the head that you can drop your pin and clip in or your padlock whichever you prefer to use. So, right here is the kingpin indicator, if that latch is not out of the way and the holes open, that means the kingpin is not correctly in the hitch head. Nice feature also. Now again, this Elite Series for this demonstration, I am showing you mounted on the under bed rails. They are not included. You would have to purchase the correct custom under bed rail kit for your application and again when you do the under bed rails its, the feature is nice because again you have uninhibited use of the truck bed when this hitch is removed. The legs, as you can see, have a very wide footprint which offers increased stability. The head on this is a four-way pivot. Basically, it will pivot front to back and has a four degree side-to-side pivot. Nice thing about that is it will be a faster and easier hookup because even if youre on unlevel ground, the head would move and hook up, allow the hitch or the kingpin to hook up correctly. There is also a four inch, also, oh, before I forget, theres another feature on this head, its hard to see here, but there is a zirque fitting that is actually down in the head flush, you cant touch it, but its down in there and has room to where you can put a grease gun on there, squirt some grease in there and it would actually lubricate the moving parts underneath the hitch head. Thats also a good feature. You can do a height adjustment for the hitch head height above your truck bed. Theres a range of four inches. Basically, this center cross member here that bolts to the legs has a, on the sides right here, theres four sets of holes that will range from 14 to 18 inches. So, if you bolt this cross member to these legs in the top holes that would be the lowest. It would be fourteen inches and the hitch head would be 14 inches above your truck bed. If you put it to the very bottom set of holes, which would raise it the maximum, it would be 18 inches. So you could go from 14 up to 18 inches to adjust the hitch height above your truck bed. Now this does come all fully assembled so it saves about an hour of assembly time. It is a sturdy steel construction, has a black powder coat finish which is corrosion resistant. It is made in the USA. A few features or specs on it, the gross total towing weight capacity is 18,000 pounds or depending what your rails will be rated at, the lowest of the, either one, either 18,000 or if the rails are rated lower it would be that rating, does have a vertical load limit or a pin weight of 4,500 pounds, does have the hitch height adjustment I just mentioned of 14 to 18 inches, does come with a seven year limited warranty. Excuse me, and I had mentioned it does include the 90 degree wiring harness. You can see right here that this will install in your truck bed, on the side of your truck bed and its 90 degrees so the nine foot long cable, our lead, will go up under your truck bed and will fit into any of the tight spaces, and the other end right here as you can see has the connections that will actually plug into your vehicles factory installed seven-way connector which is usually mounted under the bumper of your truck, and that is all included. And, that should do it for the review on part number RP30142.


Customer Reviews

Reese Elite Series Pre-Assembled 5th Wheel Trailer Hitch w/ Wiring Harness - Single Jaw - 18,000 lbs - RP30142

Average Customer Rating:  4.8 out of 5 stars   (194 Customer Reviews)

The Elite Series fifth-wheel trailer hitch offers the best in quick, easy hookup with a wide funnel area, 4-way pivoting head and a self-latching jaw that wraps around the king pin for maximum security. Custom, under-bed rail system sold separately.

- RP30142

by: Joe S.06/13/2015


Item was received well packaged. All parts were received as expected. I wish I would have taken pictures of box when it was received or as I installed it on my 2015 F250 but rest assured it fit into my Ford with the 5th wheel prep package quite easily. Directions were adequate. My only issue was I did not know if the pre-asembly of the base was torqued correctly. There was no mention of it in the packaging and I do not own a torque wrench so it would have been comforting to know that it was done properly before shipment. However it appeared to be okay and I had no issues towing my 5th wheel the 15 miles from the dealership to my home. Also there is no mention prior to ordering that you need lithium grease to properly lube the moving parts. Make sure you have on hand prior to assembly. Overall, excellent product and I am definitely please with it and highly recommend it. 203214


Comments

I am thoroughly pleased with my purchase one year ago of this hitch. We have towed our 32 crusader across the country and back via different routes with no issues. I have read where others find it heavy to lift in and out of the truck bed. I would too except I remove the hitch plate to lighten the load so that I am lifting two relatively lite pieces instead of one heavy piece. We take the 5th wheel out on the road about every two months so I am happy with how I can separate the two in order to lift them in or out of the truck bed.Extremely easy to install, less than 5 minutes. I am totally satisfied with this product.

Joe S - 06/12/2016

18548

- RP30142

by: Leo11/05/2014


My Reese Elite 5th wheel hitch arrived UPS. 143lbs and used a hand dolly to take off the truck and wheel to my garage. Came packaged ok. Pre-assembled and everything was included. Read the Manual, which for older people helps, showing lube and parts, install info etc...referring back to the manual/instructions. Used a wooden table(same height as my tailgate) to wheel it right up to the gate and slid the hitch on a piece of cardboard(from the box) into the position of the puck system. Moving the base first then the hitch plate next. The hitch install was simple and easy. Did not need any help. I did call customer service and made a slight 1/4 turn adjustment to two legs for a tighter fit. There again referring to the manual/instructions provided with the hitch. Very pleased with the hitch over all. It served its purpose and I believe will give us many years of service. We pull a 5th wheel gvwr of 11769lbs and completed over 1200 miles of safe towing. Pleased with my purchase. Thank you. 159385



- RP30142

by: Dmaxcc6spd04/16/2014


I have installed this hitch 4 times. It is a solid piece. With a little care in the mounting adjustments, there are no rattles or noises, even when the camper is not connected. The only problem I have is the instructions indicated drilling 4 3" inch holes in the bed. A 2 1/4" set of holes is more appropriate. They leave too much room for installation error. I mount the rails below and use a pointed bolt from the bottom to mark the hole location to drill the bed. Other than that - I think this is a great hitch. 125537


Comments

Fantastic! I would recommend this hitch to anyone who wants a quality product.

Dmaxcc6spd - 04/16/2015

10853

- RP30142

by: John H09/30/2013


I have a 2013 F350 and it came with a 5th wheel hitch Prep Package. Your Reese Elite Series Pre-Assembled 5th wheel Trailer Hitch, 18000 lbs fits perfectly. The installation was quick and easy. We took a trip to Glacier National Park and it works great. Thank You, The Halls 102041



- RP30142

by: Robert K.09/26/2013


I have a 2013 F-350 which came with the fifth wheel preparation package. As advertised, this Reese Elite series Pre-Assembled 5th wheel hitch dropped right in. Had it installed in about 30 minutes. very well constructed. Can't wait to try it out. 101648


Comments

The 5th wheel hitch works as advertised. I have been using it to pull my 36ft. Montana. Absolutely no problems. Highly recommend this product.

Robert K - 09/26/2014

6997

- RP30142

by: Ryan S.09/10/2013


This hitch looks well made and thought out. Connecting it to the bed of my Super Duty is a snap with the cam locks. I love how I have a flat bed when it's removed due to the Ford under bed fifth wheel rail kit. I'd buy it again. My only two minor negatives are: 1. It's a heavy beast. Much more than my old hitch. It pushed me to buying an overhead hoist for the garage, which makes putting in and taking out the hitch so much easier. It was a blessing in disguise. 2. The handle isn't easily removable like my old hitch. I bike on my vacations and when driving to the trailhead I put a bike on either side of the hitch. Now I have to keep a ratchet handy to remove the handle. 99373



- RP30142

by: Mike S08/07/2015


My Hitch came fully assembled, easy to install in my 2015 Ford F350 with factory rails, A 1 1/2" in box end wrench works great to tighten the puck nuts if you have it, If not the provided wrench works, its just a little difficult due to confined spaces. I had it adjusted and installed in about 30 minutes. Have a little axle and lithumn grease on hand for the installation. The grease cert was a great idea from reese for lubing internal part with out removing the head. A 12'' lube plate is needed if u don't like greasing the head, it just makes things easier. 217592



- RP30142

by: John B02/24/2015


Since this unit comes fully assembled it was a snap to install in the under bed mounting unit. The only issue I had was how the product was received. The box fell completely apart when the UPS driver was taking it out of his truck. He said it was damaged before he got it. Luckly everything was still in the box. 175843



- RP30142

by: Dennis R.01/07/2017


ALL of my orders and business with etrailer result in Outstanding service, Expedious delivery and Superb product condition upon receipt! This order of my new Reese Elite 5th wheel assembly, Underrail 5th wheel kit, and Gooseneck kit assembly meets those same conditions I stated above. Thank you E-trailer for another stress-free and wonderful experience with your business and very professional staff! Your business is my first choice when shopping online for all product of this type. Sincerely Dennis R. 333319



- RP30142

by: PJ03/14/2017


Great price for a top quality 5th wheel trailer hitch. There are other similar hitches to this B&W, but this is the best and the same as Ford's OEM one costing much more. Some assembly is required, just fitting to truck bed and locking/pinning the head mounting is required. One thing that is not mentioned on this website is the pre-mount height of head is 15-3/4 high, the most used height for most truck and trailers. 352837



- RP30142

by: Richard G.07/22/2017


Overall, nice hitch. A little sensitive to "off center" coupling - it likes a very straight and very level shot, despite the advertised wider entry opening. Not happy with the paint on the receiver pate - chipped and rusted easily. Easy to install and remove - comes off in two pieces resulting in lower weight to lift off the bed. Pops into the Ford puck system without problems. 409139



- RP30142

by: Joe N12/08/2012


Cathy T. was amazing. She was very helpful and extremely knowledgable. If not her help, I would have ordered the wrong equipment for my truck. The Reese 18K Elite was perfect for my 2012 F-450 and exactly what I needed. It took less than 20 minutes to mount it to my truck. Thanks again Cathy. 60980



- RP30142

by: Dave S.05/27/2014


Hitch height is actually about 3/4 inch taller than advertised. The height advertised is to the bottom of the hitch legs and not to the bed of the truck. Shipping was as advertised. Ordered noon Mon. and had hitch at my door Wed 1 PM. 132772



- RP30142

by: V. Walla08/08/2013


Item shipped fast (2 days transit to Texas). Well packed & installed in the bed of the truck within 5 minutes (2013 F-350 with pre-installed 5th wheel pkg). Haven't towed yet, but from what I have read, should be no issues. 93889



- RP30142

by: Jerry J.03/18/2012


The 18k Reese hitch is exactly what I needed, receiving the hitch already assembled really made the installation happen much sooner. Jerry J. 34304



- RP30142

by: Jim R11/23/2015


Order on Saturday, received on Thursday in Florida approx 2pm. Received in excellent shape. Had unit installed in truck within 30 minutes. Hooked up to trailer, ready to go. Thanks for the fast service. 232478



- RP30142

by: Gordon B.04/18/2014


My dealings with etrailer was an enjoyable experience. Ordered the Reese hitch on Fri nite and received it on tues afternoon. Took me 20 mins to hook it up in my F350...and I took my time. Great service. 125906



- RP30142

by: Jerry S.04/20/2011


Hitch arrived UPS in less than 24 hrs, how do they do that? Install took about 6 hrs but next would be half that time. Works great, would buy again. Jerry 12083



- RP30142

by: Frank Z05/16/2015


Great design, easy to place in bed of truck (F350 w/factory hitch), only change to hitch would be locking pins for fastening hitch plate to body of hitch. 193476



- RP30142

by: Ed S.07/22/2012


Excellent customer service, excellent shipping, excellent instructions. Installed and ready to pick up our new fifth wheel. Thanks for being part of this! 48893



- RP30142

by: Tom A.07/29/2016


Great product! Easy to install and use! No negative feedback at all. I do use a teflon disc rather than grasing the plate and has worked like a champ. 277619



- RP30142

by: Steve B.05/09/2013


Nicky K. was very helpful in ordering this item. Shipped and was delivered with no issues, I had it installed within twenty minutes. Great product !!! 79600



- RP30142

by: Charles C04/22/2014


My F350 Ford Super Duty has factory installed mounts for this 5th Wheel Hitch so installation was a dream -- less than 1/2 hour 126460



- RP30142

by: Chad12/13/2012


Just drops right into my Ford F-250 with the trailer prep package already factory installed!.. Too Easy ! Shipped Quickly too! 61363



- RP30142

by: Craig J03/24/2017


Great Product ,price, and service. Excellent customer support and excellent shipping and tracking. 358090



- RP30142

by: Jeff05/02/2017


Excellent hitch would recommend highly. Thanks for great customer service and fast delivery. 375140



- RP30142

by: Keith07/01/2012


Great 5th wheel. I installed it by myself in about 4 hours. Heavy duty, really impressive. 46417



- RP30142

by: Ken G05/04/2012


Easy installation, High Quality and looks cool too. Thanks so much. 39357



- RP30142

by: Terry S.06/15/2012


Product is just what I ordered. I'm pleased with the order. 44399



- RP30142

by: Rich H06/15/2014


Excellent product. It was delivered very quickly. 135647



- RP30142

by: Randy C.09/15/2016


Easy to hook up. This is a great hitch! 294989



- RP30142

by: Bob Moore09/18/2012


Easy to use with a clean installation. 55037



- RP30142

by: Tony05/04/2015


Easy to install! 189891



- RP30142

by: Ricky W03/21/2012


So far so good 34597



- RP30138-26

by: Sean B.09/10/2017

Review from a similar Reese Elite Series in Fifth Wheel


Will try to keep this as real as it gets out there. 2015 F250 XLT Crew Cab 8' Bed Ordered the Reese Elite Gooseneck and Barger 90 degree wiring harness. Received the gooseneck hitch and harness quickly. Free shipping got here in two days. Item came in two boxes. The rails were poorly packaged. Box was basically open and beat to hell, leaving markings on the rails' paint. Didn't bother me, but might others. The pucks were loose in the box and were lucky they did not fall out. The second box with the ball, ball mount, harness and misc. hardware was packed so well it took about 5 minutes to take off all the staples and then each product was individually boxed inside. Wish they would treat the rail box with the same care. Instructions are ok. Used the online install video instead. The video is slightly simplified as getting the nuts on the bolts is a slight challenge for a one man install. I was able to do the entire installation by myself with the exception of the four rail-to-frame bolts. Getting these snugged up to the point of being able to torque took two people simply because the nuts are hidden on the backside of the rail...particularly the driver-side front...which is slightly behind the gas tank, but still accessible. My F250 is factory lifted 4-5" so I did not have to remove the rear wheels, nor did I have to remove the spare tire or heat shield. Lower trucks will need the rear wheels pulled. Installing the ball mounting plate took some doing. Got one bolt on then decided to actually install the ball into the plate from above pulling the plate tight below. I used vice grips to basically keep the plate mounted tight rather than trying to lift it from underneath with one had and bolt it with the other. For me the most time consuming part of the project was getting the darned bed bolts off to lift the right side. Broke the T50 bit they supplied and then two others. Finally gave up and ground off two of the remaining bolts...and ordered replacements. Tip for those doing this on their own, you may want to spray the bolts from under with PB Blaster the day before you intend to install. I forgot and the issue was likely that the bolts were rusted. The wiring harness was a breeze, although I wish a shorter version was available. (Perhaps I missed it). Had to loop/zip tie about 2-3' under the bed. Connecting between the factory connectors did require me to pull the mounting plate. Was a bit tight to just slip the new connector in. Also, working the harness thru the hole in the bed side was a bit tight. Install probably took 10 minutes after getting the holes drilled. Total install time for this slightly skilled guy was about 3-1/2 hours...after the bed bolts fiasco. Oh...and did it all with a cast on the left arm. Ha! Now to see how she tows! 430852



- RP30140

by: Chris B09/18/2016

Review from a similar Reese Elite Series in Fifth Wheel


I recently purchased a 2016 Ram 3500 with 5th wheel tow package already present on truck. I wanted an additional goose neck product and looked at various suppliers online and found etrailer products offered for sale. After to speaking with Heather who answered all my questions as well as reviewed feedback from customers I chose to go with the Reese gooseneck kit. I received the product within the shipping date provided to me and I went out to install it. It took me all of 3 mins to install with no issues. I did my best to remove, shake and couldn't get them to budge. It took me a total of 5 mins to remove the parts and storing them back under the rear seat. The parts fit perfect, look great as well as we're the cheapest price I could find. Their online video is all the install instructions you need! I will definitely use etrailer in the future. Thanks Heather! 296158



- RP30871

by: Paul T06/22/2017

Review from a similar Reese Elite Series in Fifth Wheel


I have owned B&W, Curt and Reese Hitches for 5th wheel trailers. When I recently purchased a toy hauler I needed a heavy duty hitch for the 20,000# load. I decided to spend the extra money and get the Reese because of previous good experience and fitting the installed pucks in my F350. The Reese felt very light when I unpacked it. The parts are all made in China or Mexico. Assembly and installation took 25 min. The release mechanism feels cheap. It is difficult to make sure the pin is fully seated in the hitch. 2x it looked seated and I was able to install the locking pin and the trailer came out of the hitch! I always do a test pull in forward and reverse before pulling out onto the road. First time it came out I caught it on the test pull, second time it looked good w the test pull but 30' down the driveway it came out and crushed my bedside and tailgate. I would recommend the B &W or Curt before buying the more expensive but inferior Reese. 397426



- RP30137

by: Earl07/16/2015

Review from a similar Reese Elite Series in Fifth Wheel


After I ordered the ball hitch I thought it would be at least a week before I received the order but to my surprise 3 days later the item was here. Excellent service and no damage and the correct item. Thank you 212332


Comments

This is a very handy piece of equipment that i.use but normally use the 5th wheel hitch. When I pull a gooseneck I remove the 5th wheel hitch and install the gooseneck hitch within minutes..

Earl - 07/15/2016

19430

- RP30845

by: Jerry B02/05/2014

Review from a similar Reese Elite Series in Fifth Wheel


I have bought from Etrailer several times and have never been disapointed. The Reese gooseneck adaptor I purchased fit perfect in my 2008 F450. Shipped and recieved fast. Thanks etrailer.com. 115778


Comments

Still works like new. Plastic cover came off. Double sided tape gave way. Did not hinder the operation, just cosmetics. I would buy again without hesitation.Kudos E Trailer

Jerry B - 02/05/2015

9296

- RP30143

by: Parris02/05/2014

Review from a similar Reese Elite Series in Fifth Wheel


absolutely great hitch. Should not have any problem pulling or worrying about bending something. Would recommend this hitch for F 350 and 450 at any time 115831


Comments

Great product and would not have anything else. I constantly us the hitch and is perfect for my F350 6.7 Ford

Parris - 02/05/2015

9309

- RP30140

by: Fgslr05/24/2015

Review from a similar Reese Elite Series in Fifth Wheel


Looks good, however, it was made in China, something I didn't see on the website. Hope it lasts. 195353


Comments

So far so good. The only problem was finding safety chain hooks that fit the safety hookups. I gave up and used heavy duty d-rings instead.

Fgslr - 05/28/2016

18097

- RP30140

by: Dave G.03/14/2015

Review from a similar Reese Elite Series in Fifth Wheel


The Reese Elite Series Pop-In Ball Kit was perfect fit for my 2014 RAM 3500 with the factory installed gooseneck prep kit. Once it arrived, my wife and I had no problem installing and removing any of the components from the kit. Being able to put all parts in the handy carrying bag is a bonus to. As for etrailer.com, delivery was faster than expected and much appreciated. The video and reviews on the website for this product (not to mention the price) were the main reasons why I purchased this product and purchased it from etrailer.com. If I had one con, it would be that ball hitch needs a sleeve to protect it from being dinged or scratched in the carrying bag, but no big deal. Thanks etrailer.com! 178262



- RP30140

by: Randy S.01/06/2017

Review from a similar Reese Elite Series in Fifth Wheel


When the package arrived, I set to opening it, (very well packed). Everything that I ordered was there. Got the Gooseneck adapter figured out and got the kingpin collar installed. After I moved the truck so that I could place the adapter under the fifth wheel assembly the set up was very simple. Setting up the ball and the adapter took me about 1.5 hours to complete. Very good equipment. Would recommend to anyone that wanted to have the versatility in towing options. Sorry, no photos. The reason I went this way was due to the cost of a fifth wheel hitch for the 2016 Ram 3500/ with the pucks per-set in the bed and on the frame this worked out to be a little less expensive to do. 330572



- RP30137

by: Allen P05/30/2015

Review from a similar Reese Elite Series in Fifth Wheel


Can't go wrong with this product. Very hardy and well done. 198685


Comments

Still working like a champ. Top notch hitch. Still has all the chrome plating after several thousand miles of rowing use.

Allen P - 05/29/2016

18112

- RP30144

by: Jeremy05/26/2014

Review from a similar Reese Elite Series in Fifth Wheel


My entire experience with etrailer.com was excellent. I spent numerous hours researching the hitch and tonneau cover set up I wanted for my 2014 Ford F250. The majority of my time was on the etrailer.com website reviewing Q&A, installation guidance and videos, and expert advise. I chose the Reese Elite Series 5th wheel hitch and the BakFlip F1 tonneau cover. Both products arrived within 10 business days. Installation was as easy and straightforward as expected. The BakFlip F1 really dresses up my F250 and the BakFlip technology makes it very easy to use and gives me full access to my truck bed as needed. The Reese hitch has performed flawlessly. 132420



- RP30158-68

by: rp3015-6809/09/2015

Review from a similar Reese Elite Series in Fifth Wheel


We had a guest that requested this particular product since he had it on his previous truck and needed it on his new purchase from us for his business. He had a need of it on a particular day to leave with his business trailer across country. Andrea was very professional and at my request did a bin check to make sure it was available for immediate shipping and shpped out express overnight so we could take care of our guests needs. Our guest was completely satisfied with us meeting his deadline and we could not have done it without Andrea's prompt and accurate service. Chevrolet Dealer Asst. Pts. Mgr Sara 224572



- RP30137

by: AJ07/23/2010

Review from a similar Reese Elite Series in Fifth Wheel


Wonderful experience. The Reese Elite Pop-in Ball and Safety Chain Attachment was exactly what I needed to adapt a gooseneck trailer to my 2011 F350 Super Duty. Designed specifically for mating with the factory installed fifth wheel and gooseneck mating plate that came with my vehicle, the Elite Pop-in Ball and Safety Chain Attachment requires no welding or bolt installation. The entire kit can be installed and removed in less than (1) minute. It is a well made product that has met all of my expectations. I will recommend etrailer.com to anyone looking for quality, well priced trailer and trailer accessories. 3262



- RP30845

by: Mark C11/07/2013

Review from a similar Reese Elite Series in Fifth Wheel


This adapter is well made, nicely presented and very easy to assemble and install. It allows the Reese SIGNATURE SERIES 5th wheel hitch to double as a standard goose-neck hitch. Once assembled and installed the first time you can easily swap between the above-bed 5th wheel hitch and this goose-neck hitch in less than 5 minutes. The only downside is the steep price for this adapter. And etrailer was very helpful in reviewing their location with respect to mine to determine the exact UPS transit time to get me the hitch quickly but without wasting money on excessive shipping... THANKS! 106627



- RP30138

by: Dennis R.01/07/2017

Review from a similar Reese Elite Series in Fifth Wheel


ALL of my orders and business with etrailer result in Outstanding service, Expedious delivery and Superb product condition upon receipt! This order of my new Reese Elite 5th wheel assembly, Underrail 5th wheel kit, and Gooseneck kit assembly meets those same conditions I stated above. Thank you E-trailer for another stress-free and wonderful experience with your business and very professional staff! Your business is my first choice when shopping online for all product of this type. Sincerely Dennis R. 333318



- RP30143

by: Steve U06/19/2012

Review from a similar Reese Elite Series in Fifth Wheel


I ordered this hitch to replace my 18k Signature series. It fit right in my original bed rails from my 18k Signature hitch. Works great. etrailer shipping and customer service was awesome! 44779


Comments

I have Dodge 2012 5500 with utility body looking to install hideaway ball coupler And also have 2013 4500 with flatbed would like to install the same on both trucks. Both trucks should be Cab and chassis with straight rails. TY

-- comment by: Matthew B - 12/29/2013

2481

We'd be happy to help, but we need a couple bits of information. How long is the flat bed? What is the deck material of both the flat and utility bed?

-- Patrick B - 12/30/2013

63
207
Show More Reviews


Ask the Experts about this Reese Fifth Wheel
Do you have a question about this Fifth Wheel?


  • Gooseneck vs 5th Wheel Hitch for Towing My RV Fifth Wheel Trailer
  • A gooseneck adapter that is designed for towing a fifth-wheel trailer, like the Convert-A-Ball Cushioned 5th-Wheel-to-Gooseneck Adapter, # CAB-C5G, is normally used when a person already has a gooseneck trailer hitch installed in the truck and needs to tow both gooseneck and 5th wheel trailers. These adapters are a good solution, but do not provide as nice a ride when towing a fifth wheel trailer. If your truck does not have a hitch installed I would recommend going with a fifth-wheel...
    view full answer...

  • Recommended Reese Fifth Wheel Hitch for 2015 Ford F250 With Ford Factory Fifth Wheel Prep Package
  • There are two available alternatives. You can use a 5th wheel hitch that's designed to drop right into the pucks, or you can use an adapter that sits in the pucks and provides industry standard bed rails for a standard 5th wheel hitch to attach to. First the puck mounts. If you have the short bed, you'll want to use a sliding hitch, like the Reese Elite Series Slider, part # RP30144 which will drop right into the pucks. The hitch has an 18K capacity. For a long bed truck, use the stationary...
    view full answer...

  • 5th Wheel Trailer Hitch for a 2017 Ford F-350 with Factory Prep Package and Reese Revolution Pin Box
  • Since the trailer comes with the Reese Revolution pin box you will need a fixed hitch, not a slider, and a custom wedge to match the hitch. The wedge prevents the trailer from turning at the hitch so that it turns 22 inches further back allowing you to make tight turns without needing a slider. For a hitch that fits directly into the factory prep package on Ford trucks including your 2017 F-350 I recommend the Reese Elite hitch # RP30142. And for a custom wedge use # SWW-01.
    view full answer...

  • How to Determine What 5th Wheel Hitch Height is Needed for 2015 F350 Dually
  • To figure out at which height you need the hitch, jack the trailer so it's level. Measure from the underside of the pin box (not the king pin) to the ground, which will be measurement number 1. Then, also on level ground measure how high above the ground the floor of your truck bed is, which is measurement number 2. Subtract measurement 2 from measurement 1, and you'll get the needed height above the truck bed floor. All three companies make an excellent product, any one of the three...
    view full answer...

  • Does a 5th Wheel to Gooseneck Adapter Add Stress to a 5th Wheel Trailer Towed by 2011 Ford F-350
  • Using a 5th wheel to Gooseneck adapter, like the Convert-A-Ball Multi-Cushioned 5th-Wheel-to-Gooseneck Coupler Adapter, # CAB-C5G, can apply added stress to the trailer frame. You will need to contact Keystone to determine if the trailer can be used with a 5th wheel to gooseneck adapter. The biggest drawback will be a decrease in ride quality. If the trailer has an extended pin box or requires additional support, reinforcement of the trailer frame will be required and should be performed...
    view full answer...

  • Suspension Enhancement, 5th Wheel and Gooseneck Hitches for a 2011 Ford F-250 Diesel Long Bed 2WD
  • Yes, your 2011 Ford F-250 does certainly have the prep package installed. If the gooseneck ball was not included then you will need ball kit # RP30137 or # C60601. For a 5th wheel hitch you can use any of the following hitches that fit directly into the 4 pucks: Reese Elite Series hitch # RP30142 (18K), # RP30143 (25K) B&W Companion hitch # BWRVK3300 Or any of these Curt hitches: # C16530-16017, # C16520-16017, # C16515-16017, or # C16545-16017 For suspension enhancement I actually...
    view full answer...

  • Does Reese Elite Hitch and Rail Kit plus Sidewinder Weigh Less than Demco Hijacker Setup
  • You are on the right track with your math but you have to also consider that if you are replacing your pin box with a Sidewinder 5th Airborne you would have to subtract the weight of the stock pin box on the trailer as that would get removed. The weight of most 5th airborne Sidewinders is right at 166 lbs and then the weight of a standard pin box is a little under 100 lbs. So you would be gaining only around 60-70 lbs in that regard and not the full weight of the Sidewinder. So by...
    view full answer...

  • Trailer Hitch Options for a 2012 Ford F-350 With Factory 5th Wheel Prep Package
  • The fifth wheel prep package that you have on your 2012 Ford F-350 is compatible with the Reese Elite Series fifth wheel hitches. There are three Elite Series fifth wheel hitches that are available, the Elite Series 18K hitch, # RP30142, Elite Series 18K Slider, # RP30144, and the Elite Series 25K hitch, # RP30143. If your fifth wheel trailer weighs more than 18,000 lbs when it is fully loaded, then you will need the 25K hitch. If you have a short bed truck, then you will need the 18K...
    view full answer...

  • Comparing the CURT Q20 and Reese Elite Series 5th Wheel Trailer Hitches
  • The CURT 5th Wheel Trailer Hitch, # C16130, is a good trailer hitch. It features a 2-jaw system that is very secure and it has a unique pivoting head which allows for a more comfortable ride. It is on par with the rest of the pack in terms of performance and quality. It will fit in CURT, Draw-Tite, Hidden Hitch, Pro Series, Reese and Valley above the bed 5th wheel rails. However, the Reese Elite Series, like # RP30142, is in league of its own. The main benefits of this hitch are the...
    view full answer...

  • Recommended 5th Wheel Rails And Hitch For 2017 Chevy Silverado 2500 HD And Custom Wedge
  • For your 2017 Chevy Silverado 2500 HD with 6-1/2 foot bed, you have two option for rails. Above bed rails that are the standard for many years, or an underbed rail kit that is similar to the new factory puck system. For the newer style under bed rail kit, you would want the # RP30868 compatible with the Reese Elite Hitch # RP30142. This will use custom wedge # SWW-01 for your revolution pin box. The benefit is this system gives you a completely clean bed when not using your 5th wheel...
    view full answer...

  • Recommendations For Hooking Up 5th Wheel Trailer With Reese Elite Series and 5th Airborne Sidewinder
  • There are a few things you can do to make hooking up to your fifth-wheel trailer easier. Beginning with the wedge, you will want to make sure that the wedge is not touching the king pin. If it is touching, you will need to adjust it. Also with the wedge, if you are using a standard wedge, it will fit, but we do have custom wedges that will fit better. I would recommend using the 5th Airborne Custom Wedge, part # SWW-01, which is designed for Elite, Signature and Select Series 5th Wheel...
    view full answer...

  • List of 5th Wheel Trailer Hitches that Fit Directly in Factory Prep Package on 2017 Ford F-250
  • There are several 5th wheel trailer hitches that will fit directly in the factory prep package in your 2017 Ford F-250 long bed. I have compiled a list of the options for you and linked videos for each of them. I like the B&W Companion hitch personally because it is such a well-made and versatile hitch. B&W Companion 20K # BWRVK3300 Curt 24K # C16039 or # C16545-16017 Curt 20K # C16530-16017 or # C16034 Curt 16K # C16520-16017 Reese Elite 26.5K # RP30871 Reese Elite 25K # RP30143 Reese...
    view full answer...

  • Comparing Reese Elite And Curt A20 Fifth Wheel Hitch for 2013 Ford F-350 with 8-Foot Bed
  • The Curt A20 # C16034 is a high-quality hitch that is going to perform. It has a 20,000 lb GTW and vertical load limit of 5,000 lbs, a secure 2-jaw locking system, and a torsion head which is going to help reduce some of the noise that comes with towing a fifth-wheel. It also has a handy color coding system to tell you when you are ready to couple, tow, and uncouple as well as a height range adjustment between 13" and 17". Keep in mind that with your pin box, you'd need to use the Sidewinder...
    view full answer...

  • Information for Installation of a 5th Wheel Hitch on a Truck with a 5 Foot 6 Inch Box
  • When towing a fifth-wheel trailer behind a truck with a 5 foot 6 inch box, a Sidewinder replacement pin box will be required. The Sidewinder pin box will move the pivot point for the trailer back 22 inches, providing clearance, in most cases, for making sharp turns with the fifth-wheel trailer attached to the truck. On some trucks with a bed less than 6 feet long, trailers that are very wide, like 102 inches, cannot be towed even with a Sidewinder, so measuring closely ahead of time...
    view full answer...

  • Does 2011 Ford F-350 with Factory 5th Wheel Pucks Require an Adapter for a 5th Wheel Trailer Hitch
  • If you have an Elite series 5th Wheel Hitch, like the Reese Elite Series Pre-Assembled 5th Wheel Trailer Hitch, # RP30142, that you have referenced, no adapter is required. There is an adapter kit to adapt the Signature Series 5th Wheel Hitches to the pre-installed pucks on the 2011 Ford F-350 Super Duty. You would need to use the Reese Signature Series Hitch Adapter, # RP58419. This kit allows the Signature Series 5th Wheel Trailer Hitches to fit in the Ford installed pucks. Rails are...
    view full answer...

  • 5th Wheel Trailer Hitch for a 2012 Ford F-250 with Factory Prep Package
  • The king pin is the large pin on the trailer. For a 5th wheel trailer hitch that will fit the 2012 Ford F-250 with the factory prep package you have a couple of options. First, the prep package was designed for use with the Reese Elite Series 5th wheel hitches. If you have a long bed truck use # RP30142 with an 18k capacity or # RP30143 with a 25k capacity. If you have a short bed then you will need a slider, # RP30144, with an 18k capacity. The other option is to use an adapter,...
    view full answer...

  • Towing a 5th Wheel Trailer with a Short Bed 2011 Ford F-150 With or Without Factory Prep Package
  • You can tow a 5th wheel trailer with your 2011 Ford F-250, short bed. A Short bed will require a slider unit or, in some cases, depending on the width of the fifth-wheel trailer you will need a stationary hitch and a sidewinder. If your truck has the pre-installed 5th wheel prep package, which includes underbed 5th wheel rails installed at the Ford factory, you will need to use the Reese Elite Series Pre-Assembled 5th Wheel Trailer Hitch, # RP30144. I have included a link to the installation...
    view full answer...

  • Recommended Fifth Wheel Hitch for 2012 Ford F250 w/ Factory Fifth Wheel Prep Kit
  • Because your F250 is not a long bed model, I would highly recommend you go with the Reese Elite Series w/ Slider, part # RP30144. Although the current trailer you are looking at has a v-type nose on it that might work okay with the # RP30142 and have proper clearance for making turns, having the sliding hitch would allow you more flexibility in the event you switched to a different fifth wheel in the future. Both the Reese Elite Series w/ Slider # RP30144 and the non-sliding model,...
    view full answer...

  • Which Truck and Fifth Wheel Do you Recommend for a 35-37 Foot Trailer
  • With a fifth wheel of that length, I would go with at least a 3/4 Ton Pickup, like a Ford F-250, Dodge Ram 2500 or GMC/Chevy 2500. Diesels will almost always have a greater towing capacity as they have such large torque outputs and they are built with heavier transmissions. I would strongly recommend, whatever truck you choose, to get an 8 foot bed. A 6-1/2 or 6 foot bed would require the use of a slider fifth wheel hitch. An 8 foot bed will require less parts and it will be simpler to...
    view full answer...

  • Gooseneck Tripod Stabilizer for 5th Wheel Trailer with Reese Goose Box Adapter
  • Since your 5th wheel trailer is using a Reese Goose Box 5th wheel to gooseneck adapter you will need to use a tripod stabilizer for gooseneck couplers such as # UF19-950400. This tripod is rated for 1,200 pounds pin weight and is height adjustable from 33 inches to 43 inches. I assume that the trailer will also be resting on its landing gear jacks so the weight is most likely not an issue. This is the only gooseneck tripod we have though so if the height or capacity will not work then...
    view full answer...

  • 5th Wheel Trailer Hitches that Fit Directly Into Factory Prep Package on 2012 Ford F-450
  • Reese Elite Series 5th wheel hitch # RP30871 will fit the factory prep package on your 2012 Ford F-450. We do have some other options that are a direct fit as well: Reese hitch # RP30142 or # RP30143 Curt hitch # C16520-16017, # C16530-16017, or # C16545-16017 B&W hitch # BWRVK3300
    view full answer...

  • What is the Difference Between the 18K and 25K Reese Elite Series 5th Wheel Trailer Hitches
  • The head unit is the same for the 18K, # RP30142 and the 25K, # RP30143. The crossmember is different between the 2 hitches. If the head is bolted on in 3 places instead of 4 places, that indicates that it is the 25K. See the instructions, linked for reference. Page 4 has a diagram and a note that states that the 18K bolts on with 4 bolts and the 25K with 3 bolts.
    view full answer...

  • Fore and Aft Movement of the Reese Elite Series 18K Fifth Wheel Hitch on a 2011 Ford F-350
  • I believe the popping noise that you are referring to is the fore and aft movement at the fifth wheel head/cross section. The Elite series hitches have about a 1/2 inch movement where the head attaches to the center section. We have spoken to Reese several times regarding questions about this movement and they said there is no need for concern because the hitch was designed with this movement. I have attached a video that one of our customers submitted showing the fore and aft movement...
    view full answer...

  • Differences Between Signature and Elite Series 5th Wheel Trailer Hitches on a 2011 Ford F-350
  • The Select Plus series of 5th wheels will not work on your 2011 Ford F-350 if you have the factory installed 5th wheel prep package, but either the Signature Series, or the Elite Series will. If you have a Signature Series Fifth Wheel Trailer Hitch, you will need to add Fifth Wheel Adapter Kit - Ford OEM Rails to Signature Series Fifth Wheel, # 58419 in order to fit the Signature Series hitch in the factory installed pucks on the 2011 Ford. I have included instructions linked below....
    view full answer...

  • Compatibility of 5th Wheel Hitches with Reese Elite Underbed System In 2016 GMC Sierra 3500, 8ft Bed
  • The Curt Q20 5th Wheel Trailer Hitch for Chevy/GMC Towing Prep Package # C16530-16025 will not fit in the Reese Elite Under Bed Rails # RP30868. Only certain hitches are designed to fit in the pucks of the Reese Elite Under Bed rails, such as th Reese Elite Series Hitch, 25K # RP30143, the Elite Series Silder, 18K # RP30144, and the Elite Series Hitch, 18K # RP30142. The Elite Series Underbed Rail Adapter # RP30156 will allow standard 5th wheel hitches to be used with the Reese under bed...
    view full answer...

  • How Does Reese Elite Series 5th Wheel Trailer Hitch # RP30142 Simplify Hook-Up on Uneven Ground
  • The Reese Elite Series Pre-Assembled 18K 5th Wheel Trailer Hitch, part # RP30142, and the similar 25K-rated # RP30143, both offer a 4-way pivoting head with extra-wide 9-inch funnel and height adjustment to ease hitching your 5th wheel on uneven ground. Both also include a wiring harness for your 5th wheel that uses a T-connector to plug into your factory tow package 7-way. Written instructions for both hitches are provided. Both are intended for use with the Reese below-bed rail kit,...
    view full answer...

  • How to Identify if a Truck has Reese Elite or Signature Series Rail Kit Installed
  • Check out the picture I attached that shows the dimensions of what Reese Elite or Signature Series pucks would be in the bed of a truck like yours. If you measure the center to center distance of the pucks, and they come out to be 13 by 30 inches, they are Reese Elite rails that would be compatible with the Reese Elite 18K hitch # RP30142 or the 25K model, part # RP30143. If you wished to use a different hitch that's compatible with industry standard bed rails, an adapter is available,...
    view full answer...

  • Will Reese Revolution Pin Box Work with B&W Companion Hitch for a 2000 Ford F-250
  • The B&W Companion hitches that fit only in the gooseneck ball hole cannot be used with Reese Revolution/Sidewinder pin boxes because the pivot point is locked out at the hitch head. When using a Reese Revolution or Sidewinder style pin box the pivot point is required to be locked out due to the lateral force exerted on the hitch, like the one your referenced # BWGNRK1108-5W, would cause it to rotate in the bed damaging the hitch and install kit. The option that will work for you is the...
    view full answer...

  • Installing Fifth Wheel Hitch in 2014 Ford F350 Dually w/ Factory 5th Wheel/Gooseneck towing Prep Pkg
  • Since you have the pucks pre-installed, you won't need the install kit or anything else. You would simply remove the covers over the pucks in your truck bed and drop in an Elite Series fifth wheel hitch like the # RP30142 for an 18K capacity or the # RP30143 for a 25K capacity. B&W also offers the Companion, part # BWRVK3300 which has a 20K capacity that would also drop right into the pucks installed in your truck bed. An adapter like the # RP30156 would allow you to use a regular fifth...
    view full answer...

  • Under-Bed 5th Wheel Kit for a 2013 Ford Super Duty
  • Thank you for sending the pictures. Your truck does not have the under-bed rail kit for the fifth wheel prep package. If you would like to add an under-bed fifth wheel kit to your 2013 Ford Super Duty, you can install the Reese Elite Series Under-Bed Rail Kit, # RP30126. This will provide the 4 pucks in the bed just like the fifth wheel prep package that is offered by Ford. I have attached an installation video for you to check out. For a fifth wheel hitch, you can use the Reese Elite...
    view full answer...


Do you have a question about this Fifth Wheel?





  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality fifth wheel for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate fifth wheel information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael L
Video by:
Andrew K
Written by:
Lindsey S
Expert Research:
Robert G
Expert Research:
Patrick B
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Reno H
Expert Research:
Jameson C
Video Edited:
Jacob T
Expert Research:
John H
Expert Research:
Adam R
Updated by:
Laura H
Expert Research:
Lori W
Expert Research:
Jeffrey L
Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
