Bulldog Round, Pipe-Mount Swivel Jack - Sidewind - 15" Lift - 5,000 lbs

Bulldog Round, Pipe-Mount Swivel Jack - Sidewind - 15" Lift - 5,000 lbs

Item # BD178203

lowest price pledge

Retail:$128.82

Our Price: $80.95

You Save: 37%
Trailer Jack

This item qualifies for Free Shipping

Shipping Weight: 17 lbs

Arrives before Christmas with Ground or Free Shipping.
Quantity:
In Stock, Ships Today
Trailer Jack BD178203 - 15 Inch Lift - Bulldog
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos

Footplate and 5/8" diameter pin are included with this round, swivel-mount jack. Ideal for agricultural and commercial uses. Jack has 15-3/8" retracted height and measures 6-3/8" from mounting bracket to top, excluding handle. Lowest Prices for the best trailer jack from Bulldog. Bulldog Round, Pipe-Mount Swivel Jack - Sidewind - 15" Lift - 5,000 lbs part number BD178203 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (35)
  • Q & A (15)
  • Videos (1)
  • Photos
  • Why etrailer?

Bulldog Trailer Jack - BD178203

  • Side Frame Mount Jack
  • 5000 lbs
  • Sidewind Jack
  • No Drop Leg
  • Bulldog
  • Swivel Jack - Pipe Mount
  • Weld-On
  • 15 Inch Lift
  • With Foot

Footplate and 5/8" diameter pin are included with this round, swivel-mount jack. Ideal for agricultural and commercial uses. Jack has 15-3/8" retracted height and measures 6-3/8" from mounting bracket to top, excluding handle.


Features:

  • Dependable jack is recognized as industry standard for agricultural and commercial applications
    • ASABE compliant
  • Tubular swivel design lets you swing jack up for travel, down for use
    • Included pull pin holds jack in place
  • Precision-fitted parts provide exceptional stability and reliability
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Outer tube is gray-paint finished
  • Inner tube is zinc plated
  • Weld-on pipe mount and standard footplate included


Specs:

  • Bracket height:
    • 15-3/8" Retracted
    • 30-3/8" Extended
  • Lift: 15"
  • Clearance: 6-3/8" from mounting bracket to top of jack
  • Inner tube diameter: 2"
  • Outer tube diameter: 2-1/4"
  • Handle radius: 5-13/16"
  • Pull pin diameter: 5/8"
  • Lift capacity: 5,000 lbs
  • Limited 5-year warranty


178203 Bulldog Round Tubular Swivel Jack, Sidewind, 15" Travel, 5,000 lbs - SWL 178 DTSF w/ P & C






California residents: click here


Video of Bulldog Round, Pipe-Mount Swivel Jack - Sidewind - 15" Lift - 5,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bulldog Trailer Jack - Side Frame Mount Jack - BD178203 Review

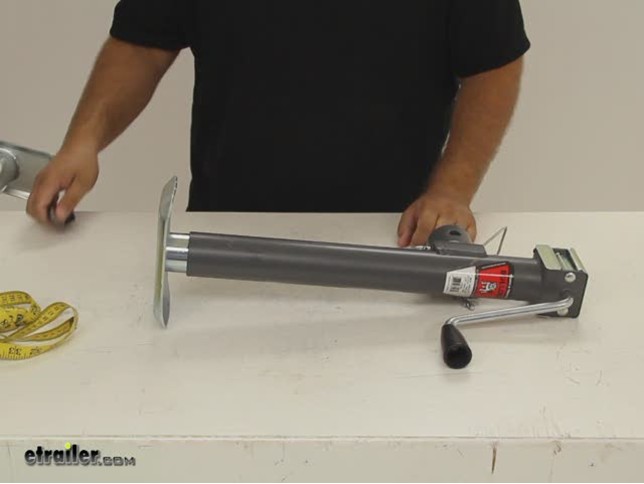

Today were going to take a look at the Bulldog Round pipe mount swivel jack part #: BD178203. This jack is designed to be used with weld-on applications. On the inside of the jack will be a steel tube that youll weld to the frame of your trailer. The collar of the jack fits around that steel tube and it will allow you to swivel the jack up or down so you can tuck it out of the way when youre trailering down the road. Its a side wind design jack with an ergonomic handle that makes operating the jack smooth and easy. Theres a footplate welded to the bottom of the inner tube that provides a nice flat base for supporting your trailer.

The footplate and the inner tube are finished in a zinc plating to help keep them long lasting. The jack is covered by a limited five year warranty and it has a lift capacity of 5,000lbs. The tubing diameter is 2 inches. The jack features about 6 inches of clearance, at the top, from the center of our mounting point to the top of the jack. It has a retracted bracket height of about 15 inches from the center of the mounting plate to the bottom of our footplate.

Now we have the same jack already extended all the way out. That same measurement when extended fully is about 30 inches. The difference between the two, 15 inches, is the amount of lift the jack will provide. And thats it for our quick look at the Bulldog round pipe mount swivel jack part #: BD178203.


Customer Reviews

Bulldog Round, Pipe-Mount Swivel Jack - Sidewind - 15" Lift - 5,000 lbs - BD178203

Average Customer Rating:  5.0 out of 5 stars   (35 Customer Reviews)

Footplate and 5/8" diameter pin are included with this round, swivel-mount jack. Ideal for agricultural and commercial uses. Jack has 15-3/8" retracted height and measures 6-3/8" from mounting bracket to top, excluding handle.

- BD178203
by:

Received product in 2 days, excellent communication on order status and follow up once order was received. Installed these on a 20’ utility trailer to stabilize the rear when I load my skid steer. Thank you. 604051



- BD178203
by:

Good quality product and good service from etrailer. I replaced a 2K jack with a 5K of the same make. It’s mounted on a 1815 bushhog and the 2K jack was just not enough jack to lift it. 716287



- BD178203
by:

Quick delivery, great quality product at a very good price. 667383



- BD178203
by:

Very stout and easy to crank. 647303



- BD178203
by:

These jacks are built tough. Surprised by their weight. They will be welded on the back of a flatbed trailer used to haul light farm equipment. We will take the trailer to town soon to have the welding shop work on it. 640111



- BD178203
by:

This jack showed up faster than expected, fit right on my already welded pipe tube and lifted the trailer with little effort. IT is much nicer than the one it replaced. 637209



- BD178203
by:

Great replacement jack, very heave duty, after a year of use still working perfectly Thank you etrailer 621548



- BD178203
by:

Just received in good shape. Looks like a well built product. Fast delivery. Thanks 576950



- BD178203
by:

great price delivered very promptly I will order from y all again 554388



- BD178203
by:

These Bulldog jacks are perfect for my trailer. Very well built. etrailer always delivers quickly and makes it a good experience. 540210



- BD178203
by:

Great Service Great product Good prices & fast shipping etrailer is my one call stop Now Thanks 527073



- BD178203
by:

Works like a charm. 510143


Comments

It has worked well for me, no problems with the product.

Charles - 05/20/2019

55547

- BD178203
by:

Works like a charm. 509921



- BD178203
by:

Just like the original. Smooth operation and weight of trailer is lifted easily. Only thing missing is a grease port to grease internal gears. 485386



- BD178203
by:

I use this weld-on jack for all of my ag equipment. Works great, sturdy, and is easy to install with basic welding skills. 477598



- BD178203
by:

Love to purchase from etrailer! 457851



- BD178203
by:

I had this side handle trailer jack installed by a welder on my light weight utility trailer. It is easy to crank up or down and very sturdy. I replaced an old wheeled jack with the pull and spin option for moving the jack out of the way. This one is much easier and faster to use. I would highly recommend this. 411849



- BD178203
by:

I recently purchased a hitch set up for my Toyota Tundra. I installed the towing kit without having to drill any holes. It arrived in a timely manner and I am very pleased with cost and the product! I plan to pull a trailer withe towing package. I also purchased a bulldog lift for a work related piece of equipment that also worked very well. 391224



- BD178203
by:

Welded them to trailer for stability during rear loading, also good for changing out wheels 384722



- BD178203
by:

just what I wanted 384440



- BD178203
by:

The hitch works great, the best feature is that it can be removed while travelling, especially on rough secondary roads where I have damaged four others. 360323



- BD178203
by:

Excellent product, would purchase again 330688



- BD178203
by:

Great service and good price. Very happy with the company and the product. 283109



- BD178203
by:

Quick service and was a perfect fit. 272770



- BD178203
by:

Exactly what I needed. 236296



- BD178203
by:

Quality jack, easy to weld on tube. 217556



- BD178203
by:

Excellent jack better than the one that was on back order.. 179591



- BD178203
by:

Works great. the only difference between it and the one that came with the baler is the color (gray instead of black) and its about 2 inches shorter or a few more turns with the crank :) and saved 130 dollars by ordering from etrailer instead of the dealer. 143876



- BD178203
by:

Solid product as I've come to expect from Bulldog. Communication was top notch - I was aware of my order status from start to finish. 130564



- BD178203
by:

great service , was very helpful and shipped item fast,even upgraded delivery thanks again jim 108971



- BD178203
by:

Perfect in every way. Great price, correct item, delivered on time! 108134



- BD178203
by:

Exactly as described, and delivered in perfect condition on time 87044



- BD178203
by:

received desired product quickly and trouble free. i appreciate informative emails regarding order 61737



- BD178203
by:

A quality well built jack. This was my 3 rd order from Etrailer and they have good prices, quick service at reasonable shipping prices comared to the other online trailer folks. 32632



- BD178203
by:

jack recieved and in use. thanks for your help. 25254


35
35

Ask the Experts about this Bulldog Trailer Jack

Do you have a question about this Trailer Jack?


  • Weld-On Jack Pipe Mount Recommendation for a12,000 lb Equipment Trailer
  • I went out into our warehouse and pulled a Bulldog Round, Pipe-Mount Swivel Jack, part # BD178203, that has the same 2 inch inner diameter and 2.5 inch outer diameter pipe mount swivel jack as yours. I then test fit a Bulldog 2-1/2 inch Long, Weld-On Jack Pipe Mount for 2-1/2 inch, part # BD005024, and a Bulldog 2-1/4 inch Long, Weld-On Jack Pipe Mount for 2-1/2 inch, part # BD015279. I found that either will work dimensionally, the # BD015279 will fit on the inside and the # BD005024...
    view full answer...

  • What Tubular Swivel Trailer Jack Is Available To Replace A Bulldog 170 Series
  • The Bulldog Trailer Jack, # BD195304, you have referenced is a direct weld jack. A similar jack to the # BD195304 in a tubular swivel mount with a round mount would be the Bulldog Round, Pipe-Mount Swivel Jack - Topwind, # BD178151. It has a 5,000 lbs. support capacity, 15 inches lift and is a topwind. The Bulldog Round, Pipe-Mount Swivel Jack - Sidewind, # BD178203, is a tubular swivel mount with a round mount and it also has a 5,000 lbs. capacity, 15 inches of lift, but it is a...
    view full answer...

  • Recommendations for Side-wind Pipe-Mount Weld-On Swivel Jacks Rated for 5000-8000 Lbs
  • We offer the Bulldog Round Pipe-Mount Swivel Jack rated for 5000 lbs, part # BD178203. This includes the 2-inch weld-on coupler pipe (and retaining pin and clip) and the foot plate. This jack offers 15 inches of lift. Please refer to the video link provided. We also offer the Bulldog Square Swivel Jack, part # BD190758, which also provides 15 inches of lift, includes the 2-inch weld-on coupler pipe, pin and clip, and footplate. This jack is rated for 8000 lbs static capacity and also...
    view full answer...

  • Caster Wheel for Bulldog Side-Wind Pipe-Mount Trailer Jack
  • Fulton Twin-Track Wheel Assembly # F500265 is intended specifically for use with their F2 jacks like # F1413100334. If you look at the linked photo of the wheel's connection point you can see that the caster has a unique shape that would not mate with a square jack tube. We have no caster wheels for square jacks, only round jacks like # BD178203, which is also a side-wind, pipe-mount 5K swivel jack like the one you referenced. With this jack you could use Heavy-Duty 6-Inch Caster Wheel...
    view full answer...

  • What Size Pipe Does Pro Series Swivel Trailer Jack, # PS1401440303, Fit On
  • I spoke with my contact at Pro Series about the Swivel Jack, # PS1401440303. He stated that the mount will fit on a 2 inch diameter pipe on the trailer. The pin is a 5/8 diameter pin. It does also come with a pipe of its own that you can weld to the trailer should you need to. The mount diameter is the same for Bulldog Round, Pipe-Mount Swivel Jack, # BD178203.
    view full answer...

  • What is the Difference Between Bulldog and Pro Series Pipe-Mount Swivel Jacks
  • The differences between the two jacks is minimal. The main feature difference is that the Bulldog # BD178203 has the ASABE (American Society of Agricultural and Biological Engineers) compliancy certification whereas the ProSeries # PS1401440303 does not. Bulldog uses this compliancy certification to test durability and longevity whereas the Pro Series jacks do not use this process. The other main difference is the Bulldog has a 5 year warranty and the ProSeries has a 1 year warranty....
    view full answer...

  • Does Pro Series Swivel Jack PS1401440303 Need to be Replaced if Drive Pin in Handle Sheared
  • There is not a replacement drive pin for the handle of the Pro Series Round, Pipe-Mount Swivel Jack with Footplate # PS1401440303, which means if the drive pin has sheared and the jack is no longer functional, you will need to replace the jack with a new one. You could go with the Pro Series again or upgrade to a higher quality option, the Bulldog Round, Pipe-Mount Swivel Jack # BD178203 which has the same 5,000 lb capacity and 15" lift, but also comes with a 5-year warranty compared to...
    view full answer...

  • Replacement 5K Pipe-Mount Trailer Swivel Jack with Foot
  • It sounds like you have a pipe-mount swivel jack like Bulldog # BD178203. Note that Bulldog and Fulton are sister brands, both part of Cequent Performance Products. Round tube jack # BD178203 offers a pipe mount, 5K capacity, steel footplate, and 15-inches of lift. Bulldog part # BD178201 is similar but instead offers 10-inches of lift. A link to all 5K pipe-mount swivel jacks is included for you.
    view full answer...

  • Mounting Ring Diameter for the BullDog Round, Pipe-Mount Swivel Jack # BD198250
  • The Bulldog Round, Pipe-Mount Swivel Jack - Sidewind - 15 inch Lift - 7,000 lbs, item # BD198250, has a male pipe on the jack and a female receiver that welds to the trailer. This female receiver has an inside diameter of just over 2-1/2 inches to fit on the 2-1/2 inch male pipe welded to the jack. This jack utilizes a 5/8 inch pin to secure the jack to the trailer. For a jack with a 2 inch outside diameter male receiver that welds to the trailer frame and has a capacity of 5,000 pounds,...
    view full answer...

  • Jack Recommendation for a Trailer that has a Pipe Mount that Is 2-3/8 Inch OD and 2 inch ID
  • The Bulldog Round, Pipe-Mount Swivel Jack # BD178203 is designed to fit a pipe mount that has a 2-1/2 inch outer diameter and a 2 inch inner diameter which is very close to what you have on your trailer. As long as the pin hole on your pipe mount is 5/8 inch in diameter this jack would work well for you. I attached a review video for you to check out as well. This is a 5,000 lb jack that should work well for you.
    view full answer...

  • 1,000 lb Jack Recommendation for Boat Trailer with 2 inch Pipe Mount
  • The Bulldog Round, Pipe-Mount Swivel Jack - Sidewind - 15 inch Lift - 7,000 lbs, item # BD198250, has a male pipe on the jack and a female receiver that welds to the trailer. This female receiver has an inside diameter of just over 2-1/2 inches to fit on the 2-1/2 inch male pipe welded to the jack. This jack utilizes a 5/8 inch pin to secure the jack to the trailer. For a jack with a 2 inch outside diameter male receiver that welds to the trailer frame and has a capacity of 5,000 pounds,...
    view full answer...

  • Recommended Trailer Jack To Clear Tailgate With A-Frame Trailer
  • I do have an option for you but the tongue jack only needs to be rated for the tongue weight of your trailer which will only be around 10-15% of its loaded weight. Therefore, you are likely only going to need around a 700-1,000 lb weight capacity. The higher rated you go, the better off you will be but an 8,000 lb option would be far too much. In order to clear your tailgate while the trailer is attached you are likely going to need a side mount, swivel option. I recommend the Bulldog Round...
    view full answer...

  • Replacement Handle for Bulldog 5K Sidewind Swivel Trailer Jacks with Round Tubes
  • For Bulldog trailer jack # BD178203 the correct replacement handle is # BD500105.
    view full answer...

  • Replacement Bulldog Jack Recommendation to Fit Trailer with Round Pipe Mount
  • The Bulldog Round, Pipe-Mount Swivel Jack - Sidewind - 15 inch Lift - 7,000 lbs, item # BD198250, has a male pipe on the jack and a female receiver that welds to the trailer. This female receiver has an inside diameter of just over 2-1/2 inches to fit on the 2-1/2 inch male pipe welded to the jack. This jack utilizes a 5/8 inch pin to secure the jack to the trailer. For a jack with a 2 inch outside diameter male receiver that welds to the trailer frame and has a capacity of 5,000 pounds,...
    view full answer...

  • Recommendation for Replacement Bulldog Trailer Jack
  • I would need the model number of your jack to find the exact match. We do have several Bulldog side crank jacks that are a possible fit. I have included a link below to our Bulldog swivel jacks, pipe mount with 15" lift. There are round and square jacks with weight capacities from 2,000 to 8,000 lbs.
    view full answer...
