Settle in and enjoy the moment, knowing your battery can handle extra days and cold mornings. And with Alpha 1 Pro's battery management system and smartphone monitoring, you always know how much power you have to keep the adventure going.
Before you roll out on your next big adventure, you want to feel prepared, not left guessing if your battery will hold up when you need it most. With built-in Bluetooth, you can check your battery's health, charge, and performance right from your phone. If you're parked in the pines, docked at the lake, or boondocking off the beaten path, you stay in control - no more crawling into storage compartments or second-guessing your setup.
Traditional lead-acid, AGM, and gel batteries can wear down after just a few seasons of hard use. The Alpha 1 Pro is built for the long haul, delivering over 7,000 cycles and guided by a smart BMS that shields your battery from overcharging, deep discharging, and extreme temperatures. When cold weather hits, the built-in self-heating system activates at 41°F and keeps working until the battery is warmed above 50°F. This helps prevent freezing temperatures from cutting your trip short or shortening battery life, so you get worry-free power and the freedom to explore even when the forecast turns frosty. Enjoy fewer power interruptions and the confidence that your battery is ready for every season.
Alternate Instructions
California residents: click here
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

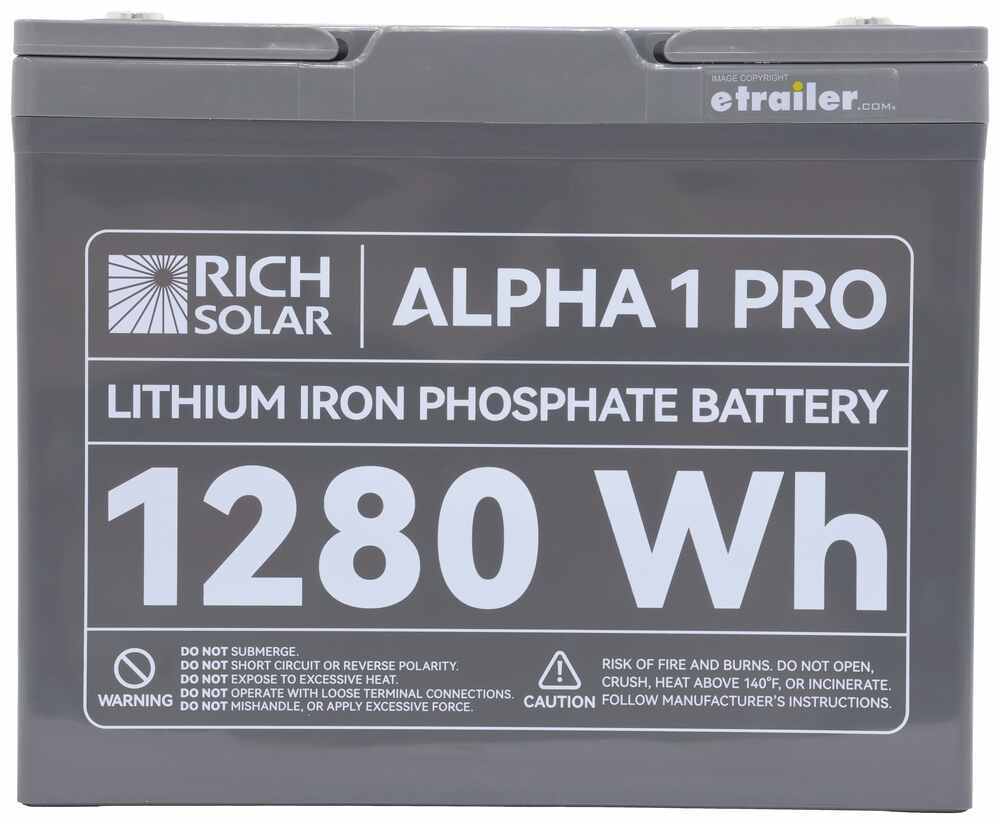

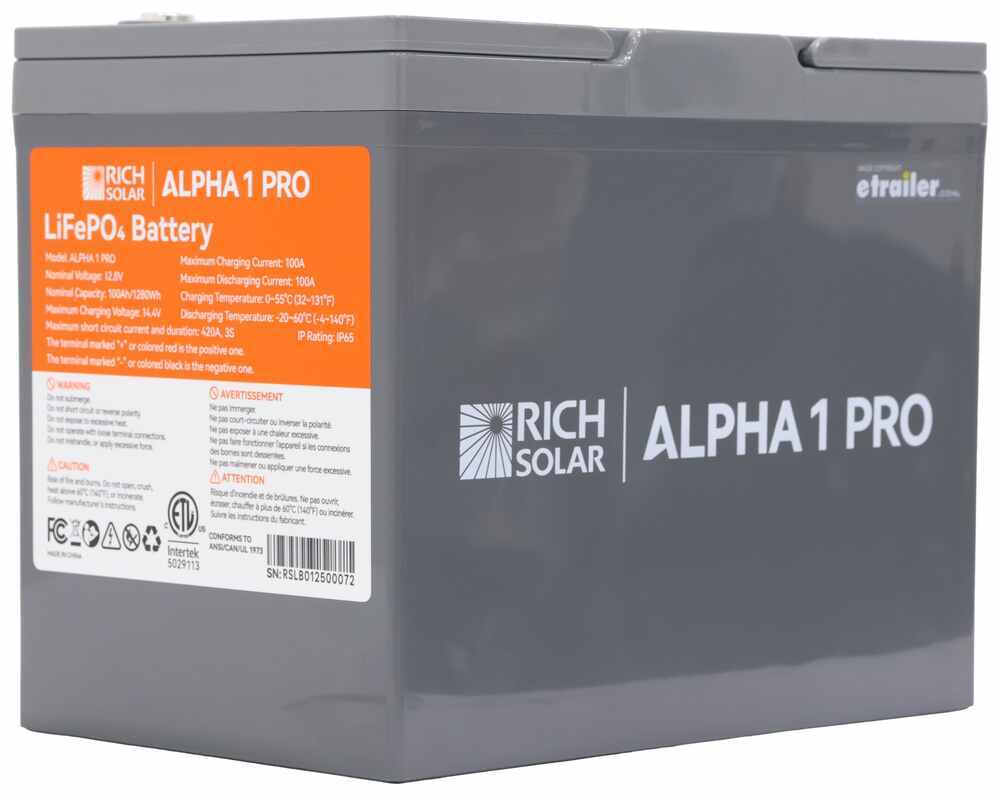

Hello, everybody, this is Jeff at etrailer.com. Today, we're gonna take a look at this Rich Solar Alpha 1 Pro 12 volt, 100 amp-hour lithium iron phosphate battery. Now, this is an advanced LiFePO 4 battery. It is equipped with a BMS, which is a battery management system, and it even offers Bluetooth. Now, the battery management system can be used to prevent deep discharge, overcharge, and over temperature of your battery. This offers features like charging below freezing with internal heat technology.

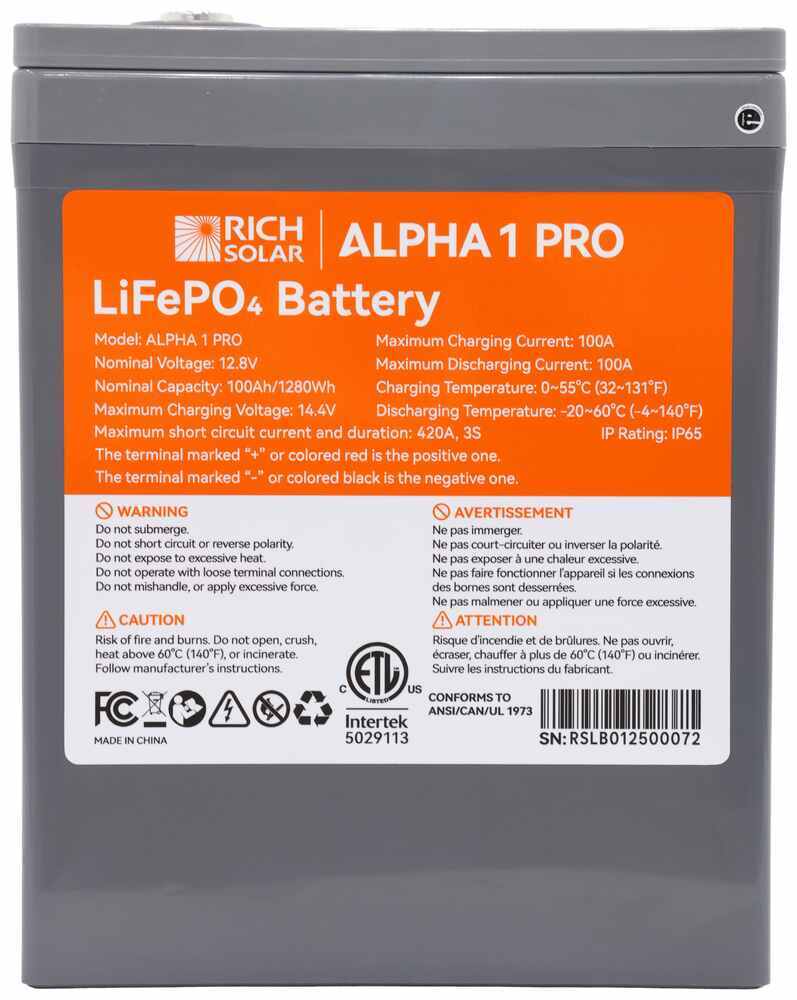

Basically, what happens is if the battery's charging, protection system detects low temperatures, which is usually below 41 degrees Fahrenheit, then the heating function automatically turns on, but only when there's charging current present. When it gets below 32 degrees Fahrenheit, the charging does turn off. And once the temperature rises above 50 degrees Fahrenheit, the heating function will turn off also. We mentioned the battery type, it is a LiFePO 4 battery. The nominal voltage on this is 12.8 volts.

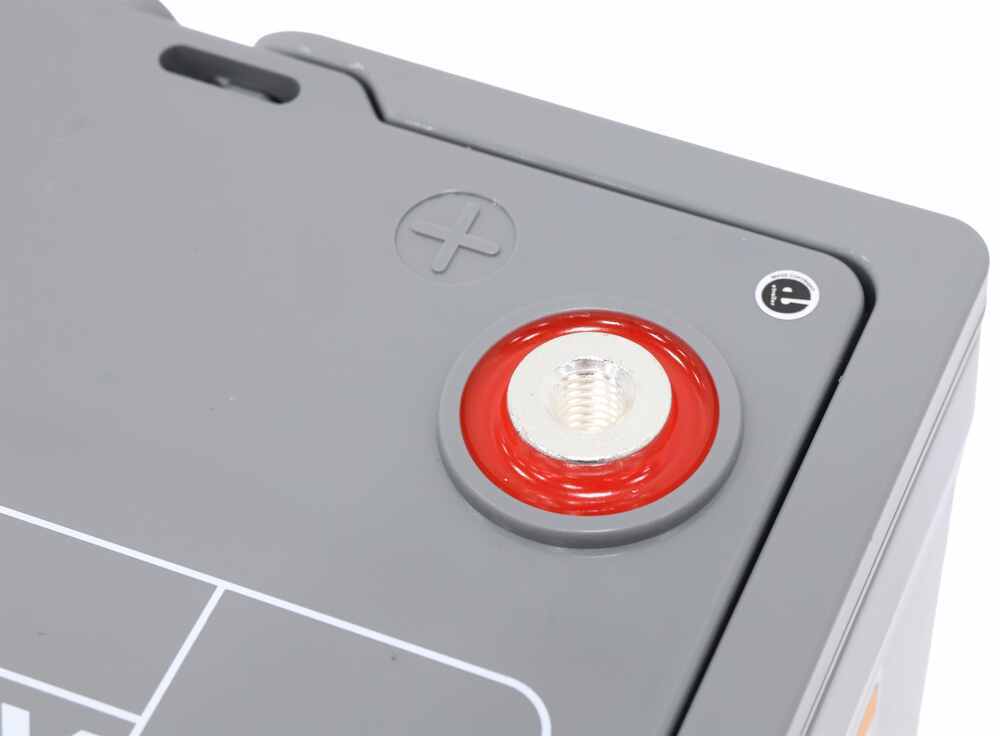

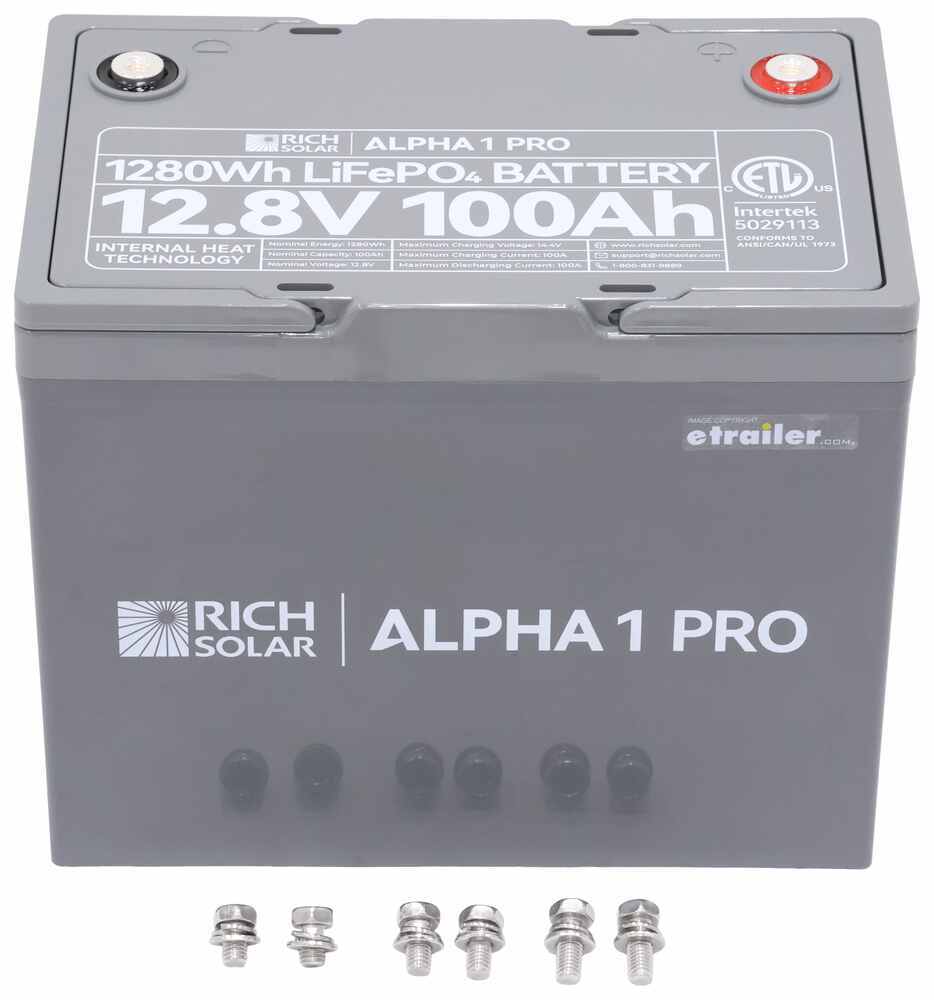

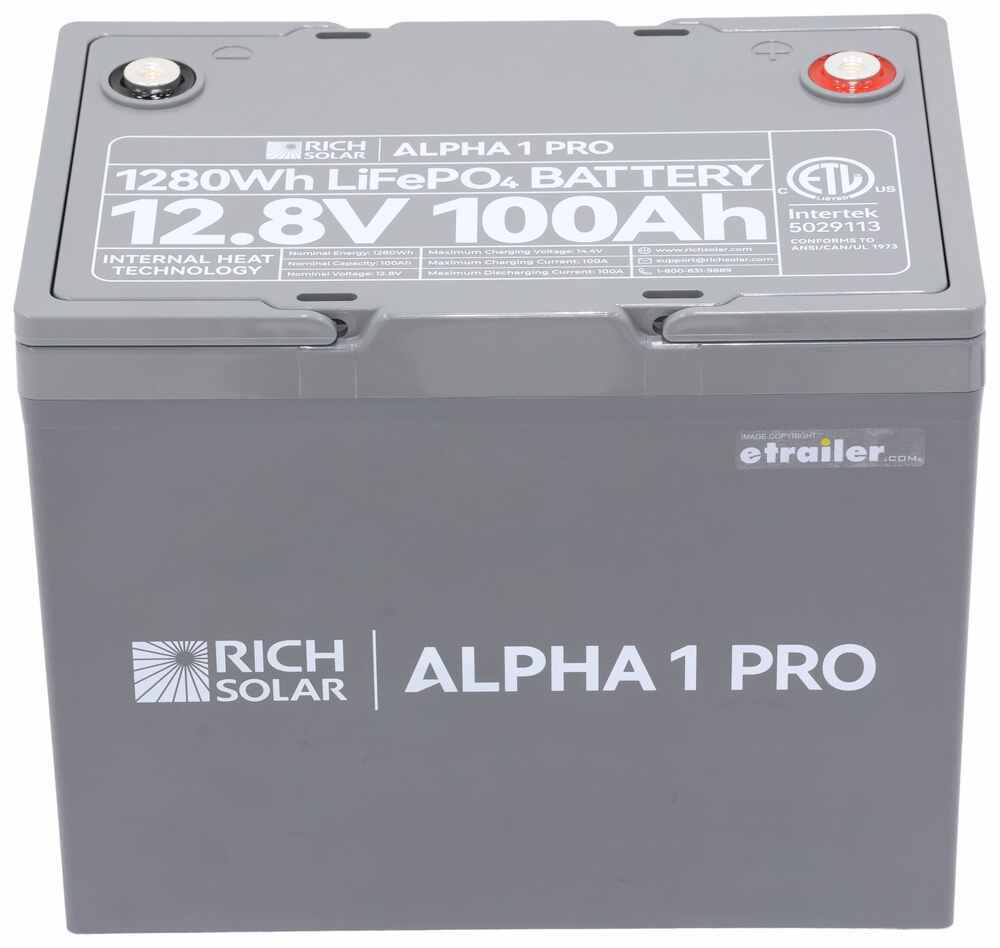

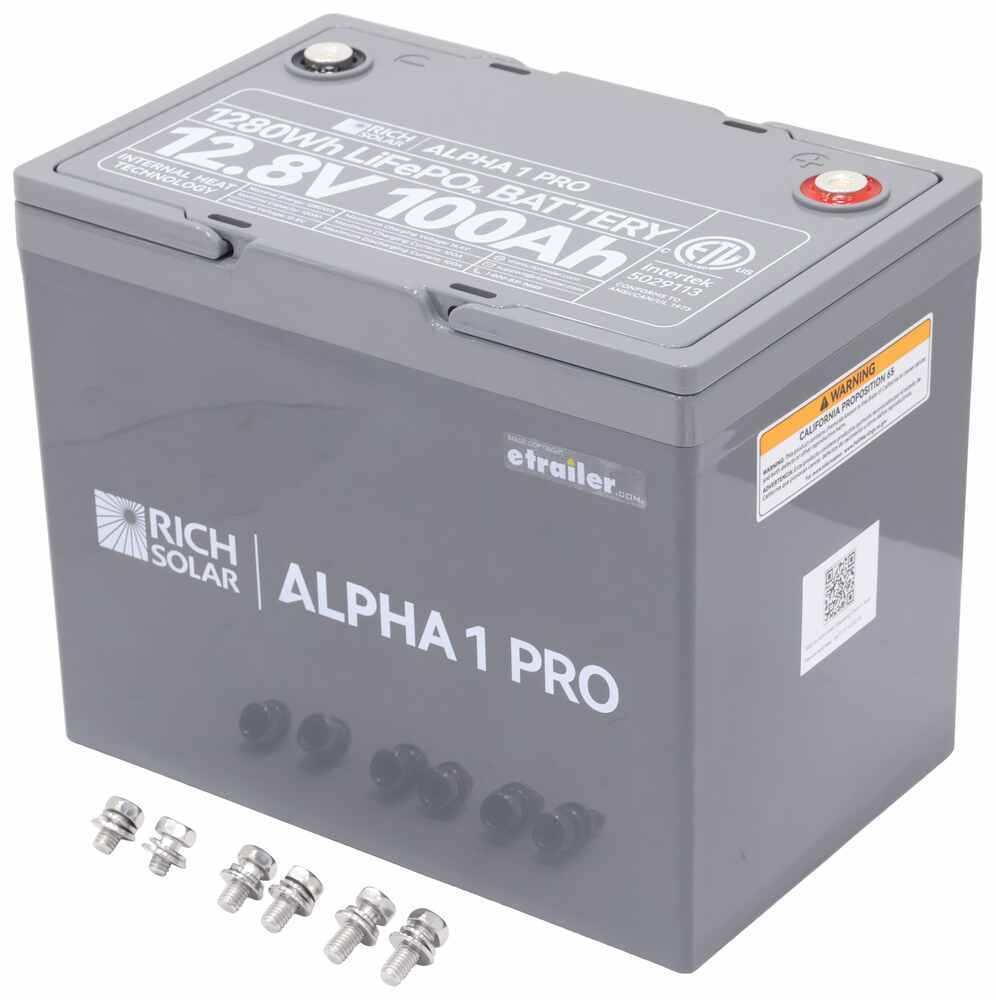

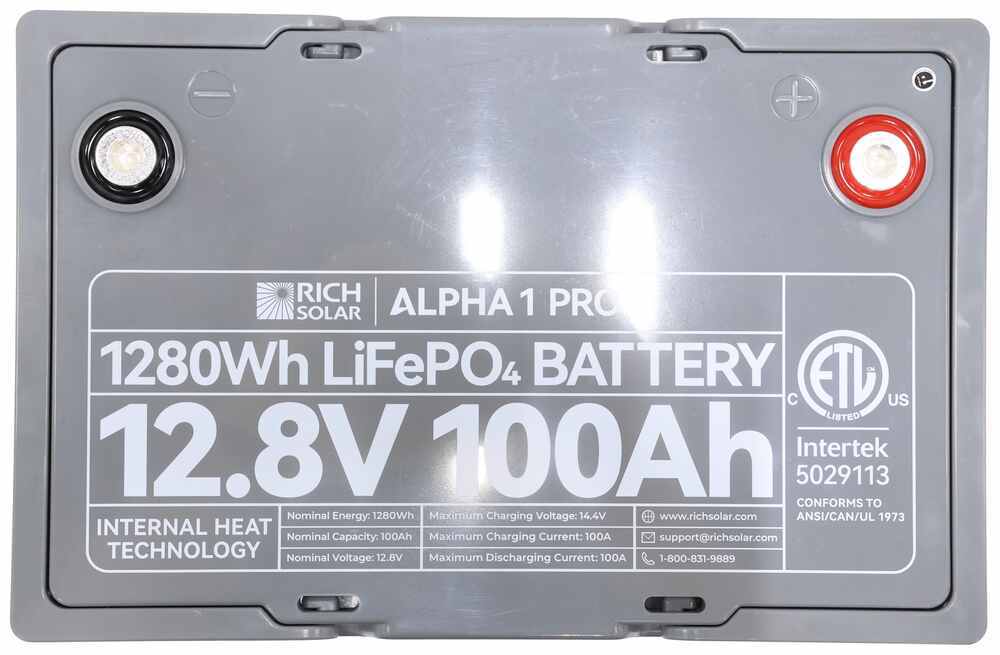

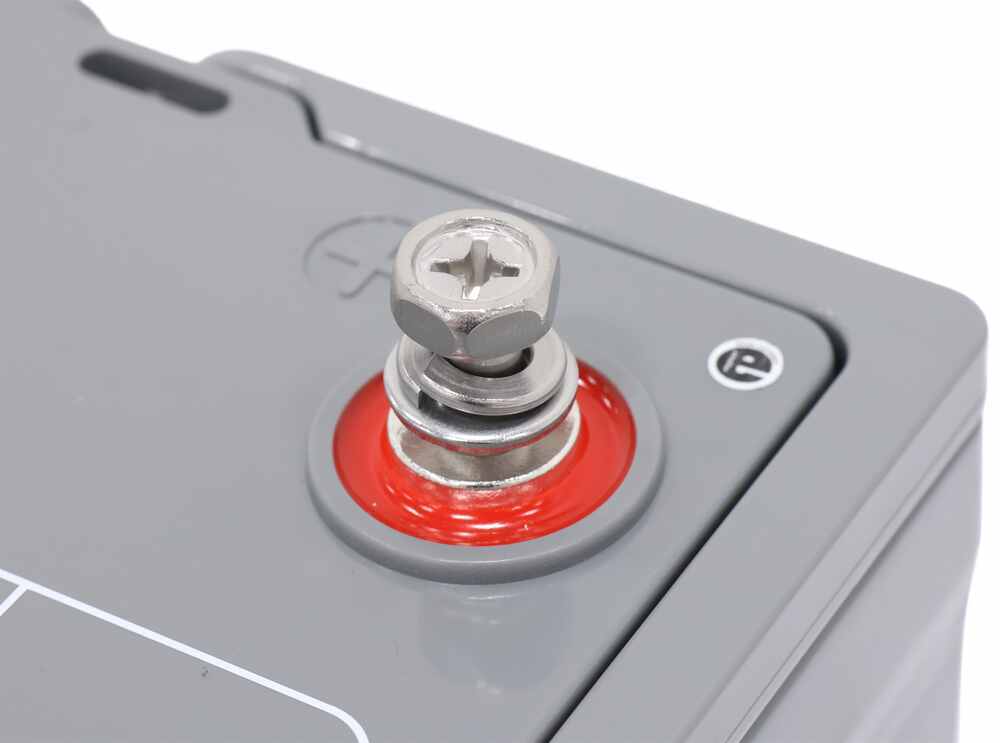

Nominal capacity, 100 amp-hours. Nominal energy of 1,280 watt-hours. They do use high quality components to ensure that the system responds accurately and quickly. And you can use Bluetooth to check your battery status from your phone. Now, when you do mount this, if you noticed at the top, it has the positive and negative connections here.

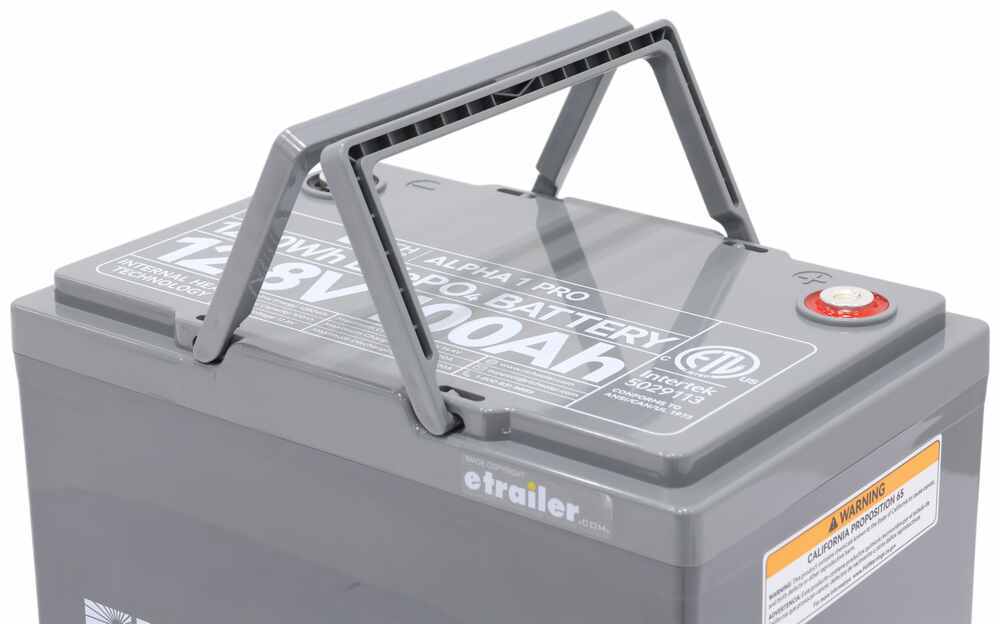

You do always wanna mount this battery with those positive and negative poles facing up. The standard charging current on this is 50 amps, maximum charging current is 100 amps, standard discharge current is 50 amps, and the maximum discharge current is 100 amps. Cycle life on this battery is about 7,000 plus lifetime cycles. Weight on this battery, and if you noticed, it has the nice handles that'll help you carry it, it's about 24 pounds. Few measurements on this.

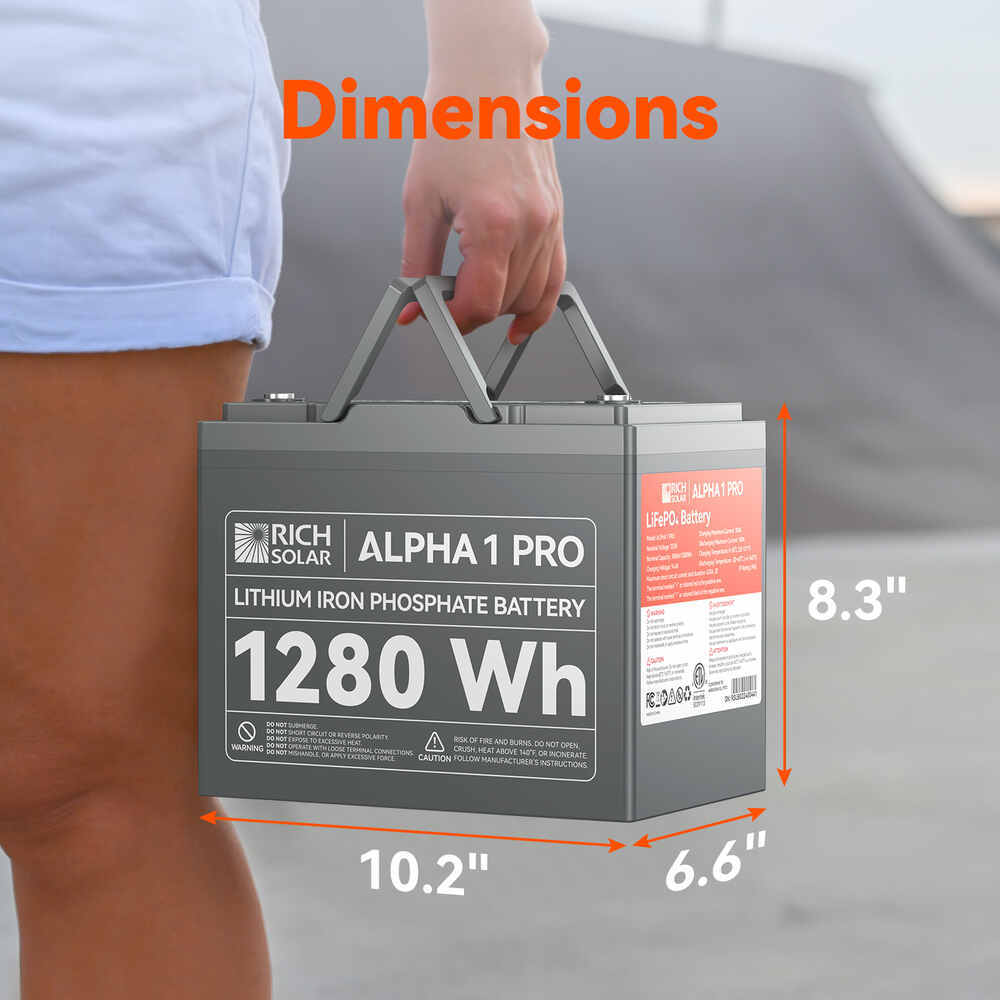

Now, it does come with a nice user's manual to describe all those features we just talked about. Overall dimension, the width or length, it's gonna be right at 10 3/16 inches. The width this way is gonna be right at 6 5/8 inches. And the overall height from the bottom to the very top is 8 5/16 inches. That's gonna do it for a look at this Rich Solar Alpha 1 Pro 12 volt, 100 amp-hour lithium iron phosphate battery.
