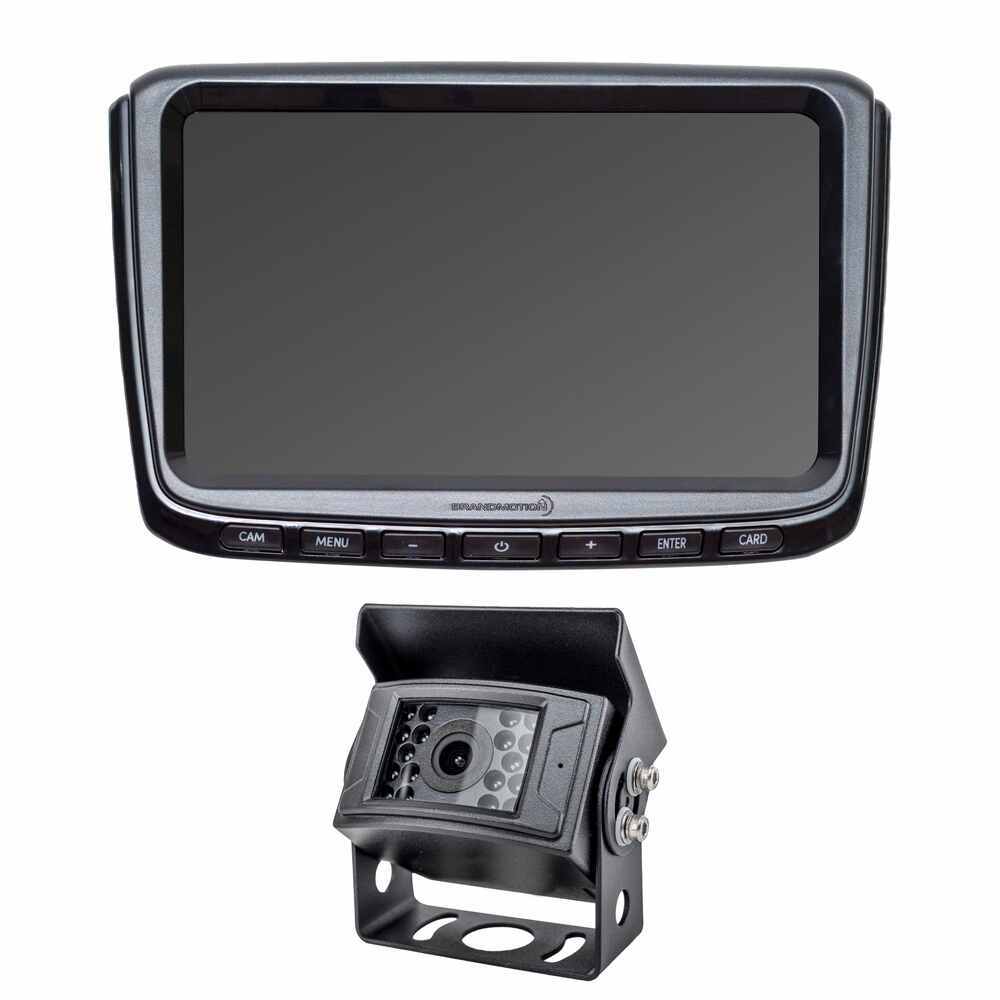

Brandmotion Heavy Duty Vision System with AHD Backup Camera and Monitor - Universal

Brandmotion Backup Camera - BM45YR

Brandmotions Heavy Duty Vision System with 7 AHD Monitor provides higher quality and smoother video through standard composite video connections.

Features:

• 4 Inputs with Trigger Wires
• DVR Optional (SD card not included)
• Always On Observation
• Heavy Duty for Increased Visibility
• Night Vision
• Built-In Monitor Speaker and Camera Microphone (optional)

Specs:

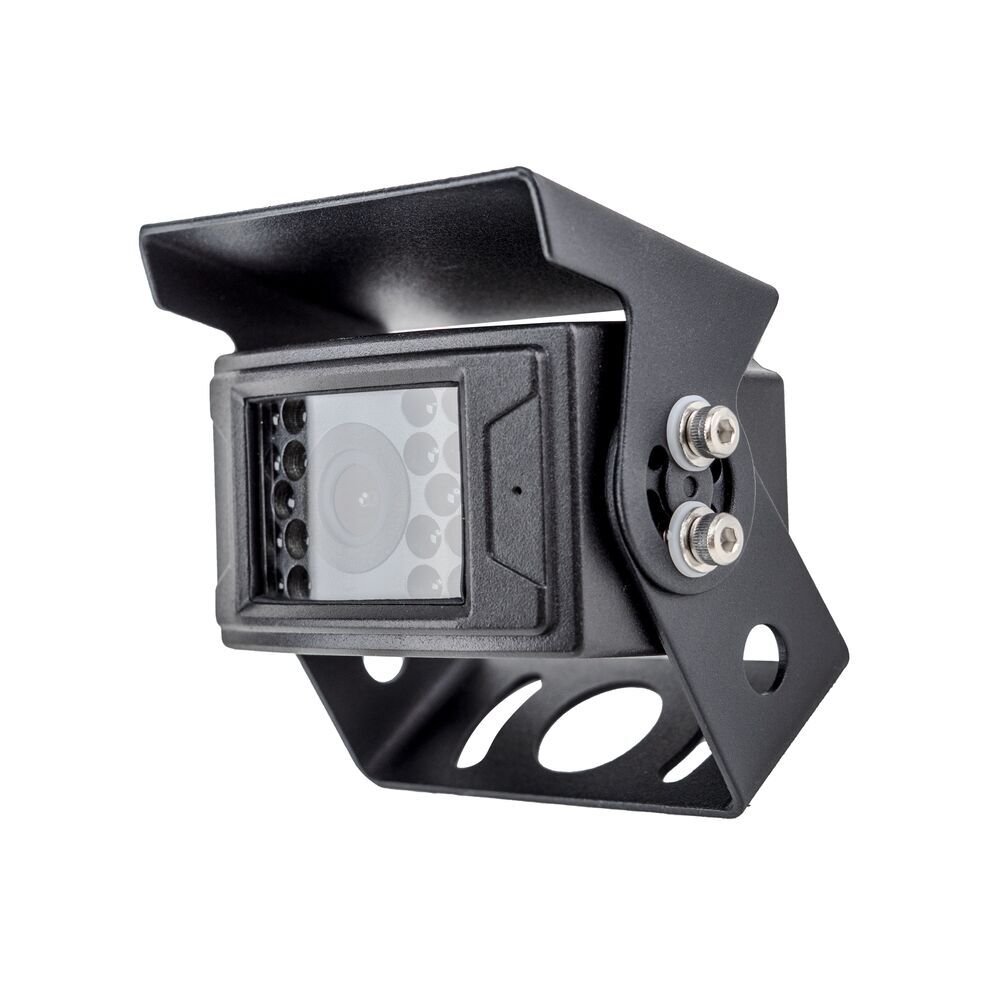

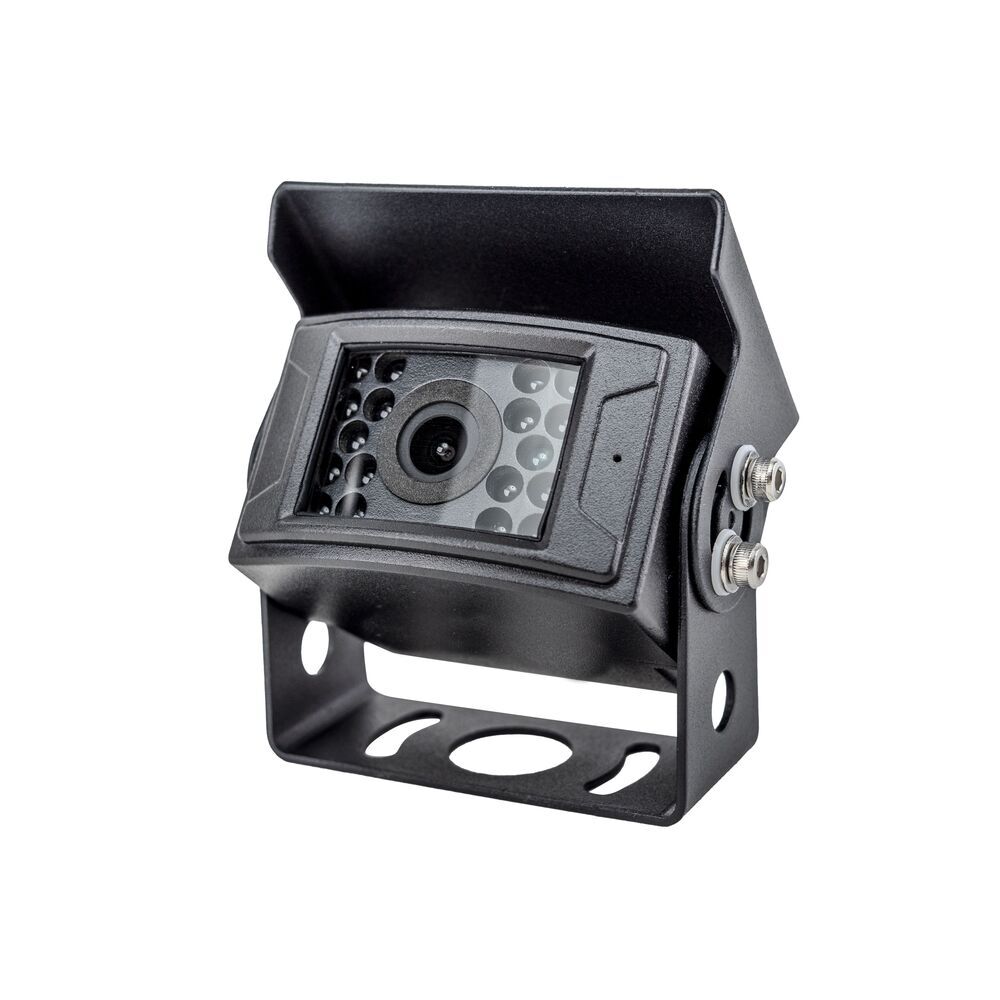

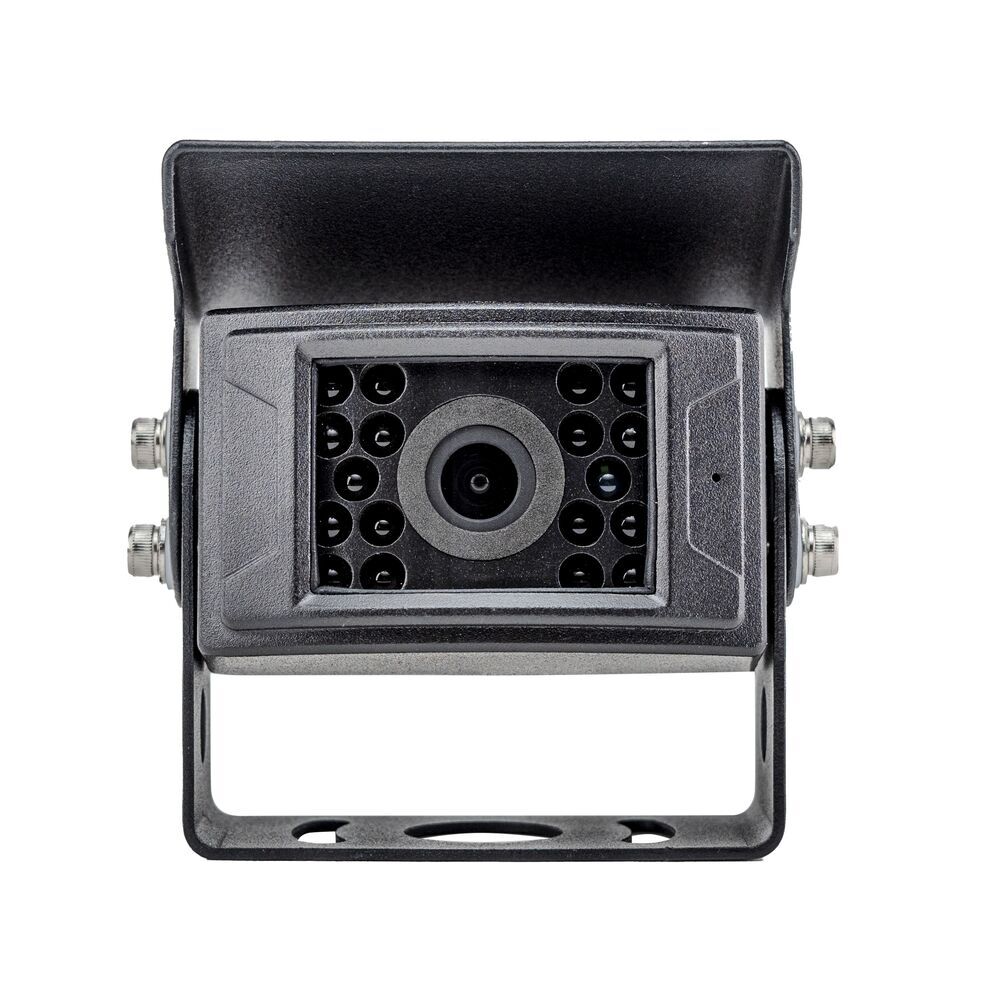

• CAMERA
  • Working Voltage: 10v 16v
  • Rated Voltage / Current: 130ma
  • Working Temperature: -20 C to 70 C
  • Storage Temperature: -30 C to 85 C
  • Connection Type: 4-Pin Aviator Wired
  • Mounting Locations: Rear or front
  • Mounting Type: U-Bracket
  • Field of View (H) (V): 140º, 90º
  • Low Light Night Vision: 0.1 LUX
  • Lens Size: 1/4 inch
  • Built in IRs: Yes
  • Waterproof Rating: IP68
  • Video Format Output: AHD
  • Resolution: 1080p

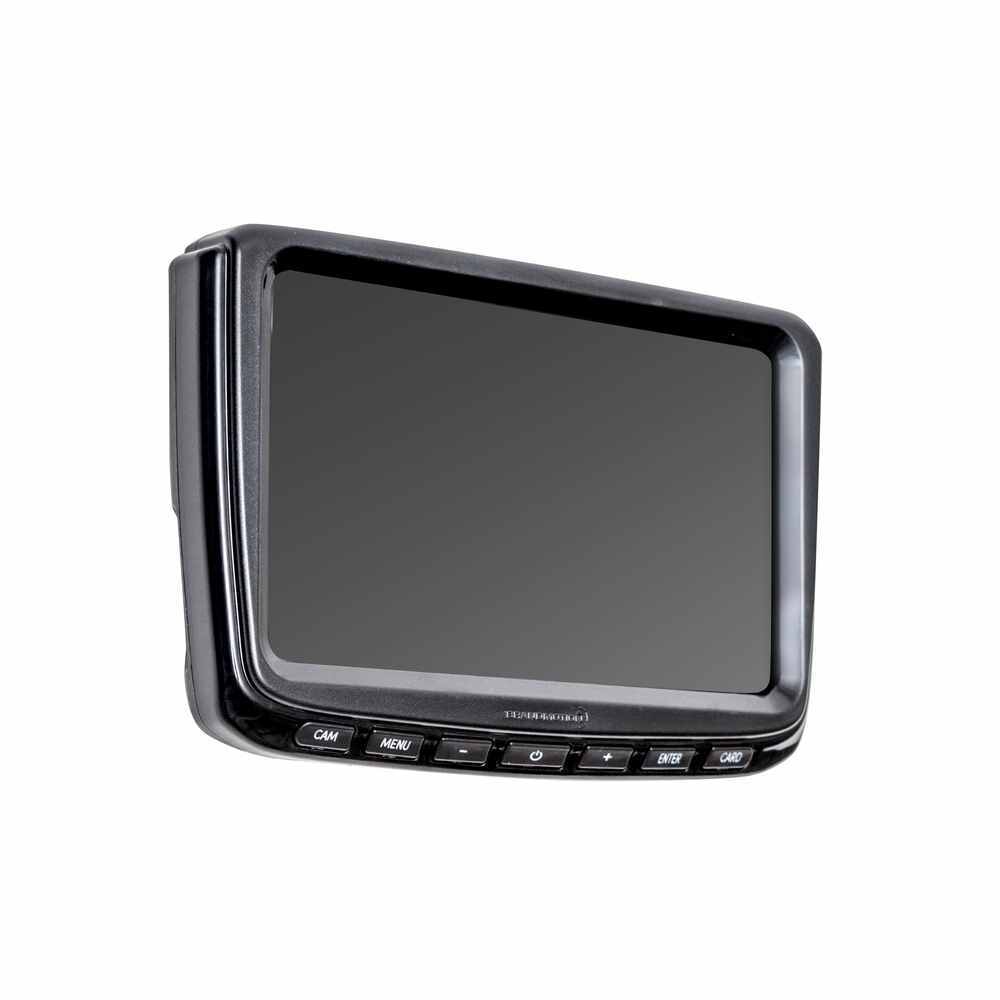

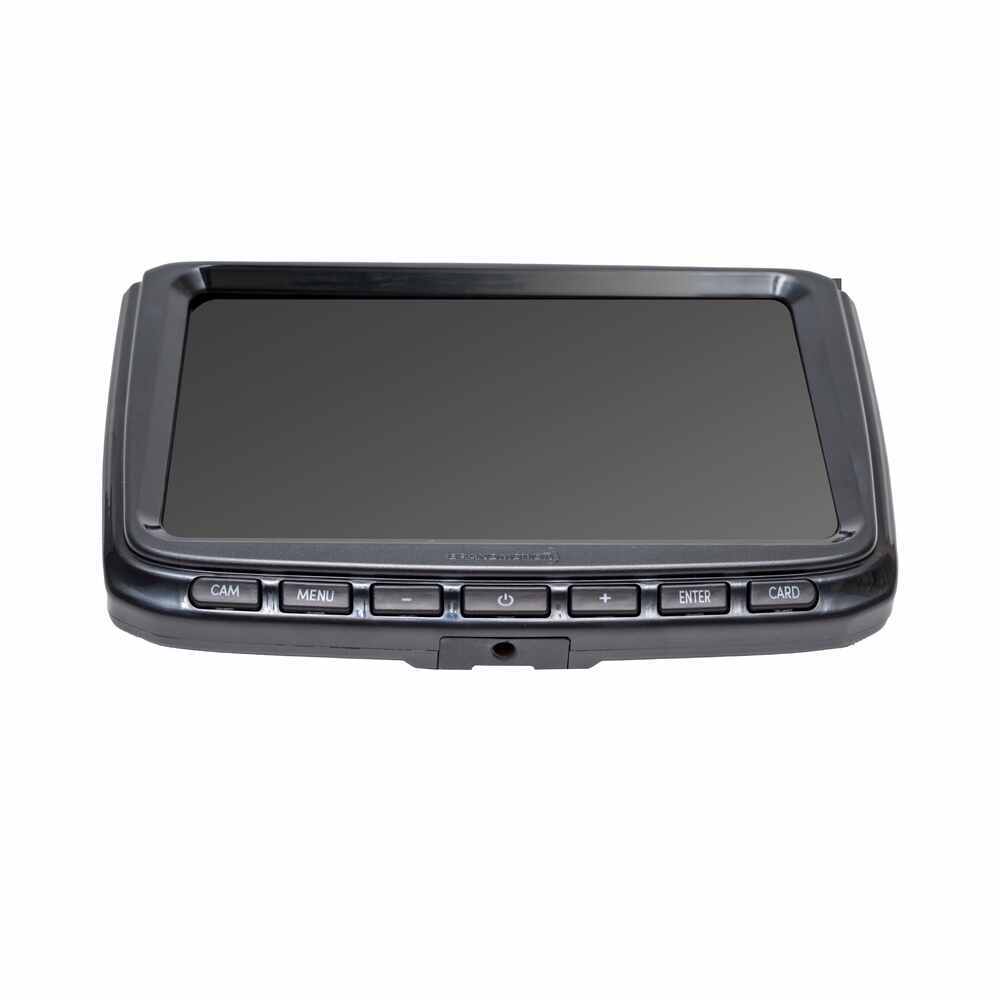

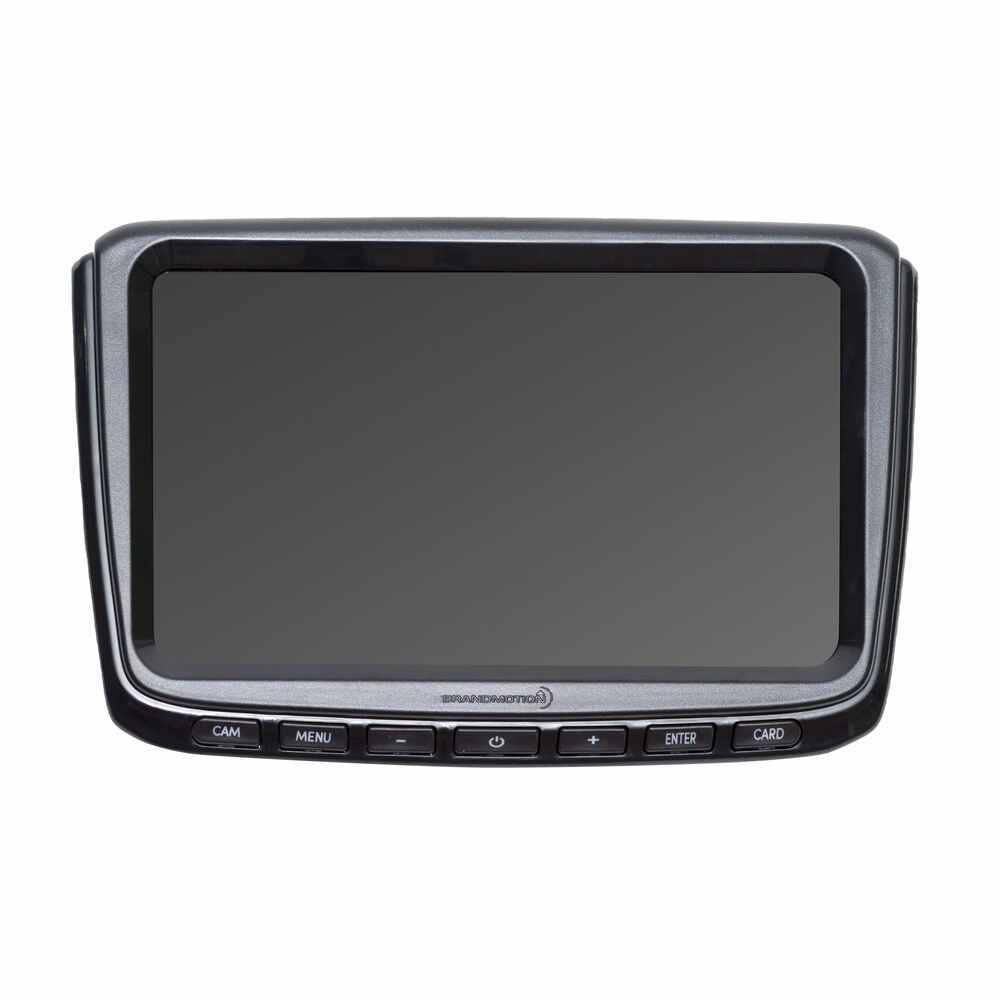

• MONITOR
  • Working Voltage: DC12V to DC24V
  • Power Consumption: 4W
  • Working Temperature: -20 C - 60 C
  • Storage Temperature: -30 C - 70 C
  • Display Brightness: 500cd/m2
  • Screen Size: 7 inch
  • Resolution: 1024x600(IPS)
  • Aspect Ratio: 16:9
  • Camera Connection Type: 4-Pin Aviator Wired (Max 4 cameras)
  • Video Format Input: AHD
  • DVR Built-in Y/N: Yes
  • Built in speaker: Yes
  • Video trigger input triggers: Yes

FLTW-7000 Brand Motion Heavy Duty Vision System for Commerical Vehicles and RVs - AHD Rear Camera and 7" AHD Monitor

Installation Details
