Go Power PowerTrak Solar Charging System with MPPT Solar Controller - 1200 Watt Solar Panels

Go Power RV Solar Panels - GP48QR

Camp off grid for a long weekend or even longer with this complete solar kit for your RV. Gives you 1,200 watts of solar power generation with an efficent MPPT solar controller. Includes a powerful, all-in-one pure sine wave inverter charger.

Features:

• Solar charging system charges the batteries in your RV while you're off the grid
  • Works with gel, AGM, flooded, or LiFePO4 batteries
• (6) 200-Watt monocrystalline solar panels use sunlight to charge your RV batteries
  • Weatherproof, impact-resistant materials stand up to the elements
• 30-Amp MPPT solar controller adjusts solar panel output for a quick, consistent charge
  • MPPT technology charges batteries faster than PWM controllers
  • Automatic multistage smart charging system helps extend battery life
  • Parallel capability lets you connect up to 5 total controllers for 150 amps of input
• Inverter charger combines 3 functions: inverter, converter charger, and transfer switch
  • 2,000-Watt pure sine wave inverter provides AC power for electronics and appliances
  • Converter charger changes AC shore power to DC power to quickly charge your RV batteries
  • Transfer switch automatically swaps to shore power when you hook up at the campground
• Fixed-mount touch-screen display lets you monitor your battery and control the inverter charger
• Kit includes 6 solar panels, inverter charger, solar controller, digital display, MC4 cables, and hardware
  • Solar panel expansion (sold separately) increases solar power output

Individual Component Specs:

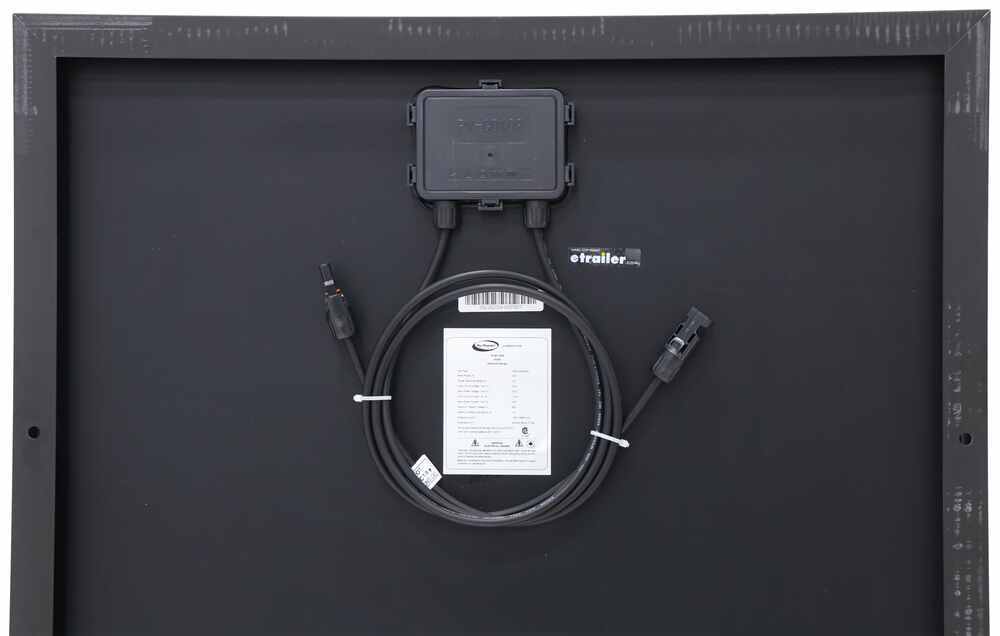

Solar panel

• Rated power: 200 watts per panel
• Amperage: 9.6 amps per panel
• Voltage: 24.3V per panel
• IP rating: IP67
• MC4 cable length: 25' each
• Dimensions: 59-1/8" long x 26-5/16" wide x 1-1/2" deep
• Weight: 26.4 lbs each
• 25-Year limited warranty

Solar controller

• Application: 12V and 24V battery and solar systems
  • Works with lithium-ion, AGM, gel, and flooded lead acid batteries
• Maximum solar array current: 30 amps
• Maximum solar panel input voltage: <100V
• Operating temperature: -31 F to 113 F
• Weight: 3.14 lbs
• Dimensions: 7-3/4" long x 5-3/4" wide x 3-3/8" tall
• 5-Year limited warranty

Inverter charger

• Inverter:
  • Rated power:
    • Running (rated) output: 3,000 watts
    • Starting (surge) output: 4,800 watts
  • Amperage:
    • Running (rated) output: 25 amps
    • Starting (surge) output: 52 amps
  • Voltage:
    • Input: 9 - 17 VDC
    • Output: 115 VAC
  • Temperature ranges:
    • Operating range: -4 F to 104 F
    • Storage range: -22 F to 158 F
• Charger:
  • Amperage:
    • Input: 18 amps
    • Output: 125 amps
  • Voltage:
    • Input: 80 - 140 VAC
    • Output: 5 - 16 VDC
• Transfer switch:
  • Relay rating: 100 amps (2 legs at 50 amps each)
  • Voltage: 240V split-phase
• Maximum wire gauge: 2/0 AWG
• Dimensions: 15" long x 11-1/8" wide x 8" tall
• Weight: 49.8 lbs
• 3-Year warranty

Fuse block

• Rating: 300 amps
• Interrupt rating: 50,000 amps
• DC rating: 160 VDC
• Cable length: 10' each
• Cable gauge: 2/0
• Weight: 0.9 lbs
• Dimensions: 7" long x 2-1/2" tall x 2" wide
