Pro Series 25K Gooseneck Plate for Fifth Wheel Rails by Draw-Tite, Hidden Hitch and Reese

Pro Series Gooseneck

(78 reviews)

Code:   49080



Shipping Special

Shipping Weight: 34.62 pounds


Pro Series Gooseneck - 49080

An economical gooseneck plate designed for use with above-the-bed fifth wheel rails. The plate has a 2-5/16" hitch ball, set into the holes on the fifth wheel rails, and is held in place with pins and clips.


  • 25,000 lb GTW capacity / 6,250 lbs TW
  • Offset ball allows you to move trailer closer or farther away from cab of truck
    • Great for short bed trucks
  • Easily mounts to above-the-bed fifth wheel rails (sold separately)
    • Fits Curt, Draw-Tite, Hidden Hitch, Reese, Valley and Husky brand rails
    • Easy installation and removal
    • Allows full access to truck bed when removed
  • Durable, powder coat, black paint finish
  • 2-5/16" Heat-treated ball
  • 4 Safety chain locations allow for easy trailer connection
    • Note: some states require safety chains to be attached to a separate connection point than to the hitch
  • 5 Year limited warranty


  • Center of the ball is 10-1/2" from one end of the plate and 14-1/2" from the other
  • Curve in plate provides a 2" rise

Mounting Tab Measurements:

  • Tab measures 15/32" x 1-1/2"
  • Distance on center between the tabs, left to right: 10"
  • Distance between the tabs front to back (opposite rails): 21-15/32"
  • Distance from outside to outside of the tabs front to back (opposite rails): 22-13/32"

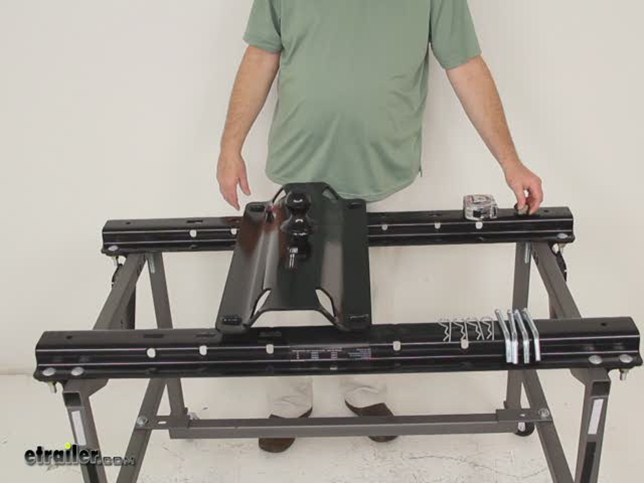

49080 Pro Series Gooseneck Hitch for Fifth Wheel Rails

Video of Pro Series 25K Gooseneck Plate for Fifth Wheel Rails by Draw-Tite, Hidden Hitch and Reese

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Transcript for Pro Series Gooseneck 49080 Review

Customer Reviews

Pro Series 25K Gooseneck Plate for Fifth Wheel Rails by Draw-Tite, Hidden Hitch and Reese - 49080

Average Customer Rating:  4.7 out of 5 stars   (78 Customer Reviews)

An economical gooseneck plate designed for use with above-the-bed fifth wheel rails. The plate has a 2-5/16" hitch ball, set into the holes on the fifth wheel rails, and is held in place with pins and clips.

- 49080

by: Stephen C.06/07/2013

I've got a short bed so the ball swung to one end helps just that little extra. Fit great, easy installation. Customer service made the difference for me though. These products are all going to work, no matter who you get them from. Customer service helped me pick the least expensive shipping to get it to my house on time (and it made it just on time). 83680


I was worried at first that the hitch wouldnt come out easily, but it can be switched out very very quickly. After a year Im still quite happy and would recommend this to anyone interested. Thanks again!

Stephen C - 12/06/2014


- 49080

by: Charles B11/09/2012

The specs were not quite right to fit the rails I have in place for my Trail Boss 5th wheel hitch. So I had to make some adjustments. The design itself is superior. It is just that fit to my system that is an issue. 59064


We have continued to use the hitch without a problem. I am able to use either the gooseneck hitch, which I leave in place all the time, or mount the 5th-wheel hitch over it to use with my camper.It is a most reasonable system.

Charles B - 05/10/2014


- 49080

by: Doyle W.05/31/2013

I am very happy with this product. The price was good, it arrived a day early and it fit perfectly on my existing 5th wheel rails. It took about 2 minutes to set in place, install the locking pins and I was ready to go. I am a repeat customer and highly recommend etrailer. 82750


I am still very happy with this product. Still working properly!! Expect to use it for a long time.

Doyle W - 05/31/2014


- 49080

by: Lara K06/11/2015

I wish I had pictures but I know that there is one that is already posted on here that speaks a 1000 words when I came looking for this hitch. It fit beautifully in the rails I had installed for a 5th-wheel hitch and was almost as easy to install as described. My rails were installed for the 5th wheel that has a bit more wiggle room for fitting. This hitch doesn't, so we had to lossen up one rail so that we could get it to slip in as it should and tightened it all back down. Used it to pull a fully loaded 4 horse trailer a couple of weekend ago and it worked beautifully. I would recommend to a friend, I would buy it again if I needed it and I think it was a great value for the price... :) 202472

- 49080

by: Cam C09/19/2014

I received the package very quickly, it took me a little persuading with a 4lb to get it lined up but my rails have been installed for a very long time, other than a little tapping it fit great. The only reason the rating is not the top is the paint. it was flaking off right out of the box and has a slight amount of rust, it will not hurt the performance and I am certain I will scratch it up quite a bit more. It is very sturdy and I am sure I will get years of use out of it. In the future if I need anything else for a trailer, this will be my first source. 152191

- 49080

by: Richard L02/21/2013

The product was exactly as described and shipped. Fits my Reese rails like it was a package deal. I have installed the Gooseneck plate but I have not had the chance to use it due to the ice storm currently in progress. I can't wait for the weather to clear and the unit to be put into use. Great company...great price...great doing business with eTrailer!! 67201


My Gooseneck plate works perfect and fits my existing rails like a glove. I now carry both my Gooseneck and Reese 5th wheel mounts and swap them out in minutes.

comment by: Richard S - 02/21/2014


Thanks for coming back to follow up with us. We are glad to know the plate is still working hard.

Patrick B - 2/21/2014

- 49080

by: Charles H08/31/2014

I have rails and a fifth wheel hitch that I use regularly. I wanted to be able to tow a gooseneck trailer on occasion. This appears to be an excellent solution. It was easy to find online, ordering was easy, it came quickly, and fits nicely. I had read that a couple people had to file a bit to get it to fit and I thought I might have to do that as my rails were about 21 7/8 inches apart. There was enough tolerance that it fit in right out of the box. I'm very happy with the product and the service. 149349

- 49080

by: Dutch01/22/2015

The hitch looks well made and solid. For some reason it would only fit one way in my rails. If the ball was turned closer to the tailgate, the rear hole on the passenger side of the bed wouldn't line up. The pin would go through the front hole on the rail and into the tab on the hitch, but was half a hole off on the back side of the rail. When I turned the ball closer to the front of the bed all four holes would line up. Doesn't make sense but I could not get the hole to line up for anything. 170765

- 49080

by: Mike C.04/30/2012

Your product worked perfectly, fit into my existing rails with no problems. Delivery was fast. 38827

- 49080

by: Kent H09/28/2012

This product is a quality piece of equipment that was delivered on time at a reasonable price. I would not hesitate to purchase more products from in the future. This plate dropped right in place on the previously installed rails (this truck also tows a fifth wheel camper) in a matter of 2 minutes. It appears to be of exceptional fit and construction. We will be towing with it tomorrow and the true test will unfold. I have no hesitations at this point. 56011

- 49080

by: Robert S08/28/2013

The service of etrailer was excellent I got the hitch a day earlier than they predicted. The hitch did not fit directly into my bars mounted in my truck. I have a fifth wheel and this hitch was meant to go straight into the Reese bars I had in my truck bed. I had to grind 1/8th of my slots in the bars to make the hitch fit. No big deal (unless you don't have a handy angle grinder) and shouldn't affect the weight bearing. 97294

- 49080

by: don yarbrough03/01/2012

i odered a gooseneck plate for fith wheel rails , when i recieved the item i was suprised by the quality of the gooseneck, i shopped around alot and most places was 325.00, etrailer was half the cost and and shipping was free, they even upgraded to a faster delivery at no cost, ordering , finding the product was very easy , i could have saved alot of time if i would have went to etraler first. thanks don y 32832

- 49080

by: Kevin M02/14/2014

Thank you for the follow up to my purchase. This was the second time I have made a purchase from your business and just like the first time, I was extremely happy with your product and the way your business conducts its self. The goose neck plate fit directly into my Reese rails without any problem. Installation took all of 2 minutes. I would recommend your business and/or products to anyone. 116508

- 49080

by: Terry H09/18/2015

It went right in like it belonged there. My husband & I installed the hitch in 10 tools except for a hammer to "convince" it into place. I installed this in a 2001 F-250. Planning a test run later today...I will update if I discover any major flaws. But I do not expect any trouble. Great service and my compliments to "George J"!!!! 226200

- 49080

by: vernon10/15/2014

Had to do a lot of grinding on this to make it fit my Reese rails. I have a Reese 5th wheel hitch that fits the rails ok. When I first looked at my pickup it had a Reese gooseneck hitch in it. The person I bought the pickup from kept it so I know that the rails were ok. The jig they use to build these must be off some. 156039

- 49080

by: Mike S04/13/2015

The product was exactly what I ordered. It takes a little bit more effort than the video to get all the pins in as there is no room for adjustments. But I figured out if I install the pins in cross cross pattern instead of doing one whole side that I could get all the pins in. Once all the pins are in there is no movement. 184970

- 49080

by: bryce C04/23/2012

got my hitch put in my truck an pulled with it the next day works great if i knew how to put pictures on the computer i would send some but i barley know how to turn it on it was nice been able to talk to some one on the phone usualy all you get is a recording or talkin to a automated person thanks for the help 38158

- 49080

by: Eric02/08/2013

I had to monkey with it at first to get it set in but that was completely because of the way my rails were installed and had nothing to do with the product. so far it is meeting all my expectations. The customer service here has been top notch. they will have my business from here out as long as that remains the same 65507

- 49080

by: danny s02/25/2011

Just what I needed to pull my gooseneck trailer. I purchesed a draw-tite fifth wheel hitch from e-trailer a few years ago, and it made it an easy choice. It will fit right into the rails with 4 pins; and as always with e-trailer the service was excellent. Highly reccomend the product, and e-trailer. 7912

- 49080

by: Warren Pugh09/20/2011

I had to file the holes a bit for the pins to line up but looks like it will work fine. 24273


We have a 2004 Dodge Ram 3500 longbed pickup truck. Would this offset ball hitch work on our truck or should we get a center mount ball hitch? The rails are already in the truck and are set center of the axle.

comment by: Becky C - 02/09/2013


The ball being a little ahead of the axle would be fine as well. This could be dependent on the shape of the trailer frame too. If you do want a centered ball option, check RP58079 or Curt 16085.

Patrick B - 2/15/2013

- 49080

by: Rodney C.09/13/2012

Very easy to put in bed, I would advise on getting a locking pin for it though. 54640

- 49080

by: Anthony09/03/2015

Excellent product fast shipping always a pleasure working with etrailer 223936

- 49080

by: Jason H.09/03/2014

Pro Series 25K Gooseneck Plate is a great product, because you can switch between 5th wheel and gooseneck ball easy with your truck rails; without sending alot money to switch out for your trailer, or camper. I look forward to buying more from for my trucks. 149920

- 49080

by: Steve Hasenfratz08/05/2014

I ordered the gooseneck plate with the ball and it arrived at my doorstep in just 2 days! Amazing! Fits perfectly. Second time I have ordered from etrailer and both things have gotten here quickly and the quality has been excellent. Highly recommend these guys! 144605

- 49080

by: Nick11/19/2013

Fit perfect, looks great, built solid, fast shipping!! 107789

- 49080

by: Mike Z11/19/2014

Great product at the best price I could find on line! Now I have both hitch set ups to use on my bed rails. Fit was no problem and comes with the four pins/clips and extra bolts if you don't already have them installed on your bed rails. 161821

- 49080

by: Dennis N.06/15/2012

I had never used a goose neck hitch before, I found it easy to set up and was very pleased with the pull. I am physically challenged and have little difficulty setting it up and taking it down. I would recommend it to anyone in the market. 44301

- 49080

by: Jake W.10/12/2012

The costumer service for ordering this was top notch! Mark helped me make sure the order was proccesed that night at 8pm and on UPS by 5am that next morning. The hitch was delivered in 2 days by 9am and it fit perfect. Thanks! 57069

- 49080

by: Jan P.06/07/2015

Our hitch arrived on time & was simple to install. This gives us future flexibility. We will now be able to haul a 5th wheeler or a goose neck trailer. Thanks for your excellent service! Jan P. Reddick, FL 201303

- 49080

by: Mikie T10/09/2014

Superb Quality all around from plate to pins, etc, I haven't used it yet but will hook up to my fifth wheel rails soon enough and see how she does! Thanks etrailer for getting it to me in a timely manner! 155433

- 49080

by: Bruce P.06/10/2013

Thanks again , the gooseneck attachment to the fifth wheel track easily fit right in the track . A special thanks to Alicia G who took my order and was an absolute pleasure to speak with . Bruce 83974

- 49080

by: Nick09/26/2008

Made in USA, un-real price! This plate cost less than half what others want. Nice large chain holes on both ends of plate. Offset ball is perfect for short-bed trucks. Best bang for your buck! 1315

- 49080

by: Don W09/16/2014

Did not fit fifth wheel rails! I did not have time to send back so I had to modit system! Some grinding and hammering and now fits! The plate pegs were off by a quarter of an inch 151459

- 49080

by: Greg07/10/2015

This item was as advertised and the quality was good. It took a little adjustment to fit in my rails. I was able to make the adjustments in about 15 minutes, now it's good to go. 210735

- 49080

by: Dennis R.10/06/2014

The ball plate is well formed and sturdy. It fits well in my Reese bedrails and I can leave it mounted under the 5th wheel hitch. It was exactly what I was looking for. 154810

- 49080

by: Dave B.06/11/2014

I am very pleased with this goose neck hitch adapter plate. It fit perfectly into the rails for my 5th wheel hitch and installation and removal is less than 3 minutes. 135037

- 49080

by: bama05/06/2010

front to back demenions short Increase demensions from 21 15/32 to 21 17/32 inches from front rail to back rail, maybe my rails were installed short. 3009

- 49080

by: Mary M09/08/2014

product was a perfect fit , easy instalation very well made. will definitely refer your company and order future products from your company. 150366

- 49080

by: Tanna R.10/02/2014

Product was just as described, and the e-trailer customer service was extremely quick and helpful when I contacted them. Thanks Tommy C.!! 154064

- 49080

by: scott01/06/2015

Thank yo for your prompt, professional service The adapter plate we ordered yesterday arrived today and is already in use Thank you 167912

- 49080

by: Ed Champlin06/13/2015

Great service. Really nice product. Required small adjustment with my 2lb. tweaker. Overall I could not be happier. Thanks. edc 203111

- 49080

by: Ben08/08/2012

Thank you for the wonderful service you offer. My hitch was shipped fast and fit perfect. I will be buying more through etrailer. 51006

- 49080

by: Dennis01/09/2012

The 25k Gooseneck plate works great,it fit right into my reese 5th wheel rails an my with no problems. excellent product!! 29382

- 49080

by: Aaron B05/02/2013

Good price, nice heavy duty hitch plate and I like the ball offset of 4.5 inches. Thanks for the quick shipping too. 78728

- 49080

by: Kevin m06/25/2015

Looks great was delivered fast but had to take a little powder coat off tabs so it would slide in the mount easier. 207169

- 49080

by: Janet04/20/2013

I was very satify with the product, and the person who answer all my questions. I will order from you again. 77020

- 49080

by: Gary04/30/2015

Very good transaction excellent service will recommend etrailer to anyone in the need of of trailer parts. 188900

- 49080

by: Quality First Contracting03/27/2015

As always etrailer delivers great products at good prices and get them to me quickly! Love 181125

- 49080

by: Randy02/13/2013

Good solid piece of steel. Haven't used it yet, but it looks plenty tough to handle my trailer. 66213

- 49080

by: Chad James01/30/2014

excellent customer service. quick shipping. product exactly what i expected, excellent price. 115260
