Round A-Frame Trailer Jack - Topwind - 14-1/4" Lift - 2,000 lbs

Round A-Frame Trailer Jack - Topwind - 14-1/4" Lift - 2,000 lbs

Our Price: $43.35
Trailer Jack
Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

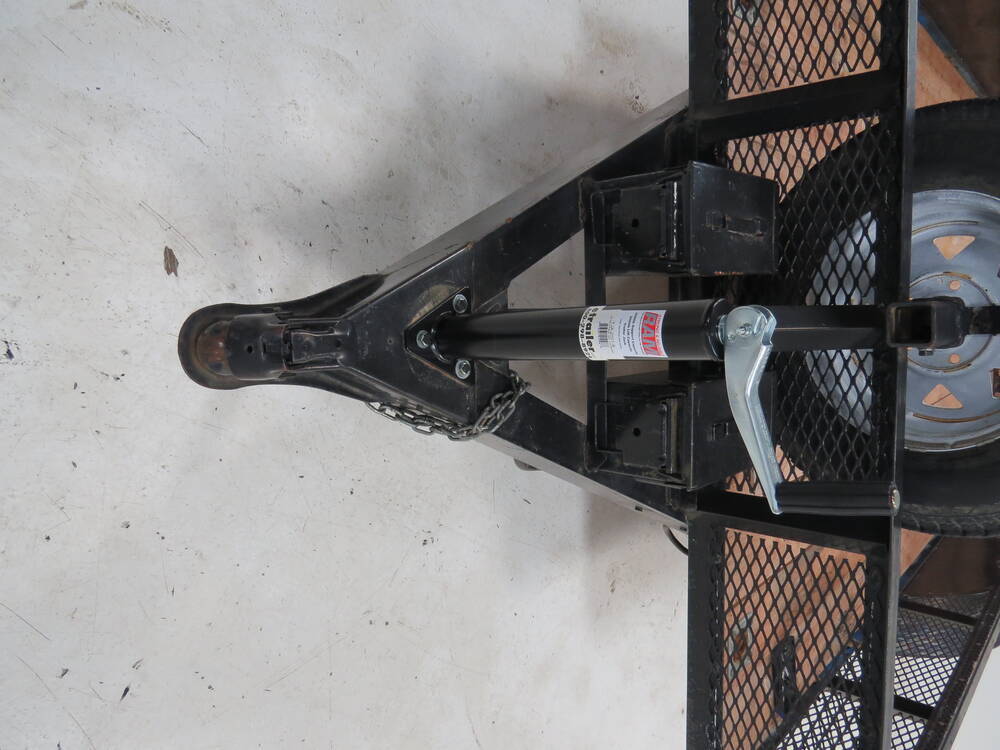

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Black powder coated A-frame jack has a retracted height of 5-1/8" and an extended height of 12-3/4". The zinc-finished topwind handle arm has a bolt-head fastener to keep it secure during operation. Great Prices for the best trailer jack from etrailer. Round A-Frame Trailer Jack - Topwind - 14-1/4" Lift - 2,000 lbs part number TJA-2001-B can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (375)
  • Q & A (0)
  • Photos

etrailer Trailer Jack

  • 1001 - 2000 lbs
  • Car Hauler
  • Enclosed Trailer
  • Utility Trailer
  • Topwind Jack
  • A-Frame Jack
  • Leveling Jacks
  • Tongue Jacks
  • Bolt-On
  • Weld-On
  • No Wheel or Foot
  • etrailer
  • 14 Inch Lift
  • Steel

Black powder coated A-frame jack has a retracted height of 5-1/8" and an extended height of 12-3/4". The zinc-finished topwind handle arm has a bolt-head fastener to keep it secure during operation.


Features:

  • Utility jack lets you raise and lower your A-frame trailer
  • Topwind handle has zinc finish for attractive look and rust resistance
    • Bolt-head fastener keeps the handle securely on the jack during operation
  • Black powder coat finish resists corrosion
  • Internal gearbox provides an attractive look
  • Footplate or caster sold separately


Specs:

  • Bracket height (from bottom of inner tube - with hole still usable - to bottom of bracket):
    • 5-1/8" Retracted
    • 19-3/8" Extended
  • Total lift: 14-1/4"
  • Clearance:
    • 14-1/2" From bottom of bracket to top of handle mount
    • 19-1/2" From bottom of bracket to top of handle
    • 15" From bottom of bracket to top of jack
  • Outer tube diameter: 2-1/4"
  • Inner tube diameter: 2"
  • Handle radius: 6-1/2"
  • Lift capacity: 2,000 lbs
  • 1-Year warranty


Dims

TJA-2001-B Ram Round A-Frame Trailer Jack - Top Wind - 14-1/4" Lift - Black - 2,000 lbs

Item # TJA-2001-B





Customer Satisfaction Score:


Customer Reviews

Round A-Frame Trailer Jack - Topwind - 14-1/4" Lift - 2,000 lbs - TJA-2001-B

Average Customer Rating:  4.8 out of 5 stars   (375 Customer Reviews)

Black powder coated A-frame jack has a retracted height of 5-1/8" and an extended height of 12-3/4". The zinc-finished topwind handle arm has a bolt-head fastener to keep it secure during operation.

by:

I needed to replace my Vertical Jack handle crank on my small trailer with a horizontal handle and it needed to clear my batteries, this works perfect, no longer busting my knuckles on the trailer hitch latch!

Glenn

4/5/2024

After a year of use this jack has proven itself,Im able to maneuver my trailer easily to get it just right in my garage. Also the handle height clears my two 6 volt batteries, I no longer break a knuckle while cranking the handle as I did on my old vertical handle. Im very pleased with the quality and performance of this jack.



by:

Rebuilding a used trailer with no idea what axles it had. Contacted customer service and they walked me through getting the right brake kits, bearings, and hubs..excellent customer service



by:

All new wiring on a trailer rebuild. These junction boxes make the job so much easier and faster. Now when i troubleshoot wiring issues im chasing one wire at a time. Oh and now the wiring goes in a location that works for me



by:

Great upgrade to a 1966 Little Dipper travel trailer.



by:

Tammie an E Trailer crew are great, perfect fit matches the old one, now if I can remember to slow down an crank it up before driving off, lol, I have pictures of the jack an the perfect match hitch on the Saturn I forgot to put on here



by:

The old jack that came with the trailer was bent and hung to low. I put up with it for way to long but when I was reparking it in my pasture and left a divot I Finally Serious. Five minutes on Etrailer and I found exactly the replacement that should’ve come originally. Thank you Etrailer.



by:

Had a shipping mishap. They shipped the wrong jack but the customer service was exceptional. They were super friendly and shipped out the correct one very quickly.



by:

The jack was delivered fast. (Four buisness days). It fit the trailer perfectly. All the bolt holes lined up good.



by:

This was not the correct jack for my trailer configuration. There were a lot of choices in 3-hole mounts, and I concentrated on collapsed length, as that is critical for my application. The biggest error was not knowing that the height was taller, and thus my truck's tailgate will hit it when lowered. NOT acceptable.

There are dimensions for the jacks, [I]but they are on the second page[/I]. Pay attention to the dimensions, if you are attempting to match-up to an existing application. Sure, I can return it and order the correct jack, but it's almost cheaper to toss the wrong one in the scrap pile. 3 X $XX shipping each way adds up.

PAY ATTENTION TO WHAT YOU ARE ORDERING!



by:

works great and fit perfectly



by:

Great replacement for my vintage camper that had a jack hole of only 1 7/8 inches. I used a hole saw to enlarge the holes on both the top and bottom plates of the A-frame to 2 3/8 inches and this jack slipped right in. For jack hardware, use 3/8" 16 tpi self drilling screws or use a long bolt through both the top and bottom plates of the A-frame if you have both top and bottom plates. Make the screw holes 5/16" (1/16" smaller than the self-drilling screws). I mention all this because it took me a long time to figure this all out and I hope it helps someone. My camper needs to get both really low and really high, so I added a foot extension to get it higher and am happy with the combination.



by:

Great product.



by:

Needed a replacement trailer jack for our Boy Scout trailer, as the internal cylinder was bent on the old one, making the cranking very difficult. Took about 10 minutes to swap out the old jack and put in this new one. Works like a charm. Very easy to do. Also added the footplate. Highly recommend this jack and footplate.



by:

Replacement of a factory jack that had failed. Fit perfect and same dimensions. This jack is smoother and has longer travel than my original jack. Very satisfied.

Jimmy

12/19/2022

update: It has been a year and the jack still works great!



by:

The jack was not only much less than I expected it to be but it is also much 'beefier' than I expected. My last trailer jack got damaged when I left a gas station which had a dip as the road I went onto had a rise so once I get this one mounted I will submit a pic so everyone can see how much better this jack is if you are looking for a low profile jack like I was.



by:

This is the lowest profile (compressed height) jack I could find, so hopefully it won't ground out like the last one.



by:

Did the job. Shortest jack I could find and it worked great!



by:

Very happy with everything



by:

The jack that was installed originally on my trailer extended too far below the frame, so that it hit the ground on uneven terrain, especially when leaving the roadway and entering parking lots. This product has much more clearance. It completely fixed the problem.

Steven

8/18/2022

This jack is still working fine, Ive had no problems with it.



by:

The "A" frame plate on my '99 Jayco pop up was bent and needed replacing. I took it to a welding shop and had a new plate welded in for the now standard 2 1/4 " hole. I ordered this replacement jack (TJA-2001-B) because it was the closest matching jack (re-tractability) and the best price that would do the job. I also got a drop leg (JF-1005H-Z) so I would no longer need the large wooden block when parking my camper. Thank you etrailer for being there to answer questions.

99poppy

5/29/2019

Been working great. Always get good advise and products from these guys. Thank You



by:

This jack was an excellent fit for our application providing excellent ground clearance in the full ellivated position. It semis to be well made and has served us well the two times we have used it thus far. It' s construction exceeds that of the jack provided by e trailer's manufacturer.

Thank you for your fast response and the excellent product information and installation instructions.



by:

bolted right up to the existing flange on the trailer. turns easy with weight on the trailer. once setting on the ball, the jack fully retracts effortlessly by spinning the handle with one finger.



by:

Appears to be good quality and fit perfectly. It seems to work well, big improvement over the one.



by:

I bought this jack to replace the jack that came with my brand new trailer. I was unable to put a wheel on the original jack but because of this lowered mounting plate I was able to put the wheel on it and crank it up and have plenty of clearance. The price was right and it’s well-built. I have ordered several products from etrailer and have never been disappointed. It was shipped quickly and all their products are quality built



by:

This was perfect for my need. I have a welder-generator on a small trailer. It was a real effort and strain to attach it to my mower tractor to move it around the property. I modified the trailer to accommodate the jack and bolted it in place.
Perfect! Katie from Etrailer did an excellent job in assisting me to select the right product for my application. Thank you Katie. Von.


25
373
Show More Reviews

See what our Experts say about this etrailer Trailer Jack

  • How Much Does the etrailer Top Wind A-Frame Jack TJA-2001-B Weigh?
    The Round A-Frame Trailer Jack item # TJA-2001-B weighs 9 lbs. and has a 2,000 lbs capacity. It is a top wind a-frame jack.
    view full answer...
  • A-Frame Trailer Jack Recommendation with Shortest Retracted Height From Frame
    I looked through all of our available manual A-Frame trailer jacks and the option with the shortest retracted bracket height is the etrailer.com A-Frame # TJA-2001-B. The retracted bracket height is right at 5-1/8 inches from the bracket and it has a weight capacity of 2,000 pounds. It doesn't come with a wheel caster available.
    view full answer...
  • Recommendation for an A-Frame Jack with a Lower Retracted Height Than 8 Inches
    Good news, I can help you find an A-frame jack that has a lower retracted height than 8 inches. One of the lowest retracted height A frame jacks I was able to find is our part # TJA-2001-B. This jack has a retracted height of 5-1/8 inches. I was also able to find 2 jacks in the 5 inch range. The ProSeries # PS1401000303 has a retracted height of 5-1/2 inches and the wheel recommended for it is the # PS1400750340. Or Bulldog # BD155033 which has a retracted of 5-3/8 inches and the recommended...
    view full answer...
  • Can I Use The Etrailer Drop Leg, Part JF-1005H-Z, With A Round A-Frame Trailer Jack, Part TJA-2001-B
    Yes, the Drop Leg for etrailer and Ram Jacks - 13-1/4" Tall - 5-1/4" Diameter Footplate - Zinc, part # JF-1005H-Z, is compatible with Round A-Frame Trailer Jack - Topwind - 14-1/4" Lift - 2,000 lbs, part # TJA-2001-B. I have included a product description link and video review links below.
    view full answer...
  • Viking Trailer Jack Recommendation for Low Clearance
    I looked up your trailer and it has a standard A-frame so for a jack that will fit that we have the # TJA-2001-B which would work great. It has a retracted height from the bottom of it's bracket of 5-1/8 inches which will work great for low clearance situations like your trailer.
    view full answer...
  • A-Frame Trailer Jack Operation and Tongue Weight
    From what you told me it sounds like the foot on your trailer jack, like part # TJA-2001-B, doesn't leave the ground until you have the tongue weight of the trailer supported. Since the purpose of an A-Frame trailer jack is to support the tongue weight of the trailer if you don't have anything else supporting the tongue weight of your trailer it will naturally go down as the foot retracts into the jack. When your trailer is parked and uncoupled it is always best to leave the foot of your...
    view full answer...
  • Recommended 5,000lb Topwind Trailer Jack Replacement
    The Buyers Products A-Frame Jack w/ Support Foot # 3370091265 is going to be the best bolt-on option based on your requirements. This topwind jack has a 5,000lb capacity and up to 15" of travel so you'll have almost twice as much travel as you need. It also comes with a rectangular foot plate that easily pins in place to spread the weight a bit more evenly. Since the footplate uses a simple pin and clip you can also swap it out with a wheel or drop leg to fit your needs.
    view full answer...
  • Mounting Hole Dimensions of Round A-Frame Trailer Jack
    The Round A-Frame Trailer Jack # TJA-2001-B has standard mounting hole dimensions which are 3 inches apart center on center. I went to the warehouse to measure and found the same dimensions. I also used a digital caliper to measure the holes themselves and found that they measured 0.42 inches horizontally and 0.75 inches vertically.
    view full answer...
    Image 1 for
  • Manual A-Frame Trailer Jack with Shortest Retracted Bracket Height
    I looked through all of our available manual A-Frame trailer jacks and the option with the shortest retracted bracket height is the etrailer.com A-Frame # TJA-2001-B. The retracted bracket height is right at 5-1/8 inches from the ground and it has a weight capacity of 2,000 pounds. It doesn't come with a foot plate but it can be added with part # JF-99. I have attached a couple short video reviews that you can check out as well.
    view full answer...
  • Sidewind A-Frame Trailer Jack that Can Have Handle Orientated on Front of Jack
    We have a really great trailer jack replacement for what you have with the etrailer Sidewind Jack part # TJA-5000S-B. This is a sidewind jack like what you have but as you can see in the attached install video it can install with the handle on the front side of the trailer. I also attached an install video for this jack for you to check out as well.
    view full answer...
