Konig Tire Chains - Diamond Pattern - Square Link - Self Tensioning - 1 Pair
Konig

Konig Tire Chains - Diamond Pattern - Square Link - Self Tensioning - 1 Pair

Part Number: TH2004705235
In Stock
$266.78
Retail:$299.95
You Save: $33.17
Tire Chains

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

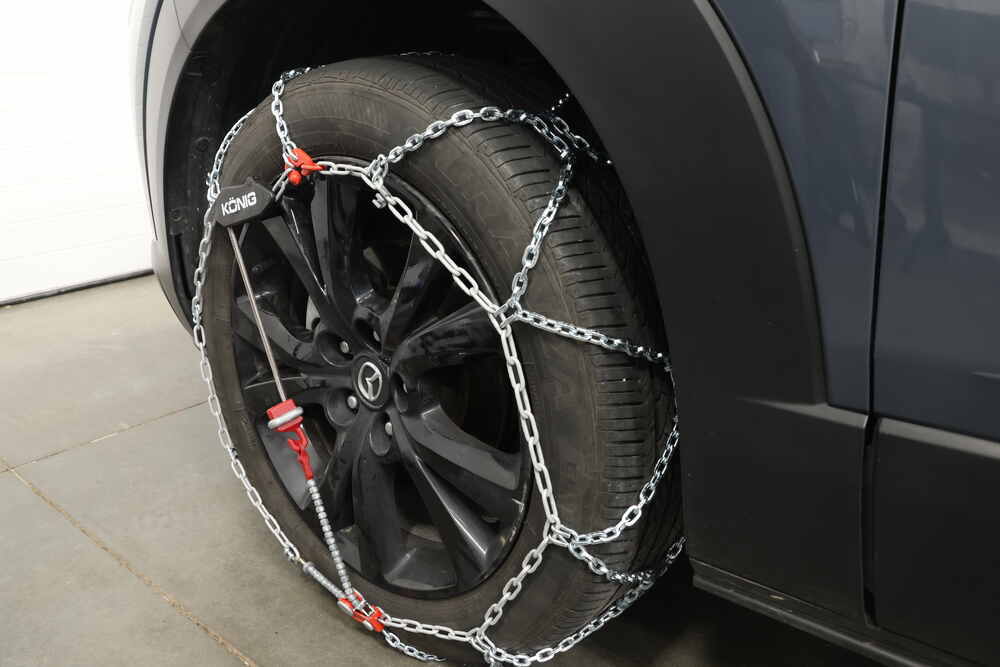

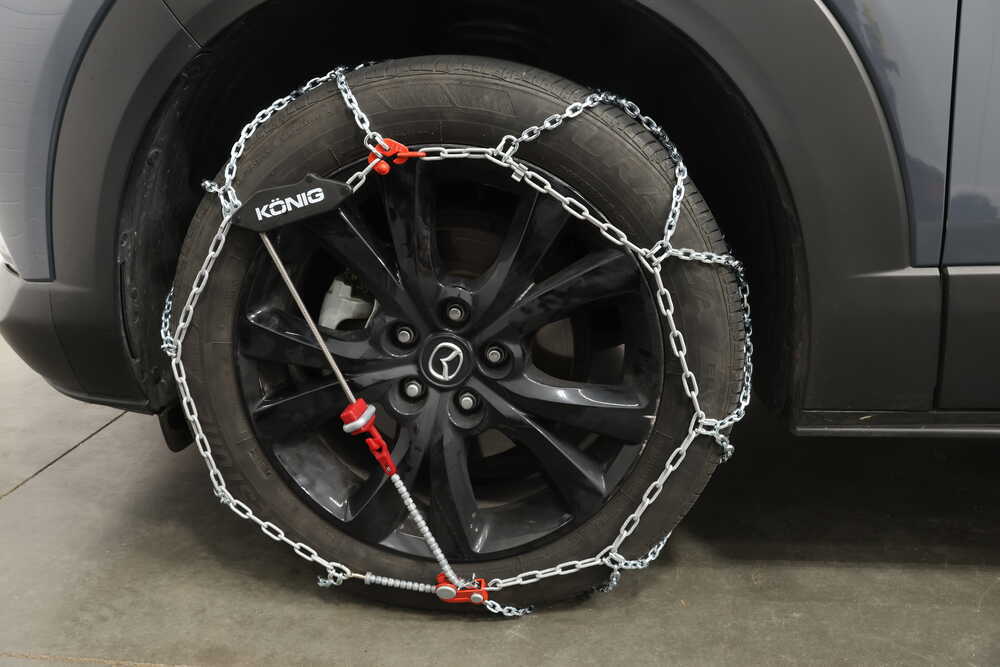

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Just make connections and drive - chains will automatically align and tension. Lightweight chains are quick and easy to install. Provides consistent traction and a smooth ride when driving in snow and on light ice. Traction plates offer extra grip. Great Prices for the best tire chains from Konig. Konig Tire Chains - Diamond Pattern - Square Link - Self Tensioning - 1 Pair part number TH2004705235 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (722)
  • Q & A (0)
  • Photos

Konig Tire Chains - TH2004705235

  • Tire Chains
  • On Road Only
  • Deep Snow
  • Automatic
  • Konig
  • Steel Square Link
  • Drape Over Tire - Make Connections
  • Class S Compatible
  • Rim Protection

Just make connections and drive - chains will automatically align and tension. Lightweight chains are quick and easy to install. Provides consistent traction and a smooth ride when driving in snow and on light ice. Traction plates offer extra grip.


Features:

  • Provides excellent traction in snow and ice
    • Square links dig in and provide good grip - small size makes for a less bumpy ride
    • Diamond pattern offers constant traction and a smoother ride than ladder patterns
    • Traction plates bust ice apart
  • Made for passenger vehicles with limited wheel-well clearance
    • Meets SAE Class S standards
  • Automatically tightens around tire as you drive - no need to stop and tension
    • Hooks are plastic coated so they won't freeze your fingers like standard, unfinished metal chains
  • Protects wheel rims from scratches with nylon bumpers and a powder coated side chain
  • Resists corrosion thanks to high-quality, manganese nickel alloy steel construction
  • Packaged in durable nylon storage bag


Specs:

  • Fits: 16" - 18" tires
  • Quantity: 2 tire chains
  • Internal clearance required: 1/2"
  • 5-Year warranty


Note: To determine whether you can use snow chains on your vehicle, or if chains might affect your ABS/EPS functionality, consult your owner's manual.


The Konig XG-12 tire chains are great all-purpose, winter weather chains. If you live in an area where you're likely to get periodic snow and ice, these Konig chains are perfect because they're durable, easy to mount, and give you constant traction - and they're lightweight and compact, so they store in your vehicle nicely too. If you're more likely to see seriously icy conditions, you may want a chain with V-bar links that can really bite into the ice to give you maximum traction.


These chains are among the easiest and fastest to install because they self-tension and self-center as you drive, ensuring a perfect fit, no matter the profile or wear pattern of your tire. Plus, you only have to get out of your vehicle one time - once they're installed, there's no need to drive forward, stop, and recheck their tension.


Class S Designation

SAE Class S tire chains are designed for use on passenger vehicles with restricted wheel-well clearance. Most newer cars, vans, and small trucks - especially those with large aftermarket tires - will require Class S chains. If you're unsure about the class of your vehicle, consult your vehicle's owner's manual.


SAE Class S Clearance Diagram

These chains will fit your tires provided there is both:

  • A - a minimum of 1.46" (37 mm) between the top of the tire tread and the wheel well
  • B - at least 0.59" (15 mm) between the tire's sidewall and the vehicle

Confirming Your Fit

If you know your tire size, you may think you won't need to test fit your new chains. But there are a lot of variables that can affect whether chains will fit your specific tires, including your tire type, the amount of air pressure in the tire, the amount of tread wear, and the tire manufacturer. You'll also need to know how much clearance is in your wheel well, which you can determine by measuring from your tire tread to the sidewall of the wheel well.


We recommend that you order chains as early in the season as possible to give yourself plenty of time to test fit the chains and reorder if needed. This way, you won't be stuck out in the cold later with snow chains that don't fit.


You can test fit these chains in your garage or driveway, but you'll want to wait until there's snow on the ground to actually drive with them. Likewise, if you're out in the snow and come across bare pavement, you'll want to pull over and remove the chains. Even these low-profile chains can cause damage to the bare pavement, your garage floor, or your vehicle if they break from the wear of riding on a harsh surface.


Installing Tire Chains

Installing these chains is incredibly simple.


Lay chains on the ground to get all the tangles out

1. Lay out the chains on the ground to make sure there are no twists or kinks in them.


Connect the ends of the blue cable

2. Slide the chain behind the tire and connect the ends of the blue cable, which will sit behind the tire.

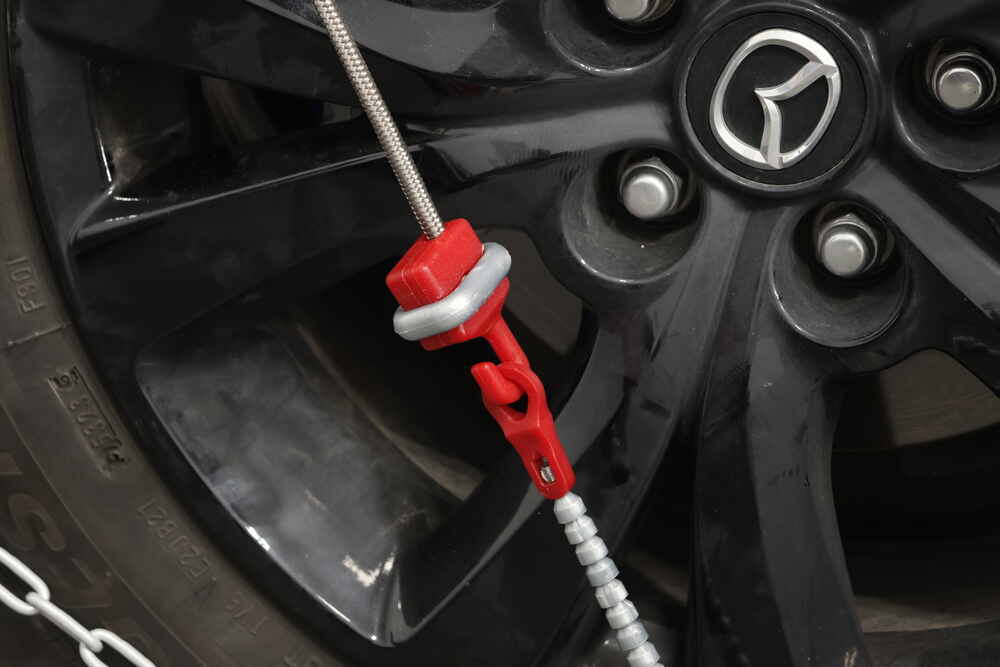

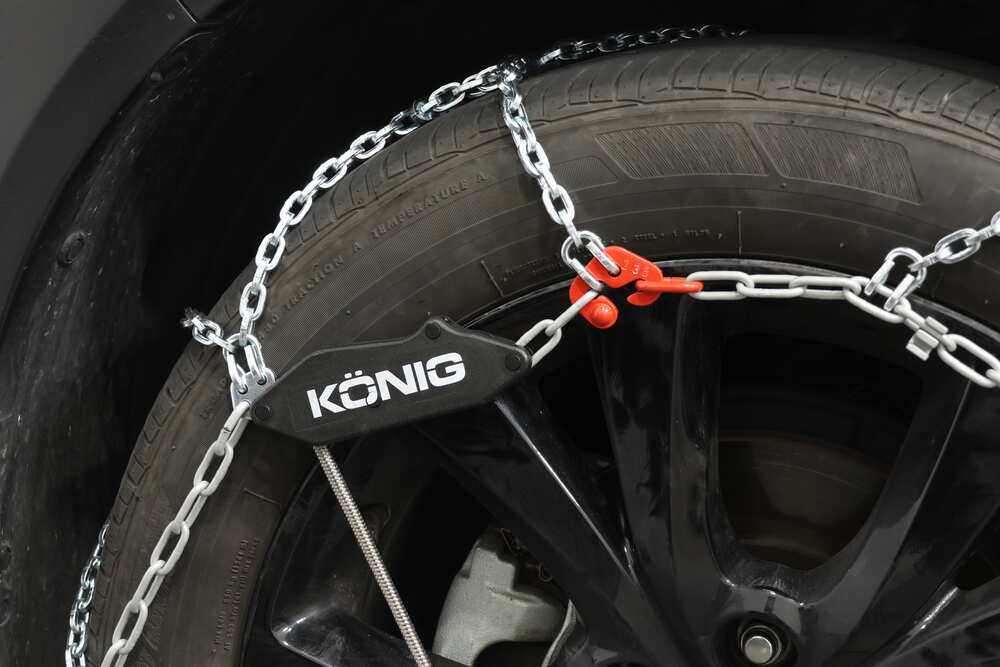

Connect the hook and link in front of the tire

3. Around front, connect the red hook to the red link.

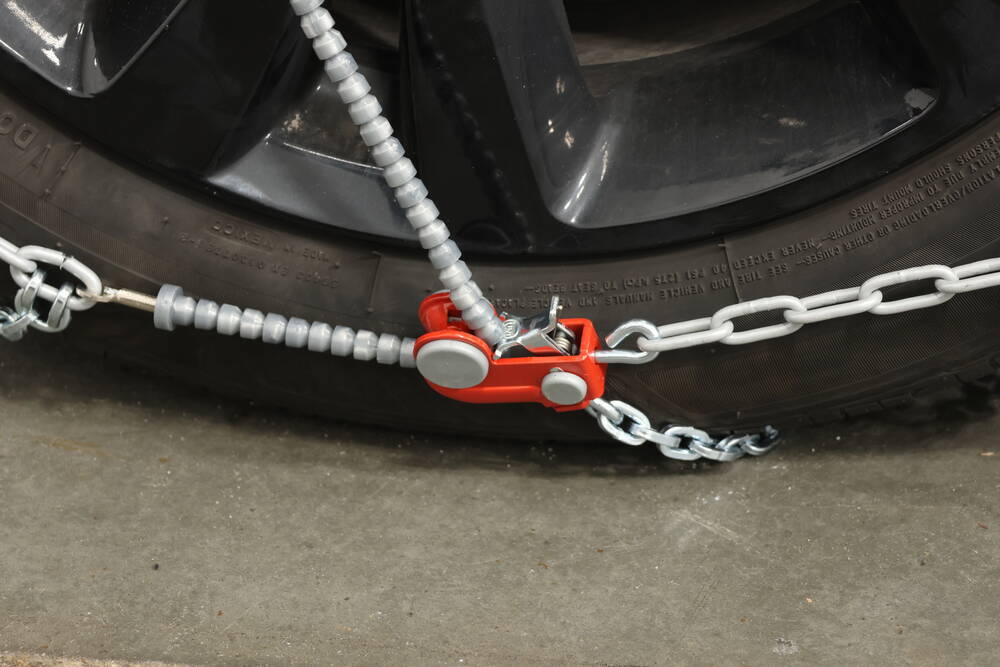

Feed tensioning chain through clip

4. At the bottom of the tire, feed the tensioning chain through the large clip. Pull the chain up to the center of the tire and secure it to the red hook that is attached to the tensioning cable.


Stretch the hook across the tire

5. Drive forward so that the chain can self-tension and self-center, giving you a perfect fit.


Quick Tips:

  • Lengthen the life of snow chains by drying them after each use before you store them.
  • Check out our installation kit with safety lights and a kneeling pad (PO34FRK) to make things a little easier when you're installing chains out in the snow.

How to Choose Snow Chains for Your Vehicle

To choose the right snow chain, you must match your tire size. Those measurements can be found on the side of your tire.


Tire size on sidewall

185/60-15

  1. (185) - indicates tire width in millimeters
  2. (60) - gives you the aspect ratio (sidewall height as percentage of width)
  3. (15) - denotes the diameter of the wheel rim in inches


2004705235 Konig XG-12 Pro Snow Chains - Size 235

Installation Details TH2004705235 Installation instructions


These chains fit the following tire sizes:

  • 205/65-17
  • 205/75-16
  • 215/55-18
  • 215/60-17
  • 215/65-17
  • 215/70-16
  • 225/45-19
  • 225/65-16
  • 235/60-16
  • 245/45-18
