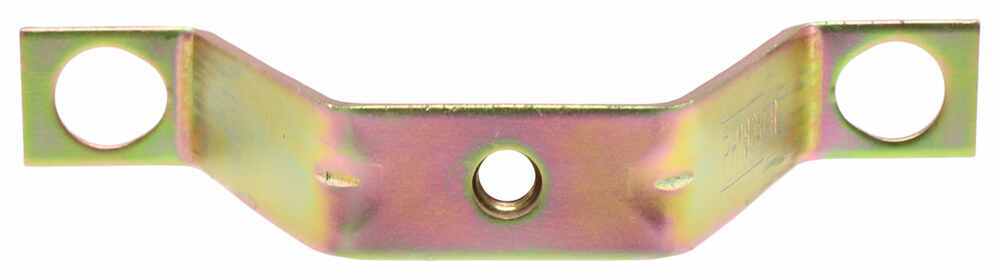

Replaces the bracket needed to install your Phoenix USA right thread wheel center cap for 6-1/2" axles (PXQ1009, PXQ1010, PXQ2010, or PXQ2010XL).
Features:
California residents: click here
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Hello everybody. This is Jeff at etrailer.com. Today we're gonna take a look at this replacement right-hand thread mounting bracket for the Phoenix USA wheel center caps for the six and a half inch hub diameter axles. Now this part will replace the bracket that's needed to install your Phoenix USA right-hand thread wheel center cap on your axle that has a six and a half inch hub diameter. It is designed to work with the center cap part numbers, PXQ 1009, PXQ 1010, PXQ 2010, or the PXQ 2010XL. All four of those center caps we do sell separately on our website.

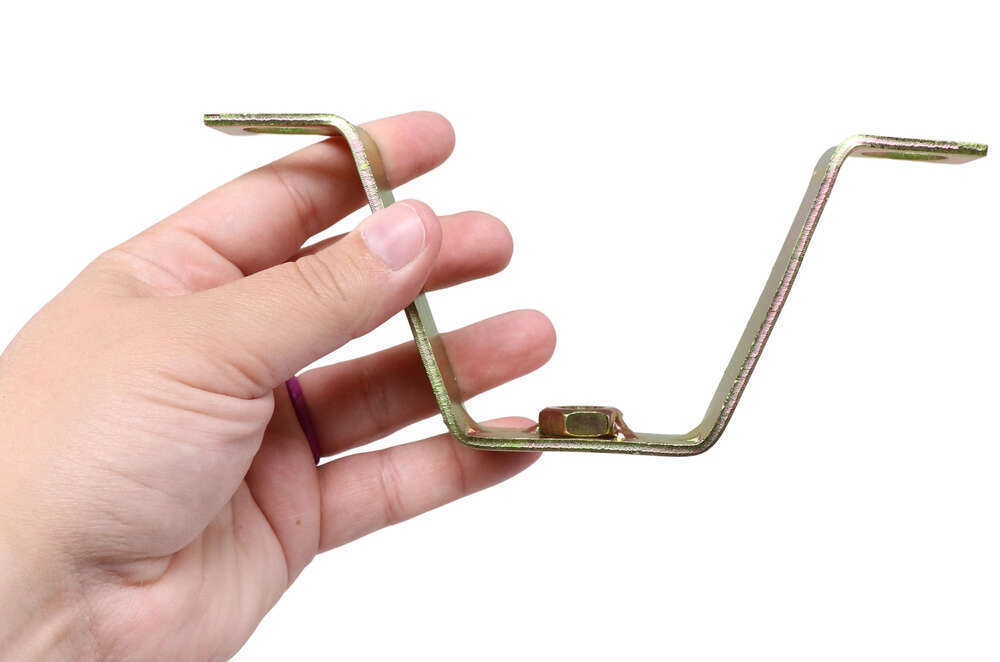

Basically this mounting bracket will secure onto your axle hub plate with the existing hardware. Basically what you'll do is remove two of the axle nuts and the washers that are on the axle end plate. And then you install this bracket, these two holes here, right over the studs, and then reinstall the nuts and the washers to hold this bracket in place on your axle. And then your center cap will slide over the hub and attaches to this installed bracket using a center cap attachment bolt, which usually comes with the center tab. If you also need that attachment bolt, we do sell that part separately also.
It's part number PHX84FR, and it is listed on this product page as a related product. And the thread diameter of this hole right here that that bolt goes into is an M 10 by 1.25 millimeter thread size. But that should do it for the review on the replacement right-hand thread mounting bracket for the Phoenix USA wheel center caps for the six and a half inch hub diameter axles..
Everything fit perfect. Love it
I've tried to make it work, but the 7 bolt/ won't fit the nut in the bracket. One would think if purchased together they would be compatible. G
Cover is well made and fits perfectly
Info for this part was:
At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time.
Jenny N.
3/15/2023
I did find the mounting bolt that you will need for the nut in the center hole on the bracket. It is part # PHX84FR. I am also having it added as a related part.
