See what our Experts say about this Dexter Trailer Suspension Parts

• How to Find if Dexter Heavy-Duty Suspension Kit Will Fit on Trailer

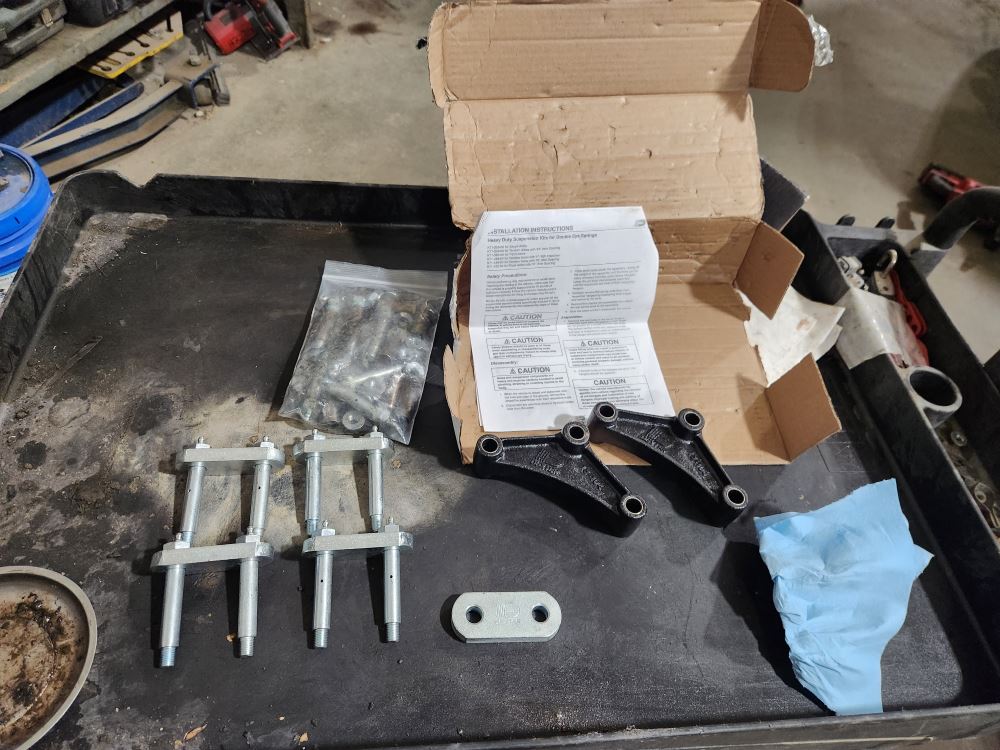

  The equalizers that come with the Dexter Heavy-Duty Suspension Kit # K71-448-00 have bolt holes that measure 6" apart on center and then 4" tall on center as you can see in the attached photo. You'll want to measure your current equalizers to see if they have similar dimensions or not. If they do then this is the kit for you. If they don't then just let me know what your measurements are and I can help you choose the correct replacement suspension kit from the linked selection.
  view full answer...

• What is Advantage of Never Fail Tandem Axle Suspension Upgrade Hardware Kit Over Other Options
  The Never Fail upgrade kits like the # LC281285 have two really distinct advantages. One of them is what you mentioned and is that they don't require greasing or any maintenance. The other is that they last about twice as long as any other heavy duty style of bushing kit. You'll get easily twice the mileage from this kit over anything else.
  view full answer...

• Dexter Heavy Duty Greasable Shackle Kit Needed
  It sounds like the Replacement Shackle Link with Bolts # 018-026-05 that you referenced is what you are needing. It comes with the shackle and wet bolts that have a grease zerk fitting installed on them. This kit is compatible with the following heavy duty Dexter Axle suspension kits: Kit - # K71-359-00 Kit - # K71-360-00 Kit - K71-448-00 Kit - # K71-449-00 Kit - K71-453-00
  view full answer...

• Recommended Suspension Upgrade for a 2021 Coachmen Freedom Express LTZ
  Hey Roger, for your 2021 Coachmen Freedom Express LTZ Travel Trailer I recommend going with the Dexter Heavy-Duty Suspension Kit for Tandem-Axle Trailers # K71-359-00. This kit includes (4) 2-1/4" shackle link assemblies with 9/16" x 3-3/8" long wet bolts, (4) 2-1/4" long shackle links, (4) 9/16" x 2-7/8" long wet shoulder bolts, (2) 9/16" x 2-7/8" long shoulder bolts, (8) 9/16" x 1-3/4" bushings, and (14) 7/16"-20 flange nuts.
  view full answer...
• Recommended Equalizer Kit for Tandem Axle Trailer with 13-104-02 Equalizers
  The Suspension Kit for Tandem-Axle Trailers - 1-3/4" Wide Double Eye Springs # AP233 is the standard suspension kit. For a heavy duty option, we have the Dexter Axle Heavy-Duty Suspension Kit for Tandem Axle Trailers - 1-3/4" Double Eye Springs # K71-359-00. We also have the E-Z Flex Heavy Duty Rubber Suspension System by Dexter Axle - 5-5/8" Equalizers # K71-652-00. This kit has the shock absorbing equalizer for a smoother ride and grease zerks for easy maintenance.
  view full answer...
• Replacement Suspension Components for Anvil 8.5 ft by 20 ft Trailer
  Hey Shaun, we have the exact replacement for your equalizer with the # TREQ104. But for shackle straps we only have 2-5/8 inch shackles in a non-hd configuration like the part # 115052. So what I would go with instead is the Dexter HD equalizer kit part # K71-359-00 which comes with everything you are looking for but the HD shackles are a little shorter at 2-1/4 inches. This would not cause any problems though since a slightly shorter shackle strap just ever so slightly changes the suspension...
  view full answer...
• Could Dexter Heavy-Duty Suspension Kit # K71-359-00 Fit 2014 DooLittle Enclosed Trailer
  If your 2014 7x16 doolittle enclosed trailer has tandem axles that are spaced 33 inches apart and the equalizers are 2 inches tall and 5-3/4 inches apart on center then yes, the Dexter Heavy-Duty Suspension Kit for Tandem-Axle Trailers # K71-359-00 that you referenced would fit and work well.
  view full answer...
• Hello Sir I have a 2004 Continental A2150-5000 wi
  Hey Keith thanks for all the information! The best suspension kit for your 2004 Continental A2150-5000 trailer is going to be the Dexter E-Z Flex Suspension Kit item # K71-653-00. This kit has upgraded equalizers with rubber cores that absorb road shock, which give you a smoother ride. The shackle straps are slightly shorter at 3/8" which will not affect your suspension. They have wet bolts with built-in grease zerks that makes maintenance extremely easy. I have linked an installation...
  view full answer...
• Recommended Upgraded Equalizers For A 2021 Grand Design Transcend Xplor Travel Trailer
  Hey James, If you have standard equalizers with a 5-3/4" horizontal and 2" vertical measurement then the Dexter E-Z Flex Suspension Kit # K71-652-00 would be the correct replacement for you. If you're saying that you already have those and are wanting something else then you can go with the Equa-Flex Cushioned Equalizers # LC279687. These have a 5-1/2" horizonal and 2-1/2" vertical measurement so you'll probably have enough slack in the shackle straps to accommodate this difference without...
  view full answer...
• Measurements For The K71-359-00 Dexter Heavy-Duty Suspension Kit
  I have included a diagram below with the measurements of the # K71-359-00 equalizer. The shackle links included with this kit are 2-1/4" long when measured center hole to center hole. The kit is intended for use with 1-3/4" wide double eye leaf springs. If you are looking to upgrade the suspension on your trailer, the # K71-359-00 kit is a great choice. It is important that the replacement parts are identical in size to the stock suspension components. So your best bet will be to take...
  view full answer...

• 2 inch Tall Hanger Kit with 5-3/4 inch Long Equalizers
  The closest kit we have to what you are looking for is the part # K71-359-00 which is for 1-3/4 inch wide leaf springs, has equalizers that are 5-3/4 inches long bolt center to bolt center, has 2 inch tall hangers, but it has shackles that are a little shorter at 2-1/4 inch and has bronze bushings. It does come with 9/16 inch diameter bolts.
  view full answer...
• Wet Bolt Kit & Equalizers to Replace 5-3/4 Long Equalizers
  The 2-1/4" shackle straps are too short so you'll want to get a similar length. There isn't a kit that includes both wet bolts and the equalizer you have but you can get them separately. You'd just need one wet bolt kit and two (2) of the equalizers for a full set: - Curved Equalizer for 1-3/4" Wide Double-Eye Springs - 5-3/4" Long # TREQ104 - MORryde Suspension Upgrade Kit for Tandem Axle Trailers - 3-1/8" Long Shackle Straps # MR76ZR
  view full answer...
• Suspension Upgrade Kit With 3-1/8 Inch Shackle Straps For Tandem Axle Trailer
  There is not an option for the Dexter Heavy-Duty Suspension Kit for Tandem-Axle Trailers # K71-359-00 with 2-1/4" shackles so you'd have to get equalizers and shackles separately. And the 7/16" nuts are not a typo, that is the size of the bolts at the threaded ends. For the same length equalizer and suspension upgrade kit here's what you need: - MORryde Suspension Upgrade Kit for Tandem Axle Trailers - 3-1/8" Long Shackle Straps # MR76ZR - Curved Equalizer for 1-3/4" Wide Double-Eye Springs...
  view full answer...
• Replacing Suspension Components On A 2005 Fabrique Boat Trailer
  I can certainly point you in the right direction. I am not able to recommend leaf springs and brackets based on a model of trailer or Vin number. If only it were so easy right? Generally only the manufacturer of the trailer will have that kind of information. When replacing leaf springs we do want the new springs to be basically identical to the old springs. The best way is for your to measure each spring. Double eye leaf springs are measured across from center eye to center eye. It is...
  view full answer...
• Can Dexter Heavy-Duty Suspension Kit Replace 6-1/4 Inch Long Equalizer
  We don't have an exact match, but based on your dimensions the Dexter Heavy-Duty Suspension Kit # K71-359-00 will still work for your trailer. The 1/2" difference in length and 1/8" difference in height won't be enough to impact the performance of your trailer's suspension. If the equalizer was significantly longer or taller it would be best to swap out the equalizer for one that is a better match, but in this case that will not be necessary.
  view full answer...
• Dexter Heavy Duty Equalizer Suspension Kit for Trailer with 34 inch Wheelbase
  Your trailer's wheelbase is a dimension that is compatible with the Dexter Heavy Duty Suspension kit part # K71-359-00 that you referenced so this would be a great option. The equalizers are a little wider than what you have but the shackle length of what comes with this kit would compensate for that.
  view full answer...
• What Size Zerk Fittings Does Dexter Equalizer Use
  We have confirmed with Dexter that the EZ lube spindles on their axles have a standard 1/4" pipe thread fitting that can be replaced with part # Gzerk that we carry. We don't carry an angled version of this though.
  view full answer...
• Replacement Landing Gear and Equalizers for a 2008 Keystone Cougar 5th Wheel
  Thanks for the pictures! Based on the weight of your 2008 Keystone Cougar 5th Wheel, you will want the item # LG-1 landing gear set. You are going to want to measure to be sure this is the right size for you. The two things you will want to measure will be the distance of the black outer tube of the jack and the distance between the frame clamps (this measurement can differ depending on where the weld stops are located). You'lll need to measure from the underside of top bracket to top of...
  view full answer...

• Are There 1/2" Wet Bolts for an EZ Loader Boat Trailer
  The standard size of eye bolt for a trailer is 9/16". This is only 1/16" of an larger than what you said you have, 1/2" so there could be an error in measuring or this could also be a very oddball application. That said, if the leaf springs (with bushing removed) have an inner diameter of 11/16" it does not matter what size bolts you have and can upgrade to the Dexter Heavy-Duty Suspension Kit for Tandem-Axle Trailers part # K71-359-00. However, we don't offer 1/2" wet bolts.
  view full answer...
• Difference Between Dexter Heavy-Duty Suspension Kit K71-448-00 & K71-359-00
  Excellent question, and the difference between the two kits comes down to the dimensions of the equalizers. What you will want to do is match up the size of your equalizer with the size of the equalizer in these kits. - 6" Long, 4" Tall Equalizer: Dexter Heavy-Duty Suspension Kit # K71-448-00 - 5-3/4" Long, 2" Tall Equalizer: Dexter Heavy-Duty Suspension Kit # K71-359-00 Both kits are otherwise for use with tandem axle trailers that have 1-3/4" wide double-eye leaf springs. You won't...
  view full answer...

• Dexter Suspension Kit For Tandem Trailers With Equalizers Measuring 7-3/4, 6, or 5-3/4
  The Dexter suspension kits are high quality and include "wet bolts", bronze bushings instead of nylon and thick shackles. Properly maintained these would likely outlast typical factory kits three times over! To determine which kit is right for you simply measure the distance across the equalizer and use item # K71-449-00 for 7-3/4" long, item # K71-448-00 for 6" long, or item # K71-359-00 for 5-3/4" long. I have included a picture of the 7-3/4" equalizer showing where to measure. If...
  view full answer...

• Heavy Duty Dexter Suspension Kit For 2011 Dutchman Denali Trailer

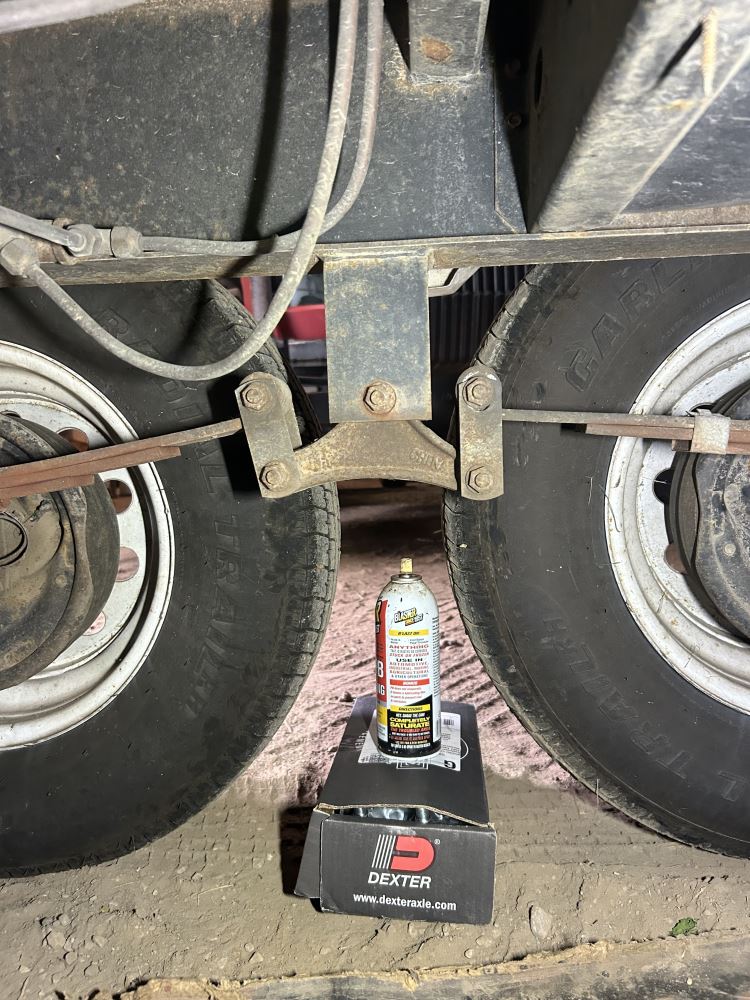

  The equalizer and shackle straps in the picture look a little worn, so replacing is a good idea on your 2011 Dutchman Denali. The Dexter Heavy-Duty Suspension Kit for Tandem-Axle Trailers - 1-3/4" Wide Double-Eye Springs # K71-449-00 is a great upgrade option for you that gives you the grease zerk(s) for easy maintenance. As long as you current equalizer is 7-3/4 inches on center from bolt to bolt, it is a great replacement for your application. If you have a different measurement of...
  view full answer...

• How to Determine if Dexter Heavy-Duty Suspension Kit Will Fit a 2103 Homesteader Dump Trailer
  As long as your current equalizers and shackle straps match the dimensions of what comes in the Dexter Heavy-Duty Suspension Kit # K71-359-00 then you should be good to go. The equalizers measure 5-3/4" long from center-hole to center-hole and 2" high (see attached) while the shackle strap length is 2-1/4" from center hole to center hole. Please note that these are designed for 1-3/4" wide double-eye leaf springs. I'm pretty sure that's what you have but you'll want to verify this on...
  view full answer...

• Can 5-3/4" Equalizer Replace 7-3/4" Equalizer on 2019 Grand Design Imagine 2250RK
  When you replace or upgrade equalizers on your 2019 Grand Design Imagine 2250RK you want to make sure they have the same or very similar measurements. Unfortunately, the equalizers that came with the # K71-359-00 are way too short and will cause problems with your suspension if you attempt to use them. If you want to upgrade the Dexter 13-122 equalizer you have on your trailer check out the Dexter E-Z Flex Suspension Kit # K71-653-00. This comes with a cushioned equalizer to smooth out...
  view full answer...
