This versatile tow bar is easy to use, with arms that support their own weight while you hook up and swing to either side for storage. Integrated safety cables keep your setup streamlined and organized. Built-in rise/drop keeps the tow bar level.
Features:
Specs:
Note: If you use this tow bar in the rise or drop position you may need to add safety cable extensions (sold separately) to reach your tow vehicle's hitch.
| Base Plate | Model |
|---|---|
| Blue Ox | e47ZR |
| Roadmaster Crossbar-Style | e44ZR |
| Roadmaster Direct-Connect | e74ZR |
| Duncan | e24ZR |
| Reese or Valley Industries | e37ZR |
The etrailer SD has a lot of smart features that give you the flexibility to hook up your toad (towed vehicle) to your RV, without the need for your vehicle to be perfectly level or in the exact right spot.
First of all, the arms are self-supporting, meaning that they hold themselves up without your help and won't fall to the ground when you let them go. They also move independently of each other, so you can focus on getting just one arm connected at a time. You'll never be stuck wrestling with a heavy tow bar.

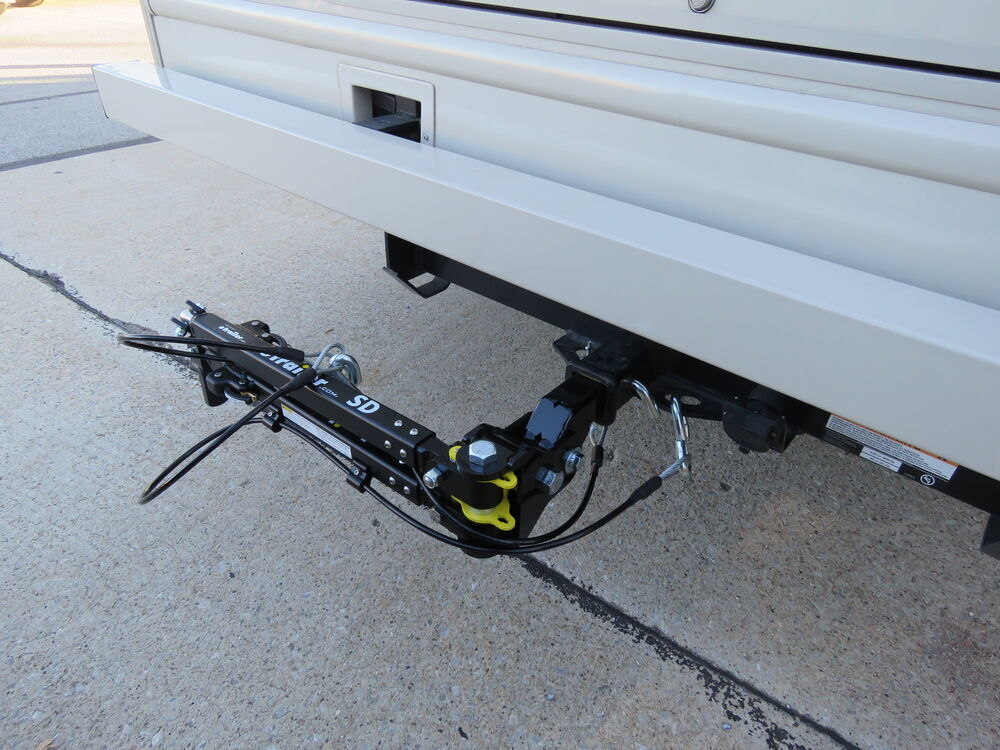

Just slide the tow bar into your hitch and pin it in place. The telescoping arms will extend, pivot, and tilt to the needed length and angle to reach the tabs on your base plate. You can get hooked up and on with your adventure.
Once the tow bar's connected, slowly pull forward and the self-aligning arms will fully extend and lock into the towing position. Double check that the arms are properly latched and you'll be ready to hit the road!
Important: The arms need to be set up so that the storage rod is on the outside of the arm. Otherwise, the tow bar could be damaged when taking turns.
The SD's arms are longer than average, giving you an above-average turning radius. You're going to be able to get around obstacles and make sharp turns with no worry of clipping the corner of your RV. Maneuver through gas stations and the campsite no problem.
It's important that your tow bar is as level as possible while you're flat towing, with no more than a 3" difference between where the tow bar sits in the hitch receiver and where the arms meet the base plate. It's fairly common for the hitch on an RV to sit too high in comparison to the toad, making it necessary to buy a high-low adapter.
With etrailer tow bars, the rise/drop is built right in, so it's less likely that you'll need an extra adapter. The head joint is also able to tilt up and down so you can make the tow bar level for your particular setup.
Uneven ground and sharp angles can put the arms of the tow bar in a bind and make them stiff and immoveable. Once you get to your destination, the last thing you need is to spend several minutes wrestling, yanking, and kicking at them to get your car disconnected.
Instead, get out of a bind in one easy step. Simply give the trigger on the arm of the SD a squeeze to disengage the internal latch. This releases the pent-up pressure so you can unhook and get on with your adventure.
Each trigger release latch is positioned on the side of the tow bar arm. This allows for a comfortable yet firm grip, unlike latches that are positioned on the tops of tow bar arms, which can be difficult to grab. This out-of-the-way placement also creates a clean look for the tow bar.
Two straight, vinyl-coated safety cables are integrated right into this tow bar, keeping them from dragging on the ground and getting damaged. They won't get lost or tangled either; your whole setup will be streamlined and organized.
These cables, required by law, will keep your toad behind your RV if there's ever an accidental disconnect while you're towing. The steel S-hooks on each end of the cables connect to the toad's base plate and the RV's trailer hitch, with spring-loaded latches to ensure that they stay connected.
The etrailer safety cables are rated at 14,000 lbs, regardless of the rating of the tow bar. While it's not necessary to have such a high rating, it's nice to know that in the event of an emergency disconnect, these heavy-duty cables will be more than capable of catching your vehicle. If all else fails, these safety cables won't.
The tow bar also offers a convenient storage rod for securing your coiled electrical cord (sold separately). The rod holds your power cord neatly out of the way and up off the ground.
The etrailer SD is incredibly easy to store on the back of your RV. Most RV-mounted tow bars require you to lift the heavy arms all the way up; they have to be fully vertical before you can secure them in the stowed position. With etrailer tow bars, all you have to do is raise the arms an inch or two - which you probably would do anyway while unhooking - and swing them to either side. When you lower them down again, the locking pin will automatically slide into the built-in tab. They can store to the left, right, or with one arm each way, however is convenient for you.
At etrailer, we're committed to the products we sell, and to helping our neighbors journey. We don't just sell it; we've installed it, we've wired it, and we've towed with it, so you're getting your answers straight from the experts. Our etrailer technicians perform flat tow installations on a daily basis, so they know all about your tow bar firsthand. For the life of your tow bar, our experienced and knowledgeable staff are available via phone, email, and chat to help you with any questions or concerns.
Flat towing can be a much more convenient way to take your car RVing with you than using a trailer or a tow dolly. It'll save you storage space both at home and at the campsite, and it takes less time and hassle to hook up.
To flat tow your vehicle, there are 5 basic components you're going to need: a tow bar, a base plate kit, a safety cable set, tow bar wiring, and a flat tow braking system.
| For the RV | Between the RV and Towed Car | For the Towed Car |
|---|---|---|
| Hitch | Tow bar | Base plate |
| Wiring plug | Safety cables | Braking system |
| Wiring adapter cord | Wiring kit/diodes |
The custom-fit base plate installs on the frame of your toad so you can connect the car to your RV with a tow bar. Hook up safety cables between the vehicles to ensure that the toad does not separate from the motorhome if the tow bar becomes detached. Tow bar wiring syncs your vehicle's signal lights with your motorhome's tail lights, as required by law in most states. Finally, the flat tow braking system - also required in most states - activates the brakes in the toad when you hit the brakes in the RV, making for smoother, safer braking, and preventing wear on your motorhome.
