Curt Custom Fifth Wheel Installation Kit for Dodge Ram - Carbide Finish

Curt Custom Fifth Wheel Installation Kit for Dodge Ram - Carbide Finish

Item # C16420-204
Our Price: $277.89
Fifth Wheel Installation Kit

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

This item qualifies for Free Shipping
Shipping Weight: 60 lbs
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Install your fifth-wheel trailer hitch in half the time with this vehicle-specific bracket kit. Requires no drilling and provides a custom fit for your vehicle. Includes everything you need for installation. 1-800-940-8924 to order CURT fifth wheel installation kit part number C16420-204 or order online at etrailer.com. Free expert support on all CURT products. Great prices and Fastest Shipping for Curt Custom Fifth Wheel Installation Kit for Dodge Ram - Carbide Finish. Fifth Wheel Installation Kit reviews from real customers.
  • All Info
  • Reviews (131)
  • Q & A (0)
  • Videos (3)
  • Photos

CURT Fifth Wheel Installation Kit - C16420-204

  • Above the Bed
  • CURT
  • Custom

Install your fifth-wheel trailer hitch in half the time with this vehicle-specific bracket kit. Requires no drilling and provides a custom fit for your vehicle. Includes everything you need for installation.


Features:

  • Custom brackets mount beneath your truck bed to provide attachment points for 5th-wheel rails
  • Base rails sit in truck bed and allow installation of 5th-wheel trailer hitch
  • Custom fit - brackets mount to existing holes in your vehicle's frame
    • No drilling is required
    • Installation time is cut in half when compared with universal bracket systems

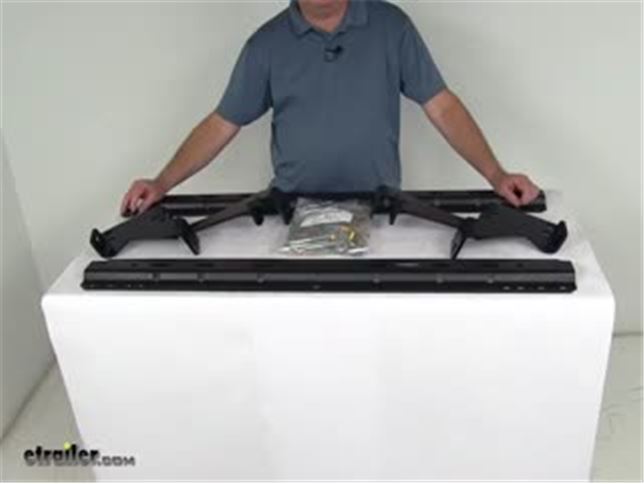

  • Kit includes brackets, rails and hardware
  • Visible rails have carbide finish
  • Compatible hitches - Curt, Draw-Tite, Hidden Hitch, Reese, Valley and Husky
  • Assembled in USA


16420 and 16204 Curt Custom Fifth Wheel Installation Kit with Rails and Brackets - Carbide Finish

Installation Details C16420-204 Installation instructions

This Product Fits The Following Vehicles




Video of Curt Custom Fifth Wheel Installation Kit for Dodge Ram - Carbide Finish

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Fifth Wheel Trailer Hitch Installation - 2006 Dodge Ram - Curt

Today on our 2006 Dodge Ram Pickup, we'll be installing the Curt Custom Fifth Wheel Install Kit, part number C16420-204. To begin our install we'll first go ahead and raise the vehicle and remove the rear wheels. Now, with our rear wheels off, you'll notice the spare tire is also missing on this application. If yours is still in position, recommend to go ahead and lower and remove it to gain more working room underneath the vehicle. Next, we'll need to relocate the manufacturer's wiring harness on the inside of the frame rail to allow for our brackets and hardware. To do that, we're just going to use our trim panel tool and pop the fasteners free that hold it to the frame.

In this application there's a total of 4 fasteners and we'll also be compensating for the air line. Next, we're going to put the rear rail in position. For a short box bed like this one, we'll be 26 3/4" from the end of the pickup bed. It is very important to measure it out and make sure that you're parallel to the end of the pickup bed and even from side to side. Next, we're going to drill out the second row attachment points. In accordance with the rail, it will be the inside hole of the 4 possible outside attachment points.

Quick tech tip, to keep it straight I'm going to go ahead and use a paint marker to mark the attachment points. It also helps me to find the center of the attachment point. We're ready to drill out the attachment points for this application. Because we have a spray in bed liner, using a center punch is not as effective as if it we're just a painted bed surface. If you have a painted bed surface, it is recommended to go ahead and center punch your attachment point and then drill it out. For this application we're going to use an 1/8" bit as a pilot for our attachment points.

Note most 1/8" bits are not long enough to go all the way through the pickup bed and then through the hat channel. If that's the case, you may need to move up to an extra long 1/4" bit to go down through your attachment points including the hat channel underneath the pickup bed. Now, with our holes drilled out we're going to go ahead and move back underneath the pickup bed, take our rear brackets, set them into position, and make sure that our pre-drilled holes that go through the pickup bed and the hat channel line up with the bracket. Here's our pre-drilled hole. Here's our driver's side side bracket with the 2 attachment points that go to the inside of the frame rail.

The taller one goes to the rear of the vehicle, with an additional attachment point both at the bottom of the frame and side of the frame. Go ahead and slide the bracket into place. Now, as I hold the bracket in position tight to the hat channel in the frame, you can barely see our pre-drilled hole in the window. Our pre-drilled hole is going to have to move closer to the rear of the pickup bed approximately 3/8" in order to fall inside the slot that we can get our hardware in place. In a perfect world, our pre-drilled hole would have landed here in our hat channel, so we'll need to relocate our pre-drilled hole. Now we'll move back into the pickup bed and repeat the same process of drilling out our attachment points. Once we've drilled the second set of attachment points, we'll again move underneath, put our brackets in position, and verify that they line up with the slots of the bracket. We'll now go ahead and re-position the rail back over our attachment points. Note, that will be the second set of attachment points that we drilled out so that it better suited the hat channel and bracket. Now, with our rear rail in place, we're going to put the front rail in position 22" from the center of the rear rail to the center of the front rail. We'll center it in our pickup bed and we'll draw out our attachment points for row 3. Once we have our pilot holes drilled out, we'll move underneath the vehicle, hold our brackets up to the frame and make sure it lines up with the attachment points in the bracket. Now, we'll take our front bracket, we'll set it up on the frame and line it up with our pre-drilled hole and the attachment point. Now, once we've verified that our rails line up with our brackets and attachment points, we'll go ahead and drill out the remaining attachment points for both rails. Now, with all our pilot holes made, we'll use a step fit process to open them up to their final size of 9/16. Next, we're going to move underneath the pickup bed, put the rear frame brackets into position, then install a U-bolt, 1/2" conical tooth washer and nut to loosely secure the frame bracket into place. Now we'll install the conical tooth washer, the teeth of the washer facing the bracket, and then our nut. Just install our fasteners finger tight at this time. Now with our passenger's side installed, I'll repeat the same process on the driver's side. Next, we'll take the 1 3/4" carriage bolt and 3" by 1 1/2" large spacer block. We're going to feed them into the frame using the 1/2" bolt leader provided with the install kit. Then, once we pull it down through the frame through the bottom of our rear bracket, we'll secure it with a conical tooth washer and nut. We've already got our hardware in position, we'll have to slide the carriage bolt and block into the frame. You can use the pre-drilled hole in the bottom or the side. However, you'll need to enlarge it slightly so that we can get our block into the frame. Using a round bit on a drill, we're going to hone it out just enough so we can get our block in place. You could also use a file or a drill bit and drill out a small section so that your block will fit. Now once we have it large enough to get our block in place, we'll go ahead and take the bolt leader, go through the attachment point and out the access hole. Feed the block into the frame, the bolt following. Once we pull it down through the bracket, we'll go ahead and remove the bolt leader and install the conical tooth washer and nut. Keep in mind the teeth of the washer will face the bottom of the bracket. Now, with our passenger's side done, we'll move over to the driver's side and repeat the same process. Next, we need to install the support collars into the hat channel for our rear rail, second row attachment points. The support collar will sit inside the hat channel and once it's tightened down, won't allow the hat channel to be crushed. To make it easier to get it in position, use a bolt leader or pull wire that's provided with the install kit. You can feed the pull wire through the attachment point in the pickup bed, through the collar, then down through the hat channel and bracket. Now, once I've fed the pull wire and collar into the hat channel, I'm going to push it past the attachment point where I can grab the pull wire with a pair of pliers and pull it down through the bottom of the hat channel and the bracket. Now, when settling this collar, it actually made it a little easier on me in that I didn't have to feed my pull wire through the bottom of the hat channel or bracket. As I would push the collar into the hat channel it stood right up against the bottom of the pickup bed and then I just used a pry bar or pliers to push it into position. Now with the passenger's side done, we'll move over to the driver's side and repeat the same process. Now we've got the lower bracket hardware on, then we put the shoulders into the hat channel. We'll re-position the rail back over our attachment points and put our hardware in place. For row number 1, closest to the end of the pickup bed, we're using the 1/2" carriage bolt, 1 3/4" long. Then for row number 2 that goes down through the hat channel, we'll use the 1/2" carriage bolt 4 1/2" long. Now, I'm going to need a little persuasion here on the longer carriage bolt here for the driver's side. I'll just use the soft side of my hammer to tap it in place. Now, to secure the 4 1/2" carriage bolt, we'll be using the 1/2" conical tooth washer and 1/2" nut. For the front row fasteners, the 1 3/4", 1/2" carriage bolt here, we're going to use the same fasteners only we're going to add a U shaped spacer block around the bolt between the bracket and the bottom of the bed so that it will compensate for the bed corrugation and doesn't get smashed as we tighten down our hardware. Once we get our U shaped spacer block in place, we then install the conical tooth washer and nut. Again, we'll install each of our fasteners finger tight until we have them all in place. Now, with the passenger's done, we'll move over to the driver's side and repeat the same process. Now we're ready to put the front rail back over our attachment points. Before we put the rail in place, I'm going to go ahead and set my U shaped spacer blocks into position. This will prevent smashing the bed corrugation when we tighten down the hardware here in the front. Next, using our fifth wheel head or slider, in this case, we're going to set it into position on top of our rails to help square up the rear to front rail. Now with the slider unit in place, we're going to go ahead and take the pins and put it in position. We don't need to install the keepers as we will be taking it back out, but this will help to line up the front and rear rails with each other. We'll go ahead and position our front bracket on the outside of the frame with our U bolt going from inside out to secure it with our 1/2" conical tooth washer and 1/2" nut. Again, we'll just install our fasteners finger tight this time. With our passenger's side installed, I'll move over to the driver's side and repeat the same process. Now, with our front brackets in place, for the third row through the bracket, we'll go ahead and take our carriage bolts, drop them down through the base rail, through the pickup bed and for the front row, we'll simply go down through the pickup bed where we'll secure it with additional fasteners. Now, for the fourth row, front rail, closest to the cab, for fasteners that just go down through the base rail and then through the pickup bed, we'll install a block, split lock washer, and then a nut. Here on the passenger's side, you'll also need to work around the shock tower. For our third row fasteners, we'll have a conical tooth washer, teeth facing the bracket, and then a 1/2" nut. Move over to the passenger's side and repeat the same process. Now we're ready to start tightening down our fasteners. We'll tighten down the carriage bolts that go through the pickup bed and our brackets first. After we tighten those down, we'll then tighten down the fasteners that secure the brackets to the frame. Once we have all the fasteners tightened down, we'll then go and torque to specifications a indicated in the instructions. Keep in mind when tightening and torquing our hardware, each process we do here on one side, we're going to repeat identically on the opposite side. Now, with all the installed fasteners secured and torqued to specifications, we're going to go ahead, pull our pins, take our slider unit out, and re-install it to make sure it lines up nicely. Now we know we've got a good fit and our pins go in nice and easily, let's check and make sure that the unit will slide. We'll pull our handle out, lock it, and then slide it. Now that we know our slider is operational, we'll need to install 2 more fasteners. They're going to go on the rear edge of both base rails in the dead center. We'll install an additional 1/2"carriage bolt that will go down through the U shaped spacer block, through the pickup bed, and then get fasteners underneath. We'll need to drill it out. Again, we'll use a small pilot bit and then open it up to a 1/2" size. Now with the hole drilled out, we'll slide our block in place and drop our carriage bolt in position. Now our fasteners will get a spacer block, split lock washer, and a 1/2" nut. We'll repeat the same process for the second rail. Once we have our hardware installed finger tight, we'll go ahead and run it down, then we can torque to specifications as indicated in the instructions. Now, with all our fasteners installed, secured, and torqued to specifications, we can go ahead and re-install the wiring harness and air lines that we removed earlier. Now, with our install complete, we can go ahead and re-install the rear wheels and we're ready to hit the road. With that, that's going to complete the install of the Curt Custom Fifth Wheel Installation Kit, part number C16420-204, on our 2006 Dodge Ram Pickup 2500. .

Customer Satisfaction Score:


Customer Reviews

Curt Custom Fifth Wheel Installation Kit for Dodge Ram - Carbide Finish - C16420-204

Average Customer Rating:  4.6 out of 5 stars   (131 Customer Reviews)

Install your fifth-wheel trailer hitch in half the time with this vehicle-specific bracket kit. Requires no drilling and provides a custom fit for your vehicle. Includes everything you need for installation.

by:
2012 Ram 3500

2012 ram 3500 mega cab short bed! Well from all the reviews I’ve read, and the video, I gathered about 5-6 hours to install by myself, which was very accurate, directions say 90 min instal, not! It was the 5-6 hour range, regardless it went in as the directions and video said! Take your time measure it out double check everything, the kit is great, follow directions and watch the video you can do it in your driveway!



by:

Takes a bit longer than expected. Figure in a day for the above bed install kit. I'll post back after I make a 2000 mile trip with the 40' RV. Have a great day everyone!



by:
2006 Dodge Ram Pickup

I had to customize some of the brackets to make them work on my truck. As well as add some spacers under the front rail so when it was tightened it would remain flat. The kit is usable if you have the ability to make it work. But when I buy something like this I expect it to go on without messing with it.



by:
2011 Dodge Ram Pickup

THE RAILS AND BRACKETS WERE JUST AS DESCRIBED AND CAME VERY QUICKLY AND REASONABLY PRICED. THE INSTRUCTIONS WERE VERY HELPFUL INCLUDING THE VIDEO ONLINE. INALL IT TOOK ME ABOUT 5 HOURS TO INSTALL WITH TAKING MY TIME TO DOUBLE CHECK EVERYTHING. IT FIT JUST AS IT SAYS AND FIT MY PICKUP PERFECTLY. GREAT PRODUCT AND GREAT COMPANY

Sequel

9/9/2015

I still have no complaints I have pulled my 35ft fifth wheel camper multiple times already and it did great. I have since recommended etrailer site to everybody I know that needs hitches. Thank you again for making it so easy to order and install!



by:
2011 Dodge Ram Pickup

This is a well put together package. The fact that you do not have to drill the frame makes things much easier. That said, it is still a lot of work and if you do not have all the tools needed and a lift you will be at this install for quiet some time.

The spare tire has to be removed and if there is a spare tire shield it will have to go as well. The inner fenders need to come out and at that point you will find it is easier if the tires and wheels are out of the way. It is a bit of work to get the right rear bracket in with the tail pipe in place. Also the spacers that go into the frame are also hard to get in place. Lastly, you will still have to drill holes in the bed.

With all this work required, I am very glad that I did not have to drill the frame also.



by:

fair price. Simple installation.



by:
2018 Dodge Ram Pickup

2005 Ram 2500 Quad Cab Short Bed. Xlnt kit, easy install. The installation instructions could have been better. I suggest watching the video on youtube and setting up the rails and hitch on the garage floor first. Take measurements between rail hole rows (row 2 to row 3 - 17 3/4") and add 3/4" for front bed support clearance - 18 1/2". Looking over a rear tire and measuring from the front bed support, My row 2 needed to be rear of center by 1/2". This puts my rear rail at 26 1/4 instead of 26 3/4" from the tailgate. Then everything lined up perfect. The fish wire provided really works great ( threads on to the bolt like a nut). My only problem was the spacer that gets fished with the carriage bolt was to wide for the large hole in my frame. I cut a 1/4" off the spacer and that was the only modification I made to this kit. Not all trucks are the same. XLNT kit, I was impressed !

Jerry C.

3/27/2014

This is a little confusing. Is the correct measurement 26 34 or 26 1/4 ??I installed a Curt rail kit a couple years ago. I do recall that if you use the instructiondimension...things line up better on a Dodge front rail if everything would have been about a 1/2 inch further rearward. Is there any way this can be clarified? I am starting on another install today. thanks.

Patrick B.

3/28/2014

The most current instructions for part # C16420 rail kit state that the measurement from end of bed to rear most edge of the rear rail is 26-3/4 inches on a 6 foot bed. Check out the instructions linked on the product page for more details and a couple of diagrams.


by:
2012 Ram 2500

Fish wire was too short for long bed installation. Instructions did not address how to clear my brake lines on the left side front bracket. Overall the installation was not as easy as the video depicts. I am a professional mechanic for over 30 years.



by:
2007 Dodge Ram Pickup

So here I am 1 year later and 7000 + miles later having towed/hauled a 30' Keystone Cougar with the Curt E16K hitch and bed rails.
I installed the item and it was fairly easy with the help of a friend to help tighten bolts and nuts. On the rails I have the E16K Curt Hitch in a 2007 - 2500 Dodge Ram Cummins. I used to remove the Hitch after every trip. That lasted for the first 2-3 times. It is darn heavy to remove and put back in. So now I leave it installed in the truck and remove it when/if I need to haul something in the bed.

Hope this helps your decision and Happy Hauling :o)



by:

The accessories weren't correct for my application but upon researching etrailer products was able to find the correct brackets for use under body.



by:
2012 Dodge Ram Pickup

Installed on a 2012 Ram 3500 long box. The rail kit itself is excellent and appears to be very strong. I was able to install with the truck on the ground and the tires on. I did have to remove the inner fender liners to access some of the bolts for torquing. I do not see how the nuts can be brought to proper torque without the use of a 3/4 inch crowsfoot, as it is impossible to get a socket on some of the nuts. The shock mount welded to the frame on one side is an example...it prevents the use of a socket. The single most important step is measuring properly because there is very little margin for error. The etrailer.com video was very helpful. Took me about 6 hrs without jack stands or a lift, but I'm very happy with the finished product and they went on without interfering with my AIR LIFT 57295 LoadLifter 5000 Series Rear Air Spring Kit.

Don C.

8/26/2018

So far excellent!!!



by:

Instructions were spot on, also had viddos on youtube to help as well



by:

Very pleased etrailer.com and very appreciative with customer service because when receiving order from UPS the box was torn open and majority of hardware was missing. After taking inventory i called customer service explaining how it arrived the representative immediately ordered another hardware kit shipping out same evening, the install took about four hours with one small modification to a mounting bracket. Works great and very pleased so far

Robert

3/16/2020

So far really good. Thankyou



by:
2006 Dodge Ram Pickup

Took some time to install but overall wasn't horrible. I'd recommend these rails to anyone looking for this mounting style. Didn't have to remove tires or drill any holes besides through the bed of the truck. They are very strong and solid. etrailer.com is a great place to order from. Great customer service and tons of information for all your trailer and towing needs. I'll be ordering more in the near future. Overall a great shopping experience and a quality product!

Arron M.

2/19/2017

Another great item that has worked flawless. Would definitely buy it again!



by:
2012 Ram 2500

It installed just as advertised, the video was helpful but the one I found on YouTube shows an actual install which was even more help by showing some of the minor issues during installation. The written directions were well done too. Also a quality product with a very good website to help order the right parts with ease.

Ed S.

9/17/2018

After 1 year still working as when I installed it, nothing loosened up and solid the rails are a definite plus.



by:
2007 Dodge Ram Pickup

If you are towing with a Dodge with a boxed frame...This kit works perfectly. Every bend...every bolt hole...every piece and par of this kit fit perfectly....No holes to drill...

Duane I.

11/4/2015

Still looks new after near constant use



by:

I bought a Curt 5TH wheel hitch and it took a bit longer to install then I planned for but It has worked great the customer service is fantastic! I have told my friends about Etrailer and two of them have bought their hitches from Etrailer you will not find a better price.



by:
Dodge

very good product . takes a little more time to install on the dodge , but that is all good any way. Its been really good product.

Dvae H.

2/24/2018

IT take longer on a dodge .



by:
2010 Dodge Ram Pickup

Received my parts to install my 14K Reese 5th wheel hitch in a timely manner and free shipping .. Started the installation on my 2005 Ram 3500 Dually and the parts all fit GREAT... Installation time was exactly what the instructions said ... The following week we hooked up to our 2010 Cougar 34ft RV and left the Wet Coast of the Pacific Northwet and made the 2600 mile adventure to Northern Michigan.... E-TRAILER is AWESOME........



by:
2006 Dodge Ram Pickup

Not sure how they where able to use sockets on everything.
I had to use a wrench on half the bolts. May have been a 1/2 ton to 3/4 ton difference.
Happy with it just the same.

Neal W.

6/15/2017

still happy with it



by:
2007 Chevrolet Silverado 2500

I spent a few hours researching hitches before i settled on the Curt installation kit to go with my Anderson hitch. The directions were easy to follow, but i recommend watching the video as well. I installed this on my 2007 Dodge 2500 on my garage floor. I am sure this added a bit more time to the install, but for my first ever hitch install I had it installed and cleaned up in about 3 hours. I would definitely recommend this installation kit. etrailer was also very responsive to make sure they had my correct mailing info since I use a P.O. box for mail.



by:
Dodge Ram Pickup

Etrailer is a company that I will recommend to anyone that has the need for trailer equipment. Thank you to the team that got my order shipped ahead of schedule. As for the Curt Q20/R20 hitch and installation kit it was a fairly easy installation on my Dodge Ram 2500. Everything was exactly as the videos on the etrailer site had stated.



by:
2004 Dodge Ram Pickup

This kit fit my 2004 Ram 2500 exactly as advertised. Took way longer than the 90 minutes the directions state, to install, but I took my time and made sure all steps were done correctly. Something I should have done, that is not mentioned in the directions, is to "pre-mount" the hitch on these rails, prior to drilling and bolting. If you get it even a bit off parallel, you have binding..like I do..when trying to dismount the hitch. I will have to fight it, to put back on these rails also. My fault, not the kit. Etrailer is very helpful, quick and responsive. They have me as a repeat customer already.



by:

This is the second time I used this hitch mount. It wasn’t too hard to install on the ground. A vehicle lift, as shown on the product video, makes it look a lot easier but install is still very doable. The video is necessary to have in addition to the enclosed instructions.

The ordering staff has always been friendly and knowledgeable about the product.

etrailer will continue to be my first stop for all my RV products.



by:

Works fine for me. I didn't install so Im not sure. Pulls a 14,000 fifth wheel just fine.


25
131
Show More Reviews

See what our Experts say about this CURT Fifth Wheel Installation Kit

  • Curt Fifth Wheel Bracket and Rails for 2004 Ram 3500 With 6-1/2' Bed
    We carry exactly what you are looking for, the Curt Custom Fifth Wheel Installation Kit for Dodge Ram # C16420-204. This is a custom bracket kit that fits your 2004 Dodge Ram 3500 with a 6-1/2' bed and will not require you to drill into your truck's frame. This part comes with the base rails as well. I've added a link to a video review of this kit for you to check out.
    view full answer...
  • Universal and Custom 5th Wheel Base Rail Kits for 2011 Ram 2500 6-1/2-Foot Bed
    Curt Universal Fifth Wheel Base Rail Kit # C16100 will fit your 2011 Ram 2500 short bed and if it has overload springs you will also need bracket kit # C16301. If you want to save a lot of time and do less drilling for the install I recommend one of the custom install kits we have for your 2500. These custom kits cost a bit more but they don't require you to drill into the frame and they take a lot less time overall for installation. I recommend you use one of the following CUSTOM kits...
    view full answer...
  • Hitch Recommendation For 2011 Ram 2500
    Slider hitches give you a better turning clearance but are not mandatory for smaller beds. If you wanted to use a regular hitch you could but could face some issues when trying to make tighter turns that a slider could help you avoid. Below I've attached a formula we use to determine how much clearance you'll have: (A + B) - C = Clearance A = Distance from center of fifth wheel hitch jaw to truck cab (The length of the slider fore/aft travel will increase this number) B = Length of...
    view full answer...
  • Rail Kit Recommendation for a 2012 Ram 3500 with a Valley Slider Hitch
    The Valley hitch part # 7054 is a now discontinued slider hitch that will fit nearly all fifth wheel rails as it is designed to fit the industry standard rail design. For a set of rails to fit your 2012 Ram 3500 that would also work with the Valley hitch you would want the part # C16420-204. I attached an install video for you to check out as well.
    view full answer...
  • Will Curt Custom Fifth Wheel Installation Kit # C16420-204 Fit 2008 Ram 2500 Mega Cab with 6-Ft Bed
    Yes, the Curt Custom Fifth Wheel Installation Kit # C16420-204 does fit your 2008 Ram 2500 Mega Cab with 6-foot bed. It fits this truck configuration for model years 2006 through 2009 and is a no-drill installation. An install video is linked for you showing a 2009 Ram. With these base rails in place you can install any industry-standard 5th wheel hitch from brands like Curt, Draw-Tite, Hidden Hitch, Reese, Valley and Husky.
    view full answer...
    Image 1 for
  • Recommended Rail Kit for 5th Wheel Hitch for 2012 Ram 3500 with 8 Foot Bed
    You can use the Curt # C16420-204 rail kit on your 2012 Ram 3500, which will give you a rail kit to install a 5th wheel hitch like the Curt # C16115. This is a custom installation kit, so minimal drilling if any will be required. This rail kit can be used for any 5th wheel hitch that installs in industry standard base rails.
    view full answer...
  • Recommended Base Rail Kit For A 2012 Ford F-350 Super Duty
    Hey Gary, Pre-drilled could mean a lot of things so I wouldn't bank on having a puck system, especially with a 2012 as Ford didn't start installing them until 2011 so they weren't as popular at the time. If you don't have a puck system then you'll need the B&W Custom Installation Kit w/ Base Rails for 5th Wheel Trailer Hitches # BWRVK2401. This kit is a custom fit as well and won't require drilling to install. if you end up having a puck system you can get an adapter like part # C88KR...
    view full answer...
  • Problems Mounting Curt E16 5th-Wheel Hitch to Rails on 2010 Dodge Ram 3500
    It's difficult to say what could be causing the problem you are having installing your Curt E5 Fifth Wheel Hitch # C16115 without knowing the manufacturer of the existing rails on the 2010 Dodge Ram Pickup. The Curt E5 is compatible with above-bed base rails by B&W, Curt, Demco, Draw-Tite, Hidden Hitch, Husky, Reese and Valley but it's possible the particular rails on your truck are simply not compatible. The front and rear rail should be 22 inches apart when measured from the center of...
    view full answer...
  • Brackets and Hardware Only to Install 5th Wheel Rails in a 2012 Ram 2500 Short Bed
    Yes, you can just get brackets and hardware without the rails for your 2012 Dodge Ram 2500 short bed. Industry standard rails will either have bolt holes for a 4-bolt installation or holes for a 10-bolt installation. To get you the right parts we just have to match the type of rail you have to the right bracket kit. I have included pictures showing 4- and 10-bolt rail designs that will help. If you know the manufacturer of the rails that will help too. Generally we don't recommend mixing...
    view full answer...
    Image 1 for Image 2 for
  • Fifth Wheel Trailer Hitch and Installation Kit Recommendations for a 2007 Dodge Ram 2500
    If your 2007 Dodge Ram 2500 has a short bed or long bed, you can use the Curt 5th wheel trailer hitch installation kit # C16420-204. If you like the Curt and, if you have a LONG bed, use the standard version, # C16130. For a SHORT bed, use the slider version, # C16541 The hitch features a dual jaw design for added king pin contact and security. The head is a full floating head that is also cushioned for the best ride and easy hook-ups. This hitch would be a good choice for your truck and...
    view full answer...
  • 5th Wheel Hitch and Related Parts Needed to Tow 10K Trailer with 2007 Dodge Ram 1500 Mega Cab
    I recommend a 5th wheel hitch with a custom install kit because these will reduce your installation time and drilling in your 2007 Dodge Ram 1500 Mega Cab. I also suggest you select a 16K-rated hitch because at this weight rating your hitch will include additional features often not found on lower-rated hitches - such as a cushioned 360-degree pivoting head like that on Curt sliding hitch # C16521. This hitch has a 4000-lb tongue weight rating and has 12-inches of slider travel to make...
    view full answer...
  • Which Rail Kit To Mount Hensley TS3 TrailerSaver in 2012 Ram 2500
    From what I was able to find with my research, the Hensley TS3 Trailer Saver 5th Wheel Hitch will fit into industry standard 5th wheel rails. I've attached a picture that shows the mounting hole dimensions on what are considered the industry standard rails. If the spacing on the mounting pins of your TS3 are 10", 20-1/2" or 29" apart, you can use a custom base rail installation kit like the Curt Custom Fifth Wheel Installation Kit for Dodge Ram # C16420-204 . This kit will install an above...
    view full answer...
    Image 1 for
  • Curt Fifth Wheel Hitch Install Kit for 2012 Dodge Ram 3500 4x4 with 6 Foot Bed
    For a 2012 Ram 3500, assuming the hitch you're wanting to use is compatible with industry standard bed rails, I'd recommend the Curt # C16420-204. The bed rails included with with the kit use industry-standard hole spacing, and would be compatible with Curt, Draw-Tite, Reese, Demco, the B&W Patriot and Valley fifth wheel hitches. For a short bed truck, we recommend using a sliding 5th wheel hitch to allow proper clearance between the rear of the cab and the front of the fifth wheel during...
    view full answer...
  • 5th Wheel Trailer Hitch and Install Kit for a 2012 Dodge Ram 3500 Diesel
    An awesome truck like your 2012 Ram 3500 deserves an equally awesome trailer hitch. What I recommend is the Reese Elite Series installation kit and 5th wheel hitch. The kit is # RP30074 and the benefit is that most of the kit will be below the truck bed so when the hitch is not being used you still have the complete use of the bed. For a hitch take a look at the Reese M5 Series 20K # RP30921. The hitch is rated higher than the stated capacity of the truck as you have indicated so it will...
    view full answer...
  • Recommendation of Install Kit For Husky/Valley Fifth Wheel in 2011 Dodge 3500 Mega Cab Short Bed
    The Curt Custom Installation Kit with Rails and Brackets, part # C16420-204, will fit your 2011 Dodge Ram 3500 Mega Cab Short Bed. This kit is an above bed installation kit. I am including a link to the installation instructions for you. If the Husky/Valley 20K fifth wheel hitch that you have requires the under bed mounting system (UBS), you will not be able to use the hitch as there is no Valley UBS system for your truck. You can also use the Reese Quick-Install Custom Base Rails and...
    view full answer...
  • 5th Wheel Trailer Hitch Install Kit for a 2004 Dodge Ram 3500 Dually
    There have been 5th wheel installation kits that at least in part bolted directly to the frame. But I strongly advise going with a new install kit with brackets so the force applied to the installation kit components is spread out over a larger area compared to just a bolt. For a custom kit I recommend # C16420-204. You will not have to drill into the truck frame to install the brackets. I have linked a video showing an example installation for you.
    view full answer...
  • Does Drop-In Plastic Bed Liner Require Trimming for 5th Wheel Base Rail Installation
    If your pickup has a drop-in plastic bed liner it will need to be trimmed before you install the Curt 5th Wheel Base Rail Kit # C16420-204. 5th wheel rails must make metal to metal contact with the truck and the drop-in liner will interfere. Spray-on liners are ok for 5th wheel rail installation since they cannot shift in the bed as a drop-in liner can.
    view full answer...
  • 5th Wheel Trailer Hitch Installation Kit for a 2012 Dodge Ram 2500 Long Bed and RBW Hitch
    The only RBW 5th wheel hitch that will fit the installation kits we carry is the Lil' Rocker. If do not have a Lil' Rocker then you will either need to obtain an RBW installation kit or you will need to go with a different 5th wheel hitch. For a custom installation kit you can use # C16420-204. The rails that come in this kit will accept Curt, Draw-Tite, Hidden Hitch, Reese, Valley and Husky 5th wheel trailer hitches that fit in above the bed rails. If you want to go with this kit and...
    view full answer...
  • Installation Kit and Rails to Install Demo Hijacker # DM6076P-UL-16K in a 2012 Ram 3500 Long Bed
    Demco Hijacker Premier Series Ultra Slide 5th Wheel Trailer Hitch # DM6076P-UL-16K fits in industry standard above the bed rails. For a compatible installation kit that includes the rails for your 2012 Ram 3500 long bed I recommend custom installation kit # C16420-204. Custom kits are recommended because they minimize the amount of drilling required for installation so they take less time to install. I have linked a video showing an example installation for you.
    view full answer...
  • 5th Wheel Hitch Type and Installation Kit for 2006 Dodge Ram 2500 Short Bed
    If the hitch from the 2017 Ram is intended for the factory puck system, such as the B&W # BWRVK3670, then it cannot be installed in a truck with standard 5th wheel base rails. Your 6-foot bed Ram 2500 needs to use a sliding-type 5th wheel hitch like Curt # C16541 in order to have the turning clearance required to avoid the trailer overhang contacting the truck cab. The easiest base rail installation in your 2006 Ram 2500 will be with a custom install kit that requires less drilling. I...
    view full answer...
  • Fifth Wheel Rail Kit Recommendation for a 2003 Dodge Ram 2500 Long Bed
    The Curt fifth wheel rail kit part # C16420-204 that you referenced has been confirmed as a fit for your 2003 Dodge Ram 2500 long bed and will fit any fifth wheel hitch that is designed to fit industry standard rail dimensions. Hitches made by Curt, Draw-Tite, Hidden Hitch, Demco, Reese, Valley and Husky would fit.
    view full answer...
  • Replacement Base Rail Hardware For A 2004 Dodge Ram 3500 DRW With Valley Base Rails
    Hey Gary, Base rail components unfortunately aren't cross compatible between brands so you'll likely have a hard time finding new hardware unless you're just referring to the nuts and bolts. If the under bed mounting brackets are also worn you'll need a complete replacement. If it's just the nuts and bolt's you're needing then you can measure the bolt length, diameter, and grade and then thread size and just get replacements at your local hardware store. For a complete replacement you'll...
    view full answer...
  • Recommended 5th Wheel Install Kit for a 2004 Dodge Ram 3500
    For your 2004 Dodge Ram 3500, I recommend the Curt Custom Fifth Wheel Installation Kit for Dodge Ram part # C16420-204 which is a custom fit kit that installs using pre-drilled holes in the frame so it will not require drilling. The base rails sit above the bed floor and will then allow you to mount any 5th wheel hitch that uses industry standard rails (ISR) like options from Reese, Pro Series, Curt, and Husky etc.
    view full answer...
  • Curt Q24 5th Wheel Hitch Recommendation for a 2012 Dodge Ram 3500
    Yes, you could use the Curt Custom Rail Kit # C16420-204 that you referenced as a rail kit for a fifth wheel hitch in the bed of your 2012 Dodge Ram 3500 with a 6 ft bed. You will need to get a hitch with a slider to allow you to make 90 degree turns. When the slider is activated it will move the hitch 12 inches further back. I would recommend you get a Curt Q24 5th Wheel Trailer Hitch with R24 Slider # C16546 to go with the # C16420-204. This is a slider hitch that should provide you...
    view full answer...
