Swing-Away Actuator w/ Manual Lockout - Bolt On - Disc - 2" Ball - 7,500 lbs

Item # T4839100

Retail:$357.38

Our Price: $268.95

This item qualifies for free shipping

Quantity:

zoom in icon
zoom out icon
pop out icon replay 360 icon

Product Images

spin image icon
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan
Titan

Videos


  • Surge Brake Actuator
  • Disc Brakes
  • 2 Inch Ball Coupler
  • 7500 lbs GTW
  • Bolt-On
  • Titan
  • Manual Lockout
  • Swing-Away Tongue Coupler

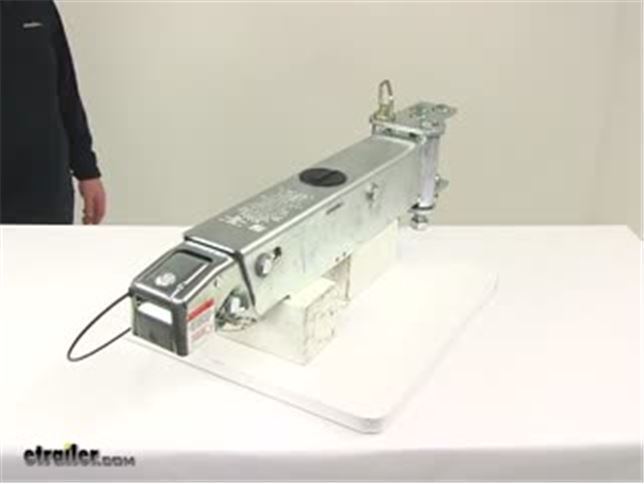

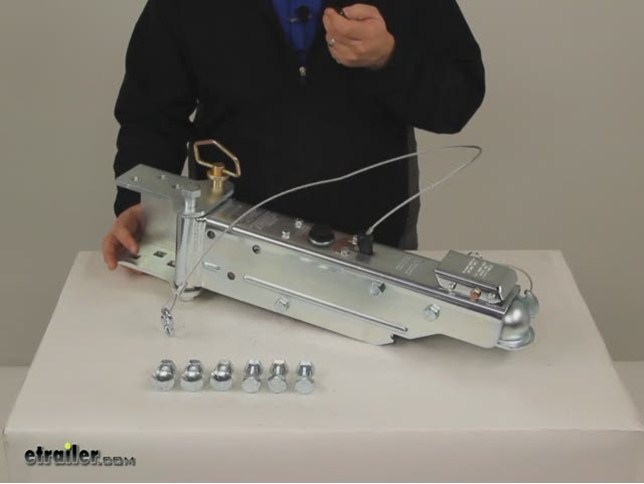

Titan Brake Actuator - T4839100

The lockout switch on this swing-away actuator lets you deactivate your trailer brakes so that you can back up with ease. Foldaway design is perfect for convenient storage of your trailer, even in small garages.


Features:

  • Space-saving, swing-away design
    • Actuator pivots back, creating shorter tongue for storage
    • Foldaway portion can swing either right or left
  • Hydraulic actuator synchronizes trailer brakes with tow-vehicle brakes
  • Manual reverse lockout lets you reverse without actuating your trailer's brakes
    • Easy-to-use lever activates lockout
  • Breakaway kit included
  • Bolt-on installation


Specs:

  • Application: disc brakes
  • Ball size: 2"
  • Overall length: 28-3/4"
  • Pivot length: 23-1/4"
  • Mounting: 3" x 5" wide channel tongue
    • For 3" x 3" channel tongues, use 2 of the Titan Adapter Spacer Kit(T4842100, sold separately)
    • For 3" x 4" channel tongues, use 1 of the Titan Adapter Spacer Kit (T4842100, sold separately)
  • Capacity: 7,500 lbs
  • Maximum tongue weight: 750 lbs
  • 1-Year warranty


Dimensions

When you apply the brakes in your tow vehicle, deceleration occurs and momentum pushes your trailer toward the rear of your vehicle. With surge brake systems, the actuator is triggered as your trailer moves forward while the tow vehicle slows. The actuator telescopes, applying force to its master cylinder, which in turn supplies the necessary hydraulic pressure to engage the trailer's brakes.

The reverse lockout can be engaged with a simple lever on the coupler. Once the lockout has been activated, you can back up your trailer without triggering the trailer brakes. Always remember to disengage the lockout mechanism when preparing to move forward.



4839100 Swing Away Actuator - Disc Brakes - Bolt On



T4839100 Installation InstructionsInstallation Details T4839100 Installation instructions



Video of Swing-Away Actuator w/ Manual Lockout - Bolt On - Disc - 2" Ball - 7,500 lbs


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Titan Brake Actuator T4839100 Review

Today we're going to be taking a look at a Swing-Away Actuator. Now, this is a space-saving, swing-away design, so that the actuator actually swings back, which is going to create a shorter tongue for storage. The foldaway portion can swing either right or left, so you have our pivot bolt right here, and then you have the pin that would be removed. I do want to mention that the pivot bolt can be installed on either side, so it can swing either right or left. Once you remove that pin, basically what you can do is you can take the coupler, or the actuator, and you can rotate it and it brings it down to this, so it allows for a nice space-saving design. It's going to be a perfect solution for convenient storage of your trailer, especially in maybe a smaller, shorter garage, or shorter space. Now, the hydrolic actuator is designed to synchronize the trailer brakes with your tow vehicle brakes. It does come with the manual reverse lock out, so it's going to come with this easy-to-use break lock out bracket.

This actuator includes an electronic solenoid to control the hydrolic break pressure, so you'll only need to use this bracket when not connected to the tow vehicle's 12-volt DC backup light circuit. This is very easy to use. It installs in this area here. When in reverse, that prevents the solenoid from compressing, which is going to prevent your brakes from being engaged when backing up. The unit also comes with a break-away kit. That's this cable and hook.

This connects to your tow vehicle. In the event where your vehicle separates from the trailer, pull the cable, which would activate the trailer's brakes, bringing it to an eventual safe stop. It's a bolt-on installation. The unit is going to feature a steel construction with a zinc coating, so it's going to do a great job at resisting rust and corrosion. It also has a cap right here, so you remove that cap. Underneath that cap is going to be a plug.

You remove that plug and then you'll have access to the brake fluid reservoir. The connection point for the hydrolic line is right at the back of that solenoid. If you can see it in there, I know it's tight to see, but the connection point for the hydrolic line is located right there at the back of the solenoid. Again, manual and hardware is included. It's going to come with a total of six bolts and six lock nuts, three mounting points on top, three mounting points on the bottom. The unit's designed for a 2" hitch ball, it's going to offer a capacity of 7500 pounds, with a maximum towing weight capacity of 750 pounds. The way that you operate the coupler head here is you need to remove this pin.

It's got the thumb latch right here. You do that, lift up, it opens it up to accept a 2" ball. When you have the ball connected, just push this down and then place your pin back through, and it's going to secure it on there. Now, underneath the coupler head is a tab that can be pushed. Right here, there's an indicator that says, Before Towing, push up on the tab under the actuator to assure that the brakes are released. You want to do that every time before you tow, just to make sure your brakes are released. This is designed to work with a 3" by 5" ride channel tongue. If you have a 3" by 3" tongue, or a 3" by 4" tongue, you will need to use an adapter spacer kit, which is sold separately and available here at etrailer.com. I took a measurement of the overall length from very edge to very edge and got about 28-3/4 of an inch, from the center of the pivot bolt to the front measured about 23-1/2, from the center of the pivot bolt to the back measured about 5-1/2 inches. That's going to do it for today's look at the Swing-Away Actuator.
