Part Numbers: RP30928,RP30035
Heavy-duty 5th-wheel hitch has a 1-piece, wraparound jaw and easy-to-see lock indicator for maximum safety and security. Fully articulating head with large landing area and kingpin target make hookup a snap.
Features:
Specs:

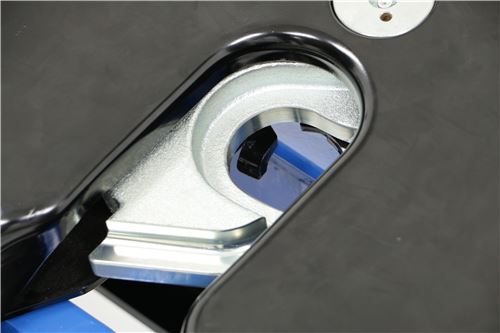

The one-piece jaw on this fifth-wheel hitch provides absolute security with its wraparound design. Increased jaw-to-king-pin contact results in not only a stronger connection, but less noisy rattling and stiff chucking as well.
The jaw is also always ready to receive, so you don't need to use the handle to open it before backing up toward your trailer. As long as the bail pin is removed from the latching handle, the jaw will accept the king pin as it enters the hitch.
Finally, the jaw is self-latching, so it will automatically secure your trailer's king pin when it moves into the jaw.
In addition to the tight jaw tolerance, a close connection between the head and the pivot bushings further reduces rattle and movement. And because the pivot bushings are independent from the head, they can be tightened to ensure a strong connection over time.

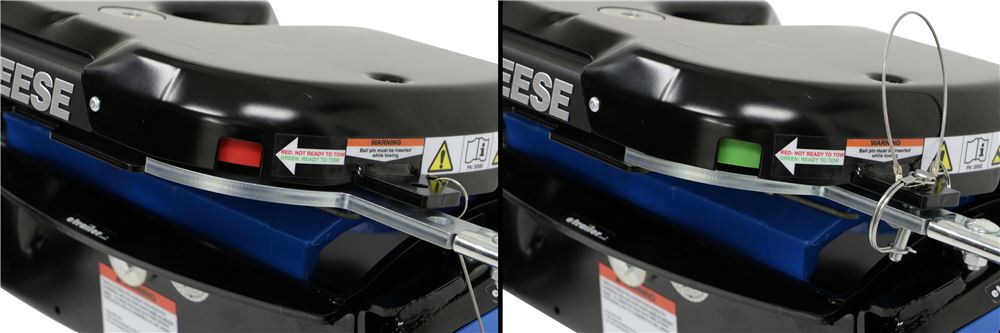

This M5 hitch features a built-in king pin indicator to ensure proper hookup. This indicator is located on the back of the head along with a V-shaped notch that are both visible from the cab of your truck. The V-notch is lined up with the jaw at the front of the hitch, and can be used as a guiding point to line the king pin up with the jaw as you back up your truck. The jaw also has an internal plate that keeps the king pin from entering if it is too high to enter safely. As a result, the king pin indicator will only change from red to green if the king pin is fully engaged in the jaw.
This hitch's handle is designed for smooth motion and effortless operation. It requires only 2 fingers to use and won't bind up as you pull. In addition, the handle is long, so it's easy to access from outside of your truck bed. And the ergonomic grip makes it comfortable to hold and pull from different angles.
California residents: click here
Install your fifth-wheel trailer hitch with this universal, 10-bolt kit. Rails, brackets and hardware included. Rails mount on top of truck bed floor. Not for use on Reese Elite Series (or Signature Series) models.
Features:
California residents: click here
