Part Numbers: C86JR,C16429-204
Get the same heavy-duty hauling power that you expect from a 5th-wheel hitch, but in an easy-to-lift unit that you can remove by yourself. Innovative coupling system makes it easier than ever to hitch up, especially with a 3rd-brake-light camera.
Features:
Specs:
Note: Is not compatible with Curt X5 5th-wheel base rail adapter (16210).

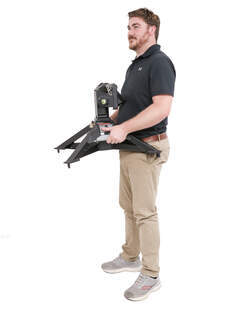

When you think of a fifth-wheel hitch, you probably think of a cumbersome, heavy-duty piece of equipment that sits in your truck bed and stays there because of the tremendous effort it takes to remove it. Well, the Curt CrossWing offers the same rugged performance and heavy-duty hauling power that you'd expect from a fifth-wheel hitch, but it's lightweight enough to be easily moved in and out of your truck. This hitch weighs just 60 lbs, which is 65-percent lighter than a standard hitch. But while it may be lightweight, no sacrifices were made in the quality of its construction. The CrossWing features premium steel and a reinforced head connection point that offers superior strength and reliability for towing loads up to 20,000 lbs.
If you've ever towed a 5th-wheel trailer, you know that the coupling process can be a hassle because of the precision required to ensure a proper connection. You have to painstakingly guide the hitch's pincer-like jaws around a small, cylindrical king pin, which is easier said than done. Coupling can be such a finicky process, that some 5th-wheel hitches even use a color-coded indicator to alert you when you're properly connected.
An improper connection can result in high pinning, which is when the king pin on the trailer looks like it's in the jaws, but it's actually sitting higher than the fifth-wheel hitch. With the CrossWing, high pinning and finicky coupling are things of the past.
This is thanks to the wedge-shaped coupler piece that bolts around your trailer's king pin and remains there, separate from the hitch base. Not only does this further cut down on the weight of the hitch, but it also ensures that you don't get the rattling that occurs when a king pin sits inside of the jaws on a traditional hitch.
When hooking up with the Curt CrossWing you can clearly see when the bolted-on pin box coupler is in place in the hitch base head from the comfort of your truck cab. The contact point of the head is a large, open-faced funnel that makes it easy to guide the coupler into place as you back into it. This funnel-shaped head also allows for fore, aft, and lateral articulation, so you can easily hitch up on uneven terrain.
This already simplified process of coupling with the Curt CrossWing is made even easier when paired with a 3rd-brake-light backup camera. The positioning of the CrossWing and the angle of its head lines up perfectly with this type of backup camera, allowing you to watch the coupler as it glides into place. Once the pin box coupler is nestled within the head channel, all you have to do is lock it into place with the easy-to-reach, ergonomic handle.
The CrossWing features Curt's innovative ShockDrop technology, which is engineered to suppress jerking, jarring, and chucking while you're towing. This durable, polyurethane material sits at the pivot point of the hitch head and absorbs excess shock so that it doesn't transfer from the truck to your trailer or vice versa. The result is increased control and comfort as you tow, as well as less wear and tear on your towing setup.
California residents: click here
Install your fifth-wheel trailer hitch in half the time with this vehicle-specific bracket kit. Requires no drilling and provides a custom fit for your vehicle. Includes everything you need for installation.
Features:
well packaged and well made.
Very fast delivery!
FAST SHIPPING GOOD QUALITY
This hitch is light weight (70lbs) easy to install and connect to the trailer. It is completely quiet and has no chucking at all.
Customer service is terrible, will not buy from etrailer.
Easy install! Haven't taken it out yet so cannot comment on performance.
This is our third hitch purchased and it is the best one we've used so far. Its fast, simple and light weight which makes it very easy to assemble and disassemble.
Excellent hitch! The only torque of 350 lbs. on a couple of the bolts. I’ve only been able to torque them to 250 lbs. It tows awesome and is an amazing hitch.
We've had the crosswing for a year now. We've towed our 38 ft 5th wheel 1000s of miles with no issues. It's a game changer. Easy installation. It's easily removed from the truck bed with one person and small enough to store without taking up a huge space. We have tons of space left in the bed for other things we take camping. There is absolutely no bucking as with our previous hitch and it makes towing easy. They really broke the mold when they made this product!
This hitch has been great for me towing my 14k 5th wheel. The innovative design makes it easy to hitch up, and the 8" offset allows nearly 90 degree turns with my F-350 short bed. The lighter weight is a bonus. I had a small issue and Curt was quick with resolution.
Everything seems fine but I do have a little clunk at the "V" connection point when braking from a forward movement. Otherwise easy install, lightweight and a solid connection to my Gooseball.
I bought this a few months ago and this is a great hitch. I will be towing with this tomorrow and can't wait to see how it performs. Easy attachment to the 5th Wheel. The worst part about this hitch assembly was getting 300 foot pounds of torque on the head bolt. Assembly hint, torque this bolt from the bolt head and put your wrench on the nut side. Once I did this I was able to get the required torque on this bolt.
This hitch has been amazing. I can't figure out how it's not more popular. I installed the a rail system that fits into the pucks on my chevy 2500 to make it even easier to install/remove. Here's what I love about it.
1. Super easy to hitch, unhitch.
2. Takes up very little room in the truck bed.
3. Lightweight and easy to remove when not in use.
4. Smooth ride.
We love it and I've already recommended to a friend who recently replaced his 250 lb B&W with the Crosswing and he loves it too. Don't hesitate to purchase.
I traded my Curt 16k slider hitch for this new crosswing
It definitely moved my trailer back 5 inches and I do not see the need for the slide hitch I rarely used.
It is lightweight and easy to manage by yourself ( my old one was just too heavy )
The new hitch has nearly eliminated all of the chucking and bucking.
Very disappointed! After purchasing this and taking a test tow I experienced excessive chucking. Made the ride very uncomfortable. I tried to adjust the height but didin't have enough adjustment to get things level. When I have pulled the rig before the chucking was minimal, not sure if the height is the problem or the 5" offset. When I requested a return etrailer would allow it. Now I stuck with a hitch I can't use.
The Crosswing hitch arrived promptly from etrailer. The hitch is of good quality and functions well. Etrailer customer service has been great throughout! Highly recommended.
I am very happy with the hitch. The turning radius has been great and because of this hitch, I do not need to have a sliding style hitch as originally suggested by most sources.
The time for install on the instructions is way off 40 min (professional) 80 min (DIY) I installed this kit on a 2025 3500 silverado long bed. It also has the factory overload springs whis also contributed to some of the issue. The left front cross rail bolts are on top of the fuel tank so it's a bit tight. The right side bolts are between the heat shield for the exhaust and the bed. I had to remove the shield to get access to the cross rail nuts. The U bolt was another issue as they were about 1/2" to long and would contact the springs when loaded. The last thing is I was shorted 1 carige bolt. Out side of that it's inatalled and seems to work as designed.
This this is awesome. Very light and easy to get into and out of the bed by myself. I was nervous at first, but I wont go back to a standard hitch. very quiet compared to my Reese 5th wheel
