Towing? There's an app for that. This brake controller connects to your phone with Bluetooth so all your settings are right in your hand. The plug-and-play unit mounts under your dashboard, out of sight and out of your way.
Features:
Specs:
Pair with other OneControl systems for convenient control of your trailer in one app!
Quick Tip: The Bluetooth PIN for initially pairing to your smart device is located in the quick reference guide!
Note: If Bluetooth connection is lost, the brake controller will continue to function safely, using the most recently programmed settings. This brake controller is not compatible, but will not interfere, with Apple CarPlay or Android Auto.
The Curt Echo under-dash is all about convenience. With the main unit mounted out of sight beneath the dash, all you need is your smartphone to control the settings on the brake controller. You won't have to worry about banging your knee on a bulky controller, cluttering up your dash, or ruining the sleek look of your interior.
The Echo is unique for giving you control of your towing through your smartphone. You can set the maximum braking output, adjust the braking sensitivity, apply the manual override - all from the OneControl app.
The Echo connects to the app via Bluetooth. You can save multiple trailer profiles in the app, a big plus if you have a fleet and want to be able to just select a pre-set configuration and get towing. And don't worry: after you've downloaded the app, you don't need to have data on to use the app with the brake controller. You'll be able to receive calls and texts and access your other apps.
OneControl App
Simple, intuitive, and user-friendly, the OneControl App makes it wicked easy to manage your settings and control your trailer.
1. Manual Override
This big orange button in the middle of the app is your manual override. Press and hold the button, and the brake controller will smoothly apply the trailer brakes without applying your vehicle's brakes. This is perfect for stopping sway or controlling your trailer's momentum in an emergency.
Quick tip: Put manual override right at your fingertips by adding this button (C83HR - sold separately) to your dash. The app must be running for the button to work, but it can be in the background while you use other apps on your phone. The button has an adhesive back and runs on a replaceable battery.
2. Brake Output Indicator
The outer ring gives you a visual indicator of how much power is being applied to the trailer brakes. This is determined by your max output setting.
3. Max Output
Braking output is the maximum amount of power that will be applied to your trailer's brakes. How much braking output you need is determined by the weight of your trailer; a heavier trailer will need more power to bring it to a stop.
To set your maximum braking output, tap this button and increase or decrease using the + and - buttons. You want to set the braking output as high as you can without locking up the brakes.
4. Sensitivity Level
This controls the aggressiveness of your trailer's braking, meaning how quickly the brakes reach the max output level. This is a great adjustment to make when you're towing a heavy load and the trailer will need more umph to bring it to a stop so it doesn't push your vehicle forward.
Just like max output, if you need to change your sensitivity level, use the + and - buttons. If your vehicle takes too long to come to a stop, increase the setting. If it stops too abruptly, lower the setting. You may also need to adjust the sensitivity based on your own preferences, or when the trailer load or road conditions change.
5. Vehicle Hazard Lights
If you turn on your vehicle's hazard lights, there's a chance the trailer brakes will pulse on and off as the lights flash. Turn this setting on any time you activate your hazard lights to prevent this problem.
Save Multiple Trailer Profiles
Get on the road faster by saving your settings. With the app, you can add and store multiple profiles for both trailers and vehicles so that your preferred settings will be ready to go as soon as you hook up. This is perfect if you own a fleet and don't want to have to reset the controller every time you swap out trailers. You'll have the ideal settings saved and waiting for you. To switch between profiles, just swipe left or right.
If you like the idea of monitoring your trailer from your phone, the other OneControl systems could be a great fit for you.
The Curt True Course (C94VV - sold separately) is an advanced Bluetooth sway control system that automatically triggers the trailer brakes (independent of the vehicle's brakes and the brake controller) when it detects dangerous trailer movement. The Curt Tire Linc (C54VV - sold separately) Bluetooth TPMS monitors the temperature and pressure of your trailer tires. All of these systems use the OneControl app so you can manage all of them in the same place on your phone.
You won't be dinging your knee on a bulky brake controller or interfering with your vehicle's lower airbags because the main unit mounts out of sight under your dash. This product comes with an adhesive pad and 4 zip ties to make it easy to mount anywhere. (Just don't zip-tie the box to wiring or cables that can shift as you drive!) Thanks to the 3-axis accelerometer, the main unit can be positioned at any angle. No matter how you install it, the unit will sense the direction of travel and deliver smooth, even braking.
The easiest way to install this brake controller is to get a custom, vehicle-specific adapter (sold separately) that plugs right into both your vehicle and the main unit - no hardwiring required. Otherwise you'll have to get a univeral harness and potentially splice into your wiring.
Note: If a custom brake control wiring adapter is not available for your vehicle, a 30-amp circuit breaker (sold separately) may be required for installation.
That done, download the OneControl app on your Apple or Android smartphone and wirelessly pair the unit to your phone via Bluetooth, following the in-app instructions. It should take about 5 seconds for them to pair. Once paired, the LED light on the unit will turn a solid blue. Plug in your trailer's 7-way and let the whole system calibrate for another 5 seconds. When the LED turns green, configure your desired trailer brake settings and save it as a profile. Then you're ready to tow!
Note: If you don't already have a 7-way plug at the back of your vehicle, take a look at our exclusive 7- and 4-way brake controller installation kit (ETBC7 - sold separately).
Proportional braking means that your trailer brakes mimic your tow vehicle's brakes. If you slam on the brakes in your vehicle, your trailer brakes hard; if you brake lightly, your trailer brakes lightly too. The trailer's braking is in proportion to your vehicle's braking. This saves wear and tear on the tires and the brakes on both your vehicle and trailer.
The Echo under-dash uses an internal 3-axis accelerometer to sense how your vehicle is braking so it can send the right amount of braking power to your trailer. It measures the inertia of your tow vehicle and activates the trailer's brakes to ensure that your trailer slows at the same rate. The result is uniform braking across your towing setup. No push-pull action - just smooth, proportional braking every time.
California residents: click here
This wiring adapter is designed for vehicles that do not come equipped with a factory brake control wiring harness port. One end plugs into your Curt trailer brake controller while the other end splices into your vehicle's wiring.
Features:
To install your Curt electric brake controller, you need to connect the wiring of the controller to your vehicle. Certain auto manufacturers offer pre-wired options, typically known as tow packages, wherein wiring is run for you from the dash to the trailer connector on the back of your vehicle. Usually when this is done, a port is installed at your dash so that you can easily plug in a brake controller. However, if no port is present, you will have to splice into your wiring.
With this universal adapter, you can install your Curt brake controller without having to wire the controller directly to your vehicle. If your vehicle has a factory tow package, just splice the pigtail end of the adapter into your vehicle's factory brake control harness wiring, and then plug the other end of the adapter into the controller. If your vehicle doesn't have a factory tow package, you'll have to hardwire the pigtail end of the adapter into your vehicle's wiring. Because only the adapter is hardwired to your vehicle, you can unplug and remove your brake controller at any time to transfer it to another vehicle or securely stow it away.
If your vehicle is not equipped with a factory tow package, you will need to purchase additional equipment to ensure that the signals from your brake controller are sent to your trailer's brakes. We recommend etrailer.com's exclusive 7- and 4-way brake control installation kit (ETBC7 - sold separately).
California residents: click here
I got this for my 2016 GMC Canyon because it didn't come with an integrated brake controller even though my truck has the tow package. Because it had the tow package I had wires already set up for a brake controller all I had to do was splice an adapter into them. I bought the Curt Universal Splice in Adapter part #C51515 in addition to the Curt TriFlex NEXT Proportional Brake Controller part #C72YV. Everything works perfectly, I soldered the adapter to my trucks wires that I mentioned earlier instead of using butt connectors for a more secure and reliable connection then I also wrapped the wires coming out of the brake controller in electrical tape for additional protection and so they blend in with the interior of my truck better. Over all a very simple install and was able to be done in about 2 hours. 10/10 recommended
The break controller worked seamlessly. Profiles are easy to set up and it has very reliable Bluetooth connectivity with my phone. Installation was really easy on my Honda Pilot!
Made installation very easy
Perfect fit excellent price install vid eos.
This is my first proportional brake controller. Stopping is much smoother without sacrificing safety. Communication by bluetooth makes for a clean installation.
Do not buy either the Curt Under-Dash or plug-in Wireless brake controllers until Lippert fixes the phone app. I’ve used both happily with the old ECHO Smart Control app. I could use the remote manual button with the phone app not even running. As one would reasonably expect the button talked to the controller directly via Bluetooth. The new OneControl Auto app must be running and in the foreground to use the manual remote! And the most recent version of ECHO Smart Control is non-functional, it just tells you to install OneControl Auto.
I have the Dodge Ram Truck 94 model with factory wire 7 connector plug. This is the truck that many people can't find the blue wire under the dash. 94 model didn't come with a factory wire plug under the dash like later models have. I found the wire tape to the main wiring harness about two inches from the fire wall to the right of the emergency brake paddle. This harness worked great
this went into my VW Touareg which requires the relay modification described in the Technical Bulletin. Because ground and +12V is already present in the harness, instead of running additional cables, I soldered the relay right into the cable, making it a clean plug and play setup which is 100% removable. I also bought the VW housing and wire kit to complete the install
Great service and sold me what I needed to make my install seamless!!

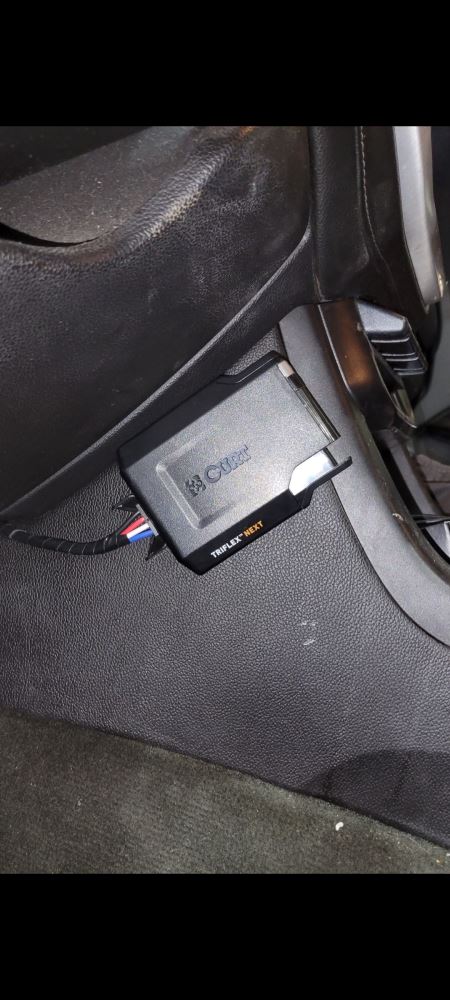

These are perfect for Curt brake controllers since the Triflex Next,
Spectrum, and under dash Echo brake controllers come with the connector prewired. This makes it so I don't have to cut the other end to make it all work, much cleaner.
worked great!!
I needed a trailer brake wire wire harness and connector. David verified the correct parts and I received it in a few days. Thanks
This was relatively easy to install under the dash of our 2021 Jeep Grand Cherokee, especially since ours has the factory Trailer Tow Package and therefore an existing pigtail connector ready to connect to the brake controller. The Curt wiring adapter made it super easy to connect the Brake Controller to the vehicle's wiring harness. The controller was easy to calibrate and worked seamlessly while we're towing a rented trailer. We used a dedicated (older) cell phone to operate it while we're towing to avoid any potential interference from other apps rather than using our regular phone on which we receive phone calls texts, etc. This was our first time towing a trailer and this easy-to-use Brake Controller helped make us feel safe and comfortable. Highly recommended.
Not too difficult to install, but I would recommend using a car lift so you don't have to work from your back (review includes wiring harness and 4-7 Pole Adapter)
The Curt Echo is now on my Nissan Armada and works perfectly. It was an easy hookup with the supplied harness and does its job.
Worked perfectly with the Curt Spectrum.
works. I had to have this for a vehicle that didn't come pre-installed
Outstanding service and a quality produ ct!
Wiring up a brake controller can be tricky. Routing the wire from the hitch to the firewall and finding the right wire on the brake are the hardest part, but etrailer will do their best to help.
Consider running the wire inside the car along the door bottom just under the carpet. This avoids problems with the tie-wraps under the car -- there just isn't anywhere to tie wrap under the middle of the car. Use "loom clamps" ordered separately to solve this problem, if you go under the car.
To find the right brake wire without cutting insulation, use the fish wire from the hitch install to contact the end of the wire inside the connector (from the back). Then touch the fish wire with the continuity tester and apply the brake pedal. My brake had a four wire connector and I found the right one on the second try.
If you find a hole in the firewall with a rubber plug in it, don't discard the plug. Make a short slice in it with a razor blade and push the wires through. You may have to work the wires around to get them through the carpet. Be patient.
Be sure to watch all the videos and allow plenty of time, taking a break before you tackle the hard parts. Rest assured that doing it yourself is better than allowing UHaul to cut corners and charge you labor. :-)
If you are doing the hitch install and four-wire harness, those are much easier. If you are installing the hitch alone, be sure to have a magnet wand for when you push the bolt up into the frame rail. If I had it to do again, I would use a little electrical tape to hold the bolts down so a slight bump wouldn't knock them up.
I bought a 7 pin trailer wiring/brake connection for my Dodge pickup. I installed it myself, the instructions were absolutely clear and correct. It was an easy installation. In the year since, I've pulled my trailer (tandem axle, 16') many times. The brakes continue to work perfectly as well as the lights. The connectors are solid, all work just like new. I recommend Etrailer parts and their people 100%!
Howard S.
4/6/2018
Still working great. Not any problems. A great product
I own a 2008 Chevy Silverado. I ordered the brake controller - C51515 and the universal wiring adapter on Friday and received it on Tuesday. My friend who is a mechanic installed it in about an hour on Wednesday. I towed my camper trailer to Lincoln, NE (about a 5 hour trip) on Thursday and returned on Sunday. After reading the settings instructions, all stops were made smooth and firm. Etrailer.com was great and the Curt Trailer Brake Controller is excellent!
Biscuitsngravy
10/21/2014
I have enjoyed the use of the electric brake controller. The stops are always safe and smooth. Im glad I got it for my truck and Ive never had a problem with it. I just need to get out and use my camper more! The initial contact with etrailer.com was very favorable and I will do business with them again when I need something for my trailers or tow vehicles.
I purchased the wiring harness to aid with hooking up the Curt Brake Controller I had previously purchased. The shipment was fast. The product was perfect. The on-line installation video was perfect and allowed me to complete the installation like a professional. I have never purchased anything from etrailer.com .... but should I ever need anything in the future, they will be my first choice.
Ted
7/3/2015
Perfectly. No issues at all with wiring or controller.
Excellent web site with great installation videos and application info.
Easy ordering with good feedback notifications and prompt delivery.
Trailer Brake Controller works very well and as described on your web site. I will do business with you again and recommend you to my auto club.
Charles B.
6/9/2016
Worked fine, but sold vehicle 6 months ago.
This is a "must have" if your vehicle did not come with a "tow package". If your vehicle does have a tow package try to get the correct wiring adapter and you can just plug it in without having to make wiring connections.
Peter
6/23/2022
So far, so good!
