Curt Discovery Trailer Brake Controller - 1 to 4 Axles - Time Delayed
part number: C51120

Electronic controller activates electric trailer brakes with a preset intensity when you apply the brakes in your vehicle. Power output and braking aggressiveness are easily adjustable. Includes easy-to-read digital display and manual override.


  • Brake controller activates trailer brakes with preset intensity
    • Signal is sent to trailer brakes when tow vehicle's brakes are activated
  • Adjustable, thumbwheel power output control lets you determine the amount of braking force
    • Set to maximum when you travel through hilly terrain with a fully loaded trailer
    • Back off the power output when you tow a lightweight trailer
  • Sync setting lets you adjust the aggressiveness with which the brakes are activated
    • Get full power output faster by moving slide-bar switch forward to increase activation speed
    • Achieve smoother braking by moving switch in opposite direction to supply power gradually
  • Easy-to-read digital display communicates brake force output, sync setting, and error codes
  • Self-diagnostics function monitors trailer connection and checks for shorts
  • Built-in, slide-bar manual override
  • Quick and easy installation
    • No need to mount level like proportional brake controllers
    • Mounting bracket and hardware included
    • Plug-in, vehicle-specific brake control adapter (sold separately) can be used for certain applications to reduce installation time


  • Application: trailers with up to 4 axles (8 brake assemblies)
    • Designed for use with electric brakes only
  • Limited lifetime warranty

Time-Delayed Braking

The Discovery applies your trailer's brakes when the brake pedal in your tow vehicle is engaged. Every time you apply the brakes in your vehicle, a signal is sent - via the brake switch - to the Discovery. The controller then sends power out to your trailer brakes to activate them with an intensity set by you, at a rate determined by you. Both the amount of braking power (output) and rate of application (sync) can be adjusted to suit your preference, the road conditions, type of trailer, and size of the load. To determine which levels are best for your application, you must test out your towing setup and choose what feels best.

A time-delay controller is so named because there is a delay between the time that you initially apply the brakes in your tow vehicle and the time that the controller reaches maximum power output. Unlike a proportional brake controller, which activates your trailer's brakes based on the deceleration of your tow vehicle, the Discovery sends power out in the same way, with the same gradual delay, no matter the braking situation. Although this delay always exists, it can be adjusted by changing the sync setting.

Built-In Controls for Adjustable Power

Curt Discovery Controls and Components

The above diagram shows the controls and components of the Curt Discovery trailer brake controller.

  1. Digital display
  2. Power output control
  3. Sync control
  4. Slide-bar manual override

Output Control

During the initial setup process, use the thumbwheel control on top of the Discovery to adjust the output. The output control lets you set the maximum amount of power that will be applied to your trailer's brakes. Typically, the output is only readjusted when you experience changing road conditions or if you switch over from a heavy, loaded trailer to a much lighter, empty trailer, or vice versa. To get more power to your brakes, rotate the switch to the right. To decrease the power output, move it to the left. The output setting will appear on the digital display when you press the brake pedal or activate the manual override. This setting ranges from 0 to 10, with 10 indicating maximum output.

Sync Setting

To adjust the aggressiveness of your trailer's braking action, use the slide-bar control on the side of the Discovery to change the sync setting. If you want to reach maximum power output faster, move the switch forward. To get smoother braking action, slide the switch backward, thus supplying power to the trailer brakes more gradually. You can alter the sync setting to suit your driving preferences or to improve handling based on changing road conditions or varied trailer loads. The digital display will only show the sync setting as you adjust it.

Quick, Simple Installation

Because inertia plays no role in the functioning of this controller, you do not have to mount the unit at any particular angle. As a result, mounting options are limitless, so long as you can still easily access the controller.

Installation of the Discovery requires that you either purchase a custom wiring adapter designed to plug into the controller or that you hardwire the controller directly into your vehicle. To hardwire the Discovery, you must remove the plug at the end of the integrated wiring harness.

Installation Accessories

For easier installation, a vehicle-specific wiring adapter (sold separately) is available for most newer trucks and SUVs. One end of the custom adapter plugs into your vehicle, and the other end plugs into the controller - no hardwiring required.

Note: If a custom brake control wiring adapter is not available for your vehicle, one of the following will be required:

20-Amp circuit breaker (9506P - sold separately) for 2- to 4-brake applications

30-Amp circuit breaker (38630 - sold separately) for 6- to 8-brake applications

See also etrailer.com's exclusive 7- and 4-way brake control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your vehicle.

51120 Curt Discovery Time Delay Trailer Brake Control

Curt Custom Wiring Adapter for Trailer Brake Controllers - Dual Plug In
part number: C51436

Install your Curt electric trailer brake controller quickly and easily with this custom wiring adapter. Simply plug one end of the adapter into your brake controller and then plug the other end into the built-in port behind your vehicle's dash.


  • Plug-in wiring adapter allows for quick, simple installation of your electric trailer brake controller
  • No cutting or splicing required
    • Custom connector end plugs into the built-in port behind the dash of your vehicle
    • Other end plugs into the back of your electric brake controller
  • Compatible with time-delayed and proportional brake controllers from Curt
    • Brake controller must have built-in plug for adapter to connect - will not work on controllers with pigtail wiring harnesses
  • 2' Long, 12-gauge wires have protective covering to deter damage
  • Limited 1-year warranty

Installation of Curt Brake Controller Adapter

To install your Curt electric brake controller, you need to connect the wiring of the controller to your vehicle. Certain auto manufacturers offer pre-wired options, typically known as tow packages, wherein wiring is run for you from the dash to the trailer connector on the back of your vehicle. When this is done, a port is installed at your dash so that you can easily plug in a brake controller.

This adapter plugs into the port on your vehicle's built-in brake control wiring harness. For most applications, this harness is located behind the dash.

No hardwiring is required to install this adapter. After you plug it into the factory port, you simply plug the other end of the adapter directly into your electric trailer brake controller. Because there are no wires to connect, installation is not permanent. You can unplug and remove your brake controller at any time to transfer it to another vehicle or securely stow it away.

51436 Curt Quick Plug Brake Control Adaptor Harness

Video of Curt Discovery Trailer Brake Controller - 1 to 4 Axles - Time Delayed

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

Video Transcript for Curt Brake Controller C51120 Review

Today we're going to take a look at the Curt Discovery Trailer Brake Controller number C51120. This time delayed brake controller activates trailer brakes with a preset intensity. The signal is sent to the trailer brakes when the tow vehicle's brakes are activated.It has an adjustable thumb wheel power output that allows you to determine the amount of breaking force you would set to the maximum when you travel through a more hilly terrain with a fully loaded trailer and you would back off the power output when you're towing a smaller more lightweight trailer.It also features a sink switch here on the side. It allows you to adjust the aggressiveness of the brakes. If you want it full power in this position right here. It will increase the activation speed of the brakes and you would move it back in the opposite direction to achieve a smoother braking by supplying the power more gradually.

It has an easy to read digital display that communicates brake force output, sink setting and air codes and we'll attach this to a power supply in just a moment so you can see that a little better. Self-diagnostics function monitors the trailer connection and checks for shorts. It has a built in slide bar emergency manual override and again we'll discuss that more in just a moment. It has also has a quick and easy installation. It comes with the mounting bracket right here.

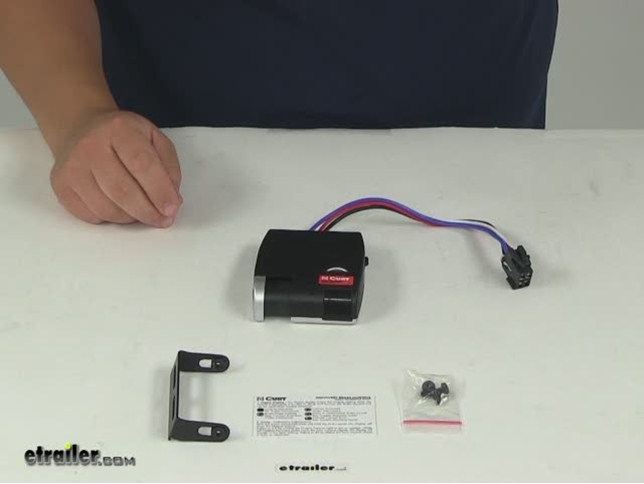

The screws to attach the bracket to the controller as well as a quick reference card if you have any questions. One of the differences between the time delay brake controller and a proportional brake controller is there's no need to mount this one level the way you would a proportional controller.You can mount it up, down, side to side, as long as you can see the digital display you're good to go. This application is for trailers up to four axles or eight brake assemblies. It's designed for use with electric brakes only and it does have a limited lifetime warranty. Now we're going to attach it to our power supply and the wiring harness that we're using here is the Curt Universal Wiring Adapter for Curt Trailer Brake Controllers, number C51515.

This particular harness ends in a pigtail and it is intended for vehicles who do not come with a factory installed brake controller port. Now when you hit the brake you will be able to see the digital display and say right here we'll use our output knob here. You can go from zero to ten and we'll set that at five for right now and over here our sink all the way to nine and then slide it back to zero. We will put that at five as well. When we talk about our emergency manual override say youre in traffic and somebody cuts you off and you have to hit the brakes really quick what you would do is hitch your emergency manual override and instead of the normal amount of time it would take for the trailer brakes to brake this removes the time delay function and the maximum output that you had preset it goes to the brakes immediately to help slow you down to prevent any accidents.

That should just about do it for our Curt Discovery Trailer Brake Controller number C51120.
