Redarc Tow-Pro Classic Trailer Brake Controller - 1 to 3 Axles - Preset
part number: 331-EBRHV2

Mount the control knob of this brake controller on your dash or console, and affix the main unit in an out-of-the-way spot. Controller activates trailer brakes with a preset intensity when you apply the brakes in your vehicle. Great for off-roading.

Features:

  • Brake controller activates trailer brakes with preset intensity
    • Signal is sent to trailer brakes when tow vehicle's brakes are activated
    • Immediate activation is great for off-roading
  • Control knob mounts in dash or other easily accessible area
    • Allows for fast and easy adjustment of braking power with turn of the dial
    • Provides accessible manual override - just press the knob to activate
    • Offers simple diagnostics with bright, colored LED
  • Main unit installs out of sight
    • No more banging your knee on a bulky controller
    • No interference with airbags or other vehicle accessories
    • No hard-to-reach override lever or impossible-to-read screen
  • Made in Australia


Specs:

  • Application: trailers with up to 3 axles (6 brake assemblies)
    • Designed for use with electric or electric-over-hydraulic trailer brakes
    • Works with 12-volt vehicle electrical systems
  • Main unit dimensions: 3-3/8" long x 3-15/16" wide x 1-1/8" tall
  • Control knob dimensions: 2-3/8" long x 3/4" wide x 7/8" tall
  • Output voltage range: 9V - 16V
  • Output current rating: 25 amp continuous
  • Maximum charging voltage: 12V DC
  • 2-Year warranty


Redarc Tow Pro Classic Remote Head Diagram

Preset, User Controlled Braking

The Tow-Pro Classic applies your trailer's brakes when the brake pedal in your tow vehicle is engaged. Every time you apply the brakes in your vehicle, a signal is sent - via the brake switch - to the controller. The controller then sends power out to your trailer brakes to activate them with an intensity set by you. The amount of braking power can be adjusted to suit your preference, the road conditions, type of trailer, and size of the load. To determine which level is best for your application, you must test out your towing setup and choose what feels best.


Unlike a proportional brake controller, which activates your trailer's brakes based on the deceleration of your tow vehicle, the Tow-Pro Classic sends power out in the same way each time the brakes are engaged, no matter the braking situation. This means that you have complete control over each braking event.


Having this control over your braking is particularly important when overlanding or towing a trailer off-road because you may need to alter the trailer's braking based on the specific terrain and situation that you find yourself in. If you tow through sand or mud, for example, you'll want to keep the Classic's braking power turned down low so that when you activate the brakes in your vehicle, the trailer doesn't stop with too much force and bite into the sand. In this instance, if the braking intensity is set too high, your trailer can act as an anchor on your vehicle.


If you are towing a trailer down a steep descent, you will want to have the brake power set to a higher level to ensure that the trailer's momentum doesn't cause it to push against the tow vehicle. The fact that this controller activates your trailer's brakes immediately is helpful in this situation as well. Unlike a time-delayed controller, the Classic makes sure your trailer brakes activate as soon as you apply your vehicle's brakes, which is particularly important when you're traveling down a steep hill.


Tow-Pro Classic Operation

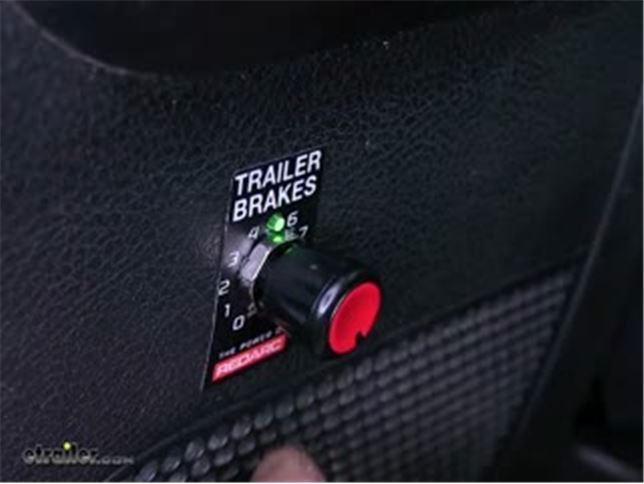

The dash-mountable control knob on the Tow-Pro Classic makes it easy to control your trailer's brakes. In addition to offering fast, simple power adjustment, this knob has an LED indicator that changes color to display different information about the controller.


Redarc Tow Pro Classic User Controlled LED Signal

A solid green LED light on the control knob will signal that the unit is connected to your trailer's brakes.


This knob lets you set the maximum amount of power that will be applied to your trailer's brakes. Typically, this power is only readjusted when you experience changing road conditions or if you switch over from a heavy, loaded trailer to a much lighter, empty trailer, or vice versa. To get more power to your brakes, rotate the switch clockwise. To decrease the power output, rotate it counterclockwise.


Redarc Tow Pro Classic Brake LED Intensity

When you apply the tow vehicle's brakes, a red LED light will signal that power is being sent back to the trailer brakes. As you increase brake power with the control knob, the light will glow brighter, indicating the increased braking power.


This light will also glow at its brightest when the manual override is activated. To engage the manual override, just push down on the control knob and the trailer's brakes will activate with an intensity that matches the preset power level on the controller. Once you stop adjusting the power, or once the override is released, the LED light will fade to its normal appearance. This is designed to be easier on your eyes at night, while still presenting a visual indicator.


Simple, Out-of-the-Way Installation

The Tow-Pro Classic comes in 2 pieces - the main electronic unit and the control knob. Because the only part that you need to be able to access is the control knob, the main unit can be mounted in an out-of-the-way location. So you no longer have to worry about a bulky brake controller scraping against your leg or causing interference with your vehicle's lower airbags.


Redarc Tow Pro Elite Classic Mounted Remote Knob

The dash-mountable control knob can be mounted in a convenient spot that is easy for you to see and access. This can be a blank switch panel, an open area on your center console, or wherever there's space on your dashboard.


Once you have determined where to mount the control knob, you will want to find a good place to install the main unit. The only mounting restriction for the unit is that the included 3' plug-in cable is able to reach between the main unit and the control knob.


The included connector plugs into the main unit so that, once wired, you can easily unplug and remove the unit if you need too. This connector does not come pre-wired. You will have to use 16-gauge wire (16-1-1 - sold separately) to make the connections between the connector and your vehicle.


For assistance in properly wiring the Tow-Pro Classic, please refer to the diagram below:


Redarc Tow Pro Classic Wiring Diagram

Installation Accessories

See etrailer.com's exclusive 7- and 4-way brake-control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your vehicle.


Note: A 30-amp circuit breaker kit (331-CBK30-EB - sold separately) may be required for installation.



EBRHV2 REDARC Tow Pro Classic Trailer Brake Controller - 1 to 3 Axles - User Controlled





TrailerMate Custom Wiring Adapter for Trailer Brake Controllers - Pigtail
part number: TM75272

Ease installation of your electric trailer brake controller by using this custom wiring adapter. Simply connect the 4 wires of the harness to your brake controller and then plug the other end into the built-in port behind your vehicle's dash.

Features:

  • Pigtail wiring adapter eases installation of your electric trailer brake controller
  • Connector end plugs into the built-in port behind the dash of your vehicle
  • Wire end connects to the wires on your brake controller with the included butt connectors
    • Compatible with time-delayed and proportional brake controllers from TrailerMate, Draw-Tite, and Tekonsha
  • Stranded copper wires ensure long life
  • Limited lifetime warranty


Installation of TrailerMate Brake Controller Adapter

To install your electric brake controller, you need to connect the wiring of the controller to your vehicle. Certain auto manufacturers offer pre-wired options, typically known as tow packages, wherein wiring is run for you from the dash to the trailer connector on the back of your vehicle. When this is done, a port is installed at your dash so that you can easily plug in a brake controller.


This adapter plugs into the port on your vehicle's built-in brake control wiring harness, which is located behind the dashboard. To access this connector, you will need to remove the finish panel in your dash. Plug the adapter into the connector in the large gray housing behind the panel.


To hook this adapter up to your trailer brake controller, just connect the 4 wires of the harness - ground, power, brake switch, and brake power - to the corresponding wires on the brake controller. If your brake controller came with a plug built into its wiring harness, you will have to cut off the plug and connect to the wires themselves.



75272 Trailer Mate Single Plug, Direct Install Brake Control Wiring Harness Adaptor





Video of Redarc Tow-Pro Classic Trailer Brake Controller - 1 to 3 Axles - Preset


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Redarc Brake Controller 331-EBRHV2 Review

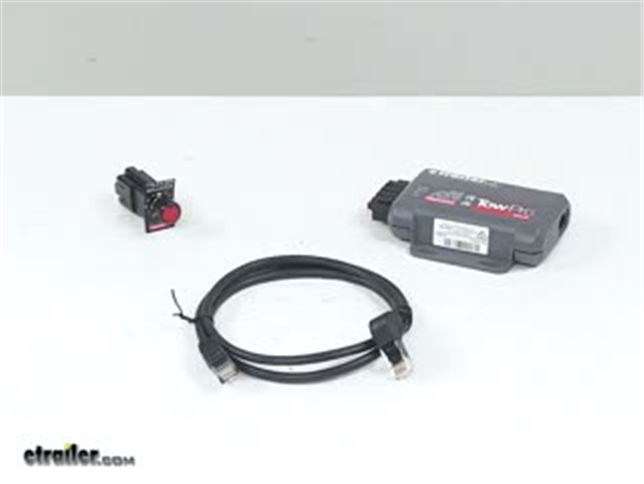

Speaker 1: Today we're taking a look at the Redarc Tow Pro classic trailer brake controller. This brake controller is designed to activate your trailer's electric or electric over hydraulic brakes when you apply the brakes in your tow vehicle. And this brake controller activates your trailer brakes with a preset intensity, so the signal is sent to the trailer brakes when the tow vehicle's brakes are activated. Immediate activation is great for offroading.The control knob, which is this portion here, mounts in the dash or other easily accessible area inside the cab of the vehicle. Nice, small design. The knob right here has a diameter of about 5/8 of an inch, so what you see right here is what's visible from within your vehicle.

This allows for fast and easy adjustment of braking power, with the simple turn of the dial.Now, for lighter braking, you would turn the knob to a lower number. For heavier braking, you'd turn the knob to a higher number. It also provides accessible manual override. All you have to do is press the knob to activate the manual override, which applies the trailer brakes only. So that's designed to be used when the trailer brakes need to be applied without the vehicle brakes, such as a situation where you're trying to correct trailer sway when traveling.It also offers simple diagnostics.

Located right above the control knob is a small LED. So when this is in sleep mode, the LED will be green in color, and it'll fade in and out. When the trailer's connected, it'll be solid green, and when brakes are applied, it'll transition from green to red as you press on the brakes in the vehicle. The main unit, which is the control box right here, this installs completely out of sight, so maybe behind a panel or behind the dash of the vehicle. It can be mounted in any orientation.

Great thing about that is there's no more hitting your knees as you get into or out of your vehicle, so no more bulky controllers, no interference with airbags or other vehicle accessories, and no hard-to-reach override lever or impossible-to-reach screen.The control knob and the main unit connect using the included cable, which measures around 40 inches long. And then the main unit right here connects to your vehicle's wiring directly, or by using a brake control harness. The vehicle wires, or the harness wires, insert into this plug right here, which then inserts into the main unit.The product is made in Australia. It's designed for trailers with up to three axles or six brake assemblies. It's designed for use with electric or electric over hydraulic trailer brakes, and it works with 12 volt vehicle electrical systems.

Now, the main unit right here, it's a nice, small, compact unit. Edge to edge going this direction, it's about 3 15/16 of an inch. Going this direction, 3 3/8, and then the overall thickness is about 1 1/8 inches.You'll notice that it has the mounting bracket built into it, so you can easily mount this with zip ties or some hardware. The control knob right here requires a 3/8 inch diameter hole for installation, and a 1/8 inch diameter hole for the LED. Mounting template is included I the instructions.And then it has this nice backplate right here, which is just an adhesive backing. So you would mount that directly to your panel or to your dash, wherever you're mounting the knob. And it has the numbers on it, it has a little spot for the LED to come through, and then it has the Redarc logo down here at the bottom. But again, once installed, this portion right here is the only portion that's gonna be visible from within the vehicle. So it's completely out of the way.Output voltage range is nine volts to 16 volts. Output current rating is 25 amps continuous, and the maximum charging voltage is 12 volt DC. That's gonna do it for today's look at the Redarc Tow Pro classic trailer brake controller.



Customer Reviews

Redarc Tow-Pro Classic Trailer Brake Controller - 1 to 3 Axles - Preset - 331-EBRHV2

TrailerMate Custom Wiring Adapter for Trailer Brake Controllers - Pigtail - TM75272

Average Customer Rating:  4.8 out of 5 stars   (4 Customer Reviews)

Mount the control knob of this brake controller on your dash or console, and affix the main unit in an out-of-the-way spot. Controller activates trailer brakes with a preset intensity when you apply the brakes in your vehicle. Great for off-roading. Ease installation of your electric trailer brake controller by using this custom wiring adapter. Simply connect the 4 wires of the harness to your brake controller and then plug the other end into the built-in port behind your vehicle's dash.

- 331-EBRHV2

by: Dustin02/18/2018


I’ve been eyeing these Red Arc controllers up for a while. I have a new Cherokee (KL) and there is NO good place for a brake controller in this vehicle. The cabin is tight and there is a knee air bag that prevents traditional mounting under the steering wheel. I ended up mounting the control knob in the dash, next to the headlight switch and everything seems to be working well, so far. The only complaint I have is that I feel the construction of the control knob assembly and controller housing are a bit cheap compared to the cost. I mean really, it wouldn’t take much effort/cost to pot the electrical components which would result in waterproof and more durable components. Overall though, I’m pretty happy with the controller so far and would purchase again. I may pick up the pro model for my Dodge Ram as I do appreciate not having a big controller hanging off the bottom of the dash. 476794



- 331-EBRHV2

by: Keith F04/24/2018


Took me a while to finally get over the price of this brake controller and I'm glad I finally did. It was an easy install, and the control knob was mounted in a perfect spot out of the way and unobtrusive. Exactly why I bought it. I'm very pleased. I installed it myself, but if you are not familiar with wiring then letting a pro install it for you might be the way to go. I personally do not like progressive rate controllers so this is a perfect fit to go in my Jeep JK Wrangler. 500221



- 331-EBRHV2

by: C David04/08/2018


When my brake controller died 6 days before my family trip to Florida, George and the eTrailer team expedited my order and made sure I received the replacement in time to install it before our trip. Great service and a helpful team! Thank you.. 494025



- 331-EBRHV2

by: Robert04/16/2018


Brake controller works well; But I had a hard time finding a location for the button under - behind my dash, ended up locating it on the right side of the steering column still tight but is working. 2010 Honda pilot. 497030
