7 Way Trailer Connector Vehicle Tester

Item # TR20117

lowest price pledge

Our Price: $19.52

Orders above $99 qualify for free shipping


In Stock.
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
Tow Ready
Tow Ready
Tow Ready
Tow Ready
Tow Ready

In Use/Installed

Tow Ready
Tow Ready


  • Tools for Wiring
  • Testers
  • Tow Ready
  • Circuit Tester

Tow Ready Wiring - TR20117

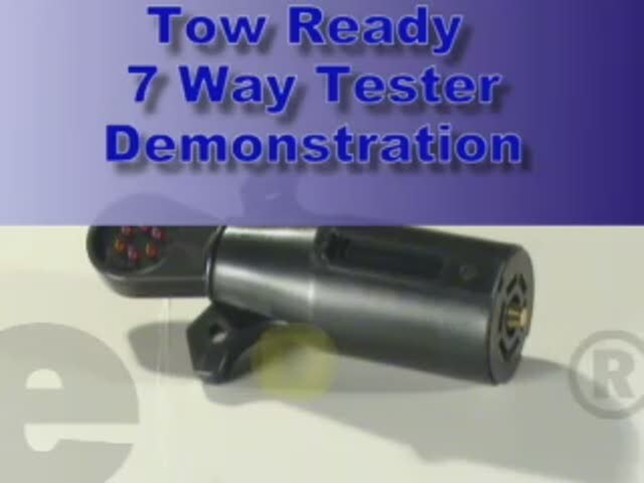

A circuit tester that plugs into the 7-way trailer connector on the vehicle and emulates a trailer. The lights let you know what functions (brake, turn, tail, stop, reverse and 12V) are working properly and what functions are not.


  • 7-way circuit tester
  • 12V power
  • Function Codes:
    • BU: back up or reverse circuit center pole
    • RT: right turn/brake
    • TM: taillights
    • LT: left turn/brake
    • BK: Brake controller output
    • 12V: 12-volt power feed

Note: Designed for use with Tekonsha and Draw-Tite aftermarket brake controllers and Ford OEM brake controllers. May or May not work with other manufacturers brake controllers.

20117 Tow Ready 7 Way Trailer Connector Vehicle Tester

Replaces 18179

TR20117 Installation InstructionsInstallation Details TR20117 Installation instructions

Related Products

Customers compare TR20117 to these similar products

Customers Who Purchased This Wiring Also Bought...

Video of 7 Way Trailer Connector Vehicle Tester

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

Video Transcript for Tow Ready 7 Way Trailer Connector Vehicle Tester Review

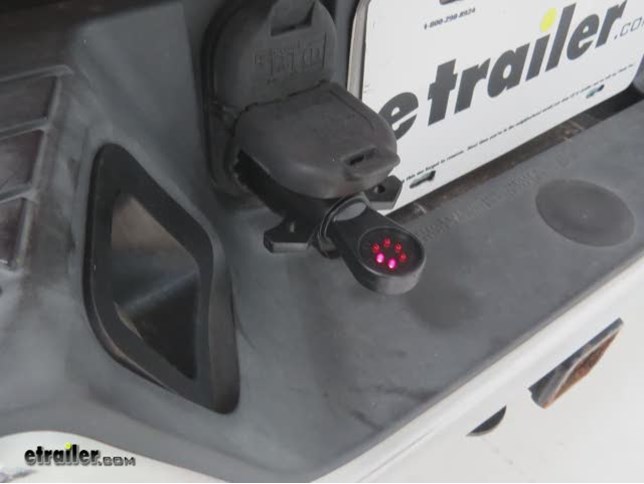

Today we're going to show you the 7-way trailer connector vehicle tester, part number TR20117 from Tow Ready. All right, this is a handy device to keep with your vehicle. You can use this to test your vehicle any time. For instance, you have a problem with your trailer, you're not too sure where to start. Go ahead and use this tool in your 7-pole connector in your truck to verify your truck is working fine, then you know it's on the trailer side. Now the indicators are going to be these LEDs right here.

They have their own markings. TM for the running light circuit or trailer marker lights. LT for left turn, twelve volt power supply, so something in your trailer may require twelve volts like the interior lights or something like that. BK for the output from your brake controller. BU for your backup lights, reverse lights, and RT for your right turn signal.

And bye the way, with the brake controller this test was actually designed for use with Draw-Tite or Tekonsha brake controllers, and also the Ford OEM brake controller as well. This may or may not work with other brands of brake controllers out there. Let's go ahead and plug it into our truck here and show how it works. Just like any other 7-pole connector, you just push it in place. Make sure it's fully installed. You can see where I already have a couple of lights showing up.

One's going to be four a twelve volt power supply, and one's going to be for a brake controller outlet. All right, in this case our brake controller sends out a small trace current to look for a completed circuit, so that's why we have it lit up already and we're not even using our controller. That's perfectly normal. Okay Let's go ahead and try the running light circuit next. All right, that's our indication for the running lights.

Let's try our left turn signal. Okay. Now let's try our right turn signal. Okay. Let's look for our brake signal, which would be indication on our left turn and right turn signals. Okay. All right, and now we'll go ahead and try our back up lights, which we will put the vehicle in reverse. That will finish it for part number TR20117, the 7-way trailer connector vehicle tester from Tow Ready.
